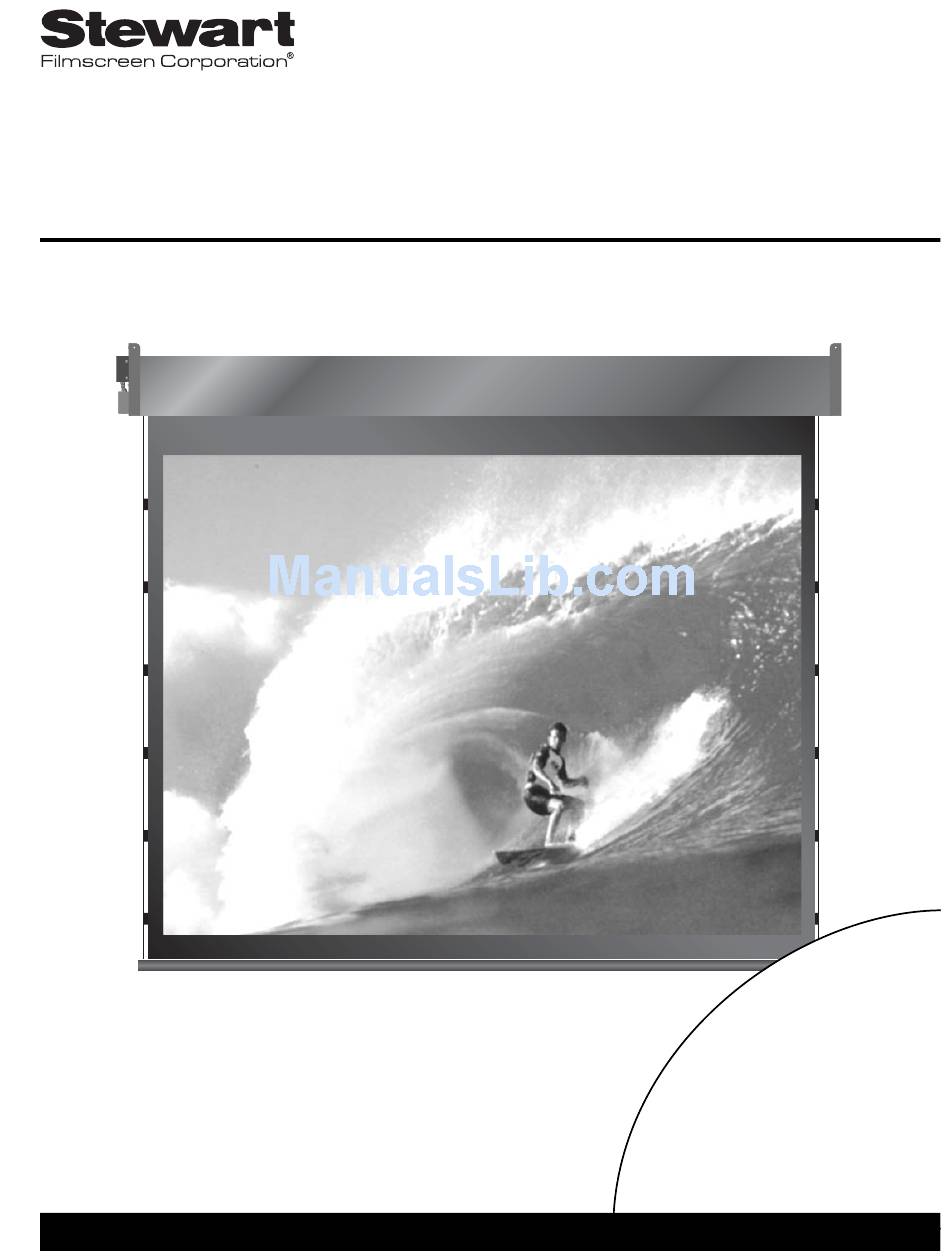

- Page 1 AB Electriscreen O W N E R ’ S M A N U A L To the Owner Installation Instructions Operating the Screen Maintenance AB-1005 O T H E I N S T A L L E R E S U R E T O L E A V E T H I S M A N U A L W I T H T H E O W N E R...
- Page 2 Printed in U.S.A. ©2001 - 2005 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at www.stewartfilm.com.
-
Page 3: Table Of Contents
Troubleshooting ........13 AB Electriscreen: Owner’s Manual... -
Page 4: To The Owner
Please take a moment to review this manual, it will help ensure you many years of trouble-free service from your new Stewart Filmscreen product. About your AB Series Electriscreen Your AB Electriscreen offers the most technologically advanced roller screen in the world. The maximum overall screen dimensions of the Model AB are 14’... - Page 5 1. Do not remove the wrapping paper rolled with the screen. You should remove it only after the unit is hung and all electrical connections have been made. 2. Remove the batten lock-down screws located on the back side of the case AB Electriscreen: Owner’s Manual...
-
Page 6: Step 1. Hanging The Case
The AB Electriscreen is ready to install into the ceiling or soffit. A false ceiling is not intended to support the weight of an AB Electriscreen. If enclosing the AB Electriscreen in a ceiling, make sure to provide 6” x 12” / 15 - 30 cm access panels for future service. -
Page 7: Step 2. Electrical Hook-Up
(audience left). There are several kinds of switch controls available. Follow the installation procedure for the type of switch control you will install. General suggestions for wiring: Soldering is recommended. The use of wire nuts is acceptable. AB Electriscreen: Owner’s Manual... - Page 8 Installing the low-voltage 3-button switch (standard) The Stewart Filmscreen low-voltage control allows the use of low-voltage wire to connect to the supplied 3-position 24V momentary wall switch. Preparing the connection Before making the electrical connections, you need: An available AC constant power source A 4-conductor switch hook-up cable (4-conductor bell wire or category 5 cable is typically used for long runs) Cat 5, multi-conductor unshielded, or similar type electronic cable...
- Page 9 J-box for Switch Input Infrared Remote Control Infrared Sensor STOP-Yellow COMMON-White UP-Red DOWN-Black NEUTRAL-White 4 Conductor Hook-up Cable—20-24ga Recommended Category 5 Typically Used (NOT Supplied) HOT-Black GREEN-Ground 3-Button Figure 3: Infrared remote control wiring Momentary Switch AB Electriscreen: Owner’s Manual...
- Page 10 Connecting the screen trigger interface option The optional 12V screen trigger interface enables up and down operation of the screen in conjunction with a projector, tuner, VCR, cable box, or switched AC outlet. Once the AC power is installed near the screen, an electrician is not needed to connect the screen trigger interface to the power source.
- Page 11 Switch Input Wireless Remote Control Wireless Remote Receiver STOP-Yellow COMMON-White UP-Red DOWN-Black NEUTRAL-White 4 Conductor Hook-up Cable - 20ga Minimum HOT-Black Category 5 recommended (NOT Supplied) GREEN-Ground 3-Button Momentary Switch Figure 5: Wireless remote control connection AB Electriscreen: Owner’s Manual...
-
Page 12: Operating The Screen
PERATING THE CREEN Caution The method you use to raise and lower the screen depends on the type of switch control device you have selected. Do not operate the motor when any of the When you lower or retract the screen, it will stop at its preset limit. If an following occurs: obstacle (such as a person or furniture) gets in the path of the screen as it is lowered, you should use the switch control to stop the screen's motion;... - Page 13 Once you have made the adjustment, whenever you lower the screen, it will automatically stop at the new position. Note: It is recommended that you make a note of any changes made to the factory preset. AB Electriscreen: Owner’s Manual...
-
Page 14: Screen Care And Cleaning
CREEN ARE AND LEANING With reasonable care, you may expect many years of trouble-free use of your Stewart projection screen. We encourage you to keep your screen clean. To protect your screen when it is not in use, store it in the fully retracted position. Avoid getting any foreign material on the screen, as cleaning may prove very difficult. -
Page 15: Troubleshooting
Brush off or use a mild detergent solution on screen surface. with clean rag or cotton swab. Indentations appear on Debris or particles adhering to Check back of screen; gently brush debris screen surface. screen due to static cling. away by hand. AB Electriscreen: Owner’s Manual... - Page 16 www.stewartfilm.com 1-800-762-4999 Fax (310) 326-6870...
