Page 1

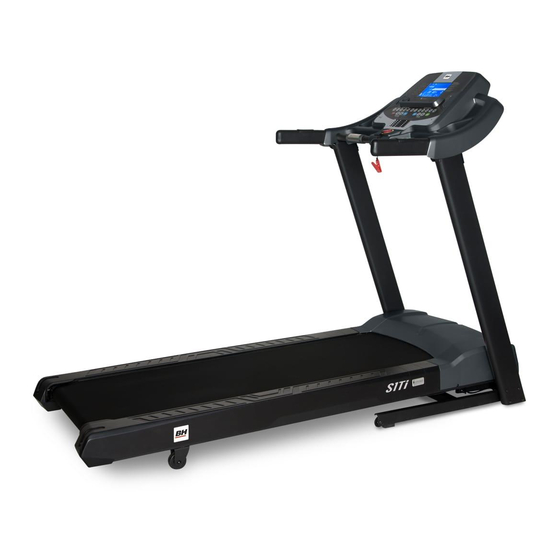

Important: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. FOR SERVICE PLEASE CONTACT BH FITNESS TOLL FREE: 866-325-2339 BH Fitness | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0013 | www.BHFitnessusa.com...
TABLE OF CONTENTS Title Page Introduction Safety Information Exercise Instruction Training Guidelines Suggested Stretches Assembly Instructions Maintenance and Cleaning Exploded View Drawing Parts List Console Operations Warranty...
CONGRATULATIONS Congratulations on your purchase of BH Fitness equipment. We hope you appreciate the style, quality, and value that exercisers around the world have come to expect from BH Fitness. If you have any questions, concerns or product issues please call our Customer Service Team at 1-866-325-2339 or email us at CustomerSupport@BHNorthAmerica.com.
6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that are not recommended by BH Fitness. Read the manual prior to use and follow all warnings and instructions. 7. Do not place sharp objects near the machine.
EXERCISE INSTRUCTION Use of the machine offers various benefits; it can improve fitness, muscle tone and when used in conjunction with a calorie controlled diet, it can help you lose weight. 1. Consult your doctor before starting any exercise program. It is advisable to undergo a complete physical examination.
TRAINING GUIDELINES Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are: • Increased capacity for physical work (strength endurance) • Increased cardiovascular (heart and arteries/veins) and respiratory efficiency • Decreased risk of coronary heart disease •...
Page 7
OXYGEN UPTAKE The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
Page 8
HEART RATE As you exercise, your heart beat increases. This is often used as a measure of the required intensity of an exercise. You need to exercise hard enough to condition your circulatory system, and increase your pulse rate, but not enough to strain your heart. Your initial level of fitness is important when developing an exercise program for you.
Page 9
MUSCLE SORENESS For the first week or so, muscle soreness may be the only indication you have that you are on an exercise program. This, of course, does depend on your overall fitness level. A confirmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days.
SUGGESTED STRETCHES Head Rolls Rotate your head to the right for one count while feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling. Rotate your head to the left for one count, and finally, drop your head to your chest for one count.
Page 11
SUGGESTED STRETCHES Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the floor. Hold for 15 counts. Toe Touches Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes.
ASSEMBLY INSTRUCTIONS & WARNING LABELS La mauvaise utilisation de cet appareil • Misuse of this machine may result in • serious injury. peut entrainer des blessures graves. lisez le manuel de l’utilisateur avant • Read user’s manual prior to use and •...
Page 13
STEP 1 Attach the control wire to the guide wire (looks like a long twist tie) and then pull the control wire through the small hole in the bottom of Upright Tube (D) and then up and out the top of the right Upright Tube (D) with the guide wire. Attached the Left & Right Upright tube (C,D) on frame (B) with screws (b), but do not tighten.
Page 14
STEP 2 Connect the control wire of the computer console (i) with the control wire (j)that you pulled through the top of the right Upright Tube (D). Slide the computer console onto the left & right Upright Tubes (C, D). There are brackets on the bottom of console (A) that fit into Upright Tubes (C, D) Then secure the console to the left &...
Page 15
CAUTION This treadmill is foldable for easy storage. To fold the treadmill, stop all movement, making sure the machine is turned off, the belt is no longer moving and the power cord is detached, before storing the treadmill. To fold the treadmill place both hands on the back of the treadmill and lift up until you hear a "Click"...
MAINTENANCE To adjust the running belt, stop the treadmill, then use the 6mm hex wrench and adjust the hex screw located in the rear end cap. If the running belt is moving towards the left side, tighten the left hex screw with a 1/4 turn (clockwise); if the running belt is moving towards the right side, tighten the right hex screw with a 1/4 turn (clockwise);...
To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require. Description Description S1Ti-1 Computer assembly 5T-T1L S1Ti-111 Base welding H-GK...
Page 20
PARTS LIST CONTINUED Description Description S1Ti-69 Flat cap 15x30x2.0t S1Ti-179 Belt (1500mm) S1Ti-70 Incline base S1Ti-180 Safety Key S1Ti-71 R PIN S1Ti-184 L shaped hex wrench 6x80x80mm S1Ti-76 Washer 8x 19x3.0t S1Ti-185 Silicon S1Ti-77 Spring washer M10 S1Ti-188 Bolt S1Ti-78 D.C Motor (1.75HP-110V)
CONSOLE OPERATIONS HRC & Age Heart Rate Time Training Program Segments Incline Level Calories Weight/Distance Speed Smart Device Muscle Display Connection Status Alpha-Numeric Display...
Page 22
SPECIFICATIONS: ENTER: To confirm all setting values MODE: To switch Program Mode START: To start training STOP : 1) In training stage, pressing stop will pause the program. 2) In pause stage, pressing stop for "4" seconds puts the program into idle status. 3) In general, pressing stop will take you back to the previous function INSTANT INCLINE: Adjusts Incline to levels 1/2/4/6/8/10 INSTANT SPEED: Adjusts Speed levels to 2/4/6/8/10/12 (by MPH)
Page 23
HEART RATE TRAINING ZONE INSTRUCTION To calculate your heart rate use the following HRC formula: Max. heart rate = (220 - age) Low: 0~64% Fatburn: 65%~74% Aerobic: 75%~84% High: 85% above Example: If a user is 30 years old, the max heart rate is 190 (220-30=190). In the HRC training mode, if a users HRC is 120, the machine will calculate based on your max HRC: 120/190 = 63% and will show low as an exertion level.
Page 25
GETTING STARTED STAND BY MODE • Start- up: Unfold and plug in the machine, a beep will sound and the screen will light up. (Figure 1, 2). • Setup Weight: SPEED+ or SPEED- input Weight, the default is 70kg/150lbs. • Sleep: When the machine is left in pause for 2 minutes, the computer will go back to Idle Mode.
Page 26
How to Pause / Stop 1. When the belt is moving, press STOP to pause the program. 2. When you have finished your current program, the motor will stop and show “RUN END” on the screen. 3. While paused or at RUN END, user can press and hold STOP button for 4 seconds to put the treadmill back to Idle Mode.
Page 27
P1 (9 HOLE): INCLINE & SPEED 1. Press ENTER to select MANUAL and press SPEED+ or SPEED- to select P1. Press ENTER and Press SPEED+ to setup Level (Level 1 ~ Level 10). 2. Press ENTER to get into the Target Distance Setup. Although the display will show "Enter Distance", the distance is fixed and cannot be changed.
Page 28
Press INCLINE+ or INCLINE- to edit the Incline profile shape. Press ENTER to select the next stage. Press ENTER for 3 seconds to finish edit. 2. Press ENTER to Select U1 and enter into Target Time Setup. Press SPEED+ or SPEED- to setup target time. (Time Scale: 0:00, 20:00~99:00). 3.
Page 29
BODY FAT MODE Press ENTER to select BODY FAT and the treadmill will ask for the following information: (1) Age - Preset value is 30, range:13~80, Step 1, press SPEED+/- for adjustment. After user selects the right value, press ENTER to move to the next parameter setting. (2) Height - Preset value is 66 in (170cm), range: 47~78 in (120~220 cm), increments are in 1 cm, press SPEED+/- for adjustment.
Page 30
P4 Interval Hidden Area P5 Rolling Hidden Area P6 Weight Loss Hidden Area RANDOM HRC 75% HRC THR USER HRC 1-3 BODY FAT (BDF) HRC 60%...
Page 31
SAFETY KEY & ERROR WARNING Safety Key Unplug: 1. When the safety key is unplugged, the machine will stop automatically and display “SAFETY OFF” on the Screen. 2. If the user plugs the safety key back in, the machine will re-start and enter into Idle Mode. ERROR WARNING When there is an error, the machine will stop automatically and display an “Error Message”...
Page 32
DOWNLOADING APPS AND PAIRING YOUR DEVICE WITH YOUR EQUIPMENT DOWNLOADING THE SOFTWARE Connect the Apple device with the App Store (iTunes) or your Android Device with Google Play, search for "Pafers", then read the APP introductions and Download the APPs with bicycle/elliptical machine functions to your device, for example Pedal Monitor or other applicable apps.
Page 33
Mini iPad iPad iPad 2 BH Fitness i.Concept Bluetooth products are compatible with Apple devices with iOS 5.1 or later. It is recommended to update iOS to the latest version to obtain the best user experience. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch, is a registered...
Page 34
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
WARRANTY RESIDENTIAL WARRANTY BH Fitness will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Lifetime replacement warranty coverage on frame and motor. Three (3) year on other parts. Labor warranty coverage is one (1) year.
Page 36
Guide d’utilisation aux fins de consultation ultérieure. EN CAS DE PROBLÈME TECHNIQUE, VEUILLEZ PRENDRE CONTACT AVEC BH FITNESS SANS FRAIS : 866-325-2339 BH Fitness | 20155 Ellipse, Foothill Ranch, Californie 92610, États-Unis | tél. : 949-206-0330 | téléc. : 949-206-0013 | www.BHFitnessUSA.com...
Page 37
TABLE DES MATIÈRES Titre Page Introduction Renseignements relatifs à la sécurité Instructions relatives à l'exercice Directives concernant l'entraînement Étirements suggérés Instructions de montage Vue éclatée Liste des pièces Fonctionnement de la console Entretien et nettoyage Garantie...
TOUTES NOS FÉLICITATIONS! Félicitations pour votre achat d'un équipement BH Fitness. Nous espérons que vous apprécierez le style, la qualité et la valeur auxquels BH Fitness a habitué les adeptes de l'exercice physique du monde entier. Si vous avez des questions, des préoccupations ou des problèmes concernant le produit, veuillez appeler notre équipe du Service clientèle au 1-866-325-2339 ou nous adresser...
6. Cet appareil ne doit être utilisé qu’aux fins décrites dans ce guide. N'UTILISEZ PAS d'accessoires non recommandés par BH Fitness. Lisez le guide avant d'utiliser l'appareil et respectez toutes les mises en garde et instructions. 7. Ne placez pas d’objets tranchants près de l'appareil.
INSTRUCTIONS RELATIVES À L’EXERCICE L'utilisation de cet appareil comporte de nombreux avantages; il peut améliorer votre forme physique, votre tonus musculaire et, de pair avec un régime alimentaire faible en calories, vous aider à perdre du poids. 1. Consultez votre médecin avant d’entamer un programme d’exercice. Mieux vaudrait également subir un examen physique complet.
DIRECTIVES CONCERNANT L'ENTRAÎNEMENT L'exercice est l'un des principaux facteurs contribuant à la santé globale d'une personne. En voici quelques bienfaits : • Capacité accrue de travail physique (force-endurance) • Capacité cardiovasculaire (cœur et artères/veines) et respiratoire accrue • Diminution du risque de maladie coronarienne •...
Page 42
CONSOMMATION D'OXYGÈNE L'effort que vous pouvez déployer au cours d'une période prolongée est limité par votre capacité à approvisionner en oxygène les muscles au travail. L'exercice intense régulier a un effet d'entraînement qui peut augmenter la capacité aérobie de 20 à 30 %. Une amélioration de la VO max indique une capacité...
Page 43
FRÉQUENCE CARDIAQUE Votre fréquence cardiaque augmente durant l'exercice. Elle sert d'ailleurs souvent de mesure de l'intensité d'un exercice. Vous devez pousser suffisamment l'exercice pour améliorer votre appareil circulatoire et élever la fréquence de votre pouls, mais sans imposer un effort excessif au cœur. Votre forme physique initiale compte pour beaucoup dans l'élaboration d'un programme d'exercice adapté...
Page 44
Deux commentaires en terminant : 1) ne vous préoccupez pas des variations quotidiennes de la fréquence du pouls, car elle peut être influencée par le stress ou le manque de sommeil; 2) la fréquence du pouls n'est qu'un guide, n'en devenez pas l'esclave. DOULEURS MUSCULAIRES Les premiers jours, les douleurs musculaires peuvent être la seule indication que vous avez fait de l'exercice.
ÉTIREMENTS SUGGÉRÉS Rotations de la tête Tournez la tête vers la droite sur un temps et sentez l'étirement du côté gauche de votre cou. Continuez ensuite la rotation vers l'arrière et étirez le menton vers le ciel. Enfin, tournez la tête vers la gauche sur un temps et laissez-la tomber sur la poitrine sur un temps.
Page 46
ÉTIREMENTS SUGGÉRÉS Étirement de l'intérieur de la cuisse Assoyez-vous en ramenant les plantes des pieds l'une contre l'autre, les genoux pointés vers l'extérieur. Rapprochez le plus possible les pieds des aines. Poussez délicatement les genoux vers le sol. Comptez 15 temps. Flexions avant Penchez-vous lentement vers l'avant à...
INSTRUCTIONS DE MONTAGE ET ÉTIQUETTES DE MISE EN GARDE...
Page 48
ÉTAPE 1 Attachez le fil de commande au câble guide (qui ressemble à un long lien torsadé); faites passer le fil de commande par la petite ouverture au fond du tube vertical (D), puis, à l'aide du câble guide, tirez-le vers le haut faites-le passer par le haut du tube vertical droit ...
Page 49
ÉTAPE 2 Connectez le fil de commande de la console de l'ordinateur (i) au fil de commande (j) que vous avez fait passer par le haut du tube vertical droit (D). Glissez la console de l'ordinateur sur les tubes verticaux gauche et droit (C, D). Des supports, qui s'adaptent aux montants (C, D), sont placés en bas de la console (A).
Page 50
ATTENTION Ce tapis roulant se replie pour faciliter le rangement. Pour replier le tapis roulant avant de le ranger, arrêtez tout mouvement et assurez- vous que l'appareil est éteint, que la courroie ne bouge plus et que le cordon d'alimentation est débranché.
Page 51
ENTRETIEN Pour ajuster la courroie de course, arrêtez le tapis roulant et utilisez la clé hexagonale de 6 mm pour ajuster la vis hexagonale située dans le bouchon d'extrémité arrière. Si la courroie de course se déplace vers le côté gauche, serrez la vis hexagonale gauche de 1/4 de tour (dans le sens horaire);...
FONCTIONNEMENT DE LA CONSOLE FC et âge Entraînement basé sur Temps la fréquence cardiaque Segments du pro- Niveau gramme d'incli- naison Calories Poids/Distance Vitesse Témoin de connexion de Affichage des l'appareil électronique muscles Affichage alphanumérique...
Page 57
SPÉCIFICATIONS : ENTER (entrée) : Pour confirmer tous les paramètres MODE : Pour naviguer dans le mode de programme START (départ) : Pour commencer l'entraînement STOP (arrêt) : 1) Pendant un entraînement, si vous appuyez sur STOP (arrêt), le programme se met en pause. 2) Pendant une pause, si vous maintenez la touche STOP (arrêt) enfoncée pendant 4 secondes, le programme se met en attente.
Page 58
INSTRUCTIONS CONCERNANT LA ZONE D'ENTRAÎNEMENT DE LA FRÉQUENCE CARDIAQUE Pour calculer votre fréquence cardiaque (FC), utilisez la formule qui suit : fréquence cardiaque maximale = (220 - âge) Low (bas) : 0~64 % Fatburn (brûlage des graisses) : 65 %~74 % Aerobic (aérobie) : 75 %~84 % High (haut) : 85 % et plus Exemple : Si l'utilisateur a 30 ans, la fréquence cardiaque maximale est 190 (220 - 30 = 190).
Page 60
MISE EN MARCHE MODE D'ATTENTE • Démarrage : Dépliez et branchez l'appareil. L'ordinateur émet un bip et l'écran s'allume (figures 1, 2). • Configuration du poids : Saisissez votre poids à l'aide des touches SPEED+ et SPEED-. Le poids par défaut est 70 kg/150 lb. •...
Page 61
Comment passer en pause / arrêter 1. Lorsque la courroie est en mouvement, appuyez sur STOP (arrêt) pour faire une pause. 2. À l'achèvement du programme d'exercice en cours, le moteur s'arrête et l'écran affiche RUN END (course terminée). 3. En pause ou après la fin de la course, l'utilisateur peut maintenir la touche STOP (arrêt) enfoncée pendant 4 secondes pour que le tapis roulant revienne au mode attente.
Page 62
2. Appuyez sur ENTER (entrée) pour aller à Target Distance Setup (définir la distance cible). Même si l'écran affiche Enter Distance (entrer la distance), la distance est fixe et ne peut pas être modifiée. Appuyez sur SPEED+ ou SPEED- pour définir une distance (échelle de distance : 0,5~99,5 km/mi). 3.
Page 63
Appuyez sur SPEED+ ou SPEED- pour définir un temps cible (échelle de temps : 0:00, 20:00~99:00). 3. Appuyez sur ENTER (entrée) pour confirmer le temps cible et entrer dans Target Distance Setup (définir la distance cible). Appuyez sur SPEED+ ou SPEED- pour sélectionner une distance cible (échelle de distance : 0,00~99,00 km/mi).
Page 64
MODE BODY FAT (MASSE GRASSE) Appuyez sur ENTER (entrée) pour sélectionner BODY FAT (masse grasse). Le tapis roulant demande les renseignements suivants : 1) Age (âge) - Valeur préréglée : 30 ans; plage : 13~80 ans, par incrément de 1 an. Appuyez sur SPEED+/- pour modifier.
Page 65
P4 Interval (intervalle) Espace caché P5 Rolling (roulement) Espace caché P6 Weight Loss (perte de poids) Espace caché RANDOM (aléatoire) HRC (FC) 75 % HRC THR (FC FCC) USER (utilisateur) HRC (FC) 1-3 BODY FAT (BDF) (masse grasse) HRC (FC) 60 %...
Page 66
CLÉ DE SÉCURITÉ ET MESSAGE D'ERREUR Débranchement de la clé de sécurité : 1. Lorsque la clé de sécurité est débranchée, l'appareil s'arrête automatiquement et affiche SAFETY OFF (arrêt de sécurité) à l'écran. 2. Si l'utilisateur remet la clé de sécurité en place, l'appareil se remet en marche en mode attente.
Page 67
TÉLÉCHARGEMENT D'APPLICATIONS ET ASSOCIATION DE VOTRE APPAREIL ET DE L'ÉQUIPEMENT TÉLÉCHARGEMENT DU LOGICIEL Connectez-vous à l'App Store (iTunes) à partir d'un appareil Apple ou à Google Play à partir d'un appareil Android, cherchez « Pafers », lisez les notes des applications et téléchargez l'application destinée à...
Page 68
Mini iPad iPad iPad 2 Les produits BH Fitness i.Concept Bluetooth sont compatibles avec les appareils Apple iOS 5.1 ou version ultérieure. Pour une expérience utilisateur optimale, il est recommandé d'installer la version d'iOS la plus récente. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle et iPod touch sont des marques de...
Les mentions « Fabriqué pour iPod », « Fabriqué pour iPhone » et « Fabriqué pour iPad » signifient que l'accessoire électronique a été conçu pour se brancher spécialement à un iPod, à un iPhone ou à un iPad respectivement et qu'il a été certifié conforme aux normes de performance d'Apple par son développeur.
GARANTIE GARANTIE RÉSIDENTIELLE LIMITÉE BH Fitness réparera ou remplacera, à sa discrétion et sans frais, les pièces défectueuses en raison d'un défaut de matériel ou de main-d'œuvre. Garantie à vie de remplacement sur le châssis et de trois (3) ans sur les autres pièces. La garantie de la main-d'œuvre est d'un (1) an.
