Related Manuals for Samsung WD-J1255(V/S/C/R)
Summary of Contents for Samsung WD-J1255(V/S/C/R)

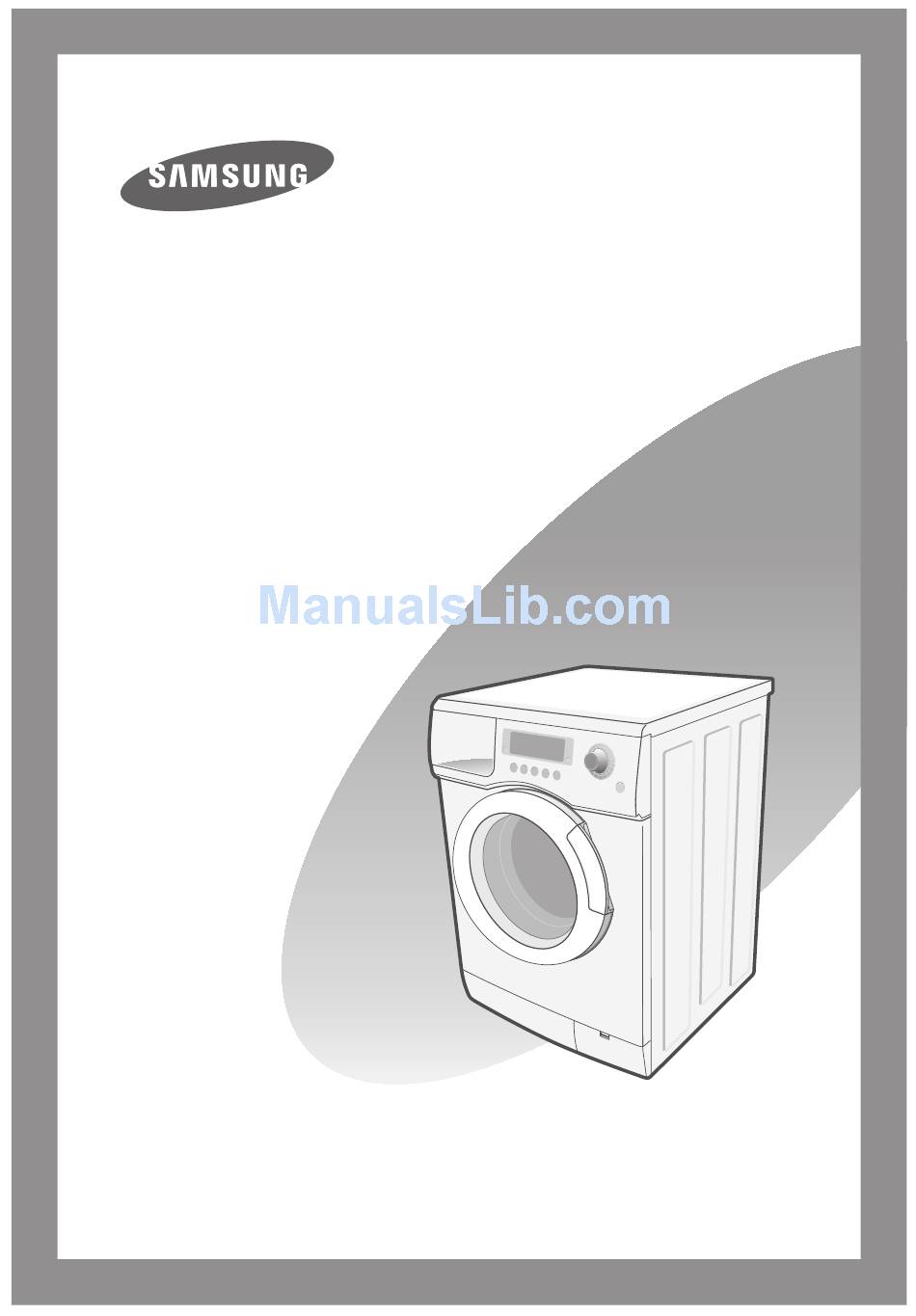

- Page 1 Washing Machine Owner’s Instructions WD-J1255(V/S/C/R) WD-B1255(V/S/C/R) Register your product at www.samsung.com/global/register Code No.: DC68-02414B_EN...
-
Page 2: Child Lock
No time to loose! Less than 30minutes wash will give you time to run out before it’s too late. Our 28minute Quick Wash program can be the solution to your busy life. Now you can wash your favorite clothes in only 28minutes, guaranteed! 2 SAMSUNG Washing Machine Owner’s Instructions FEATURES... -
Page 3: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner’s Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine’s features and enjoy this appliance for many years to come. - Page 4 Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble dryer. • Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated tennis shoes should not be placed in a tumble dryer. 4 SAMSUNG Washing Machine Owner’s Instructions SAVE THESE INSTRUCTIONS...
-
Page 5: Table Of Contents
Table of Contents Safety Precautions ......... . . inside cover Installing the Washing Machine. -
Page 6: Installing The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. Overview of the washing machine... -
Page 7: Selecting A Location
2. Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt. 3. Fill the holes with the supplied plastic covers. 4. Keep the shipping bolts for future use. SAMSUNG Washing Machine Owner’s Instructions A-2... -
Page 8: Connecting The Water Supply Hose
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and tighten it by hand. 3. Use a Y-piece if you only want to use cold water. A-3 SAMSUNG Washing Machine Owner’s Instructions... -
Page 9: Connecting The Water Supply Hose (Option
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. SAMSUNG Washing Machine Owner’s Instructions A-4... -
Page 10: Washing A Load Of Laundry
4. Add prewash detergent into compartment ( ) (if you desire). Caution : Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked. B-1 SAMSUNG Washing Machine Owner’s Instructions... -
Page 11: Overview Of The Control Panel
Press the button repeatedly to cycle through the available dry selections. (210min. 150min. 90min. 60min.) Drying course can last up to 210min. When selecting drying only, drying course will start after spinning . (The spinning time is about 15~17 min.) SAMSUNG Washing Machine Owner’s Instructions B-2... - Page 12 Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off. B-3 SAMSUNG Washing Machine Owner’s Instructions...
-
Page 13: Washing Clothes Using Fuzzy Logic
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash programme, the machine will set the correct temperature, washing time, and washing speed. -
Page 14: Washing Clothes Manually
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. 4. To cancel Delay Start, press the (On/Off) button, then turn the washing machine on again. B-5 SAMSUNG Washing Machine Owner’s Instructions... -
Page 15: Washing Tips And Hints
If you do not know how hard your water is, ask your water authority. Notice : Keep detergents and additives in a safe, dry place out of the reach of children. SAMSUNG Washing Machine Owner’s Instructions B-6... -
Page 16: Maintaining The Washing Machine
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and non- abrasive household detergents. 2. Use a soft cloth to dry the surfaces. 3. Do not pour water on the washing machine. C-1 SAMSUNG Washing Machine Owner’s Instructions... -
Page 17: Cleaning The Detergent Drawer And Recess
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. SAMSUNG Washing Machine Owner’s Instructions C-2... -
Page 18: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. Option Option 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. C-3 SAMSUNG Washing Machine Owner’s Instructions... -
Page 19: Troubleshooting
1. Try to remedy the problem (See “Troubleshooting” on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. SAMSUNG Washing Machine Owner’s Instructions D-1... -
Page 20: Programme Chart
2. The programme duration data has been measured under the conditions specified in Standard IEC 456. 3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. E-1 SAMSUNG Washing Machine Owner’s Instructions... -
Page 21: Appendix
Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. • Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. SAMSUNG Washing Machine Owner’s Instructions E-2... -
Page 22: Protecting The Environment
WASHING AND HEATING 220 V 2000 W 240 V 2400 W 220 V 2000 W 240 V 2400 W PUMPING 230 V 34 W PACKAGE Wt PAPER 2.5 kg PLASTIC 1.0 kg SPIN REVOLUTION 1200 F-1 SAMSUNG Washing Machine Owner’s Instructions... - Page 23 Memo SAMSUNG Washing Machine Owner’s Instructions F-2...
- Page 24 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. AUSTRALIA Samsung Electronics Australia 1300 362 603 www.samsung.com/au...
