8.

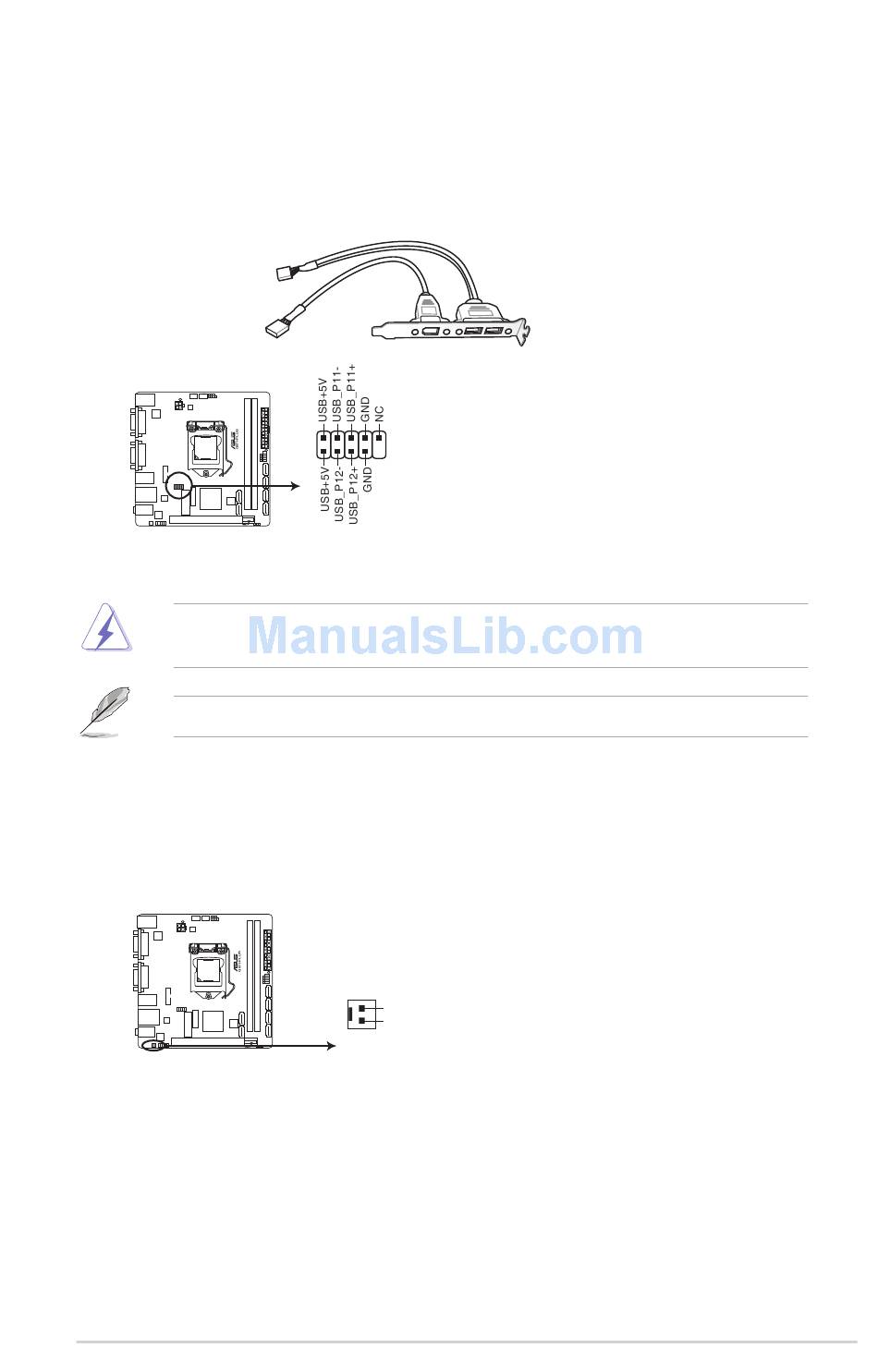

USB 2.0 connector (10-1 pin USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specifications and supports up to
480Mbps connection speed.
Q87I-PLUS USB2.0 connector
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
9. Mono out header (2-pin MONO_OUT)
This internal mono out header allows connection to an internal, low power speaker for
basic system sound capability. The subsystem is capable of driving a speaker load of 4
Ohms at 2 Watts (rms).
Q87I-PLUS MONO_OUT connector
ASUS Q87I-PLUS
USB1112
PIN 1
MONO_OUT
R_OUT+
R_OUT-
PIN 1
1-17
