Cable routing
The cables from the onboard
sockets to the auxiliary devices
must be routed in such a way
that they:
Do not impede the rider
Do not restrict the steering an-
gle and the driving characteris-
tics
Cannot be trapped

Case

OA
with case

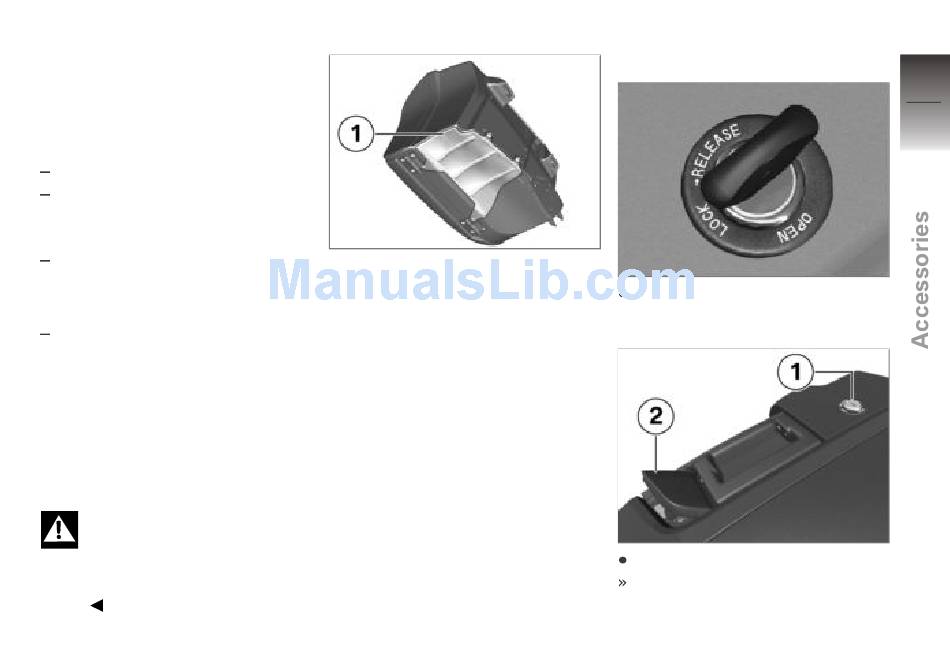

Heat shield of left-hand

case

Due to the position of the end
muffler,the left-hand case is ex-
posed to the effects of heavy
heating.
Serious damage to the left-
side case caused by heat
from the muffler.
Only use cases with a heat
shield.
Before beginning driving, it must
be ensured that the left-hand
case is equipped with a heat
shield 1.
The geometry of the case carrier
permits the cases of the previous
model to be used. Your autho-
rized BMW motorcycle retailer of-
fers the heat shield for retrofitting
for this case.
Opening case
Turn key in case lock to OPEN
position.
Press lock barrel 1 downward.
Unlocking lever 2 pops up.
