Fig.4

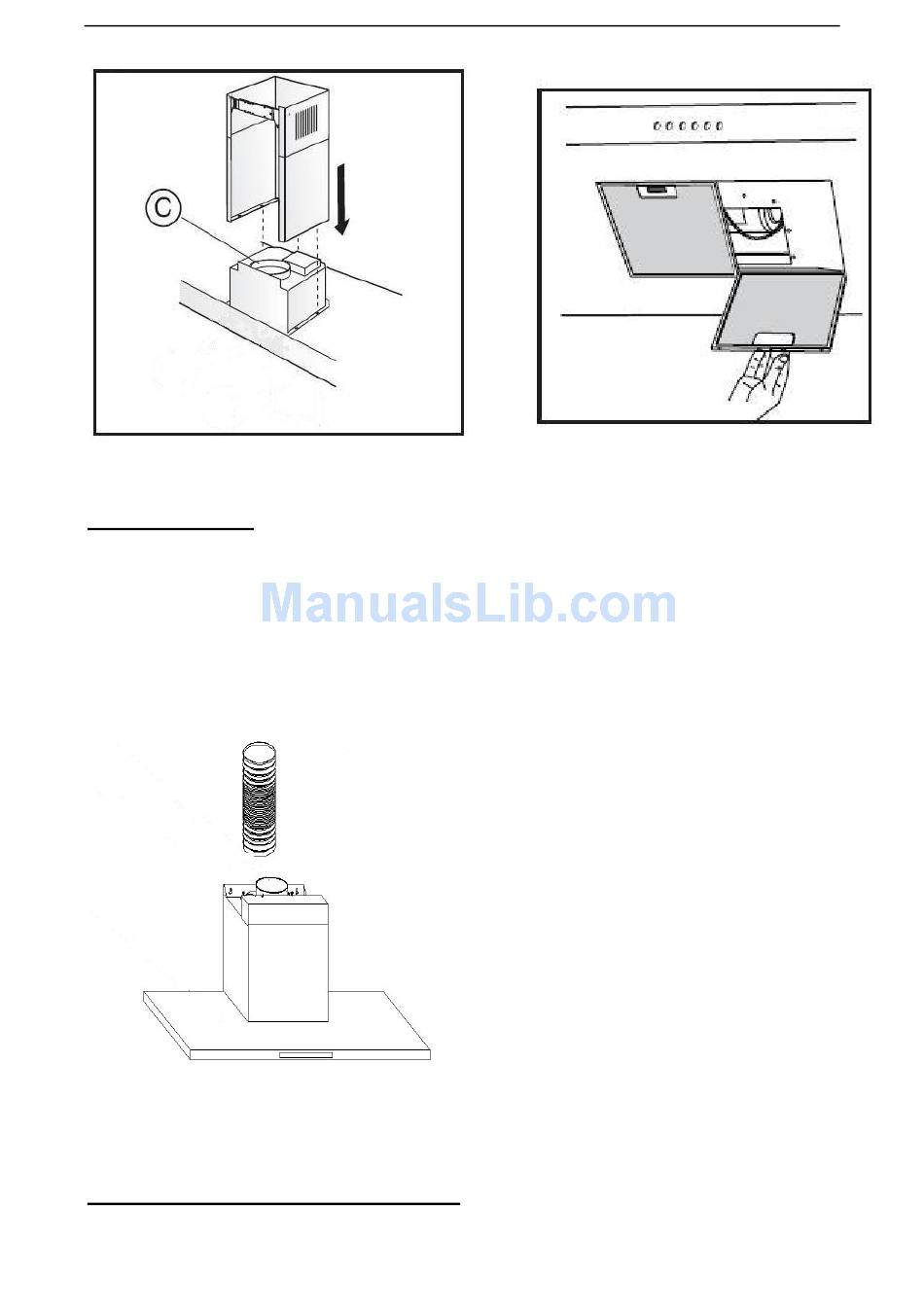

DUCT FIXING
Caution: To reduce the risk of fire, recommend use aluminum ductwork.
1. Attach an adequate length of
area of the air outlet adapter.
2. The duct has to be secured using two screws from two sides of the air
outlet adapter. Make sure the duct is fixed well on.
DESCRIPTION/CONNECTIONS
Fig.5
φ
150mm round duct into the recessed
8
