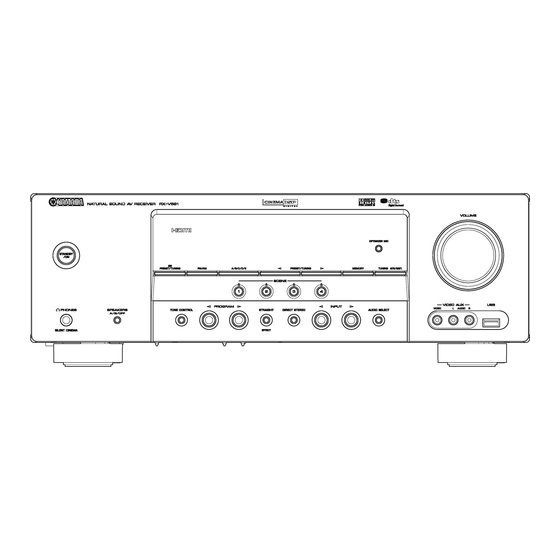

RX-V561/HTR-6050
本资料由OKXIA视听皮带资源库www.okxia.cn提供
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING:
IMPORTANT:
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING:
IMPORTANT:
I CONTENTS
TO SERVICE PERSONNEL .......................................... 2
FRONT PANELS ............................................................ 3
REAR PANELS .......................................................... 3-4
REMOTE CONTROL PANEL ........................................ 4
SPECIFICATIONS ...................................................... 4-6
INTERNAL VIEW ........................................................... 7
DISASSEMBLY PROCEDURES ............................. 8-10
UPDATING FIRMWARE ........................................ 11-12
SELF DIAGNOSIS FUNCTION (DIAG) ................. 13-25
1 0 1 0 5 7

SERVICE MANUAL

IMPORTANT NOTICE
Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
DISPLAY DATA ..................................................... 26-27
IC DATA ................................................................. 28-43
BLOCK DIAGRAMS .............................................. 45-46
PIN CONNECTION DIAGRAMS .................................. 47
PRINTED CIRCUIT BOARDS................................ 48-60
SCHEMATIC DIAGRAMS ...................................... 61-73
REPLACEMENT PARTS LIST .............................. 75-85
REMOTE CONTROL .............................................. 86-87
Advanced setup ........................................................... 88
2007
All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
AV RECEIVER
P.O.Box 1, Hamamatsu, Japan
'07.07

Advertisement

Table of Contents
loading

Summary of Contents for Yamaha rx-v561

  • Page 1: Table Of Contents

    This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel. It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated.
  • Page 2: To Service Personnel

    RX-V561/HTR-6050 I TO SERVICE PERSONNEL 1. Critical Components Information AC LEAKAGE WALL EQUIPMENT TESTER OR Components having special characteristics are marked s and OUTLET UNDER TEST EQUIVALENT must be replaced with parts having specifications equal to those originally installed. 2. Leakage Current Measurement (For 120V Models Only)
  • Page 5 STEREO 2ch Stereo Video Signal Type (Gray Back) ..........NTSC CD Music Listening STEREO 5ch Stereo “SILENT CINEMA” is a trademark of YAMAHA CORPORATION. Composite Video Signal Level ......1 Vp-p / 75 ohms Radio Listening TUNER/RADIO FM/AM FM/AM (TUNER)
  • Page 6 RX-V561/HTR-6050...
  • Page 7: Internal View

    RX-V561/HTR-6050 I INTERNAL VIEW • Top view OPERATION (3) P.C.B. OPERATION (4) P.C.B. VIDEO (4) P.C.B. Tuner HDMI P.C.B. VIDEO (3) P.C.B. VIDEO (1) P.C.B. DSP P.C.B. MAIN (4) P.C.B. MAIN (1) P.C.B. OPERATION (2) P.C.B. OPERATION (11) P.C.B. Power Transformer OPERATION (6) P.C.B.
  • Page 8: Disassembly Procedures

    RX-V561/HTR-6050 I DISASSEMBLY PROCEDURES (Remove parts in the order as numbered.) Disconnect the power cable from the AC outlet. 1. Removal of Top Cover 2. Removal of Front Panel Unit a. Remove 4 screws (1), 4 screws (2) and screw (3).
  • Page 9 RX-V561/HTR-6050 HDMI P.C.B. CB905 DSP P.C.B. CB305 VIDEO (1) P.C.B. DSP P.C.B. CB906 CB502 CB501 CB512 Rear panel CB516 CB193 Cord stopper CB101 CB322 CB104 MAIN (1) P.C.B. VIDEO (3) P.C.B. VIDEO (2) P.C.B. Fig. 2 Fig. 3...
  • Page 10 RX-V561/HTR-6050 When checking the P.C.B.: a. Remove the top cover. (Fig. 1) b. Remove 3 screws (8). (Fig. 3) c. Remove 5 screw (A) and 4 screws (B). (Fig. 4) d. Place the P.C.B. upright. (Fig. 5) e. The rear panel and P.C.B. removed from the chassis does not work because its grounding is loose.
  • Page 11: Updating Firmware

    RX-V561/HTR-6050 I UPDATING FIRMWARE After replacing the following parts with the replacement part, be sure to write the latest firmware. • DSP P.C.B. • IC201 (DSP P.C.B.) G Required Tools G Operation Procedures • DVD or CD player (with DIGITAL OUTPUT (OPTICAL 1.
  • Page 12 RX-V561/HTR-6050 2. While pressing the “STANDBY/ON” key and “SPEAKERS A/B/OFF” key of the main unit simultaneously, connect the power cable of the main unit to the AC outlet. (Fig. 2) The FIRMWARE UPDATE mode will then be activated and “SPDIF Upgrade” is displayed. (Fig. 2)
  • Page 13: Self Diagnosis Function (Diag)

    RX-V561/HTR-6050 I SELF DIAGNOSIS FUNCTION (DIAG) This unit has self diagnosis functions that are intended for inspection, measurement and location of faulty point. DIAG menu Sub-menu There are 18 DIAG menu items, each of which has sub-menu items. IF STATUS IF 1 Listed in the table below are menu items and sub-menu items.
  • Page 14 RX-V561/HTR-6050 • Starting DIAG When there is a history of protection function: Press the “STANDBY/ON” key while simultaneously pressing those two keys of the main unit as indicated in the figure When there is a history of protection function due to excess current below.
  • Page 15 RX-V561/HTR-6050 When there is a history of protection function due to excessive heat sink temperature THM PRT:xxx AD value when the protection function is working Cause: The temperature of the heat sink is excessive. Supplementary information: The protection function worked due to the temperature limit being exceeded.
  • Page 16 RX-V561/HTR-6050 • Details of DIAG menu 1. BYPASS Using the sub-menu, it is possible to select ANALOG BYPASS output or DSP BYPASS output. ANALOG BYPASS The analog input sound signal is output to FRONT L/R with EFFECT OFF. 1.ANLOG BYPASS...
  • Page 17 RX-V561/HTR-6050 3. SPEAKER SET The analog switch settings for each sub-menu are as shown in the table below. FRONT : SML 0dB SMALL LARGE LARGE SWFR CENTER : NONE LARGE NONE LARGE SWFR LFE/B : FRNT LARGE SMALL SMALL FRONT...
  • Page 18 RX-V561/HTR-6050 4. 6CH INPUT The input source [MULTI CHANNEL INPUT] is selected. It is possible to select the 6-ohm/8-ohm by using the sub-menu. 6 ch INPUT 6-ohm 4.6ch INPUT 6 Ω INPUT: MULTI CH INPUT SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz...
  • Page 19 RX-V561/HTR-6050 6. FL/OSD CHECK Use this program to check the FL display section and video control section. When checking the video control section, prepare a monitor, S video cable and video pin cable and connect them. Using the sub-menu operation, selection items of the FL display section and video display section vary as shown below.
  • Page 20 RX-V561/HTR-6050 7. TEST TONE The noise generator with a built-in microprocessor outputs the noise through the channels specified by the submenu. The noise frequency for LFE (SUBWOOFER) is 35 to 80 Hz. Other than that, the noise frequency is 500 to 2 kHz.
  • Page 21 RX-V561/HTR-6050 9. A/D DATA CHECK This menu is used to display the A/D conversion value of the microprocessor which detects panel keys of the main unit and protection functions in using the sub-menu. When K0/K1 menu is selected, keys become non-operable due to detection of the values of all keys. However, it is possible to advance to the next sub-menu by turning the VOLUME of the main unit.
  • Page 22 RX-V561/HTR-6050 10. XM STATUS 12. USB CHECK Not applied to these models. The music file recorded in the USB flash memory is reproduced. • The music file is copied into the roof folder of the USB flash memory. 1 kHz, -1 dB / 44.1 kHz 10.1k - 1dB/44...
  • Page 23 RX-V561/HTR-6050 15. PROTECTION SETTING The A/D setting value of each protection is displayed. (Reference voltage: 3.3 V=255) PRD (Amplifier DC protection) Low 15.PRD L : The minimum preset value of PRD is displayed. PRD (Amplifier DC protection) High 15.PRD H : The maximum preset value of PRD is displayed.
  • Page 24 RX-V561/HTR-6050 16. PROTECTION HISTORY 17. SOFT SWITCH Four protection histories are displayed. Note) As this is a development menu, do not change the function setting. Changing the function setting may hinder the Example proper operation. History 1 16.PRI: 90 This menu is used to switch the function settings on P.C.B.
  • Page 25 RX-V561/HTR-6050 18. ROM VER/SUM The version and checksum are displayed. The signal is processed using EFFECT OFF. Version 18. VER. B112 Firmware version of microprocessor is displayed. All checksum 18.A.SUM:CE61 Checksum value of microprocessor is displayed. Program checksum 18.P.SUM:F584 Checksum value of application and standby code program is displayed.
  • Page 26: Display Data

    RX-V561/HTR-6050 I DISPLAY DATA G V2001 : 17-BT-29GNK (OPERATION P.C.B.) PATTERN AREA G PIN CONNECTION Pin No. 68 67 Connection F2 NX Pin No. Connection Note : 1) F1, F2 ..Filament pin 2) NP ..No pin 3) NX ..No extend pin 4) 1G~17G ..
  • Page 27 RX-V561/HTR-6050 G ANODE CONNECTION 13G-1G – – – – – – – – – –...
  • Page 28: Ic Data

    RX-V561/HTR-6050 I IC DATA IC101: ADSP-BF531 CPU (DSP P.C.B.) Microprocessor with DSP JTAG test Event controller/ Watch dock timer Core timer and emulation Real time clock Voltage regulator UART port IrDA® Memory L1 order L1 data management memory memory unit...
  • Page 29 RX-V561/HTR-6050 Pin No. Port Name Function Name Detail of Function DGND – Ground of external DGND – Ground of external DGND – Ground of external VROUT2 /VINTSW Voltage regulator drive for Q101 VROUT1 /VINTSW Voltage regulator drive for Q101 VDDEXT VDDEXT –...
  • Page 30 RX-V561/HTR-6050 Pin No. Port Name Function Name Detail of Function TSCLK1 TSCLK1 Serial port 1, serial transmission clock DR1SEC DR1SEC Serial port 1, secondary reception data DR1PRI DR1PRI Serial port 1, primary reception data RFS1 RFS1 Serial port 1, frame synchronization reception...
  • Page 31 RX-V561/HTR-6050 Pin No. Port Name Function Name Detail of Function ADDR19 SDRAM address bus 19 ADDR18 SDRAM address bus 18 ADDR17 SDRAM address bus 17 ADDR16 SDRAM address bus 16 ADDR15 SDRAM address bus 15 ADDR14 SDRAM address bus 14...
  • Page 32 RX-V561/HTR-6050 • Microprocessor extended port IC204-IC207: SN74LV573APWR (DSP P.C.B.) Octal 3-state D-latches with 3-state outputs IC204 Pin No. Port Name Function Name Detail of Function /EXPE Extended port enable Data bus 00 Data bus 01 Data bus 02 Data bus 03...
  • Page 33 RX-V561/HTR-6050 IC206 Pin No. Port Name Function Name Detail of Function /EXPE Extended port enable Data bus 00 Data bus 01 Data bus 02 Data bus 03 Data bus 04 Data bus 05 Data bus 06 Data bus 07 DGND...
  • Page 34 RX-V561/HTR-6050 • Microprocessor ADC select port IC401: ADC084S021CIMM (DSP P.C.B.) 4-channel, 200 kSPS, 8-bit A/D converter 8-Bit SCLK SUCCESSIVE APPROXIMATION DOUT ADC084S021 SCLK CONTROL LOGIC DOUT Pin No. Port Name Function Name Detail of Function /SPISEL1 CS for microprocessor +3.3S...
  • Page 35 RX-V561/HTR-6050 IC402 Pin No. Port Name Function Name Detail of Function – DEST2 Destination 2 * Analog value to IN4 (IC401) – – DGND (Pull-down) DGND Ground of external DGND Ground of external ADSEL2 Input select 2 ADSEL1 Input select 1...
  • Page 36 RX-V561/HTR-6050 IC301: AK4588VQ (DSP P.C.B.) 2/8-channel audio CODEC with DIR PVSS PVDD X'tal Clock Oscillator 8 to 3 Recovery Clock MCKO1 Generator Input MCKO2 Selector LRCK2 DAIF Audio BICK2 Decoder SDTO2 DAUX2 AVDD AVSS DVDD Error & CCLK Q-subcode DVSS...
  • Page 37 RX-V561/HTR-6050 Pin No. Function Name Detail of Function INT1 Interrupt 1 pin BOUT Block-start output pin for receiver input “H” during first 40 flames TVDD – Output buffer power supply pin, 2.7 V to 5.5 V DVDD – Digital power supply pin, 4.5 V to 5.5 V DVSS –...
  • Page 38 RX-V561/HTR-6050 Pin No. Function Name Detail of Function ROUT3 DAC3 R ch analog output pin No connect pin – No internal bonding / This pin should be opened LOUT2 DAC2 L ch analog output pin No connect pin – No internal bonding / This pin should be opened...
  • Page 39 RX-V561/HTR-6050 IC161: R2A15215FP (MAIN P.C.B.) 8-channel electronic volume with 11 input selector and tone control 49 48 46 45 38 37 34 33 A VCC MUTE A VCC N.C. A VEE A VEE N.C. TREL 0/-6/-12/-18dB ADCL BASSL2 BASSL1 ADCR N.C.
  • Page 40 RX-V561/HTR-6050 Pin No. Function Name Detail of Function N.C. No connected SBLC L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume SBLOUT FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal AGND Analog GND terminal SBROUT FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal SBRC...
  • Page 41 RX-V561/HTR-6050 Pin No. Function Name Detail of Function AGND Analog GND terminal N.C. No connected INR1 L/R ch input terminal (input selector) INL1 L/R ch input terminal (input selector) INR2 L/R ch input terminal (input selector) INL2 L/R ch input terminal (input selector)
  • Page 42 RX-V561/HTR-6050 IC201: M66003-0131FP-R (OPERATION P.C.B.) 18 digit 5x7 segment VFD controller/driver Display code CGROM SEG00 (35-bit x 166) (8-bit x 60) Segment SEG25 Code output write SEG26 circuit CGROM SEG34 Serial dot data data (35-bit x 16) write receive Code/...
  • Page 43 RX-V561/HTR-6050 Pin No. Port Name Function Name Detail of Function /RESET Reset Reset input When "L", M66003 is initialized /CEFL Chip select input When "L", communication with the MCU is possible When "H", any instruction from the MCU is neglected...
  • Page 44 RX-V561/HTR-6050 MEMO MEMO...
  • Page 45: Block Diagrams

    RX-V561/HTR-6050 I BLOCK DIAGRAMS Video, Audio and Power Supply Sections • See page 61-66 → • See page 67, 68 → MAIN OPERATION SCHEMATIC DIAGRAM • See page 73 → SCHEMATIC DIAGRAM • See page 69, 70 → • See page 71, 72 →...
  • Page 46 RX-V561/HTR-6050 Control Section CONTROL LIST Input select VIA, VIB, VIC /OSDSEL /VR1 SSEL1-3 • See page 67, 68 → OPERATION Control bus SPISEL3-6 SCHEMATIC DIAGRAM /RESET from OPERATION /CCBE USB reset /IC_AK /RESET A/D select ADSEL0-2 /IC_AK OPERATION (9) IC505 IC505 •...
  • Page 47: Pin Connection Diagrams

    RX-V561/HTR-6050 I PIN CONNECTION DIAGRAMS • ICs SN74CBTLV16210GR SN74LV157APWR SN74AHCT245PWR ADC084S021 CIMM ADSP-BF531 CPU AK4588VQ AZ4580MTR-E1 SN74LV573APWR SN74LV4051APWR STK433-130-E STK433-330-E TC74HC4052AF W9864G6EH-7 BR25L320F-W EEPROM CXB1442AR-T4 KIA7805API KIA79M05PI-U LM61CIZ KIA7812API KIA7912PI • Diodes 1SS133, 176 RB160L-40 TE25 1SS355 KDS160-RTK OUTPUT INPUT...
  • Page 48: Printed Circuit Boards

    RX-V561/HTR-6050 I PRINTED CIRCUIT BOARDS DSP P.C.B. (Side A) MAIN (1) (CB161) VIDEO (1) (CB305) OPERATION (2) (CB232) • Semiconductor Location Ref no. Location Ref no. Location D101 IC301 CB504 CB516 CB512 D401 IC302 D403 IC305 D404 IC401 IC501 D405...
  • Page 49 RX-V561/HTR-6050 DSP P.C.B. (Side B) • Semiconductor Location Ref no. Location D407 D409...
  • Page 50 RX-V561/HTR-6050 OPERATION (1) P.C.B. (Side A) MAIN (4) (CB191) (CB408) W2001 /MICDET SSEL3 SSEL2 SSEL1 OPERATION (2) REM1 (CB235) /BLK CKFD DTFD /CEFD ADKEY1 ADKEY0 +3.3S OPERATION (10) V_CN (CB274) JK201 V_CTRL OPTIMIZER MIC VOLUME PRESET/TUNING/CH A/B/C/D/E MEMORY FM/AM EDIT...
  • Page 51 RX-V561/HTR-6050 OPERATION (1) P.C.B. (Side B) IC202 • Semiconductor Location Ref no. Location Ref no. Location D2002 Q2004 D2004 Q2005 D2006 Q2011 D2008 Q2012 D2009 Q2013 IC201 Q2014 IC202 Q2015 Q2001 Q2016 Q2002 Q2017 Q2003...
  • Page 52 RX-V561/HTR-6050 OPERATION (2) P.C.B. (Side A) IC237 IC236 IC235 IC232 IC233 IC234 IC238 OPERATION (1) (CB203) (CB516) XMPWR /PDET /RESET W2154 +3.3 CB233 +5XM W2151 CB231 CB234 OPERATION (3) MAIN (1) HDMI POWER TRANSFORMER (CB251) (CB103) (CB905) • Semiconductor Location Ref no.
  • Page 53 RX-V561/HTR-6050 OPERATION (2) P.C.B. (Side B) • Semiconductor Location Ref no. Location D2151 D2154 D2156 D2157 D2160 D2165 D2168 Q2151 Q2152 Q2153...
  • Page 54 RX-V561/HTR-6050 OPERATION (3) P.C.B. (Side A) OPERATION (3) P.C.B. (Side B) OPERATION (4) P.C.B. (Side A) CB254 CB252 W252A W252B CB257 W251A OPERATION (2) (CB231) W251B ACDET CB256 AC IN AC OUTLET(S) OPERATION (6) P.C.B. (Side A) OPERATION (6) P.C.B.
  • Page 55 RX-V561/HTR-6050 OPERATION (8) P.C.B. (Side A) OPERATION (10) P.C.B. (Side A) MAIN (4) (CB192) OPERATION (1) (CB204) V_CTRL W2401 STANDBY VIDEO AUDIO • Semiconductor Location VIDEO AUX Ref no. Location D2401 OPERATION (8) P.C.B. (Side B) D2402 D2403 D2404 OPERATION (11) P.C.B.
  • Page 56 RX-V561/HTR-6050 SPEAKERS FRONT A MAIN (4) P.C.B. + / - + / - MAIN (1) P.C.B. (Side A) (Side A) MULTI CH INPUT AUDIO OUTPUT FRONT SURROUND CENTER / DTV/CBL MD/CDR SUBWOOFER WOOFER VIDEO (4) (PLAY) (REC) (CB381) L / R...
  • Page 57 RX-V561/HTR-6050 MAIN (1) P.C.B. (Side B) MAIN (4) P.C.B. (Side B) IC164 IC163 81 80 IC162 30 31 IC169 • Semiconductor Location Ref no. Location Ref no. Location D103 Q107 D104 Q108 D107 Q121 D161 Q122 D162 Q123 D163 Q125...
  • Page 58 RX-V561/HTR-6050 VIDEO (1) P.C.B. VIDEO (2) P.C.B. (Side A) (Side A) COMPONENT VIDEO VIDEO S VIDEO DTV/CBL MONITOR DTV/CBL MONITOR DTV/CBL MONITOR JK301 JK301 JK303 JK303 JK302 JK302 W3201 W3201 CB322 CB322 CB321 CB321 CB306 CB306 CB305 CB305 CB307 CB307...
  • Page 59 RX-V561/HTR-6050 VIDEO (4) P.C.B. (Side A) SPEAKERS VIDEO (3) P.C.B. (Side A) SURROUND CENTER FRONT B + / - + / - + / - + / - + / - VIDEO (1) VIDEO (1) (CB306) (CB307) CB342 CB343 VIA3...
  • Page 60 RX-V561/HTR-6050 • Semiconductor Location Ref no. Location HDMI P.C.B. HDMI P.C.B. D4909 (Side A) (Side B) D4910 D4912 D4913 OPERATION (2) D4914 (W2154) D4915 D4916 5HDMI D4917 5HDMI D4918 D4919 HGND D4920 D4921 D4922 D4923 D4924 D4925 D4926 D4927 VOUT...
  • Page 61: Schematic Diagrams

    RX-V561/HTR-6050 SCHEMATIC DIAGRAMS DSP 1/6 to DSP 2/6 to DSP 6/6 to DSP 5/6 EEPROM to DSP 2/6 MICROPROCESSOR with DSP to DSP 5/6 to DSP 6/6 IC101 to DSP 3/6 to DSP 5/6 to DSP 4/6 to DSP 6/6...
  • Page 62 RX-V561/HTR-6050 DSP 2/6 to DSP 1/6 SDRAM IC203 to DSP 5/6 IC203 EXTENDED PORT to DSP 1/6 IC203 to DSP 5/6 to DSP 4/6 IC203 to DSP 4/6 1 .0 to DSP 3/6 FLASH ROM to DSP 5/6 to DSP 4/6...
  • Page 63 RX-V561/HTR-6050 DSP 3/6 IC302: SN74LV157APWR Quadruple 2-line to 1-line data selectors/multiplexers DIGITAL IN IC305 IC305 Pin numbers shown are for the D, DB, DGV, J, NS, PW, and W packages. IC305 IC305 IC305 IC305 DIGITAL IN CODEC with DIR DTV/CBL...
  • Page 64 RX-V561/HTR-6050 DSP 4/6 IC401: ADC084S021 CIMM 4-channel, 200 ksps, 8-bit A/D converter to DSP 2/6 8-Bit SCLK SUCCESSIVE APPROXIMATION DOUT A/D SELECTOR ADC084S021 SCLK CONTROL LOGIC DOUT to DSP 3/6 DSP 5/6 to DSP 6/6 A/D SELECTOR * Destination for A/D port R416 [ohm] 5.6 k...
  • Page 65 RX-V561/HTR-6050 DSP 5/6 CB512 to DSP 1/6 to DSP 2/6 IC501: SN74AHCT08PWR Quadruple 2-input positive-AND gates Page 70 D10 to DSP 2/6 to MAIN (1)_CB161 0 3.3 3.3 to DSP 1/6, 2/6, 4/6 IC505: SN74LV08APWR Quadruple 2-input positive-AND gate CB501...
  • Page 66 RX-V561/HTR-6050 DSP 6/6 to DSP 1/6 IC601: ISP1362BD Single-chip universal serial bus on-the-go controller 12 MHz CLKOUT POWER-ON internal HC BUFFER RESET reset RESET MEMORY H_SUSPEND/ H_WAKEUP 2, 3, to system clock 5 to 8, DD_5V 10 to 13, ADVANCED PHILIPS...
  • Page 67 RX-V561/HTR-6050 OPERATION 1/2 Page 66 N10 to DSP_CB603 W2402 CB241 OPERATION (9) OPERATION (8) VIDEO AUX -18.1 -17.3 -26.4 -21.4 -21.4 -19.9 -23.2 -21.4 -21.6 -13.3 W2401 -21.8 -15.0 -15.0 -23.3 AUDIO VIDEO IC201 -17.3 OPERATION (6) -18.1 -26.6 -24.9 -26.4...
  • Page 68 RX-V561/HTR-6050 OPERATION 2/2 13.3 13.3 12.7 AC 6.9 13.1 13.1 CB251 CB256 AC IN W2251 W251A W251B CB257 CB252 CB254 CB253 CB255 W252A W252B OPERATION (3) OPERATION (4) To POWER TRANSFORMER OPERATION (2) IC232: NJM2388F33 Low dropout voltage regulator with ON/OFF control IC238 11.1...
  • Page 69 RX-V561/HTR-6050 MAIN 1/2 POWER AMPLIFIER IC102 47.8 47.7 -46.4 FRONT L SURROUND L -12.0 SPEAKERS FRONT A 47.5 -12.0 W101A Page 72 to VIDEO (4)_CB381 -11.8 47.5 to MAIN 2/2 W103 Page 67 to OPERATION (6)_CB261 -11.8 POWER AMPLIFIER IC101 -46.4...
  • Page 70 RX-V561/HTR-6050 MAIN 2/2 Page 71 Page 65 to VIDEO (2)_CB322 to DSP_CB502 Page 67 Page 67 Page 71 to OPERATION (1)_W2001 to OPERATION (8)_W2401 to VIDEO (2)_W3201 11.7 FILTER IC162 W163B ANALOG L IC162 -12.0 11.8 IC162-164, 169: AZ4580MTR-E1 Dual low noise operational amplifiers -11.9...
  • Page 71 RX-V561/HTR-6050 VIDEO 1/2 Page 65 to DSP_CB504 Page 70 Page 73 to MAIN (4)_CB193 to HDMI_CB906 INPUT SELECTOR -0.5 INPUT SELECTOR -5.0 JK301 W3201 JK302 VIDEO -5.0 CB321 IC342 INPUT W3401 SELECTOR S VIDEO CB341 JK303 INPUT CB306 SELECTOR IC344...
  • Page 72 RX-V561/HTR-6050 VIDEO 2/2 VIDEO (4) Page 69 FRONT B to MAIN (1)_W101A CB381 SPEAKERS SURROUND L SURROUND Page 69 to MAIN (1)_W102A CENTER CENTER CB382 # All voltages are measured with a 10MΩ/V DC electronic voltmeter. # Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.
  • Page 73 RX-V561/HTR-6050 HDMI IC911: TC7S86FU Exclusive OR gate HDMI IN B DTV/CBL IN A OUT Y CB901 CB902 CB903 IC910: TC7S04FU Inverter IN A OUT Y IC909: TC7S32FU 2-input OR gate IN B IN A OUT Y IC908: SN74LVC2G17DCKR Dual schmitt-trigger buffer...
  • Page 74: Replacement Parts List

    RX-V561/HTR-6050 I REPLACEMENT PARTS LIST • ELECTRICAL COMPONENT PARTS WARNING G Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed. G The chip resistor is not supplied as a replacement part.
  • Page 75 RX-V561/HTR-6050 P.C.B. DSP Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets WK505300 P.C.B. C513-515 US062100 C.CE.CHP 100pF 50V B CB408 VF982300 CN.BS.PIN 17P C516 US035100 C.CE.CHP 0.1uF 16V B CB501 VQ961000 CN.BS.PIN 7P C517-518 US062100 C.CE.CHP 100pF...
  • Page 76 RX-V561/HTR-6050 P.C.B. DSP and P.C.B. OPERATION Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets XL101 VZ540700 RSNR.CRYS 25MHz SMD-49 C2179-2180 VE326000 C.MYLAR 0.1uF XL301 WJ625200 RSNR.CRYS 24.576MHz C2181 US135100 C.CE.CHP 0.1uF XL601 WK878400 RSNR.CRYS 12MHz DSX530GA C2182-2183 WJ605000 C.MYLAR...
  • Page 77 RX-V561/HTR-6050 P.C.B. OPERATION and P.C.B. MAIN Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets Q2017 VV556400 TR 2SC2412K Q,R,S C1031 WJ602900 C.MYLAR 100pF 50V K Q2151 WC435100 TR.DGT KRC104S-RTK C1032 FG651100 C.CE 10pF Q2152 VV556400 TR...
  • Page 78 RX-V561/HTR-6050 P.C.B. MAIN and P.C.B. VIDEO P.C.B. VIDEO and P.C.B. HDMI Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets Ref. No. Part No. Description Markets D103 VU171900 DIODE.ZENR UDZ5.1B 5.1V R1106 HV756390 R.CAR.FP 3.9KΩ...
  • Page 79 RX-V561/HTR-6050 • OVERALL ASS’Y 200-1 AMP Unit Front Panel Unit...
  • Page 80 RX-V561/HTR-6050 Ref. No. Part No. Description Remarks Markets WK505500 P.C.B. ASS'Y OPERATION WK505200 P.C.B. ASS'Y VIDEO WJ644800 P.C.B. ASS'Y HDMI WB424000 AM/FM TUNER ENG06709Q s 15 X8606A00 POWER TRANSFORMER s 16 WB120500 POWER CABLE V2438700 CORD STOPPER 10P1 MF120180 FLEXIBLE FLAT CABLE 20P 180mm P=1.25...
  • Page 81 RX-V561/HTR-6050 • FRONT PANEL UNIT 1-25 6 (1) 6 (10) 1-25 1-5 (6) 1-25 1-25 1-5 (5) 1-25 1-25 1-25 6 (6) 1-5 (1) 1-5 (2) 1-5 (4) 1-5 (3) 6 (9) 1-25 1-26 1-13 6 (8) 1-25...
  • Page 82 RX-V561/HTR-6050 Ref. No. Part No. Description Remarks Markets MF117180 FLEXIBLE FLAT CABLE 17P 180mm P=1.25 WK566500 FRONT PANEL V561 WK566600 FRONT PANEL 6050 WJ192300 BUTTON CASE V561 WJ192400 BUTTON CASE 6050 WJ192800 BUTTON TUNER WJ193200 LENS BUTTON SCENE WJ193300 EMBLEM BL...
  • Page 83 RX-V561/HTR-6050 • AMP UNIT 2-104 2-104 2-104 2-21 2-20 2-105 6 (2) 2-4 (1) 2-103 6 (11) 2-104 2-4 (4) 2-104 2-104 2-104...
  • Page 84 RX-V561/HTR-6050 Carbon Resistors Value 1/4W Type Part No. 1/6W Type Part No. Value 1/4W Type Part No. 1/6W Type Part No. Ref. No. Part No. Description Remarks Markets 1.0 Ω 3100 3100 10 kΩ 7100 7100 HJ35 HF85 HF45 HF45 WK505300 P.C.B.
  • Page 85: Remote Control
