Vax Dynamo Power Total Home User Manual page 12

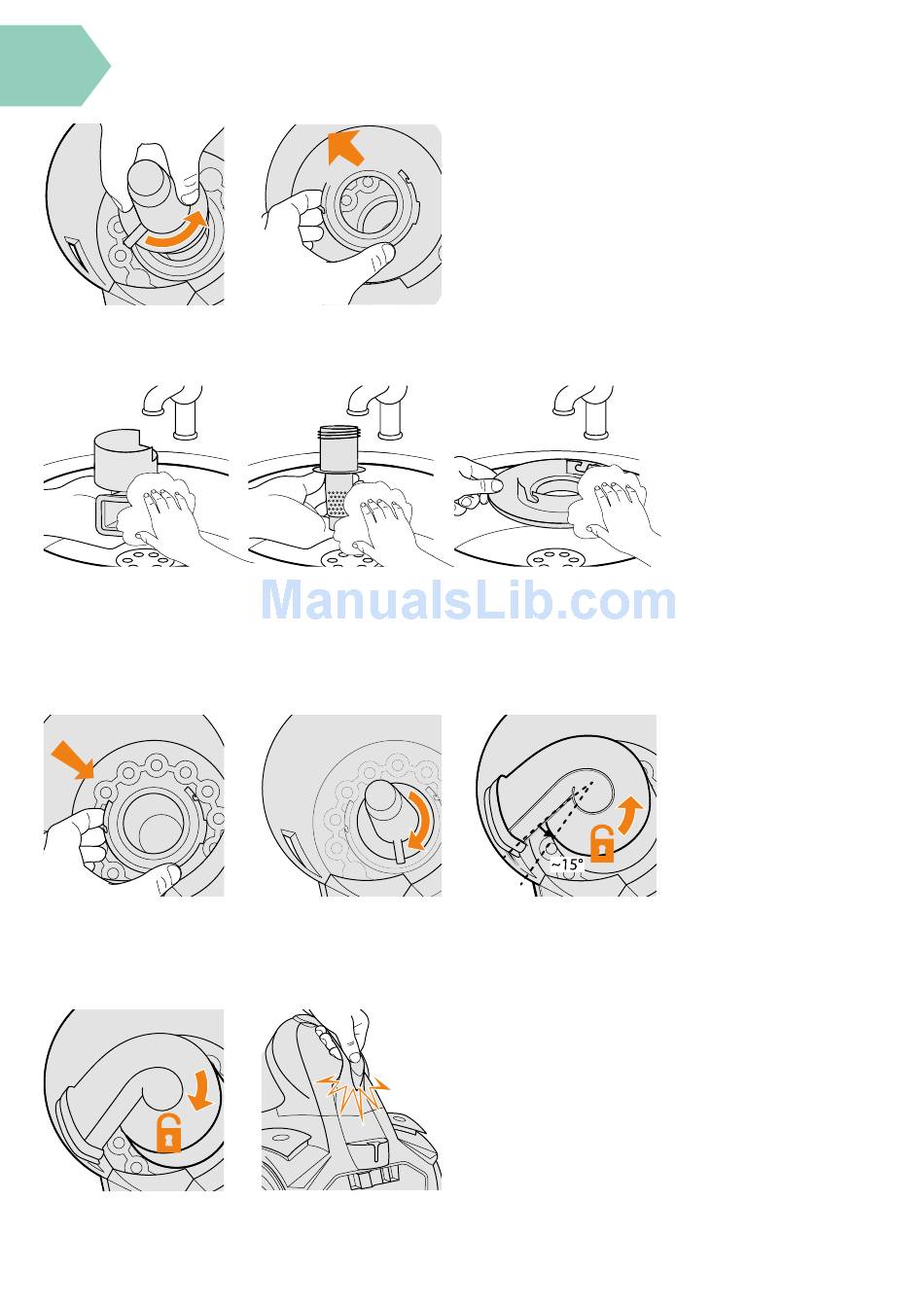

Taking care of your machine
Unscrew the shroud anti
clockwise and remove.
Tap the separator, shroud and separator plate over a bin to remove any dirt/debris. Using
a dry cloth wipe the remaining dirt /debris from the separator, shroud and separator plate.
Re-fitting the seperator plate, shroud plate
Line up and push the
separator plate into place.
Twist the separator
anti clockwise to lock
into place.
Pull to remove the separator plate.
Refit the shroud twisting
clockwise to lock
into place.
Refit the dirt container pushing
down firmly until it clicks and
locks into place.
Line up the separator
making sure both
rectangular holes in
the dirt container and
separator line up.
