Changing the direction of the exhaust duct (optional)

WARNING
Before performing this exhaust installation, disconnect the dryer from its electrical supply.
Wear gloves to protect your hands and arms from sharp edges when working inside the
cabinet.
Side venting
A
C
DV22K6800-03650A-00_EN (US)_151211.indd 23
B
D
4.9"(125 mm)

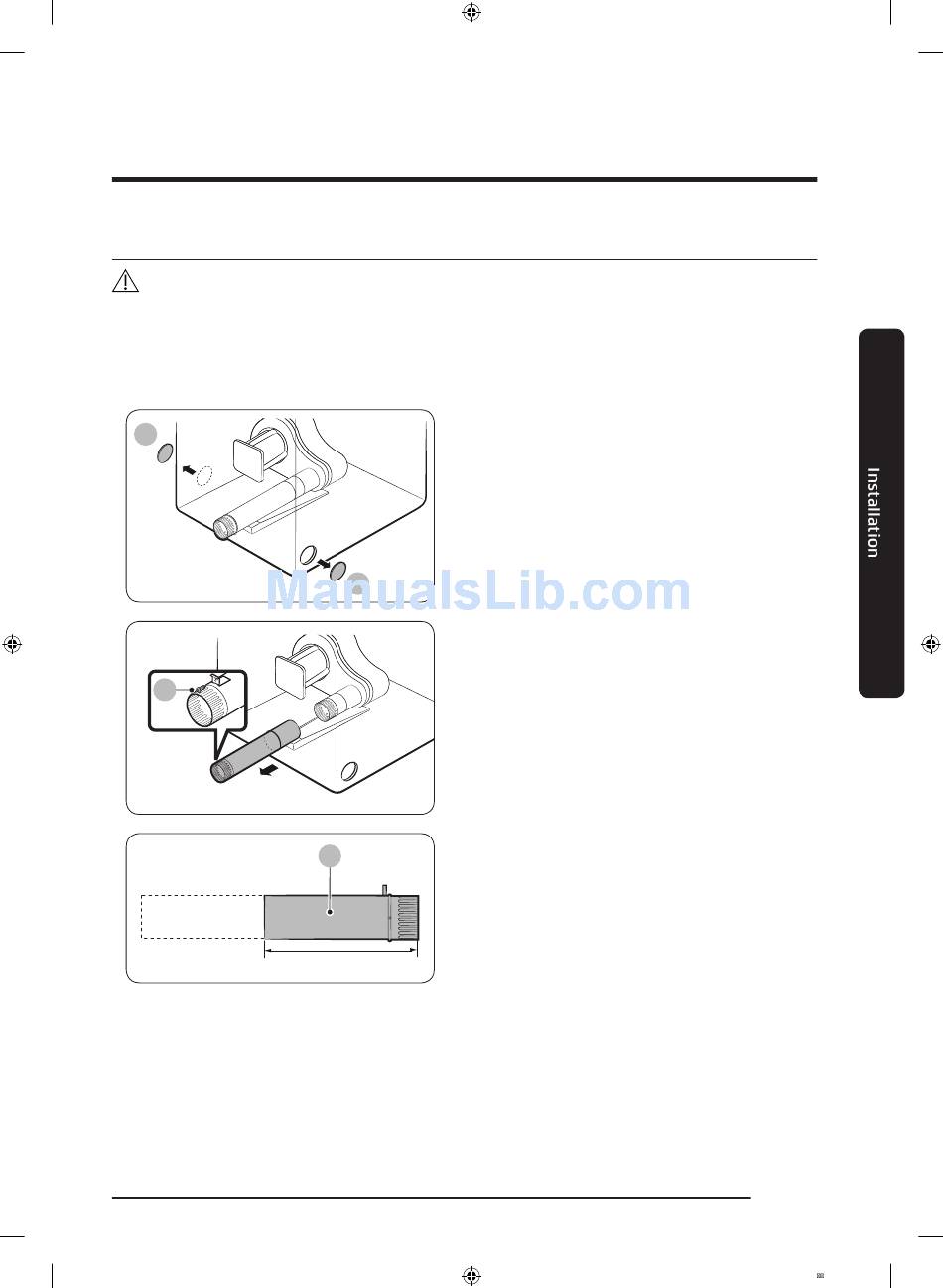

1. Detach the right (A) or left (B) side
knockout as desired.
2. Pull the duct out of the dryer, and then
remove the screw (C) from the duct.
Set screw (C) aside. You will need it in
a later step.
3. Cut the duct as shown and keep the
cut portion of the duct (D).
