Motor Control I/O Board User's Manual
1. Introduction
The low-voltage starter kit for motor control (MC-LVKIT-714) is a complete 3-phase motor control
evaluation system for NEC Electronics' microcontroller-type, application-specific standard products
(ASSPs) for motor control.
The kit contains all necessary hardware and software to quickly set up and run a low-voltage
brushless DC motor (BLDCM).
2. Kit Contents
MC-78F0714 micro-board containing the µPD78F0714 microcontroller
MC-I/O board that interfaces between the micro-board and the power module
Low-voltage power module (MC-PWR-LV) containing the power MOSFETs
Pittman N2311 12V BLDC motor
FW7362/15 DC power supply
PC serial cable DB-9F to DB-9F (null modem – crossover cable)
Sample software for a BLDC-Hall-714-LV 120-degree trapezoidal drive
20 MHz oscillator for on-chip debugger.
For information about the electrical characteristics and hardware functions of the µPD78F0714
microcontroller, refer to

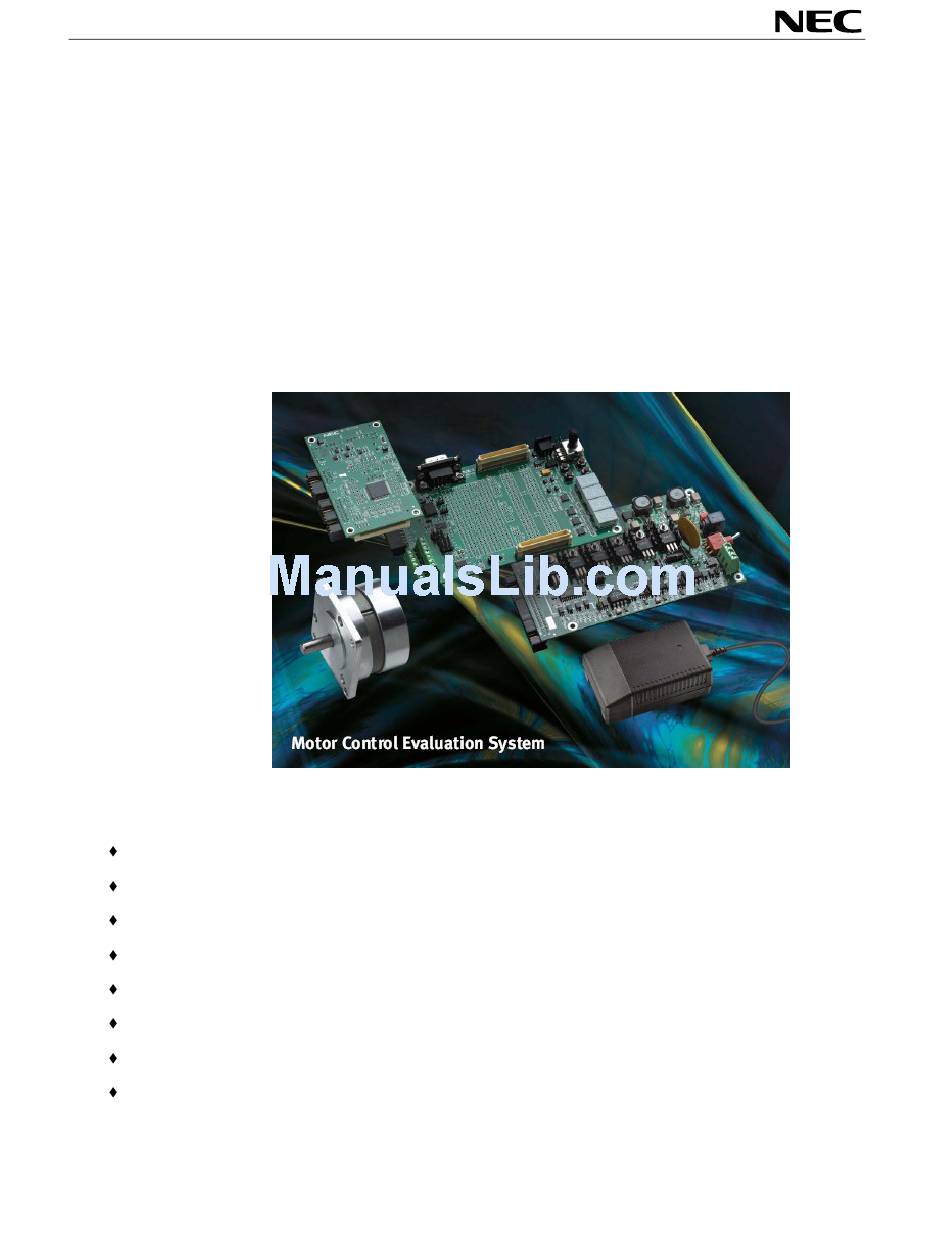

Figure 1. Motor Control Starter Kit
µ
PD78F0714 Preliminary User's Manual (U16928E).
1
