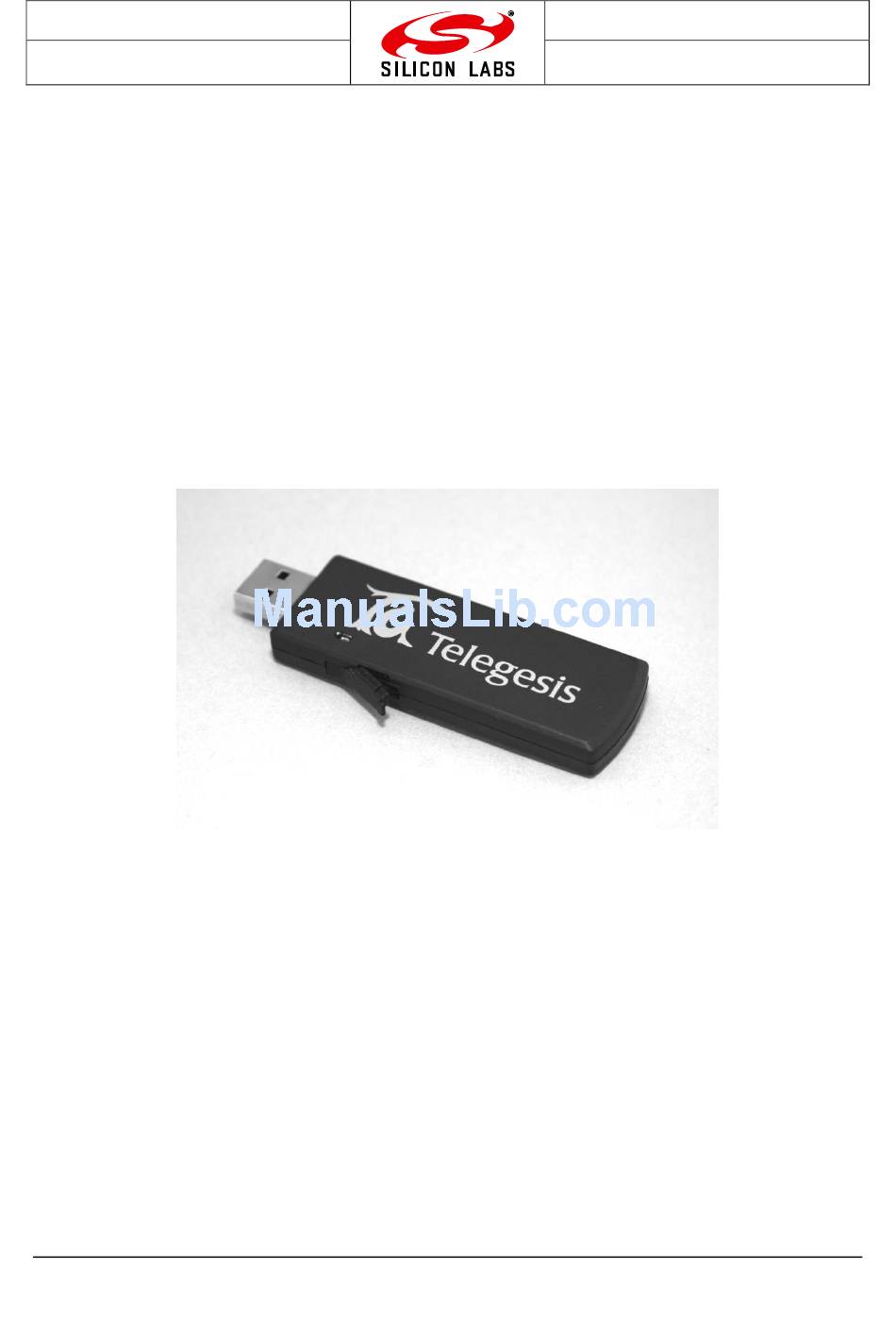

- Page 1 Telegesis™ TG-ETRX2USB-PM-004-106 ETRX2USB Product Manual 1.06 Telegesis™ is a trademark of Silicon Laboratories Inc. ETRX2USB and ETRX2USB-PA USB STICK PRODUCT MANUAL ©2016 Silicon Labs ETRX2USB Product Manual (Rev 1.06)
-
Page 2: Table Of Contents
FIRMWARE UPGRADES ....................5 DRIVER INSTALLATION AND OPERATION ..............6 Windows 9x/XP/2k Driver Installation ................6 Macintosh and Linux drivers ..................... 9 CUSTOM FIRMWARE DEVELOPMENT ................9 ORDERING INFORMATION ..................... 10 ©2016 Silicon Labs - 2 - ETRX2USB Product Manual (Rev 1.06) -
Page 3: Introduction
ETRX2USB 1 Introduction The ETRX2USB wireless mesh networking USB Stick is effectively an RS232 to USB bridge connected to an ETRX2 ZigBee module. This allows connectivity to a computer’s USB port. The supplied drivers create a virtual COM Port, so that the command line of the ETRX2 can be accessed via any terminal software application. -
Page 4: Operating Conditions
For further technical information, including radio certification, see the ETRX2 or ETRX2PA Module Product Manual. If you purchase ETRX2USB sticks without printed markings on the case, you may be responsible for applying a marking appropriate to their geographical area of use, such as the FCC certification. -
Page 5: Etrx2 I/O Connectivity
COM port as described in the Development Kit manual. Alternatively, access to the SIF programming interface is possible by opening the cover on the side of the ETRX2USB ZigBee USB stick. ©2016 Silicon Labs - 5 -... -
Page 6: Driver Installation And Operation
When executing the file ‘TgVCPInstaller.exe’ prior to plugging in the ETRX2USB stick an installer will guide you through the steps required for the driver installation. If prompted that the driver has not passed the Windows logo test simply press ‘Continue Anyway’. - Page 7 Please note that each ETRX2USB has a unique serial number which requires the installation procedure to be repeated with every new ETRX2USB being attached to the computer. This allows multiple ETRX2USB sticks to be used on the same computer at any one time.
- Page 8 ETRX2USB Figure 4. Device Manager Once the correct COM port has been selected, the Terminal software can be used to control the ETRX2USB stick as per the Development Kit Manual. Figure 5. Telegesis Terminal ©2016 Silicon Labs - 8 -...
-
Page 9: Macintosh And Linux Drivers
Most Linux distributions now include suitable native drivers. 8 Custom Firmware Development If you intend to develop custom firmware to go onto the ETRX2USB you need to contact SiLabs to obtain access to their suite of development tools and their stack. The USB stick contains an ETRX2 module based on the SiLabs EM250 and a USB-to-serial bridge chip. -
Page 10: Ordering Information
There is no “blank” version of the ETRX2 Module available. All Modules carry both the Ember Stack and the Telegesis AT style Command Layer. Where customers wish to add their own firmware they can erase and write it to the flash memory of the Ember EM250. - Page 11 EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZRadio®, EZRadioPRO®, Gecko®, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress® and others are trademarks or registered trademarks of Silicon Laborato- ries Inc.
