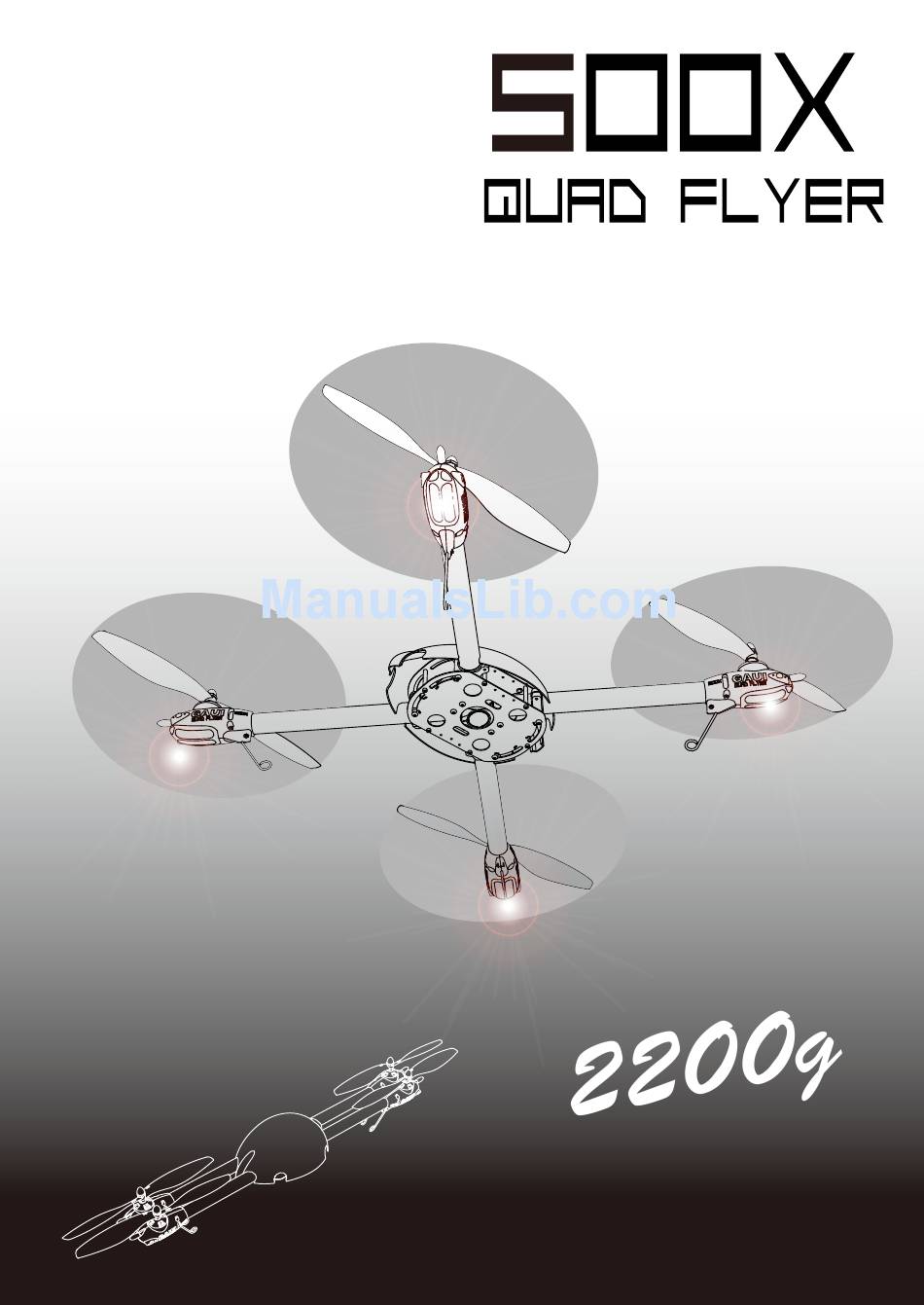

- Page 1 GAUI Item No.222001 Item No.222002 Item No.222003 Max Flying Weight : 10 inch prop. Weight : 670g (without battery). Battery : 2S~4S LiPo 4~5CH radio control system...
- Page 2 LED Lights Payload Mount Set 酬載架 效率與時間計算 Power Efficiency and Flying Time Parts List 零件表 P23~24 Get the latest manual: We highly recommend getting the latest version of the manual. Please visit GAUI website to download a copy. 取得最新的手冊：我們非常建議您取得最新版本的手冊。請到泰世網站下載最新的手冊，並且取代目前 的手冊。 http://www.gaui.com.tw...
- Page 3 GAUI 內容物 Content TAI SHIH HOBBY CORPORATION 動力艙 Motor Mounts Canopy 艙罩 軸管 Boom 下底板 上底板 平台 Bottom Frame Top Frame system platform 機身 Main Frame Post x 4 PM2x3.5x22 x 6 M2x3.2 x 4 M2x5 x 16 Washer x 4...
- Page 4 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Start with Bottom side of Main Frame. Insert pivot point of Inside Boom Holder into pivot hole and lock in place with screw (O3 x 8). (Attention: Position Indicator is on bottom). 將內部套環凸點鑲入孔內並鎖緊。(注意：定位點在下方) 定位點...
- Page 5 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Lock in place the four Outside Boom Holder with (O3 x 8) screws (Attention: Outside boom holder screw hole is on top side Frame) 將外部套環如圖的位置鎖上螺絲。(注意：外部套環的螺絲孔在上方) O3 x 8 Threaded hole 螺絲孔...
- Page 6 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Insert the spring type landing gear into motor base, tighten with screws as drawing indicates. 將腳架置入馬達艙內並鎖上螺絲。 M2 Nut O3 x 12 M2 x 5 Spring type landing gear. 腳架...
- Page 7 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Connect ESC to Motors (Attention on cable connections: Motor + ESC (1&3) connect the same color cables together; Motor + ESC (2&4) red connects to black, black connects to red &...
- Page 8 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Insert boom into Motor base, attention on Position Indicator Gap, tighten screws and insert VCP Cap & plastic lid cover. 將軸管確實插入馬達艙定位點(軸管必須突出塑膠)，然後鎖緊螺絲並蓋上蓋子及套子。 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION If your are using 330X power system (10A ESC &...
- Page 9 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION When completing the 4 flight arms (labeling each arm & cables with numbers 1~4 is highly recommanded). 完成四組動力艙後便可逐一組合。 No.1 No.2 No.3 No.4 G A UI 機身製作...
- Page 10 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Signal cable should come out from top frame, power cable should come out from bottom frame. Tighten flight arms with O3 x 8 screws. 將訊號線由上方穿出，電源線由下方穿出，並將內外套管鎖上螺絲固定。 O3 x 8 O3 x 8 G A UI...
- Page 11 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Assemble the system platform for Stabilizer & Receiver (for GU-344, please use anti-vibration sponge provided) 組合平台，並將GU-344貼上防震泡棉固定在平台上。 system platform 平台 M2 x 3.2 Post anti-vibration sponge G A UI 機身製作...
- Page 12 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Insert the System Platform onto the main frame (attention on nose direction). 將平台固定在機身的套環上(注意機頭方向)。 No.3 No.4 No.2 No.1 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Note: when using a receiver with top cable connection instead of side cable connection.
- Page 13 T AI SHIH HOBB Y CORPOR A TION Also put touch fastener on Battery pack and affix to bottom of frame. (If the battery is too heavy, you can also use GAUI cable tie with touch fastener to secure even more).
- Page 14 G A UI 機身製作 Main Frame Assembly T AI SHIH HOBB Y CORPOR A TION Use the Spinner (bullet shaped part) to install the propeller on the propeller adaptor (threaded). Tighten the propeller set onto the motor shaft (Attention: Motor 1&3 spins counter-clock-wise and use 10A propellers.
- Page 15 It is recommended to set it at cruise mode (The LED lights is RED)for initial setting (The control of 500X will be similar to normal helicopter in this setting). It is possible to set the “Gain Value” by the function “Travel Volume”. The recommended initial setting of the “Gain Value”...
- Page 16 3.Connect the battery to the 500X. 將500X的電池接上. 4.After battery is connected to the 500X, the motor will come up with 5 corresponding tones (♪-♪-♪---♪-♪), move the throttle stick to the lowest position, the motor will comeup with 3 acknowledge tones(♪-♪---♪), simply disconnect the battery from the 500X, setting is completed (The ESCs are initialized with Factory Default setting for 500X, referring to page 17 for detailed information on ESC setting.)* If the motor come up with 6 corresponding tones...
- Page 17 T AI SHIH HOBB Y CORPOR A TION Move the “ELE” stick a little bit upward to check and make sure the 500X tilts forward as shown in figure below (figure below indicates the “ELE” control stick of “MODE 1” transmitter).
- Page 18 Check Before First Flight T AI SHIH HOBB Y CORPOR A TION Move the “AIL” stick rightward to check and make sure the 500X tilts right as shown in figure below (figure indicates the “AIL” control stick of “MODE 1” transmitter) *右傾指令...
- Page 19 “Switch 2” to the down position and simply finish the new setting of Nose Direction. The motor numbers and operating direction of motors and props will not be changed after setting. 若要將機頭方向改為0度,此時 只要將GU-344轉45度(面板的 箭頭為前方)並將開關2撥向下 即可,動力的編號及螺旋槳轉動 的方向皆不變. Note: 500X can only fly in X heading mode. 500X只適合用在X型 P.16...
- Page 20 GAUI 電子變速器設定說明 ESC setting TAI SHIH HOBBY CORPORATION Program the ESC with your transmitter (4 Steps): 1.Enter program mode 2.Select programmable items 2. Select programmable items: 3.Set item’s value (Programmable value) After entering program mode, you will hear 8 tones in a loop with the 4.Exit program mode...
- Page 21 Un-tighten the four screws to move to flight or storage positions. Remember to Re-tighten the screws when the positions are set. 將上方四個螺絲放鬆後即可收起軸管(不管張開或收起都應該再將螺絲鎖上)。 G A UI 收納 Storage T AI SHIH HOBB Y CORPOR A TION Remove the propellers to store 500X into the carrying bag. 鬆開螺旋槳後便可放置背袋內。 P.18...
- Page 22 G A UI 防護框 Protection Frame T AI SHIH HOBB Y CORPOR A TION Use the aluminum tubes, platic connectors and 3mm glass fiber stick to form the protective frame, refer to drawing below (Item#222241). 將3mm玻纖桿及鋁桿用塑膠件結合，並圍成一個外框。 G A UI 防護框 Protection Frame T AI SHIH HOBB Y CORPOR A TION Remove the VCP cap and insert the aluminum tubes into its base to complete the quad...
- Page 23 G A UI 攝影機組 (Option) Camera Mount Set T AI SHIH HOBB Y CORPOR A TION (Item#222231) 管夾 Boom anchor (for landing pole) 管夾 (Item#210910) 120mm Landing Pole 120mm 長腳架 (Item#210705) One-Axis Camera Mount 單軸攝影環架 G A UI FPV酬載板 (Option) T AI SHIH HOBB Y CORPOR A TION FPV platform Install Camera, transmitter and battery onto the FPV platform (lens should line up with the...
- Page 24 G A UI 燈具 (Option) T AI SHIH HOBB Y CORPOR A TION LED light Use metal wires to lead the LED cable wires thru the flight arms (boom) and affix with double sided tape (Item#222180). 用細鐵絲將燈泡引出並用雙面膠固定於動力艙內。 WHITE LEDs (front) 白燈...
- Page 25 It is able to use 2S/1400mah~2000mah LiPo for normal flight without payload, it is recommended to use the 3S LiPo for the 500X if the total flying weight is over 900g. Refer to the Power Efficiency Table to select the battery which come with proper capacity.
- Page 26 500X Central Frames (2 White LED, 2 Red LED, (For BL Motor) 4 transparent covers). 18A電子變速器 500X玻纖機身 LED燈具 System platform FPV platform 222202 500X Payload Mount Set 222203 222201 控制平台 FPV 酬載板 500X酬載架 Boom anchor 500X Canopy Motor Mounts 222231...
- Page 27 GAUI 零件表 Parts TAI SHIH HOBBY CORPORATION 10 inch Propellers 500X Aluminum Posts 222500 8 inch Propellers 222800 210801 (PM2x3.5x22) (10A and 10B) (8A and 8B) 十吋正逆槳 八吋正逆槳 500X 鋁柱包 500X Decal 222830 222850 Storage bag 500X 500X 直筒型收納包 500X 貼紙...
- Page 28 ITEM NO.222001 ITEM NO.222002 ITEM NO.222003 GAUI TAI SHIH HOBBY CORPORATION TEL:+886-2-86305567 FAX: +886-2-26105567 Website: www.gaui.com.tw E-mail: gaui@gaui.com.tw MADE IN TAIWAM...
