NEC V221W User Manual

Nec lcd monitor user manual
Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents
V191W
V221W
User's Manual

Advertisement

loading

  Also See for NEC V221W

NEC V191W-BK - 19
NEC V191W-BK - 19" LCD Monitor Specifications 2 pages
NEC V221W Technical Specification
NEC V221W Technical Specification 2 pages
NEC V221W Product Dimensions
NEC V221W Product Dimensions 1 page

  Related Manuals for NEC V221W

  Summary of Contents for NEC V221W

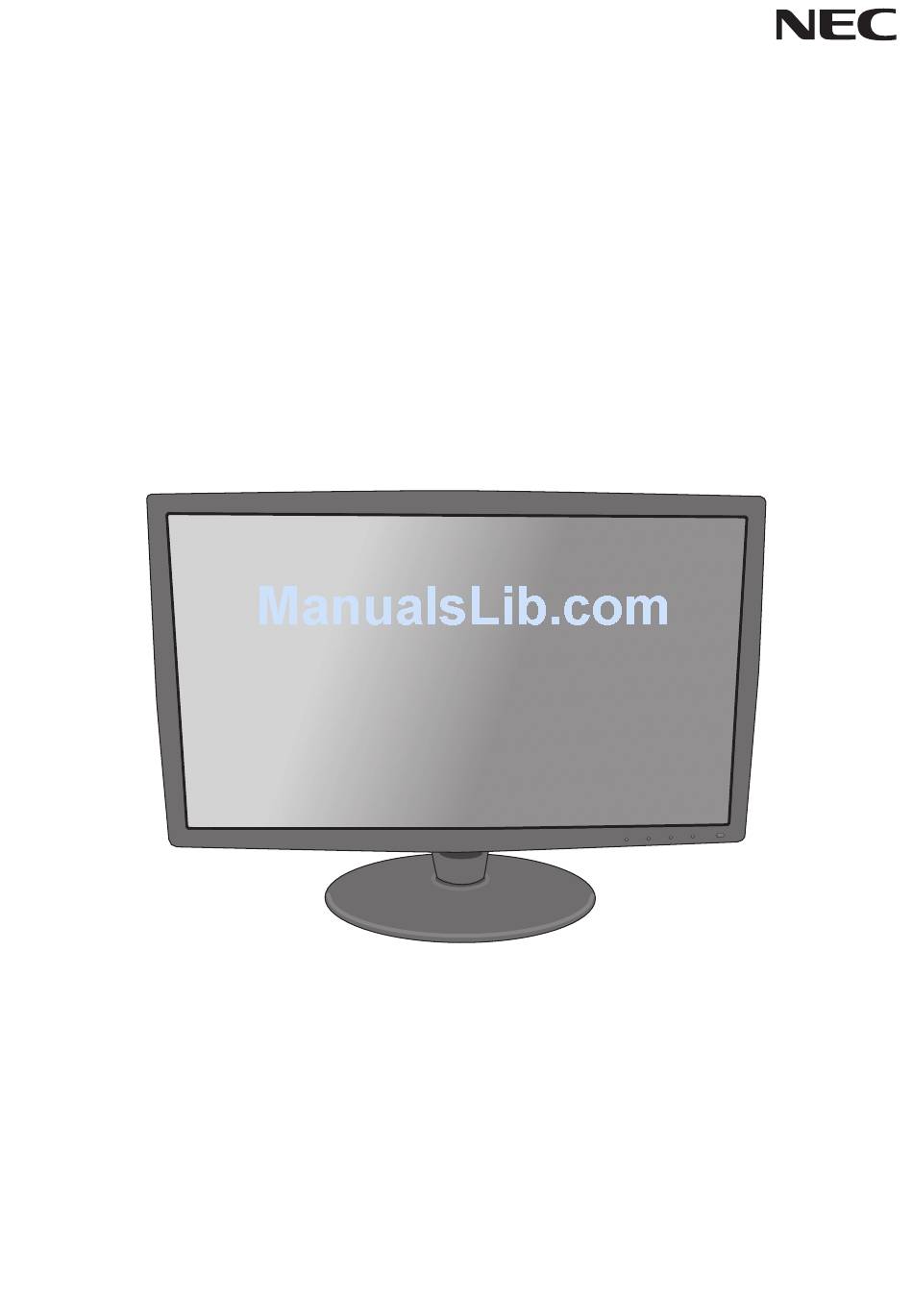

  • Page 1 V191W V221W User’s Manual...

  • Page 2: Table Of Contents

    Contents ... English-3 Quick Start ... English-3 Controls ... English-6 Recommended use ... English-9 Specifications - V191W ... English-11 Specifications - V221W ... English-12 Features ... English-13 Troubleshooting ... English-14 TCO’03 ... English-15 Manufacturer’s Recycling and Energy Information ... English-16...

  • Page 3: Warning, Caution

    U.S.A./Canada Voltage 120* *When operating the V191W/V221W monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. NOTE: This product can only be serviced in the country where it was purchased.

  • Page 4: Canadian Department Of Communications Compliance Statement

    C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specified cables with the V191W/V221W color monitor so as not to interfere with radio and television reception.

  • Page 5: Contents

    Contents Your new NEC LCD monitor box* should contain the following: • LCD monitor with tilt base • Power Cord • Video Signal Cable • Setup Manual • CD-ROM (only EU) • Base Stand • Stand Neck Setup Manual Power Cord...

  • Page 6: Remove Monitor Stand For Mounting

    3. Connect one end of the power cord to the monitor and the other end to the power outlet (Figure B.1). NOTE: Please confirm that the tabs are completely secure. NOTE: Please refer to Caution section of this manual for proper selection of power cord. 4.

  • Page 7: Removing The Base

    4 x 12 mm with lock washer and flat washer 12 mm 100 mm 100 mm Weight of LCD assembly: 3.0 kg (MAX) - (V191W) 4.1 kg (MAX) - (V221W) English-5 Thickness of Bracket (Arm) 2.0 ~ 3.2 mm Tighten all screws...

  • Page 8: Controls

    Controls OSD (On-Screen Display) control buttons on the front of the monitor function as follows: 1. Basic function at pressing each key Button At No OSD Showing OSD. showing At OSD showing Go to Adjustment stage. (Icon selection stage) At OSD showing Go to Icon selection stage.

  • Page 9: Auto Adjust

    BRIGHTNESS Adjusts the overall image and background screen brightness. To enter the ECO MODE, press the “AUTO” button. CONTRAST Adjusts the image brightness in relation to the background. AUTO CONTRAST Adjusts the image displayed for non-standard video inputs. AUTO ADJUST Automatically adjusts the Image Position, the H.

  • Page 10: Monitor Info

    INPUT RESOLUTION V191W Select resolution’s priority of input signal to one of the following signal: 1280x768, 1360x768, 1366x768. V221W Select resolution’s priority of input signal to one of the following signal: 1280x768, 1360x768 and 1366x768 or 1400x1050 and 1680x1050. 1280x768, 1360x768, 1366x768: Determines the resolution to 1280x768, 1360x768 or 1366x768.

  • Page 11: Recommended Use

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
  • Page 12 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

  • Page 13: Specifications - V191W

    Specifications - V191W Monitor Specifications LCD Module Diagonal: 47.01 cm/18.5 inches Viewable Image Size: 47.01 cm/18.5 inches Native Resolution (Pixel Count): 1366 x 768 Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level (Positive/Negative) Display Colours Analog input: 16,7 M Synchronization Range Horizontal: 31.5 kHz to 81.0 kHz Vertical: 55 Hz to 76 Hz...

  • Page 14: Specifications - V221W

    Specifications - V221W Monitor Specifications LCD Module Diagonal: 54.79 cm/21.6 inches Viewable Image Size: 54.79 cm/21.6 inches Native Resolution (Pixel Count): 1920 x 1080 Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Sync: Separate sync.TTL Level (Positive/Negative) Display Colours Analog input: 16,7 M Synchronization Range Horizontal: 31.5 kHz to 81.0 kHz...

  • Page 15: Features

    Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The small footprint and low weight allow it to be moved or transported easily from one location to another. No-touch Auto Adjust: No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup. Plug and Play: The Microsoft solution with the Windows operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

  • Page 16: Troubleshooting

    NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. Image is unstable, unfocused or swimming is apparent •...

  • Page 17: Tco'03

    TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...

  • Page 18: Manufacturer's Recycling And Energy Information

    Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

This manual is also suitable for:

V191w-bk - 19" lcd monitorV221w-bk - 22" lcd monitorV191w
