Summary of Contents for LEM procon series
-
Page 2: Important Safety Instructions
The lighting flash with arrowshad symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltages” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric schok to persons. The excalamation point within an equilater triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the... -
Page 3: Table Of Contents
Contents Contents Introduction ..........2 Instructions and installation . -
Page 4: Introduction

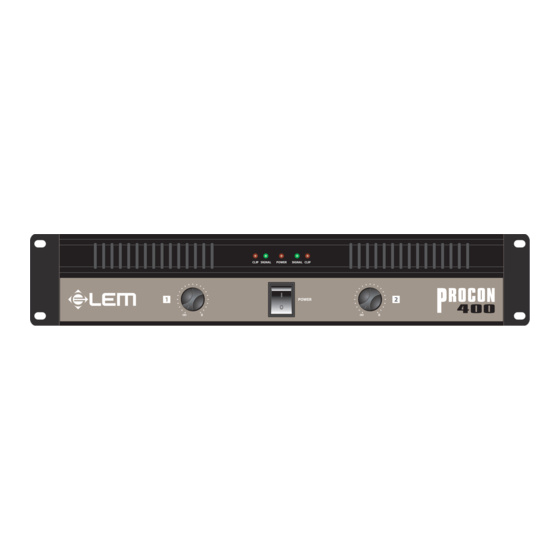

Introduction Congratulations for having chosen PROCON amplifiers! The PROCON SERIES power amplifiers have been designed by LEM in order to provide great efficiency, dynamics and reliability at a very affordable price, in a variety of fixed and mobile audio applications. -
Page 5: Instructions And Installation
Instructions and installation Instructions and installation ATTENTION !!! The PROCON series amplifiers generate high voltage on output. To avoid the risk of electric shocks, DO NOT TOUCH any bare wires when the unit is switched on. This manual contains important information for correct safe use: read it carefully before using your amplifier. - Page 6 Instructions and installation ✔ ✔ ✔ ✔ ✔ Preventing or identifying interference First of all, check that the amplifier is installed in a place free from industrial or RF (radio frequency) interfer- ence. Avoid installing your equipment very near radio or TV sets, mobile phones, etc., as these can cause noisy interference.
-
Page 7: Functions & Controls
Functions & Controls Functions & Controls POWER ON/OFF ON - OFF switch. POWER ON LED LED indicating when the amplifier is switched on. INPUT ATTENUATORS Input gain attenuator potentiometers. Attenuate the level of the external signal sent to the respective channels of the amplifier. Continuously variable values, expressed in dB, are between: ∞... -
Page 8: Connection Panel
Connection panel Connection panel INPUTS Balanced XLR-F connectors (0 dB). The inputs of the amplifier’s two channels. Can receive balanced or unbalanced high impedance line signals from equipment with high level outputs. NB: Whenever possible, use balanced cables. In any case, avoid using a balanced cable for one channel and an unbalanced one for the other, as this would cause a considerable difference in channel levels. -
Page 9: Connection Examples
Connection examples Connection examples... - Page 10 Connection examples...
-
Page 11: Connection Cables
Connection cables The following diagrams show the wiring of the connectors that can be used with the PROCON series amplifiers. To connect the mixer outputs to the amplifiers inputs, make certain to always use balanced signal cables: the use of unbalanced cables could in fact probably cause annoying hum and noise. -
Page 12: Technical Specifications
Technical specifications Technical specifications 1100 1250 1500 POWER SPECIFICATIONS EIA output power 8 Ohms 125+125 215+215 275+275 300+300 375+375 450+450 1kHz, THD maximum 1% 4 Ohms 200+200 375+375 475+475 550+550 625+625 750+750 Both channels 1100 1250 1500 ELECTRICAL SPECIFICATIONS 0dB (0.775V) INPUT SENSITIVITY INPUT IMPEDANCE 10 k Ohms (balanced) - Page 13 FEDERAL COMMUNICATIONS COMMISSION NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 14 Sales Division: 47842 S.Giovanni in Marignano (RN) – Via delle Rose, 12 – tel. +39-0541-959511 – fax +39-0541-957404 Internet: http://www.lemaudio.com...
