PC/External Control Function

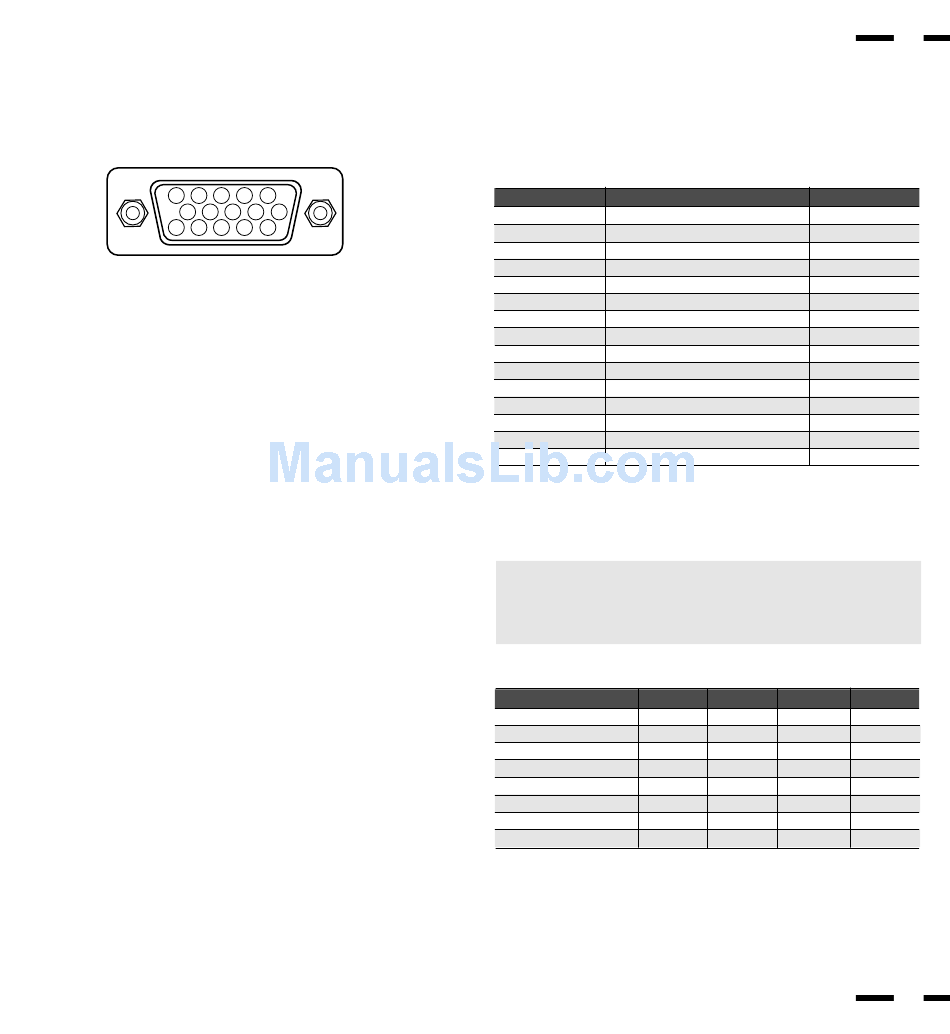

PC/External Control Port Pin Assignments
5 4
9
10
15 14 13
3 2 1
8 6
7
12 11
D-SUB 15pin (Input/Output)
Pin No.
Signal
No Connection
1
Receive Data
6
No Connection
2
Transimit Data
7
No Connection
11
Clear to Send
12
No Connection
3
Request to Send
8
Ground
9
Input Select
4
Input Select
5
Power ON/OFF
10
No Connection
13
Degauss ON/OFF
14
Signal Ground
15
NOTE: If EXT.CTL is set to ON, only EXT.CTL will be effective for the
above functions.
If EXT.CTL is set to OFF, PC CTL will be effective. Pin No.8 is
connected to pin No. 12.
External Control
Pin No. 4
OPEN
VIDEO1
GND
VIDEO2
OPEN
RGB1
GND
RGB2
-
POWER OFF
-
POWER ON
DEGAUSS OFF -
DEGAUSS ON -
Name1
EXT-CTL
EXT-CTL
EXT-CTL
EXT-CTL
5 10 14
OPEN - -
OPEN - -
GND - -
GND - -
-
OPEN -
-
GND -
- OPEN
-
- - GND
