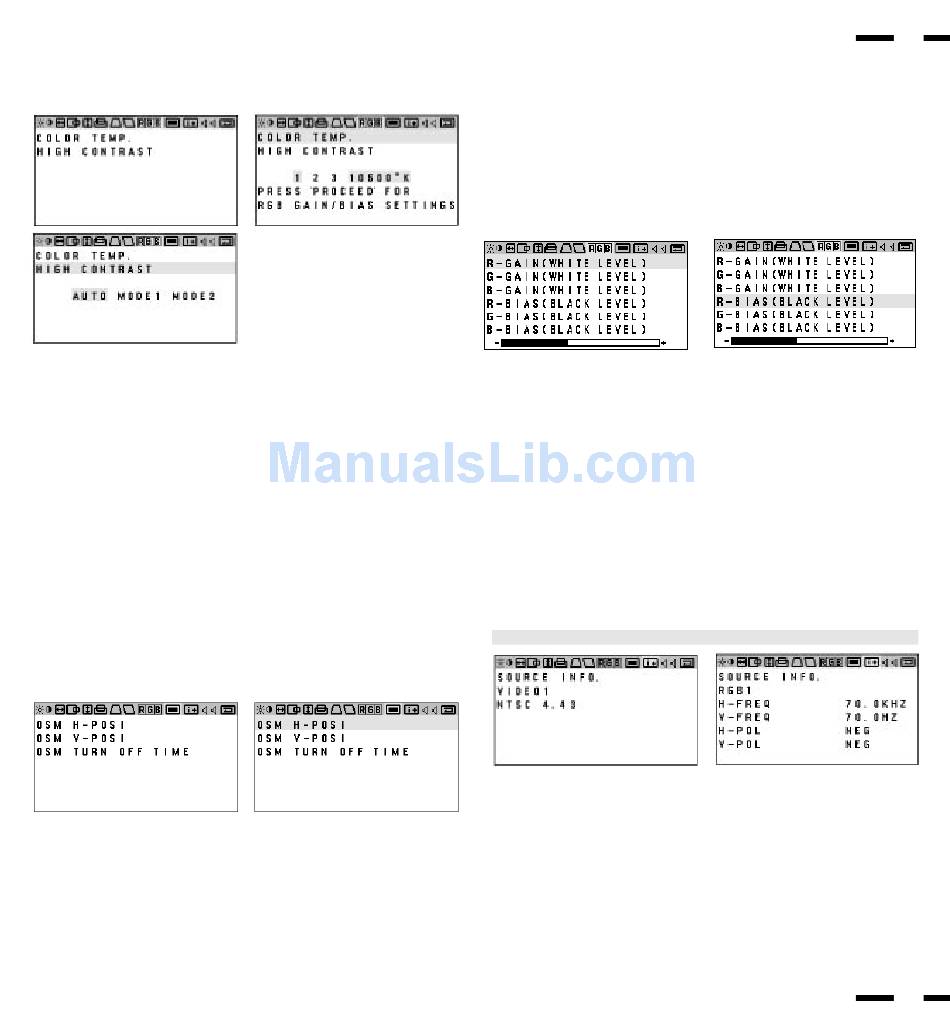

RGB Controls Group

The RGB Controls allow you to adjust the color temperature, high contrast and
the white balance for RGB input.
COLOR TEMP. : Pressing + selects the color temperature: 10500 K, 9300K,
6500K or custom.
HIGH CONTRAST : Pressing + or - selects one of the three modes: AUTO,
MODE1, or MODE2.
Normally set to AUTO. MODE1 is used for the high contrast
mode. This mode is recommended for graphics display.

OSM Location/OSM Turn Off Time Control

You can choose where you would like OSM image to appear on your screen.
Selecting OSM location allows you to manually adjust the OSM menu left,
right, up, or down. The OSM menu will stay on as long as it is in use. In the
OSM Turn Off Time submenu, you can select how long the monitor waits after
the last touch of a key to shut off the OSM menu. The preset choices are 5,
10, 30, and 120 seconds. Note that 30 seconds is the factory preset.
OSM H-POSI : Pressing + or - moves the OSM menu right or left.
OSM V-POSI
: Pressing + or - moves menu up or down.
OSM TURN OFF TIME : Pressing + or - selects the preset time in increasing or
decreasing order.
MODE2 is used for the wide video band mode. This mode is
recommended for text display.
AUTO automatically selects either the high contrast mode
for horizontal frequencies of less than 40 kHz, or the wide
band video mode for 40 kHz or over.
Pressing the PROCEED key proceeds to the RGB gain and bias adjustment.
This adjustment allows you to adjust the white balance.
R, G, B-GAIN : Pressing + or - increases or decreases the gain level for each
color.
R, G, B-BIAS : Pressing + or - increases or decreases the bias level for each
color.

Source Information

Source Information provides you information about the current resolution
display and technical data including the horizontal and vertical frequency.
NOTE: These adjustments are for RGB mode only.
H-FREQ : indicates the horizontal frequency of the current input signal.
V-FREQ : indicates the vertical frequency of the current input signal.
H-POL : indicates the polarity of the horizontal sync. signal.
V-POL : indicates the polarity of the vertical sync. signal.
NEG : indicates the polarity is negative.
POS : indicates the polarity is positive.
