Daisy-chaining Your monitors
The REMOTE IN/OUT terminals allow you to control monitors by one remote
control.
NOTE: The connection of three XP29 Plus/XM29 Plus monitors or more with
THROUGH OUT (VIDEO 1 or 2) terminals may degrade image quality.
To do so:
When using the VIDEO inputs:
THROUGH OUT (VIDEO 1) Connections
1. Connect THROUGH OUT 1 BNC or S-VIDEO 1 OUT to external compo-
nents to relay the signal input at VIDEO 1 IN(BNC-type), or S-VIDEO 1 IN.
2. Connect the external component mono audio or stereo left channel audio
input to L AUDIO.
3. Connect the external component stereo right channel audio input to R AU-
DIO.
4. Set the 75 /HIGH impedance select switch of the corresponding input sig-
nal (BNC, S-VIDEO) on all but the last monitor to "HIGH" position. On only
the last monitor is set to "75 " position.
THROUGH OUT (VIDEO 2) Connections
1. Connect THROUGH OUT 2 BNC or S-VIDEO 2 OUT to external component
to relay the signal input at VIDEO 2 IN(BNC-type) or S-VIDEO 2 IN.
2. Connect the external component mono audio or stereo left channel audio
input to L AUDIO.

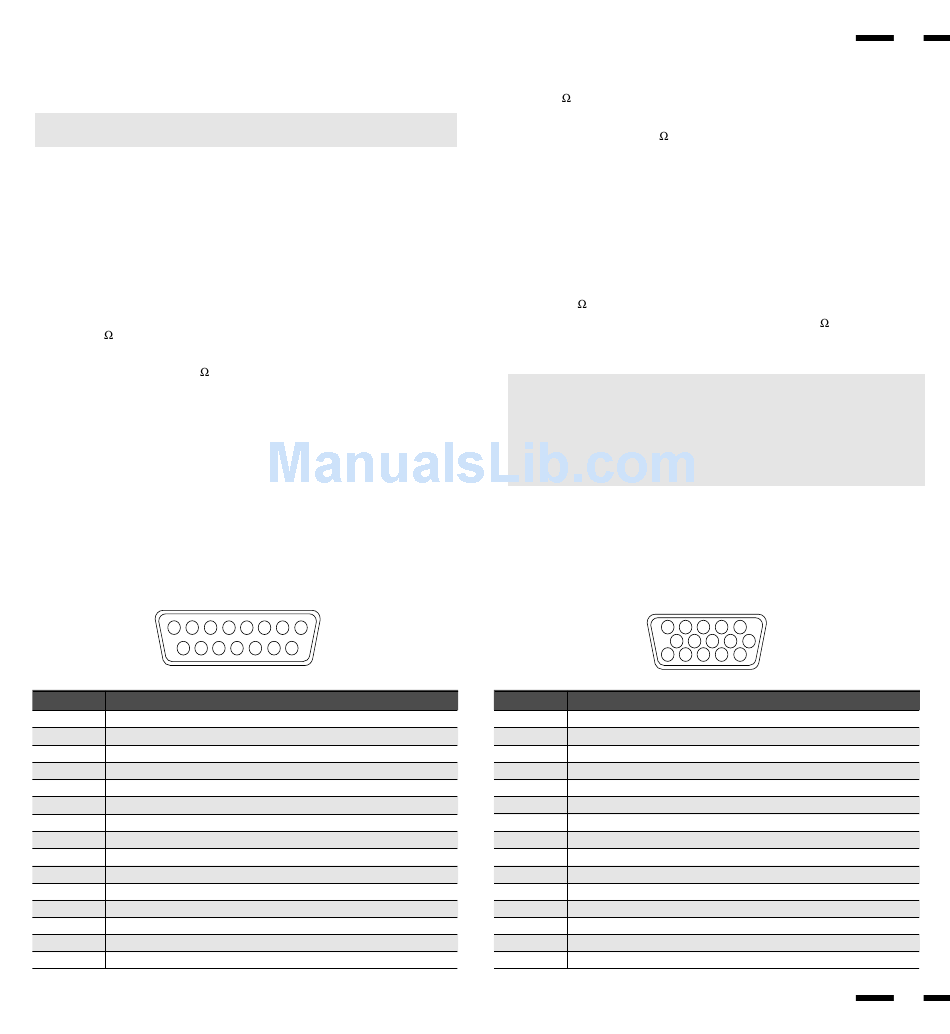

D-Sub 15 Pin RGB Signal Composition

Pin Assignments and Signal Levels for 15 pin RGB (Analog)
8 6
7
15 14
D-SUB 15pin RGB Input Connector (ANALOG ONLY)
Signal to be connected (D-SUB 15 pin)
Pin No.
RED
1
GREEN or Sync Green
2
BLUE
3
12 No Connection
H. or Composite sync
13
V.SYNC
14
No Connection
15
GND
4
GND
5
6 GND
7 GND
GND
8
GND
11
No Connection
10
No Connection
9
4 3 2 1
5
13 12 11 10 9
3. Connect the external component stereo right channel audio input to R AU-
DIO.
4. Set the 75 /HIGH impedance select switch of the corresponding input signal
(BNC, S-VIDEO) on all but the last monitor to "HIGH" position. On only the
last monitor is set to the "75 " position.
5. Connect the REMOTE OUT of the monitor to the REMOTE IN of the next
monitor using the optional remote cable.
When using the RGB inputs:
THROUGH OUT Connections
1. (RGB1): Connect D-Sub 15-pin THROUGH OUT to an RGB input connector
of other monitors.
(RGB2): Connect the R.G.B.H and V THROUGH OUT terminals to relay the
signal input at the R.G.B.H and V IN terminals.
2. Set all the 75 /HIGH impedance select switches on all but the last monitor to
"HIGH" position. On only the last monitor is set to the "75 " position.
3. Connect the REMOTE IN of the monitor to the REMOTE OUT of the next
monitor using the optional remote cable.
NOTE: ''Plug and Play'' is available only for the monitor connected directly
to a personal computer with the D-Sub 15-pin RGB connector. Therefore,
''Plug and Play'' does not work for monitors connected with the THROUGH
OUT terminal. This is because only the RGB video, the horizontal, and the
vertical sync. signal is output from the THROUGH OUT terminals.
NOTE: ''Plug and Play'' is not available for the RGB 2 BNC terminals.
5
10
15
Pin No. Through output (MAC 15 pin)
2
RED
5
GREEN or Sync Green
9
BLUE
7
SDA (PnP)
3 H. or Composite sync
12 V.SYNC
15
SCL (PnP)
1
GND
4
GND
6
GND
11
GND
13 GND
8
No Connection
10
No Connection
14
No Connection
4 3 2 1
9 8 7 6
14 13 12 11
