NEC MultiSync XP29, XM29 Plus User Manual page 12

POWER
DEGAUSS OFF
VIDEO 1 VIDEO 2 RGB 1
POSITION / CONTROL PROCEED
7
WIDTH HEIGHT SIDE PIN NORMAL
8
NORMAL
B
BRIGHT CONTRAST MUTE VOLUME
C MULTIMEDIA MONITOR
RD-346E
ON
RGB 2
EXIT
SCAN
0
A
D
F
E
79644641

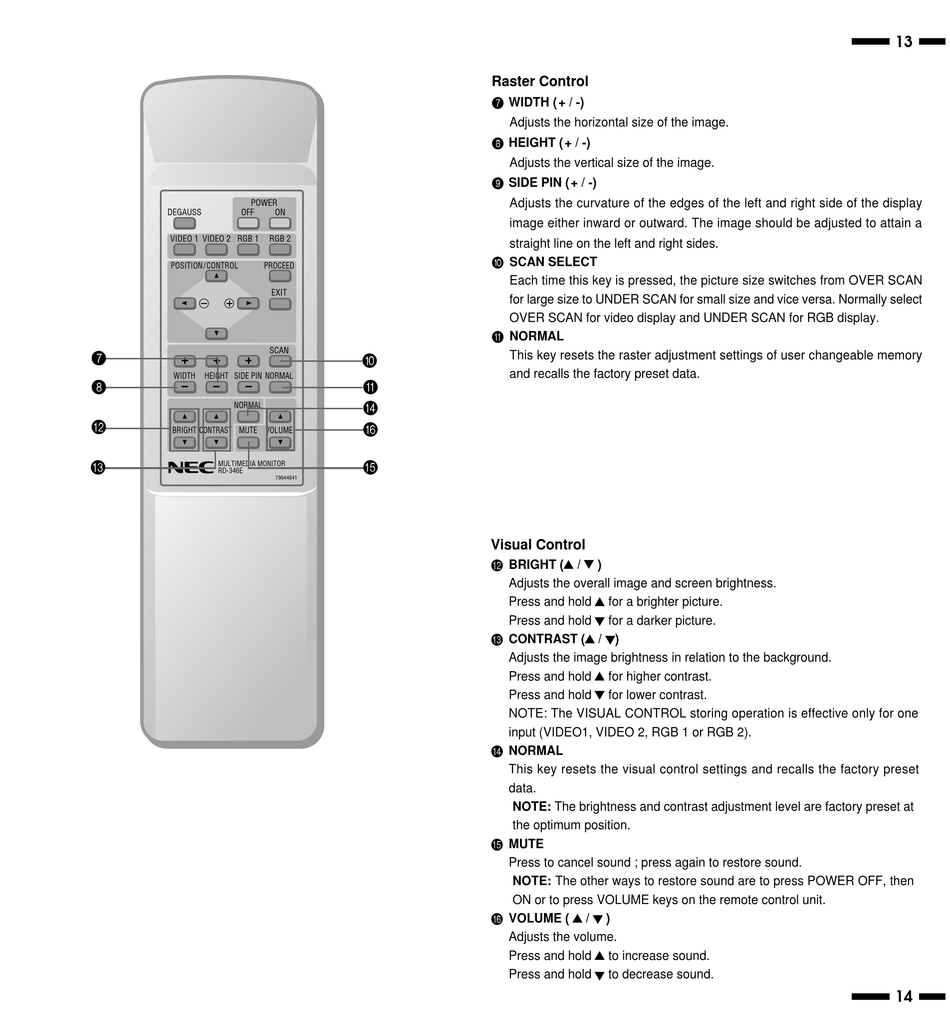

Raster Control
7 WIDTH ( + / -)
Adjusts the horizontal size of the image.
8 HEIGHT ( + / -)
Adjusts the vertical size of the image.
9 SIDE PIN ( + / -)
Adjusts the curvature of the edges of the left and right side of the display
image either inward or outward. The image should be adjusted to attain a
straight line on the left and right sides.
0 SCAN SELECT
Each time this key is pressed, the picture size switches from OVER SCAN
for large size to UNDER SCAN for small size and vice versa. Normally select
OVER SCAN for video display and UNDER SCAN for RGB display.
A NORMAL
This key resets the raster adjustment settings of user changeable memory
and recalls the factory preset data.
Visual Control
B BRIGHT ( / )
Adjusts the overall image and screen brightness.
Press and hold for a brighter picture.
Press and hold for a darker picture.
C CONTRAST (
/ )
Adjusts the image brightness in relation to the background.
Press and hold for higher contrast.
Press and hold for lower contrast.
NOTE: The VISUAL CONTROL storing operation is effective only for one
input (VIDEO1, VIDEO 2, RGB 1 or RGB 2).
D NORMAL
This key resets the visual control settings and recalls the factory preset
data.
NOTE: The brightness and contrast adjustment level are factory preset at
the optimum position.
E MUTE
Press to cancel sound ; press again to restore sound.
NOTE: The other ways to restore sound are to press POWER OFF, then
ON or to press VOLUME keys on the remote control unit.
F VOLUME (
/ )
Adjusts the volume.
Press and hold to increase sound.
Press and hold to decrease sound.
13
14
