Connecting to a Macintosh Computer

Connecting your Macintosh computer to your LCD monitor will enable you to display your computer's screen image. Some
video cards or drivers may not display images correctly.

Connect the LCD Monitor to Macintosh

• To connect the VGA IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable
(mini D-sub 15 pin to mini D-sub 15 pin).
• To connect the RGB/HV IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub
15 pin to BNC x 5) (BNC INPUT only).
• If you use with a Macintosh PowerBook, set "Mirroring" to Off.
Refer to your Macintosh's owner's manual for more information about your computer's video output requirements and any
special identification or configuring your monitor's image and monitor may require.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the AUDIO INPUT
button.

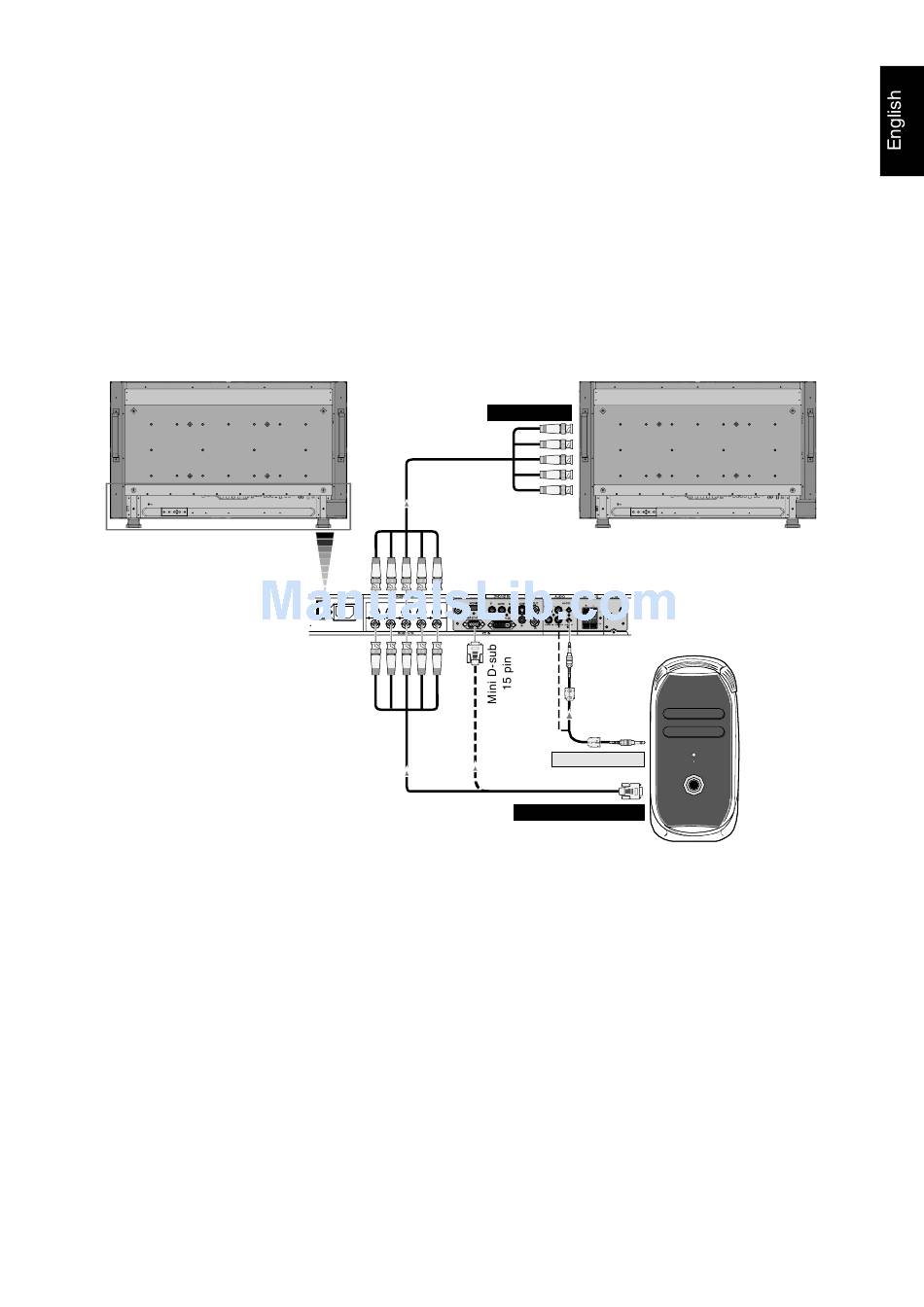

LCD monitor
To RGB/HV IN
BNC x 5
BNC x 5
English-15
BNC x 5
LCD monitor (second monitor)
To audio output
To analog RGB output
Mini D-sub 15 pin
Macintosh
