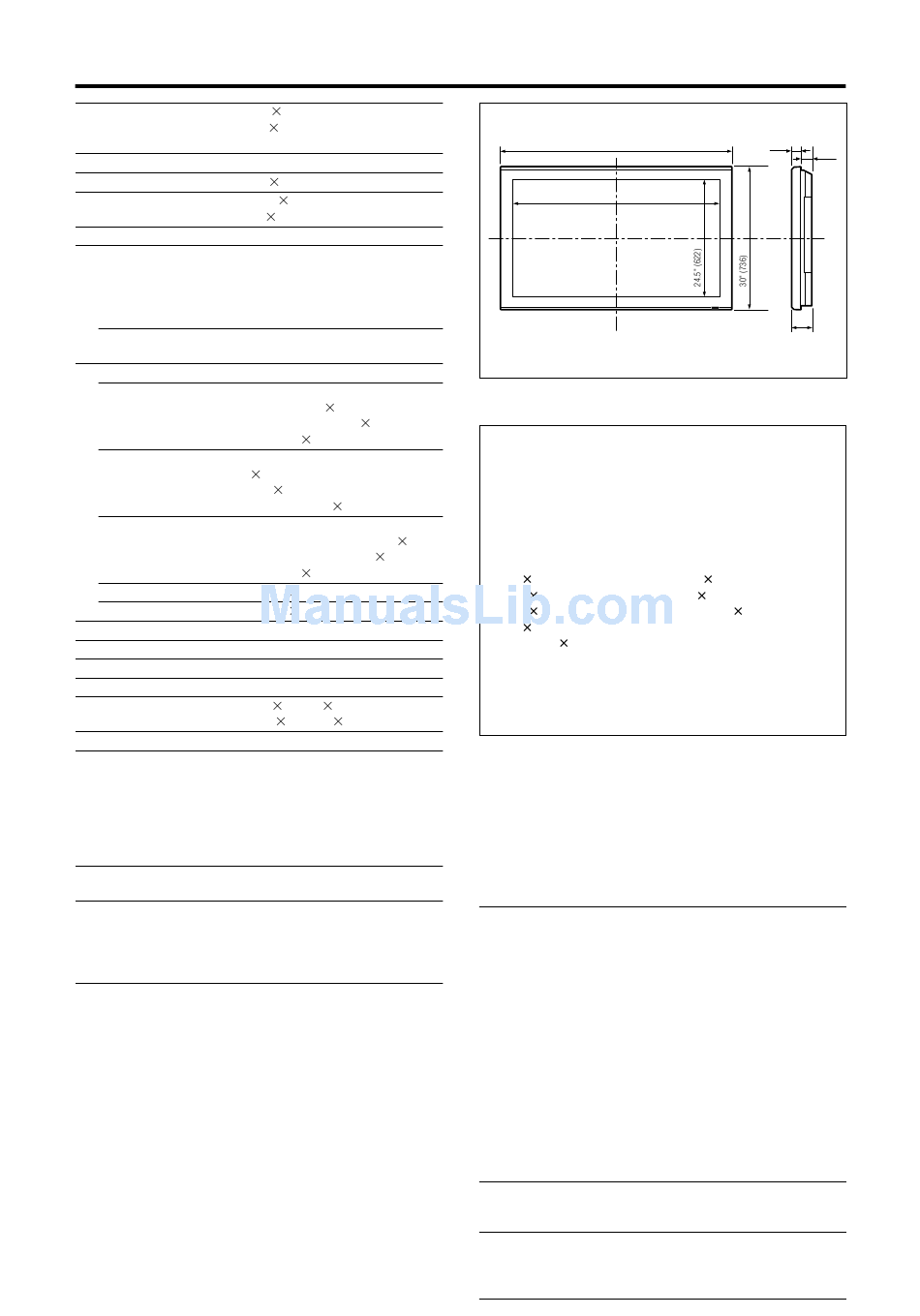

Specifications

Screen Size
43.5"(H) 24.5"(V) inches
1106(H) 622(V) mm
diagonal 50"
Aspect Ratio 16 : 9
Resolution
1365(H) 768(V) pixels
Pixel Pitch 0.032"(H) 0.032"(V) inches
0.81(H) 0.81(V) mm
Color Processing 4,096 steps, 68.7 billion colors
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals
(VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog)
mini D-sub 15-pin 1
Visual 2 (Analog) BNC (R, G, B, H/CS, V) 1*
Visual 3 (Digital)
DVI-D 24-pin 1*
Video
Visual 1
BNC 1
Visual 2 RCA-pin 1
Visual 3
S-Video: DIN 4-pin 1
DVD/HD/DTV
Visual 1
RCA-pin (Y, PB[CB], PR[CR]) 1*
Visual 2
BNC (Y, PB[CB], PR[CR]) 1*
Visual 3
DVI-D 24-pin 1*
Audio
Stereo RCA 3 (Selectable)
External Control
D-sub 9-pin 1 (RS-232C)
Sound output
9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating
7.6A (maximum)
Power Consumption 435W (typical)
Dimensions
48.1 (W) 30 (H) 3.8 (D) inches
1222 (W) 736 (H) 96(D) mm
Weight
97 lbs / 44 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity
20 to 80% (no condensation)
Altitude
0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude
0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control, Split screen buttons
OSM Functions
Picture (Contrast/Brightness/Sharpness/ Color/Tint/
Picture mode/Noise reduction/Color temperature/
White balance/Gamma/Low tone/Color tune),
Audio (Bass/Treble/Balance/Audio input), Image
Adjust (Aspect mode/V-Position /H-Position/V-
Height /H-Width/Auto Picture/Fine picture/Picture
adjustment), Option1 (OSM/BNC Input/D-Sub
Input/RGB Select/HD Select/Input Skip/All Reset),
Option2 (Power management/Cinema mode/Long
life [PLE, Orbiter, Inverse, White, Screen wiper, Soft
focus]/Gray level/S1/S2/Picture size/DVI Set up/
CloseCaption/Caption cont), Option3 (Timer/Power
on mode/Control lock/IR Remote/Loop out/ID
number/Video wall [Divider, Position, Disp. mode,
Auto ID, Image adjust, Power on delay, PLE link,
Timer]), Option4 (Sub. P detect/Zoom nav/Pic
freeze/Seamless SW), Advanced OSM, Language*,
Color system, Source information
*English, German, French, Italian, Spanish,
Swedish, Chinese, Russian
Bezel color is gray.
The features and specifications may be subject to change without
notice.
2
* 1 HD/DVD/DTV input signals supported on this system
3
480P (60 Hz)
525I (60 Hz)
625P (50 Hz)
1035I (60 Hz)
2
* The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under "BNC INPUT".
1
3
* Compatible with HDCP.
1, 2
*
Supported Signals
3
• 640 480P @ 59.94/60Hz
• 1280 720P @ 59.94/60Hz
• 1920 1080I @ 59.94/60Hz
• 720 480P @ 59.94/60Hz
• 1440 (720) 480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The problem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact NEC Solutions (America), Inc. and also
the manufacturer of the source equipment.
Other Features
Accessories
Regulations
5
48.1" (1222)
43.5" (1106)
480I (60 Hz) 525P (60 Hz)
576P (50 Hz) 576I (50 Hz)
625I (50 Hz) 720P (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
• 1920 1080I @ 50Hz
• 720 576P @ 50Hz
• 1440 (720) 576P @ 50Hz
Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video Wall 4-25
multi screen, Self Diagnosis, Image Burn
reduction tools (PLE LOCK1~3, INVERSE,
WHITE, ORBITER (Auto1,2/Manual), SCREEN
WIPER), Color Temperature select (high/mid/mid
low/low, user has 4 memories), Control lock
(Except power SW), Auto Picture, Input Skip,
Color Tune, Low Tone (3 mode), Auto ID,
Programmable Timer, Gamma Correction (4
mode), Loop through interface, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only), Split
screen operations
Remote control with two AAA batteries, Power
cord, Manuals, Safety metal fittings, Ferrite cores,
Bands, Cable clamps
UL Approved (UL 60950-1, CAN/CSA C22.2
No.60950-1)
DOC Canada requirements
Meets FCC Class A requirements
1.5"
2.3"
(38)
(58)
3.8"
(96)
Units are in inch
(mm)
