Quick Start

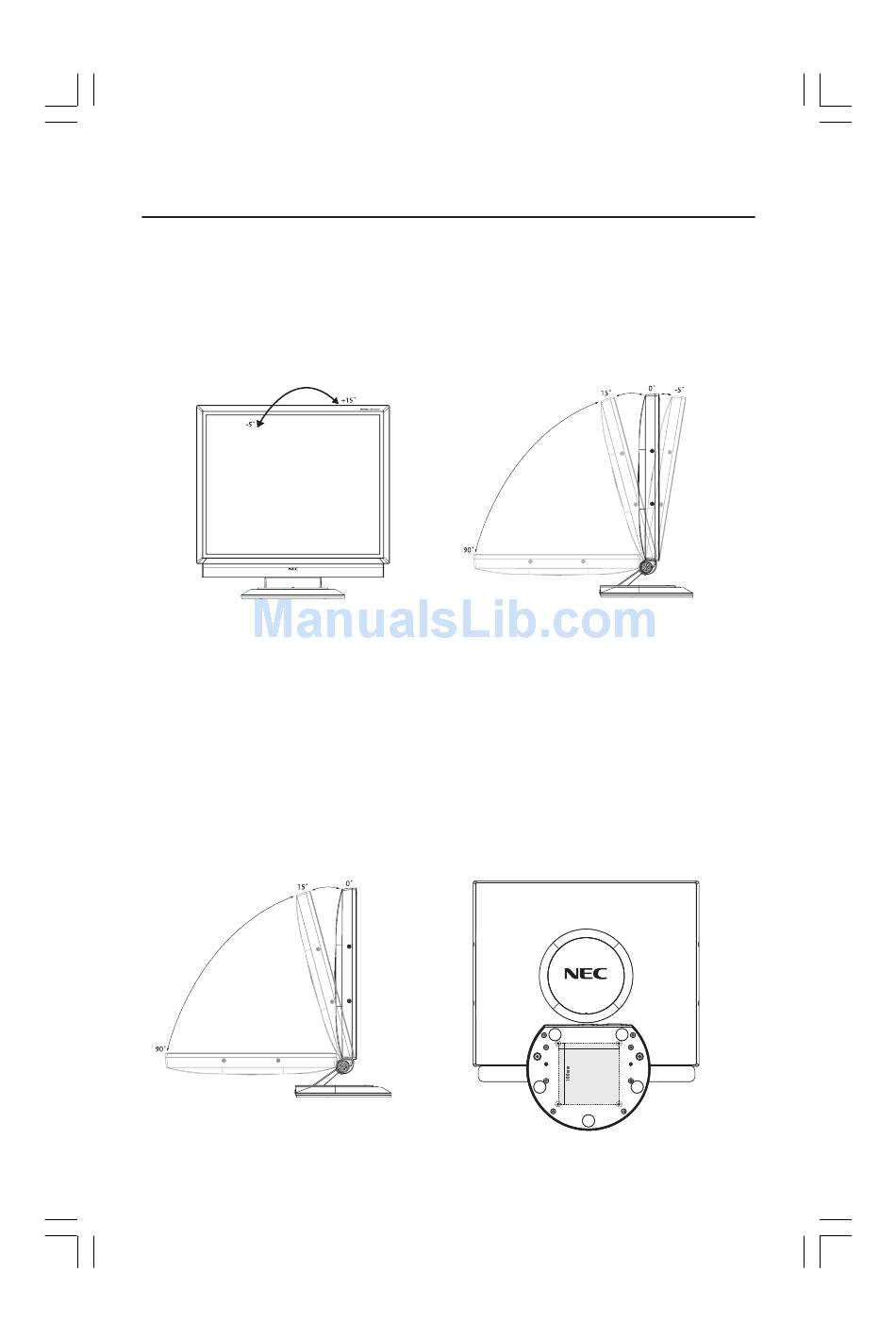

Screen Position Adjustment
In order to optimize the best viewing position, you can adjust the tilt of the monitor by
using both of your hands to hold the edges of the monitor as shown in the figure below.
The monitor can be adjusted to +15 degrees up or -5 degrees down as indicated by
arrow below.
VESA Wall Mounting
While using the VESA mounting function, you need to push the screen backward and it
will hold at about 15 degree. Then apply a little bit more force to fold until it is parallel to
the base (Figure M.1). From the bottom of the base, there are 4 screw holes for your
VESA mounting device (Figure M.2).
The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded nuts, as
well as four 5 mm access holes in the plastic covering (Figure M.2).
Figure M.1
LCD35Seriesmanual071904.p65
–continued
Figure M.2
5
5
100mm
4 Screws (4mm)
(MAX depth: 7.0mm)
