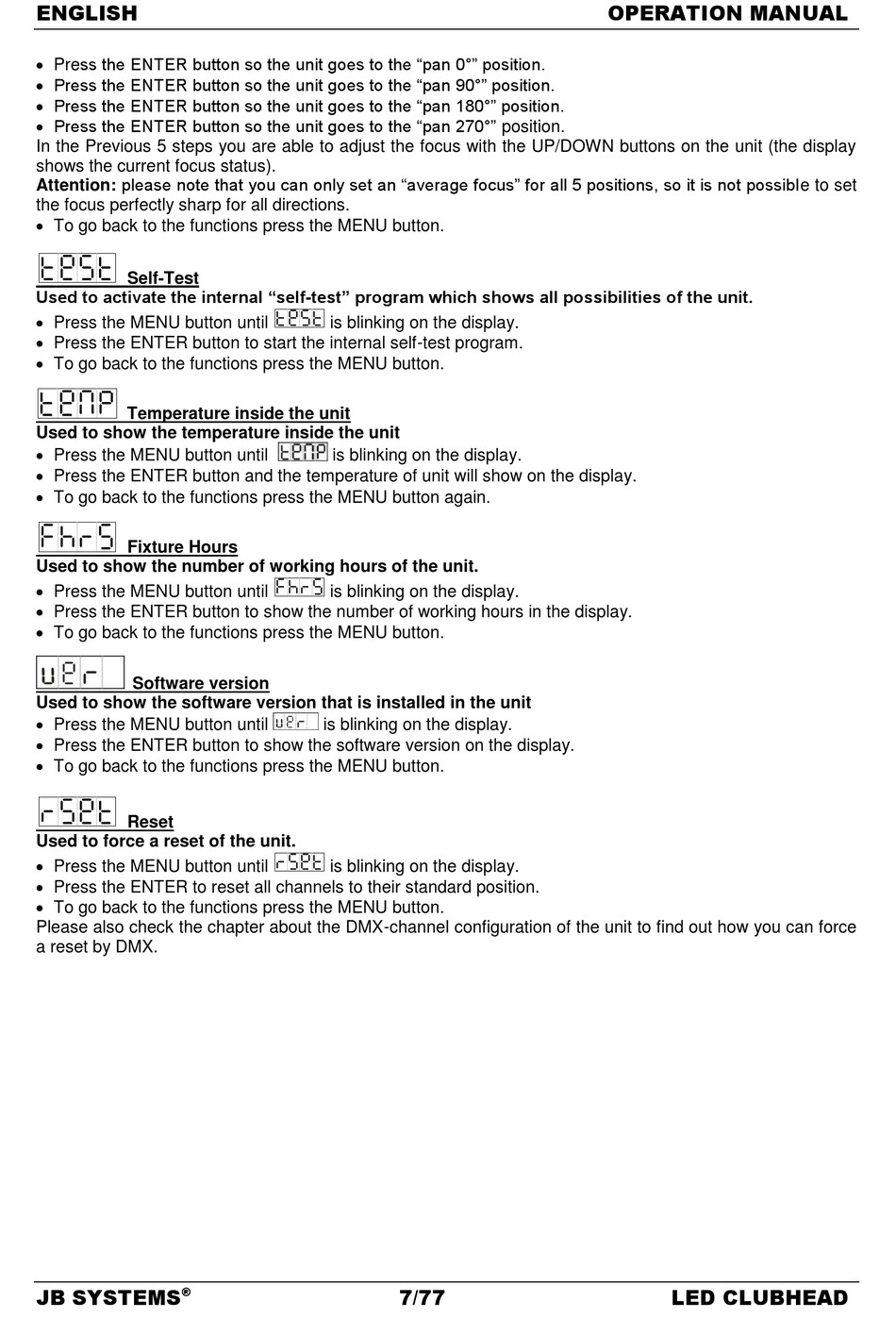

JB Systems LED ClubHead Operation Manual page 9

ENGLISH
 Press the ENTER button so the unit goes to the "pan 0°" position.
 Press the ENTER button so the unit goes to the "pan 90°" position.
 Press the ENTER button so the unit goes to the "pan 180°" position.
 Press the ENTER button so the unit goes to the "pan 270°" position.
In the Previous 5 steps you are able to adjust the focus with the UP/DOWN buttons on the unit (the display
shows the current focus status).
Attention: please note that you can only set an "average focus" for all 5 positions, so it is not possible to set
the focus perfectly sharp for all directions.
 To go back to the functions press the MENU button.
Self-Test
Used to activate the internal "self-test" program which shows all possibilities of the unit.
 Press the MENU button until
 Press the ENTER button to start the internal self-test program.
 To go back to the functions press the MENU button.
Temperature inside the unit
Used to show the temperature inside the unit
 Press the MENU button until
 Press the ENTER button and the temperature of unit will show on the display.
 To go back to the functions press the MENU button again.
Fixture Hours
Used to show the number of working hours of the unit.
 Press the MENU button until
 Press the ENTER button to show the number of working hours in the display.
 To go back to the functions press the MENU button.
Software version
Used to show the software version that is installed in the unit
 Press the MENU button until
 Press the ENTER button to show the software version on the display.
 To go back to the functions press the MENU button.
Reset
Used to force a reset of the unit.
 Press the MENU button until
 Press the ENTER to reset all channels to their standard position.
 To go back to the functions press the MENU button.
Please also check the chapter about the DMX-channel configuration of the unit to find out how you can force
a reset by DMX.
JB SYSTEMS
®
is blinking on the display.
is blinking on the display.
is blinking on the display.
is blinking on the display.
is blinking on the display.
7/77
OPERATION MANUAL
LED CLUBHEAD
