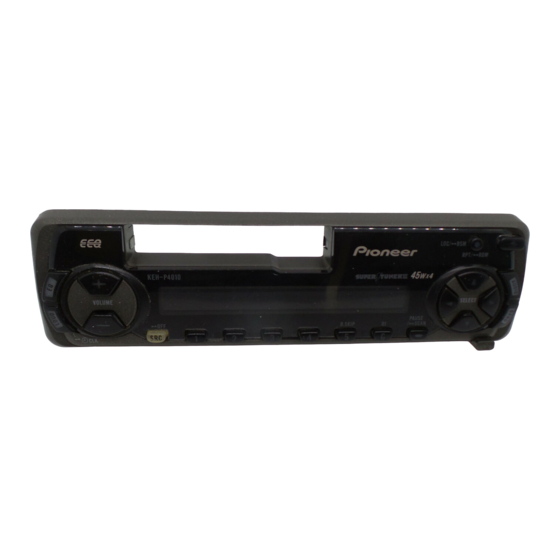

Pioneer KEH-P4010 Installation Manual

KEH-P4010
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit
est conforme à CEMA.
Los colores de los cables este producto se conforman
con el código de colores CEMA.
Printed in
Imprimé
<CRD3294-A/JS> UC <KFJLL/00H00000>
Connecting the Units
Note:
• This unit is for vehicles with a 12-volt battery • When an external power amp is being used with
and negative grounding. Before installing it in a this system, be sure not to connect the blue/white
recreational vehicle, truck, or bus, check the bat- lead to the amp's power terminal. Likewise, do
tery voltage. not connect the blue/white lead to the power ter-
• To avoid shorts in the electrical system, be sure minal of the auto-antenna. Such connection could
to disconnect the ≠ battery cable before begin-
cause excessive current drain and malfunction.
ning installation.
• To avoid short-circuiting, cover the disconnected
• Refer to the owner's manual for details on con- lead with insulating tape. Especially, insulate the
necting the power amp and other units, then unused speaker leads without fail. There is a pos-
make connections correctly. sibility of short-circuiting if the leads are not
insulated.
• Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape • To prevent incorrect connection, the input side of
around them where they lie against metal parts. the IP-BUS connector is blue, and the output side
is black. Connect the connectors of the same col-
• Route and secure all wiring so it cannot touch
ors correctly.
any moving parts, such as the gear shift, hand-
brake and seat rails. Do not route wiring in • If this unit is installed in a vehicle that does not
places that get hot, such as near the heater outlet. have an ACC (accessory) position on the ignition
switch, the red lead of the unit should be con-
If the insulation of the wiring melts or gets torn,
nected to a terminal coupled with ignition switch
there is a danger of the wiring short-circuiting to
ON/OFF operations. If this is not done, the vehi-
the vehicle body.
cle battery may be drained when you are away
• Don't pass the yellow lead through a hole into
from the vehicle for several hours. (Fig.1)
the engine compartment to connect to the battery.
This will damage the lead insulation and cause a
very dangerous short.
• Do not shorten any leads. If you do, the protec-
tion circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the
unit and tapping into the lead. The current capac-
ity of the lead will be exceeded, causing over-
heating.
ACC position No ACC position
• When replacing fuse, be sure to use only fuse of
the rating prescribed on this unit.
• Since a unique BPTL circuit is employed, never • The black lead is ground. Please ground this lead
wire so the speaker leads are directly grounded or separately from the ground of high-current prod-
the left and right ≠ speaker leads are common. ucts such as power amps.
If you ground the products together and the
• Speakers connected to this unit must be high-
ground becomes detached, there is a risk of dam-
power types with minimum rating of 45 W
and impedance of 4 to 8 ohms. Connecting age to the products or fire.
speakers with output and/or impedance values
other than those noted here may result in the • Cords for this product and those for other prod-
speakers catching fire, emitting smoke, or ucts may be different colors even if they have the
becoming damaged. same function. When connecting this product to
• When this product's source is switched ON, a another product, refer to the supplied Installation
control signal is output through the blue/white manuals of both products and connect cords that
lead. Connect to an external power amp's system have the same function.
remote control or the car's Auto-antenna relay
control terminal (max. 300 mA 12 V DC). If the
car features a glass antenna, connect to the anten-
na booster power supply terminal.
Connection Diagram
Rear output
IP-BUS input
(Blue)
Multi-CD player
(sold separately) Antenna jack
IP-BUS cable
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Red
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Black (ground)
To vehicle (metal) body.
Fig. 1
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Perform these connections when using a
different amp (sold separately).
This product
Connecting cords
with RCA pin plugs
(sold separately).
Fuse
Blue/white
To system control terminal of the power amp or Auto-antenna
relay control terminal (max. 300 mA 12 V DC).
System remote control
White
+
Front speaker
≠
White/black
Left
Green
+
Rear speaker
≠
Green/black
+
Rear speaker
≠
<ENGLISH>
Power amp
(sold separately)
Gray
+
Front speaker
≠
Gray/black
Right
Violet
+
Rear speaker
≠
Violet/black
+
Rear speaker
≠
Fig. 2
