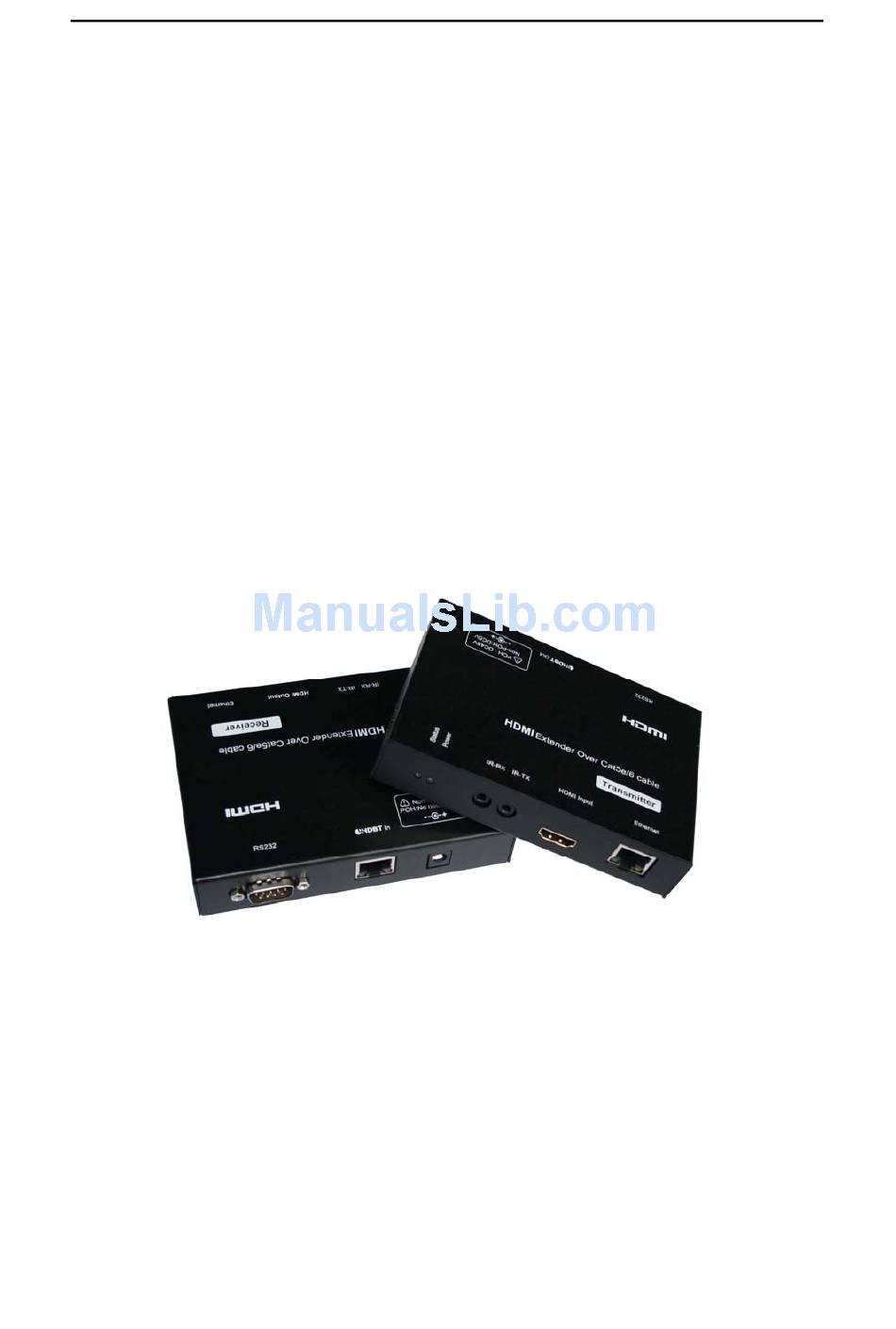

Operation instruction Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
1)DC input port- The 5V DC is the power input for the transmitter 2)HDBaseT port-This is for the Cat5e cable connection between the two units. A.yellow LED-The LINK LED indicates that an HDBaseT link connection has been established between the two boards over the Cat5e cable.
Page 5
Operation instruction Update instruction: ① Open the case of transmitter, find these two jumper caps. PDIF0 According to the silk prints nearby (“PMS” for firmware update, “PDIF0”for RS232 transmission), change the jumper caps’ positions to set RS232 port’s function. ②The user should receive a Firmware burn package, containing all software needed for burning and updating the Firmware on the EEPROM.
1) DC input port- The 5V DC is the power input for the receiver 2) HDBaseT port-This is the Cat5e cable connection between the two units. A:yellow LED-The LINK LED indicates that an HDBaseT link connection has been established between the two boards over the Cat5e cable.
1) Connect the HDMI signal source (Such as DVD, STB etc) to HDMI Transmitter. 2) Connect cat5e/6 cables to both HDBaseT port of the transmitter and HDBaseT port of the Receiver. 3) Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver.
Operation instruction Safety information safeguards To reduce the risk of electric shock, do not expose this product to rain or moisture PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
