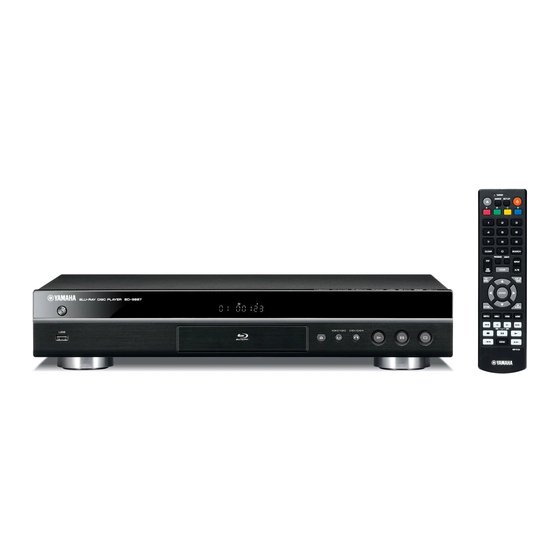

  • Page 1 BLU-RAY DISC PLAYER BD-S667 OWNER’S MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. Read these instructions. Protect the power cord from being walked on or pinched Keep these instructions.
  • Page 3 - and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.
  • Page 4 Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

  • Page 5: Table Of Contents

    CONTENTS 1. INTRODUCTION 4. SETTINGS WHAT YOU CAN DO WITH THIS PLAYER..2 SETUP MENU ............ 26 SUPPLIED PARTS ..........2 Example of SETUP menu operation......27 General Setting.............. 28 ABOUT DISCS AND FILES......... 3 Display Setting.............. 30 Types of discs/files that can be used with this player..3 Audio Setting ..............

  • Page 6: What You Can Do With This Player

    WHAT YOU CAN DO WITH THIS PLAYER Easy setting for language, resolution, screen aspect ratio p. 16 You can perform language and TV settings. Play back commercially-released BD/DVD/CD discs p. 22 In addition to BD discs, this Player also supports playback of a variety of other discs. p.

  • Page 7: About Discs And Files

    ABOUT DISCS AND FILES ■ Types of discs/files that can be Region management information used with this player Destination BD-Video DVD-Video Australia Region code “B” or Region number “4” – 12 cm (5”) and 8 cm (3”) discs can be played back in “ALL”...

  • Page 8: Disc Precautions

    Wipe any dirt off the playing surface with a soft cloth. Cleaning the pick up lens – Never use commercially available cleaning discs. The use of these discs can damage the lens. – Request the nearest service center approved by Yamaha to clean the lens.

  • Page 9: Controls And Functions

    CONTROLS AND FUNCTIONS ■ Front panel 1 p (On/Standby) (Search backward/Skip backward): Press to skip backward, and press and hold to search 2 USB port (p. 14) backward. 3 Indicator: Lights up while this Player is starting up. (Search forward/Skip forward): 4 Front panel display Press to skip forward, and press and hold to search 5 Disc tray (p.

  • Page 10: Remote Control

    CONTROLS AND FUNCTIONS ■ Remote control 6 Number buttons: Enters numbers, or during playback, jumps to the track/chapter corresponding to the number you input. 7 CLEAR: Clears entered number/set item. TRANSMIT 8 PROGRAM MARKER SETUP : Sets the order of playback (p.
  • Page 11 CONTROLS AND FUNCTIONS G Control buttons N REPEAT VIDEO MUSIC VIDEO MUSIC PHOTO Changes repeat mode. Repeat mode shown below will change each time you press the button. : Searches backward/forward. The search speed will change each time you press the button : Repeats the title being played back.

  • Page 12: Introduction To Connections

    INTRODUCTION TO CONNECTIONS Find the corresponding connection method on your video/audio equipment. We recommend that you use the HDMI terminal which provides high quality digital audio and video on a single connection. If you use the other terminals/jacks, connect the video first. Then connect the audio. Connect video and audio to AV receiver with HDMI cable.
  • Page 13 Video and audio connection to AV receiver HDMI (p. 10) Video connection Audio connection to AV receiver to TV Connect audio to AV A’ HDMI (p. 10) COAXIAL (p. 12) receiver. to AV receiver OPTICAL (p. 12) COMPONENT (p. 11) L/R (p.

  • Page 14: Hdmi Connection

    HDMI CONNECTION ■ Connecting to the HDMI terminal – You can enjoy high quality digital picture and sound through the HDMI terminal. – Firmly connect an HDMI cable (commercially available) to the HDMI terminals. – See page 32 for information on the audio/video output formats. –...

  • Page 15: Video Connections

    VIDEO CONNECTIONS ■ Connecting to the component/video jack – You can enjoy accurate color reproduction and high quality images through the component jacks. – Firmly connect a component video cable (commercially available) or an Audio/Video cable to the COMPONENT jacks/VIDEO jack. –...

  • Page 16: Audio Connections

    AUDIO CONNECTIONS ■ Connecting to the digital audio jack/terminal – You can connect audio equipment or the TV to the COAXIAL jack/OPTICAL terminal. – Firmly connect a Coaxial digital audio cable (commercially available) or optical cable (commercially available) to the coaxial digital audio jack or optical digital audio terminal. –...

  • Page 17: Connecting To The Audio Jacks

    AUDIO CONNECTIONS ■ Connecting to the audio jacks – You can connect audio equipment or the TV to the AUDIO OUT L/R jacks. – Firmly connect an Audio/Video cable (supplied) to the AUDIO OUT L/R jack. – See page 32 for information on the audio output formats. Caution! Do not connect the power cable of this Player until all connections are completed.

  • Page 18: Network And Usb Connection

    Player from performing correctly. To USB/BD To NETWORK Note STORAGE terminal Terminal – Yamaha cannot guarantee that all brands’ USB memory devices will operate with USB memory device this Player. (commercially available) Network cable (commercially available) Notes –...

  • Page 19: Other Connections

    (commercially available) to the REMOTE the Player. Then plug into AC outlet. CONTROL (OUT/IN) jacks. – If your AV receiver is a Yamaha product and has the capability to transmit SCENE control signals, you can use the SCENE function. Caution! Do not connect the power cable of this Player until all connections are completed.

  • Page 20: Initial Wizard/Easy Setup

    INITIAL WIZARD/EASY SETUP ■ Setting with the Initial Wizard/ 4 Press 5/a to select the screen aspect ratio, then press ENTER. For details on setting items, see “TV Screen” Easy Setup (p. 30). Initial Wizard/Easy Setup allows you to set language, Easy Setup is completed.

  • Page 21: Home Menu

    HOME MENU HOME menu allows you to browse and play multi-media files on data discs, USB memory devices and your Common operations for playing back network. files in a selected folder Example: Selecting a movie file on a USB memory Note device –...
  • Page 22 HOME MENU 4 Select the Photo, Music, Video or AVCHD folder you Hint want to play back, then press ENTER. To return to the parent folder, press 2 or select – To enjoy slide show with music, press HOME to return to the HOME screen while music is played back, and select photo file.

  • Page 23: Using Network Content

    HOME MENU 3 To play back a file in playlist, select the file you want – The file requirements may not always be compatible. There may be some restrictions depending on file to play back under the playlist folder on HOME screen. features and DLNA sever capability.

  • Page 24: Playing Videos From Netflix

    PLAYING VIDEOS FROM NETFLIX You can instantly watch movies and TV episodes from Notes Netflix over the internet using this Player. To be a Netflix member, visit http://www.netflix.com. – When software upgrade is required, an update notice ■ Checking the activation code appears when you select Netflix.

  • Page 25: Operations For Watching Videos

    PLAYING VIDEOS FROM NETFLIX ■ Operations for watching videos While watching videos from Netflix, the buttons on the remote control work as shown below. : Plays back the video. : Pauses playback. /5/HOME: Stops video and displays instant queue. ENTER: Pauses playback and performs frame advance/ reverse playback.

  • Page 26: Advanced Playback Operation

    ADVANCED PLAYBACK OPERATION This chapter explains playback of commercially available Hint BD and DVD discs (like movies), CDs, and recorded DVD-RW/R discs. – When a DVD is played back, you can select Random All, Random TT (title), Random CH (chapter), Note Shuffle All, Shuffle TT (title) and Shuffle CH –...

  • Page 27: Status Menu

    ADVANCED PLAYBACK OPERATION ■ Status menu When playing Audio CD or music file This allows you to adjust various settings, such as Example: Icons when playing music file subtitles, angle settings and the title selection for direct playback. To display status menu, press STATUS. Status menu contains following menus.

  • Page 28: Using Bookmark

    ADVANCED PLAYBACK OPERATION ■ Using Bookmark 2 Press ENTER to program playback order. VIDEO For CD, press 5/a to select a desired track then press This allows you to set Bookmark at the specified point of ENTER. the video. After Bookmark is set, you can move to the For DVD disc, select a desired title (shown as TT) and point you set using this function.

  • Page 29: Enjoying Bonusview And Bd-Live

    – Some time may be required for the data to load (read/write). Notes – Yamaha cannot guarantee that all brands’ USB memory devices will operate with this Player. – Do not use a USB extension cable when connecting a USB memory device to the USB/BD STORAGE terminal of the player.

  • Page 30: Settings

    SETUP MENU The SETUP menu enables various audio/visual settings and adjustments for functions using the remote control unit. Menu/Submenu Item Function Page System Screen Saver Sets screen saver on/off. Disc Auto Playback Sets this Player to start disc playback automatically. HDMI Control Sets this Player to receive control signal from the remote control of your TV/AV receiver.

  • Page 31: Example Of Setup Menu Operation

    SETUP MENU Menu/Submenu Item Function Page Audio Output COAXIAL/ Selects the output mode of COAXIAL jack/OPTICAL OPTICAL terminal from Bitstream/PCM/Reencode/Off. HDMI Selects the output mode of HDMI terminal from Bitstream/ PCM/Reencode/Off. Audio Setting Downsampling Selects the digital audio signal down sampling frequency from 48k/96k/192k.

  • Page 32: General Setting

    SETUP MENU ■ General Setting 3. Select a menu item. The default settings are marked with “ ”. Press 5/a to select Parental Control, then press ENTER or 3. System Screen Saver You can set the screen saver to on/off. When set to on, this Player will switch to screen saver mode if there is no operation for 3 minutes.
  • Page 33 SETUP MENU Disc Auto Upgrade Angle Mark You can set Disc Auto Upgrade to on/off. When set to on, this You can set to display the Angle Mark ( ) when BD/ Player will upgrade the software after loading the disc which DVD with multiple angles is played back.

  • Page 34: Display Setting

    SETUP MENU Information On 16:9 (wide screen) TV Original You can display network information screen. On this image size 16:9 Full 16:9 Normal screen, you can view the information of Interface (Ethernet), Address Type, IP Address, Subnet Mask, Default Gateway, and DNS. Connection Test You can perform a test for both cable connection and IP settings, and it will ping default gateway.

  • Page 35: Audio Setting

    SETUP MENU HDMI 1080p 24Hz HDMI This outputs the BD-Video encoded in 24Hz frame rate in You can select the output mode of HDMI ternminal. For HDMI 1080p 24Hz. Smoother video playback may be details on setting items, see “COAXIAL/OPTICAL” (p. 31). available with this function.

  • Page 36: About The Audio Output Formats

    SETUP MENU ■ About the audio output formats HDMI COAXIAL/OPTICAL Source format Bitstream Reencode Bitstream Reencode PCM 2ch PCM 2ch PCM 2ch PCM 5.1ch PCM 5.1ch PCM 2ch PCM 7.1ch PCM 7.1ch PCM 2ch Dolby Digital Dolby Digital Dolby Digital Dolby Digital PCM 5.1ch Dolby Digital...
  • Page 37 SETUP MENU When TV System is set to PAL Resolution Auto 480i/576i 480p/576p 720p 1080i 1080p HDMI – – – – – 1080p 24Hz Playback BD 1080p 24 Hz HDMI 576i 576p 720p 50 Hz 1080i 50 Hz 1080p 50 Hz others 1080p 50 Hz Playback...

  • Page 38: Software Upgrade

    We recommend upgrading the software of this Player with software upgrade so that this Player is operated based on the latest software. To check for the availability of a software upgrade, visit http://download.yamaha.com/downloads/service/top/ ?site=europe.yamaha.com&language=en Hint – When Disc Auto Upgrade (p. 29) is set to on,...

  • Page 39: Troubleshooting

    Refer to the table below when this Player does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off this Player, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center. ■ Power...

  • Page 40: Sound

    TROUBLESHOOTING The playback screen will be disturbed if – This Player complies with analog copy protection. Some discs contain a copy DVD video is recorded to a VCR, or prohibiting signal. If you try to play back such discs through a VCR, or record to a VCR played back through a VCR.

  • Page 41: Glossary

    Error message Possible causes and solutions The Setting is prohibited, – BD-Live connection is prohibited. See “BD-Live Connection” (p. 30). please setup again. No valid upgrade file is – Check if the upgrade file is in the appropriate folder. found! Upgrade has failed for some –...

  • Page 42: Specifications

    SPECIFICATIONS Linear PCM Sound Subtitles Linear PCM is a signal recording format used for Audio These are the lines of text appearing at the bottom of the CDs and on some DVD and Blu-ray discs. The sound on screen which translate or transcribe the dialog. They are Audio CDs is recorded at 44.1 kHz with 16 bits.

  • Page 43: Copyright

    SPECIFICATIONS ■ Copyright ■ About fonts Fonts are (c) Bitstream (see below). DejaVu changes are in public domain. – Audio-visual material may consist of copyrighted Glyphs imported from Arev fonts are (c) Tavmjong Bah (see below) works which must not be recorded without the Bitstream Vera Fonts Copyright authority of the owner of the copyright.
  • Page 44 When this unit is plugged into the wall outlet, do not place your eyes close to the opening of the disc tray and other openings to look into inside. © 2010 Yamaha Corporation Printed in China BD-S667_U...
