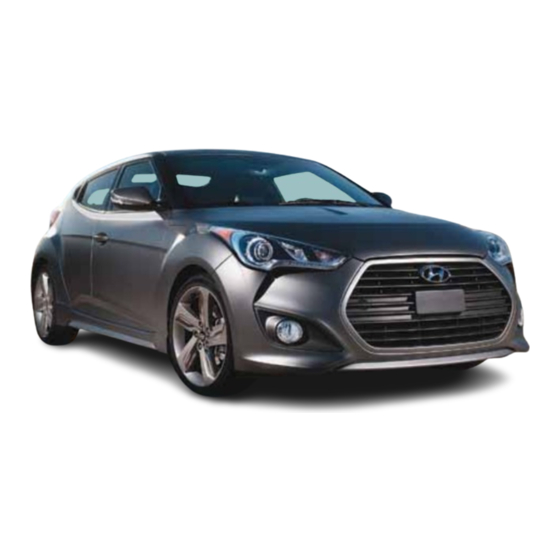

Hyundai Veloster Turbo Quick Reference Manual

WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES
☐ DEFROST - page 14-17
Press the front defrost button.
1
2 Set to warmest temperature setting.
Set to highest fan speed.
3
☐
BLUETOOTH – page
22-23
- Demonstrate phone pairing
Refer to www.hyundaiusa.com/bluetooth
- Demonstrate QR code
☐ BLUE LINK – pages 24-26
- Assist with creating MyHyundai.com account
- Assist with Blue Link enrollment
Show Blue Link Users Manual & tear out Voice
Commands/Quick Tip Card
- Encourage customers to press the Blue link button
☐
CLOCK – pages 36
- Demonstrate how to set clock (including daylight
savings setting for Navigation equipped vehicles)
☐
NAVIGATION (if applicable) – page 29-30
- Demonstrate navigation system POI, enter dealer address
☐
TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 35
- Explain TPMS function of customer
- When illuminated, one or more tires are
under-inflated
- Blinks for approximately one minute then remains illuminated
when there is a malfunction with the TPMS
☐
VEHICLE SETTINGS – pages 12-13 and 27-30
- Demonstrate vehicle settings in instrument cluster
- Demonstrate navigation use, enter dealer address
- Show radio presets
MAINTENANCE
Scheduled Maintenance
Engine Oil And Filter*
2
1
Fuel Additives *1
Tire Rotation
3
Air Cleaner Filter
Battery Condition
Vacuum Hose
Climate Control Air Filter
(For Evaporator And Blower Unit)
Air Conditioning Refrigerant
Brake Hoses & Lines
Drive Shafts & Boots
Electronic Throttle Control
Exhaust Pipe & Muffler
Front Disc Brake/Pads, Calipers
Rear Brake Drums/Linings
Rear Brake Disc/Pads
Steering Gear Box, Linkage & Boots/
Lower Arm Ball Joint, Upper Arm Ball Joint
Suspension Mounting Bolts
Brake/Clutch Fluid
Fuel Filter
Fuel Lines, Fuel Hoses And Connections
Fuel Tank Air Filter
Parking Brake
Vapor Hose, Fuel Tank & Fuel Filler Cap
Valve Clearance
Manual Transmission Fluid
Dual Clutch Transmission Fluid
Drive Belt (Alt, A/C)
Spark Plugs (Iridium Coated)
Coolant
*Check the engine oil regularly between recommended oil change. Hyundai recommends Quaker State oil.
*1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your
authorized Hyundai dealer along with information on how to use them. Do not mix other additives.
*See Owner's Manual for details.
Looking for more detailed information?
additional information or are unsure of a specific issue, you should always refer to the vehicle's Owner's Manual or contact your
authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing, however, specifications and equipment
can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide, and Hyundai reserves the
right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with
optional equipment. Specifications apply to U.S. vehicles only. Please contact your Hyundai dealer for current vehicle specifications.
VELOSTER TURBO
Normal Usage Severe Usage*
1st Replace 3,000 or 6 mos.
Replace 3,000 or 3 mos.
Add'l Replace 5,000 or 6 mos.
1st Add 3,000 or 6 mos. Add Same as Normal
Add'l Add 5,000 or 6 mos.
Perform 7,500 Perform 7,500
Inspect 7,500 Inspect Same As Normal
Replace 30,000 Replace More Frequently
Inspect 7,500 Inspect Same As Normal
Inspect 7,500 Inspect Same As Normal
Replace 15,000 Replace More Frequently
Inspect 15,000 Inspect Same As Normal
Inspect 15,000 Inspect Same As Normal
Inspect 15,000 Inspect 7,500 or 6 mos.
Inspect 15,000 Inspect Same As Normal
Inspect 15,000 Inspect Same As Normal
Inspect 15,000 Inspect More Frequently
Inspect 15,000 Inspect More Frequently
Inspect 15,000 Inspect More Frequently
Inspect 15,000 Inspect Same As Normal
Inspect 30,000 Inspect Same As Normal
Inspect 30,000 Inspect Same As Normal
Inspect 30,000 Inspect Same As Normal
Inspect 30,000 Inspect Same As Normal
Inspect 30,000 Inspect More Frequently
Inspect 30,000 Inspect Same As Normal
Inspect 60,000 Inspect Same As Normal
Inspect 37,500 Replace 75,000
Inspect 37,500 Replace 75,000
1st Inspect 60,000 or 72 mos.
Inspect Same As Normal
Add. Inspect 15,000 or 24 mos.
Replace 45,000 Replace More Frequently
1st Replace 120,000 or 10 yrs.
Replace Same As Normal
Add Replace 30,000 or 24 mos.
This Quick Reference Guide does not replace your vehicle's Owner's Manual, If you require
NP150-V2016-A
(Rev 03/16/15)
Printing 03/19/15
VELOSTER TURBO
HYUNDAI
Quick Reference Guide
www.hyundai.com
2
1-800-243-7766
Roadside Assistance:
1-800-633-5151
Consumer Affairs:
1-800-967-2346
Sirius XM ® Radio:
1-855-2BLUELINK
Blue Link:
(1-855-225-8354)
