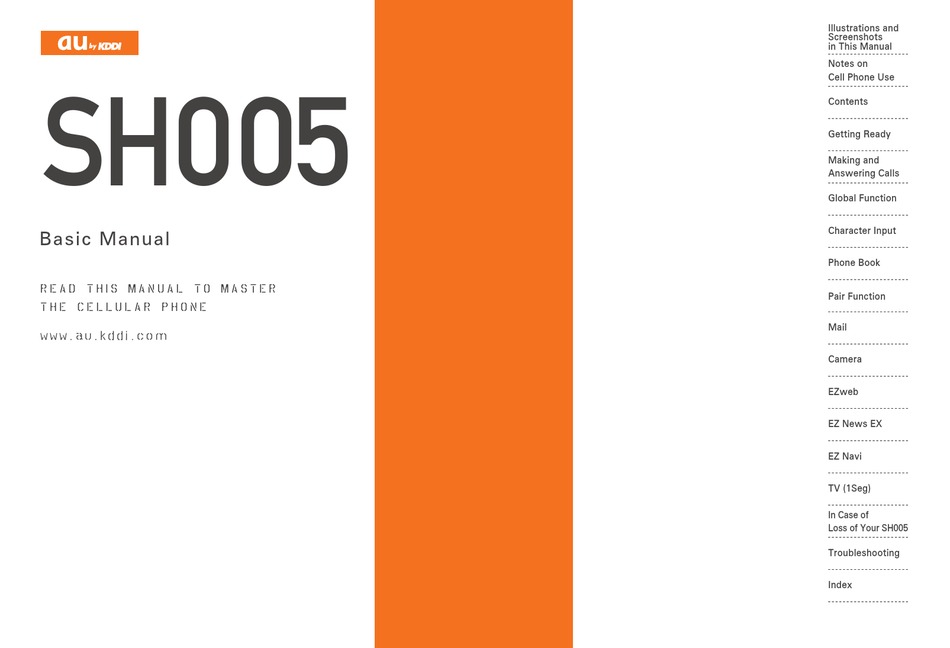

SH005
Basic Manual
read this manual to master
the cellular phone
Illustrations and
Screenshots
in This Manual
Notes on
Cell Phone Use
Contents
Getting Ready
Making and
Answering Calls
Global Function
Character Input
Phone Book
Pair Function
Mail
Camera
EZweb
EZ News EX
EZ Navi
TV (1Seg)
In Case of
Loss of Your SH005
Troubleshooting
Index
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KDDI SH005
Summary of Contents for KDDI SH005
- Page 1 Making and Answering Calls Global Function Character Input Basic Manual Phone Book read this manual to master Pair Function the cellular phone Mail Camera EZweb EZ News EX EZ Navi TV (1Seg) In Case of Loss of Your SH005 Troubleshooting Index...
- Page 2 Introduction Thank you for purchasing the SH005. Before using your SH005, be sure to read the SH005 Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.
-
Page 3: Illustrations And Screenshots In This Manual
The screenshots in this manual are simplified and may look different from the actual cell phone screens. • The display design themes of the SH005 vary by model color. The screenshots for the Berry Red model are used in this manual. -
Page 4: Notes On Cell Phone Use Cell Phone Etiquette
Notes on Cell Phone Use • Refrain from talking in a loud voice. • Obtain the permission of other people before you take their photos with the cell phone’s camera. Cell Phone Etiquette • Do not record information with the cell phone’s camera The cell phone always emits weak radio waves when power in bookstores and other locations where taking photos is on. -
Page 5: Disaster Message Board Service
Disaster Message Board Service • You can inquire for safety information Inquiring Inquiring of a person by entering his/her phone for safety for safety When a large scale disaster occurs, you can register number from EZweb or Internet.* information information your safety information from EZweb. -
Page 6: Water Resistance
30 minutes. • The SH005 is resistant to fresh or tap water at normal temperature (5°C - 35°C) only. • The SH005 is resistant to water when the external connection jack cover and battery pack cover are closed firmly. -
Page 7: Table Of Contents
Making and Answering Calls Contents Making a Call …………………………………………… 17 Making an International Call …………………………… 17 Introduction Answering a Call ……………………………………… 18 Illustrations and Screenshots in This Manual 1 Returning a Call (Outgoing History/Incoming History) … 18 One-ring Calls …………………………………………… 18 Notes on Cell Phone Use Adjusting the Earpiece Volume during a Call ………... - Page 8 Basic Operations ……………………………………… 48 Reading Received C-mail Messages ………………… 33 Exiting the au Media Tuner …………………………… 48 Camera In Case of Loss of Your SH005 Photo Taking Tips ……………………………………… 34 Setting Conditions for Activating About Photo Modes …………………………………… 35 the Remote Ctrl Lock …………………………………… 49 Taking a Photo …………………………………………...
-
Page 9: Getting Ready
Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell Phone • Battery Pack • CD-ROM • Instruction Manual (Japanese) • Warranty (Japanese) • Safety Precautions (Japanese) • Global Passport CDMA Owner’s Guide (Japanese) •... -
Page 10: Names Of Parts
Names of Parts ■ From Front ■ From Back ■ Diagonally from Front Earpiece Earpiece Light sensor Light sensor External External Display Display TV antenna TV antenna connection connection jack/cover jack/cover Incoming/Charge indicator Incoming/Charge indicator Phone indicator Phone indicator Mail indicator Mail indicator Strap eyelet Strap eyelet... -
Page 11: Replacing The Battery Pack
Replacing the Battery Pack Removing the Battery Pack ■ PULL tab ➡ Move the lock slider in the direction of the Contacts arrow. ➡ Remove the battery pack cover by lifting it up. ➡ Remove the battery pack by pulling up on the PULL tab. -
Page 12: Charging The Battery Pack
➡ Charging the Battery Pack Confirm that the incoming/charge indicator lights. The battery pack is not fully charged at the time of purchase. • Charging: The incoming/charge indicator lights. Be sure to charge the battery pack before using the cell •... -
Page 13: Learning The Basics
Learning the Basics Key Assignments ■ u : Display the ticker field, search window u : Display the ticker field, search window and info pane. and info pane. l : Display Incoming History. l : Display Incoming History. r : Display Outgoing History. r : Display Outgoing History. -
Page 14: Turning On Power
Use j to select 画面表示 (Screen Display) and Hiding/Redisplaying the Notification window Notification window Notification window Notification window ➡ ■ then press c (選択 [Select]). Notification Window Use j to select Set Language and then press ➡ When the notification window is c (選択... -
Page 15: Display Indicators
Display Indicators Display indicators inform you of mail arrival, current settings, etc. ■ Display Indicator Indicator Description Description Indicator Indicator Description Description Signal strength Signal strength Missed calls Missed calls New or unread e-mail/ New or unread e-mail/ Battery level Battery level C-mail C-mail... -
Page 16: Using Main Menu
Using Main Menu White/Pink/Red/Yellow/ Simple LL Char Green/Blue/Black You can access various functions from the Main menu. The default Main menu patterns vary by model color. The screenshots for the Berry Red model are used in this manual. Model Color Main Menu Pattern Morning White White... -
Page 17: Changing Your E-Mail Address
Use j to select the entry box, press c (Input), Changing Your E-mail Address ➡ enter an e-mail address using single-byte You can change the account E-mail address E-mail address alphanumeric characters, and then press name of your e-mail address. c (OK). -
Page 18: Security Code And Passwords
Security Code and Passwords EZ Password ■ Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form... -
Page 19: Making And Answering Calls
123 - XXXX Press N. ➡ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ To end the call, press F. • KDDI International KDDI International Country Country Area code Area code Phone number Phone number access code access code code code •... -
Page 20: Answering A Call
Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press N. To end the call, press F. • Example: Returning a call to a phone number in the incoming history Display When a Call is Received When the standby screen is displayed, press l. -
Page 21: Adjusting The Earpiece Volume During A Call
Adjusting the Earpiece Volume Changing the Incoming Ring Tone during a Call When the standby screen is displayed, press c. During a call, use j. Use a to select Settings and then press ➡ u: Increases the volume. c (Select). •... -
Page 22: Adjusting The Incoming Ring Tone Volume
Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down C for at least one second. When the standby screen is displayed, press c. is displayed on the standby screen. Use a to select Settings and then press ➡... - Page 23 Deleting a Message ■ When the standby screen is displayed, press C. Use j to select Answer Memo and then press ➡ c (Select). Use j to select Answer Memo List and then ➡ press c (Select). Use j to select the message you want to ➡...
-
Page 24: Global Function
(Preferred Roaming List) The SH005 supports Global Passport CDMA services. Manually update and set the PRL (preferred roaming list) You can use your SH005 overseas without any additional before traveling abroad. application. When the standby screen is displayed, press c. -
Page 25: Calling Japan From Overseas
Calling Japan from Overseas When the standby screen is displayed, press the number keys to enter the phone number of the other party. Press c (Call). ➡ Use j to select Voice Call and then press ➡ c (OK). Use j to select Call to Japan and then press ➡... -
Page 26: Character Input
Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes ． ＠ − ＿ ／ ： ∼ 1 When a character entry screen is displayed, you can select ａ ｂ ｃ A a character entry mode if you press L (Char.). ｄ... -
Page 27: Entering E-Mail Addresses
Entering Two or More Characters Entering E-mail Addresses ■ Assigned to the Same Key E-mail Address Compatible Characters ■ After you enter the first character, press r and then enter • Before you enter an e-mail address, switch to the the next character. -
Page 28: Entering Pictograms
Entering Pictograms When a character entry screen is displayed, press & ( ・Sym・(^ 0 ^)). Use a to select the pictogram you want to ➡ enter and then press c (Select). • You can enter pictograms consecutively if you press % (Repeat) instead of c (Select). -
Page 29: Phone Book
Phone Book • The phone book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving a Phone Book Entry • You can save three phone numbers and three e-mail addresses for each phone book entry. -
Page 30: Saving A Phone Number From The Incoming Or Outgoing History
Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the phone book When the standby screen is displayed, press l and then use j to select the phone number you want to save. -
Page 31: Pair Function
Making a Call to a Pair Partner Pair Function When the standby screen is displayed, press N. You can register a maximum of five pair partners you contact often to easily call or send mail. Use s to select the person you want to call. ➡... -
Page 32: Mail
Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use j to select Create New and then press ➡ To use e-mail, you need to apply for an EZweb subscription. c (Select). If you did not apply for an EZweb subscription at the time of Use j to select Address and then press ➡... -
Page 33: Reading Received E-Mail Messages
Use j to select the file name and then press Reading Received E-mail Messages ➡ c (Select). When you receive an e-mail message, E-mail Use j to select the file name and then press ➡ appears on the standby screen. c (Receive). -
Page 34: Rejecting Spam
Rejecting Spam カンタン設定 (Simple Settings) ■ Setting mail filters to reject spam is recommended. Set the filter by answering The サポート設定 (Supportive Settings) helps you to set questions サポート設定 mail filters easily by answering questions that appear on the This is recommended for users (Supportive Settings) screen. -
Page 35: Using C-Mail
Use j to select a phone number and then Using C-mail ➡ press c (Select). C-mail is a service that uses phone numbers as addresses Use j to select [Text] and then press ➡ to exchange messages between au cell phones that c (Select). -
Page 36: Camera
Landscape Position ■ Camera Your cell phone has a CMOS camera with approximately 5.27 effective megapixels for shooting photos and movies. You can use the self-timer and autofocus. Shot images can be used for the standby screen, and attached to e-mail messages. Photo Taking Tips When taking photos, position the cell phone so that not displayed upside down or inclined. -
Page 37: About Photo Modes
About Photo Modes Taking a Photo The following modes are available for taking photos. At the When the standby screen is displayed, press c. time of purchase, W.paper (Full) is set for Photo (W.paper Use a to select Camera and then press c ➡... -
Page 38: Viewing Photos
Viewing Photos When the standby screen is displayed, press c. Use a to select Data Folder and then press ➡ c (Select). Use j to select Photo Folder and then press ➡ c (Select). Use j to select a folder and then press ➡... -
Page 39: Ezweb
EZweb EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full-Plus™, Chaku-Uta-Full ® , Chaku- ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. -
Page 40: Accessing Sites
Accessing Sites Viewing the au one Top ■ You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press R, use j to select Top Menu/Search and then press c (Select). キーワード検索機能... -
Page 41: Bookmarking Frequently Accessed
Basic Operations Bookmarking Frequently ■ Use j to select the site you want to access and then Accessed Pages press c (Select). Press L or C to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press % (Browser Menu). -
Page 42: Checking Charges
Use j to select the site you want to access Checking Charges ➡ and then press c (Select). When the standby screen is displayed, press c. The download instructions appear. • Fee-based information sites require entry of EZ Use a to select Settings and then press ➡... -
Page 43: Ez News Ex
Setting EZ News EX EZ News EX You have only to make a few simple settings to use the EZ Use the EZ News EX to display on the standby screen the News EX. After following the procedure in “ Initial Setup of latest news, weather forecast, horoscope and others that E-mail and EZweb”... - Page 44 Canceling EZ News EX ■ When the standby screen is displayed, select the ticker field and then press c (News). Press % (サブメニュー[Submenu]), use ➡ j to select サービス利用設定変更・解除 (Service Settings/Cancellation) and then press c (選択[Select]). Use j to select サービス利用解除 (Service ➡...
-
Page 45: Ez Navi
Security Navi to Check Where EZ Navi Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press R いつでも位置確認... -
Page 46: Ez Navi Walk For When You Go Out
EZ Navi Walk for When You Go Out 設定／会員登録／ インフォ Configure various settings, sign up Displays various useful menu items for when you are out. as a member or check out various (Setting/Membership There are two menu modes: the Full Mode menu for those Registration/ useful information. -
Page 47: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters
Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the SH005 ( 避難所マップ [Evacuate Area Map] ). Other useful contents can be downloaded from the 災害時 ナビ (Evacuate Navi) section of the EZweb site. -
Page 48: Tv (1Seg)
DBEX OFF: Approx. 3 hrs 30 min. Continuous The SH005 has a built-in TV antenna. For better signal viewing time reception when watching TV (1Seg), do not cover the DBEX ON: display portion with your hands as it contains the built-in TV Using Approx. -
Page 49: Initial Setup Of Au Media Tuner
Initial Setup of au Media Tuner Watching TV (1Seg) When the standby screen is displayed, press c. To watch TV (1Seg) using the au Media Tuner, you need to configure initial settings. Use a to select TV/Radio and then press ➡... -
Page 50: Basic Operations
Basic Operations Watching TV (1Seg) in Landscape ■ Position Launch TV (1Seg) to start receiving data broadcasts. The data operation screen appears when a data broadcast When you start au Media Tuner after setting the initial is received. Press & (Vol/Ch) on the data operation screen settings, you can also watch TV (1Seg) with your cell phone to switch to the TV operation screen. -
Page 51: In Case Of Loss Of Your Sh005
You can activate the Remote Ctrl Lock by calling your • You can set a time from one to ten minutes. SH005 a set number of times from a registered phone Use j to select No. of Incm and then press ➡... -
Page 52: Activating The Remote Ctrl Lock By The Security Lock Service
Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on- screen instructions. • The Remote Ctrl Lock cannot be activated when the SH005 is turned off or out of the service area, or Emission OFF is set to ON. -
Page 53: Troubleshooting
Troubleshooting Symptom Possible Cause Remedy Page ● Is the battery pack charged? Charge the battery pack. Cannot turn on power. ● Did you hold down F for at least one Hold down F for at least one second. second? Hold down F for at least one second. ●... - Page 54 • For more detailed information, visit the following au troubleshooting sites: - From an au cell phone: R Top Menu/Search ⇒ ⇒ auお客さまサポート (au Customer Support) ⇒ オンラインマニュアル (Online Manual) 故障診断Q&A (Troubleshooting FAQ) ⇒ - From a PC: http://www.kddi.com/customer/service/au/trouble/kosho/index.html...
-
Page 55: Index
Checking charges…………………………………………… 40 Index C-mail ………………………………………………………… 33 C-mail safety block ……………………………………… 33 Numeric Creating and sending …………………………………… 33 Reading received mail …………………………………… 33 1Seg ………………………………………………………… 46 Contents………………………………………………………… 5 Accessories …………………………………………………… 7 Disaster Message Board Service …………………………… 3 Answer memo ……………………………………………… 20 Display ……………………………………………………... - Page 56 EZ Navi Walk ……………………………………………… 44 EZ News EX ………………………………………………… 41 Key assignments …………………………………………… 11 Canceling ………………………………………………… 42 Changing the reception settings ……………………… 42 Info pane …………………………………………………… 41 Setting ……………………………………………………… 41 Language …………………………………………………… 12 Ticker field ………………………………………………… 41 Learning the basics ………………………………………… 11 EZ password …………………………………………………...
- Page 57 Pair Function ………………………………………………… 29 Remote Ctrl Lock …………………………………………… 49 Making a call to a pair partner ………………………… 29 Replacing the Battery Pack ………………………………… 9 Registering a pair partner ……………………………… 29 Ring tones Sending mail to a pair partner …………………………… 29 Changing the type …………………………………………...
- Page 58 Viewing Photos ……………………………………………………… 36 Water resistance ……………………………………………… 4...
- Page 59 「なるほど! au」 (au User’ s Forum) みんなでQ&A au Online Manual. Read this code for an easy access to January 2010 Edition 「なるほど! au」 みんなでQ&A (au User’ s Forum). Sales: KDDI CORPORATION • OKINAWA CELLULAR TELEPHONE COMPANY ・The packet communication Manufactured by: SHARP CORPORATION charge applies.
