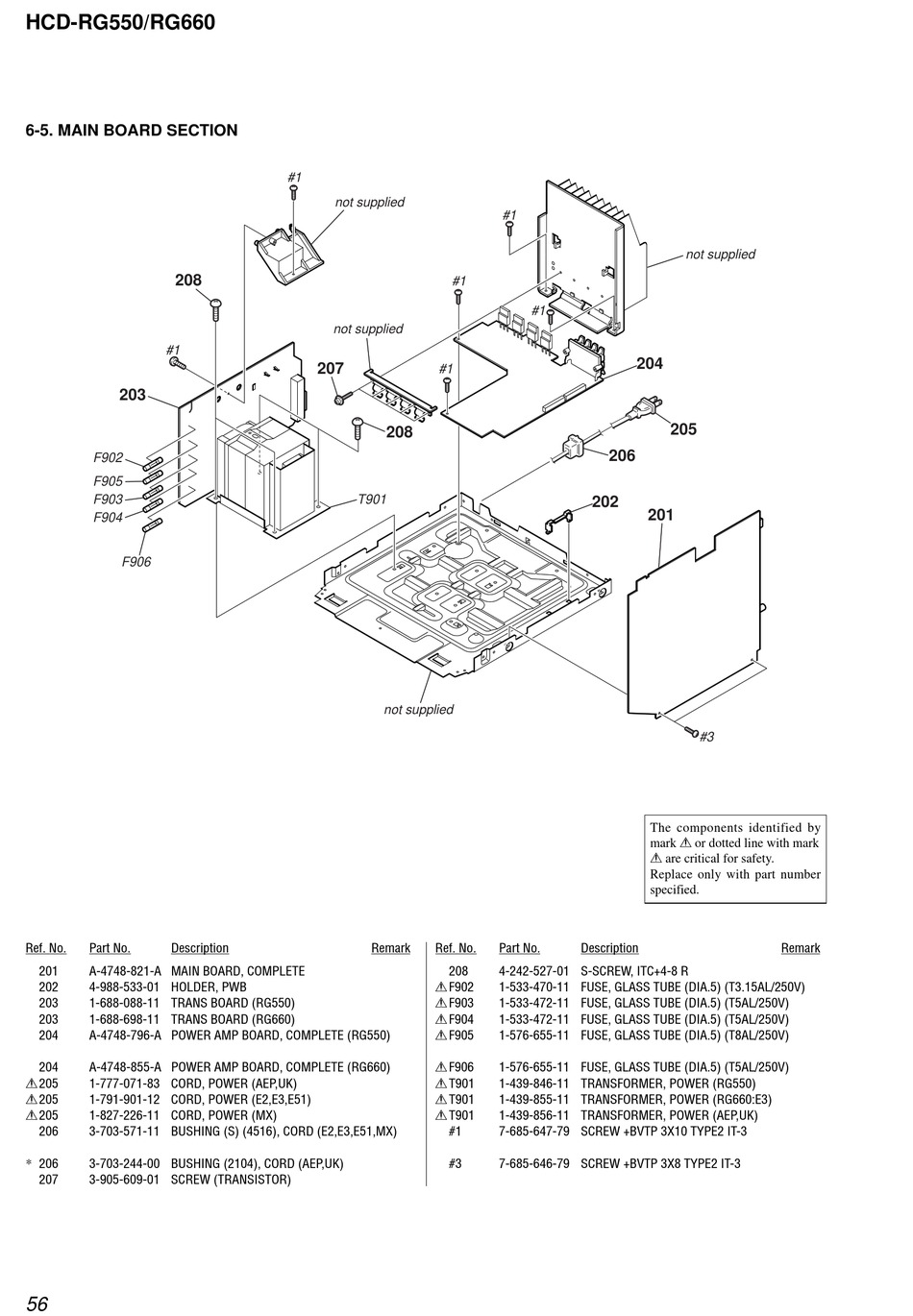

6-5. MAIN BOARD SECTION
208
#1
203
F902
F905
F903
F904
F906
Ref. No.
Part No.
Description
201
A-4748-821-A MAIN BOARD, COMPLETE
202
4-988-533-01 HOLDER, PWB
203
1-688-088-11 TRANS BOARD (RG550)
203
1-688-698-11 TRANS BOARD (RG660)
204
A-4748-796-A POWER AMP BOARD, COMPLETE (RG550)
204
A-4748-855-A POWER AMP BOARD, COMPLETE (RG660)
0 205
1-777-071-83 CORD, POWER (AEP,UK)
0 205
1-791-901-12 CORD, POWER (E2,E3,E51)
0 205
1-827-226-11 CORD, POWER (MX)
206
3-703-571-11 BUSHING (S) (4516), CORD (E2,E3,E51,MX)
* 206
3-703-244-00 BUSHING (2104), CORD (AEP,UK)
207
3-905-609-01 SCREW (TRANSISTOR)
56
#1
not supplied
#1
not supplied
207
#1
208
T901
not supplied
Remark
Ref. No.
208
0 F902
0 F903
0 F904
0 F905
0 F906
0 T901
0 T901
0 T901
#1
#3
#1
#1
204
205
206
202
201
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Part No.
Description
4-242-527-01 S-SCREW, ITC+4-8 R
1-533-470-11 FUSE, GLASS TUBE (DIA.5) (T3.15AL/250V)
1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)
1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
1-439-846-11 TRANSFORMER, POWER (RG550)
1-439-855-11 TRANSFORMER, POWER (RG660:E3)
1-439-856-11 TRANSFORMER, POWER (AEP,UK)
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
not supplied
#3
Remark
