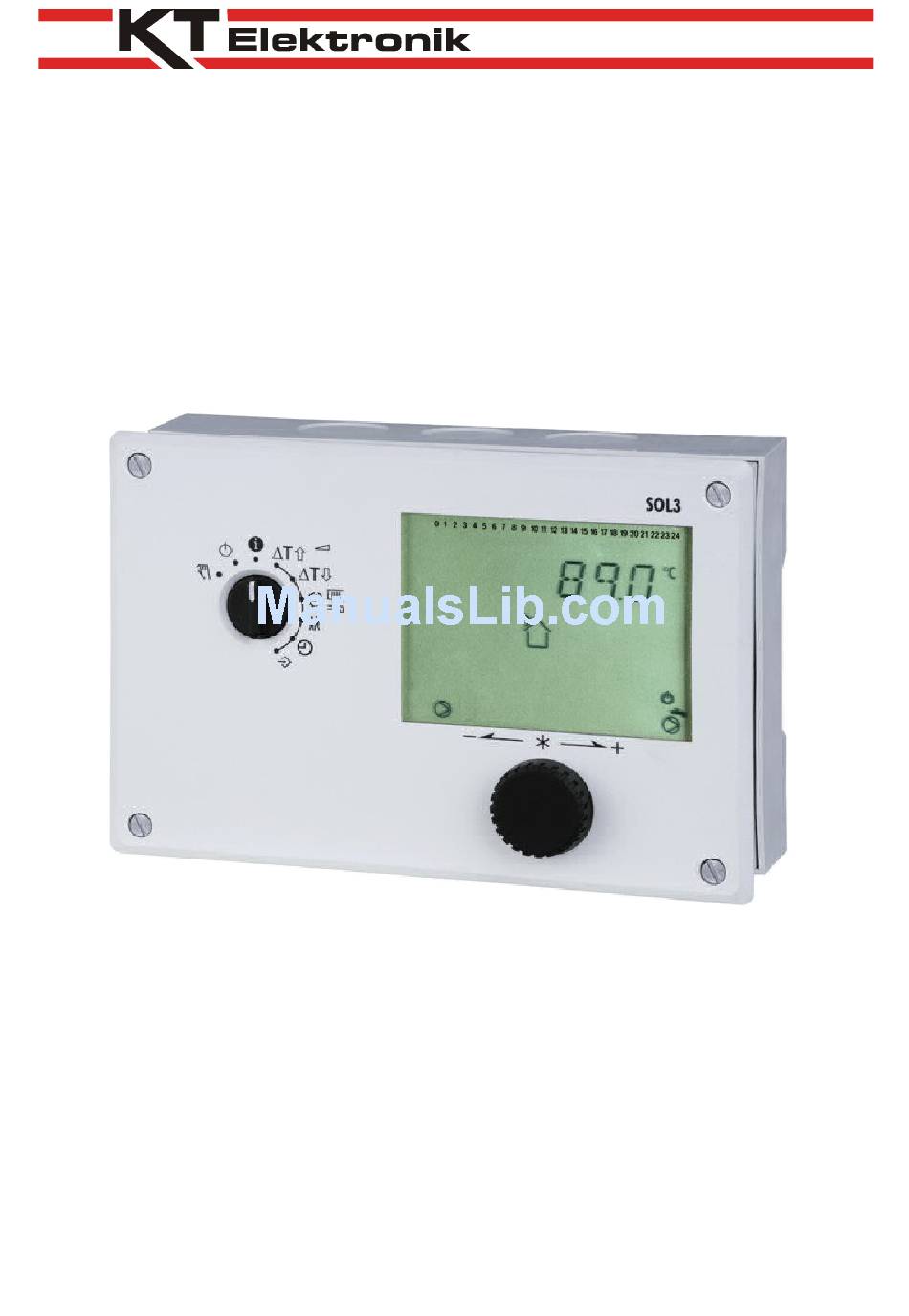

- Page 1 Solar and differential temperature controller SOL3-3 Quick installation and operating manual Firmware version 1.07, April 2011...
-
Page 2: Important Safety Instructions
Quick installation and operating manual KT-Elektronik Disclaimer of liability We are constantly developing our products and therefore, reserve the right to change the product or the information contained in this document at any time without notice. We do not assume any liability for the accuracy or completeness of these mounting and operating instructions. Moreover, we do not guarantee that the buyer can use the product for an intended purpose. -
Page 3: Table Of Contents
KT-Elektronik SOL3-3 Content Installation......................................4 Mounting....................................4 Electrical connection................................5 Systems......................................6 Operation and display..................................8 Operating controls.................................8 Display....................................9 Information level..................................10 Setting the controller time..............................10 Check and modify times-of-use............................11 Check and set party mode..............................11 Setting the system code number (selection of the hydraulic scheme)................12 Activating und deactivating functions ..........................12... -
Page 4: Installation
Quick installation and operating manual KT-Elektronik The SOL3-3 is a controller for solar thermal systems, and includes at max. nine temperature sensor inputs, three switching outputs, one pulse input and one 0-10V input or output. The controller is ready to use with the temperatures and operating schedules preset by the manufacturer. On start-up, the current time and date need to be set at the controller. -
Page 5: Electrical Connection
KT-Elektronik SOL3-3 Electrical connection The wiring diagram is shown on the back side of the housing. This diagram is usable for most of the supported systems. In some special configurations, the switching output connections are different.. The sheets below are showing the terminal- assignmet for all available system schemes.The terminal-assignment for inputs is valid for all systems. -
Page 6: Systems
Quick installation and operating manual KT-Elektronik Systems The SOL3-3 provides 26 different hydraulic systems. These differs in basic system components and extentions. Basic system components Extentions • number of collector arrays, • auxilary heater, number of storage tanks, circulation pump •... - Page 7 KT-Elektronik SOL3-3 System I o 2.0.0 System I o 3.0.0 System I 3.0.0 1 collector array, 2 storage tanks (valve), 1 collector array, 1 collector array, external heat exchanger 2 storage tanks (2 pumps), 2 storage tanks (2 pumps)
-
Page 8: Operation And Display
Quick installation and operating manual KT-Elektronik Operation and display Operating controls The operating controls and the display are located in the front panel of the controller. Rotary pushbutton Turn: Display, select parameters and function blocks Push: Confirm adjusted selection or settings Rotary switch –... -
Page 9: Display
KT-Elektronik SOL3-3 Display The display indicates the time as well as information about the operation of the controller when the rotary switch is at the normal position (information level). The times-of-use together with temperatures of the various control circuits can be viewed on the display by turning the rotary pushbutton. -
Page 10: Information Level
Quick installation and operating manual KT-Elektronik Information level At the normal rotary switch position ,„Information level“, the time, date, public holidays and vacation periods as well as the temperatures measured by the connected sensors and their set points ca be retrieved and displayed. (Press and hold rotary push butten to display set points). -
Page 11: Check And Modify Times-Of-Use
KT-Elektronik SOL3-3 Check and modify times-of-use Three times-of-use can be set for each day of the week. If only one time-of-use is required, start and stop of second time-of- use must be equal. Therfore the third time-of-use will not be displayed to modify. If two times-of-use are required, , start and stop of third time-of-use must be equal and start and stop time of the second time-of-us must be different. -
Page 12: Setting The System Code Number (Selection Of The Hydraulic Scheme)
Quick installation and operating manual KT-Elektronik Setting the system code number (selection of the hydraulic scheme) Set rotary switch to configuration and parameter level; Symbol time and parameter blink, Display: key number Turn rotary pushbutton; Set valid key number Push rotary pushbutton; Display:parameter level 1 Turn rotary pushbutton;... -
Page 13: Modify Parameters
KT-Elektronik SOL3-3 configuration level Modify parameters The parameters are grouped by topics: PA3: Solar circuit PA5: System-wide parameters PA4: Auxilary heating / DHW circuit PA6: Modbus communication Set rotary switch to configuration and parameter level; Symbol parameter blink, Display: key number Turn rotary pushbutton;... -
Page 14: Manual Mode
Quick installation and operating manual KT-Elektronik Manual mode Switch to manual mode to configure all outputs, refer to wiring diagram Select output depending on the control circuit: POS2 : Positioning value pesp. voltage of analogue output UP1: Activation/deactivation of circulation pump UP1 (heating circuit) Activation/deactivation of circulation pump ZP CP1: Activation/deactivation of collector pump CP1... -
Page 15: Function Block Lists
KT-Elektronik SOL3-3 Function block lists CO3: Solar circuit Function Comment Force automatic run (pump) CO3 F01 = 1 - Force automatic run active Collector frost protection CO3 F02 = 1 - Collector frost protection active Start function (Vakuum tube ) -
Page 16: Co6: Modbus
Quick installation and operating manual KT-Elektronik Function Comment Delayed outdoor CO5 -> F05, 06 - 1: Function block parameters:: temperature adaptation Delay per hour / 1 to 6 °C/h (3 °C/h) when temperature decreases Delayed outdoor temperature adaptation when temperature increases Automatic summer / winter time Frost protection program II... -
Page 17: Pa4: Auxilary Heating - Storage Tank Temperature
KT-Elektronik SOL3-3 Parameter description Range of value FD Comment storage tank Min. storage tank temperature 5 to 90°C 30°C Only in mode 2 of storage tank priority for charging Max. collector temperature 90 to 160°C 130°C switch OFF condition Max. collector temperature 90 to 160°C... -
Page 18: Technical Specification
Approx. 0,5 kg Material Mat.-Nr. Identification Despription 37383 SOL3-3 SOL3-3 Solar thermal and differential temperature controller 11988 KOM232PC Adapter to connect SOL3 and WPR3 to RS232 interface (PC) 11989 KOM232M Adapter to connect SOL3 and WPR3 to Modem (PSTN/GSM/ISDN) 11994... -
Page 19: Notes
KT-Elektronik SOL3-3 Notes KA_37383_SOL3-3_EN002... - Page 20 KT-Elektronik GmbH Berlinickestrasse 11 12165 Berlin Telefon: (030) 79 08 05-0 Telefax: (030) 79 08 05-20 e-mail: info@kt-elektronik.de Internet: http://www.kt-elektronik.de KA_37383_SOL3-3_EN002...
