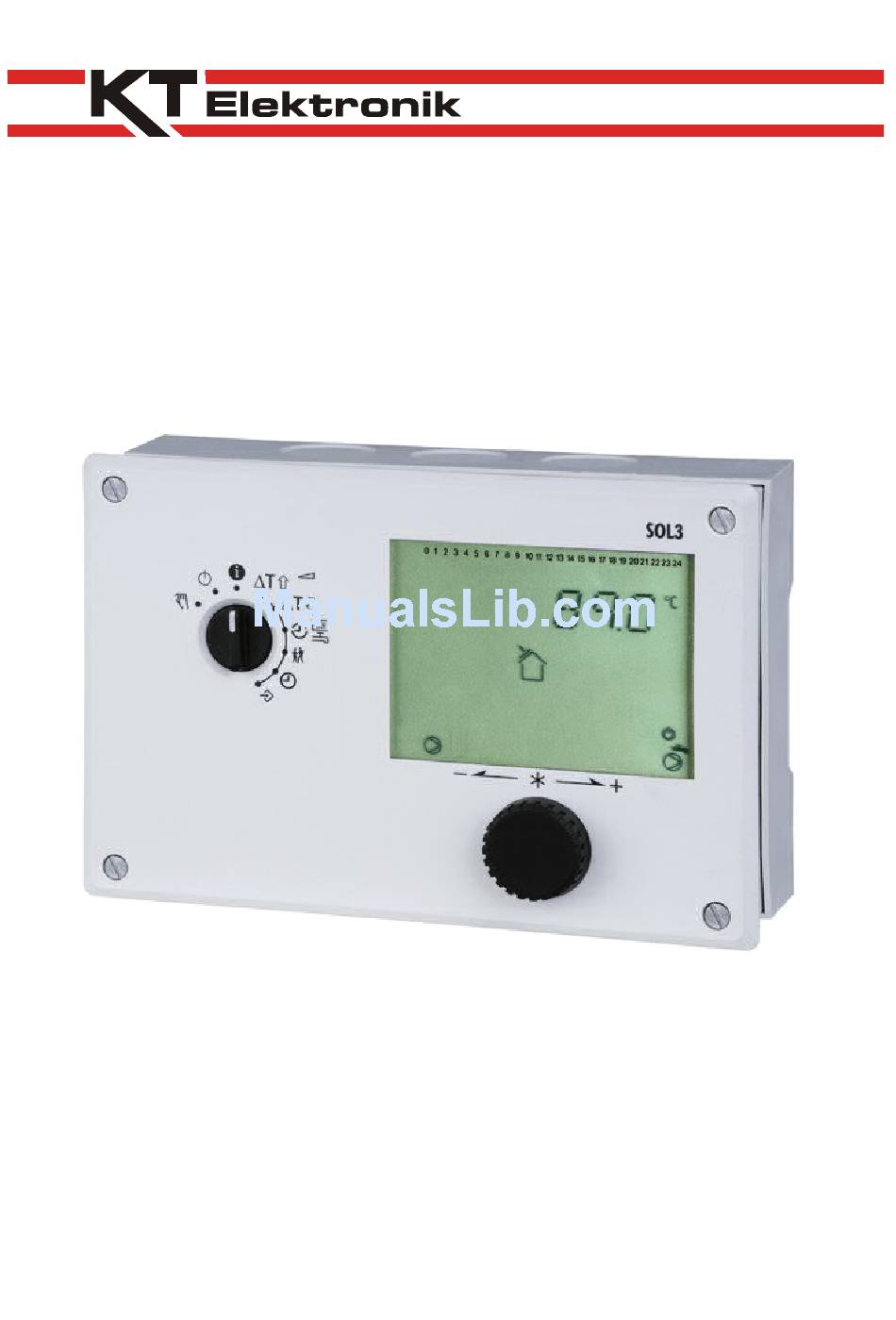

Solar controller
SOL3-3
Installation and operating
manual
Firmware version 1.07
April 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOL3-3 and is the answer not in the manual?

Questions and answers

Related Manuals for KT-Elektronik SOL3-3

Summary of Contents for KT-Elektronik SOL3-3

  • Page 1 Solar controller SOL3-3 Installation and operating manual Firmware version 1.07 April 2011...
  • Page 2 Installation and operating manual KT-Elektronik Warranty We permanently enhance our products, therefore we reserve the right to make changes to our products at any time and without prior notice. We take no responsibility for the accuracy or completeness of this manual. No liability can be accepted for the use of our products for a buyer specific purpose.

  • Page 3: Table Of Contents

    KT-Elektronik SOL3-3 Table of contents 1 Operation ........................1.1 Controls ........................1.1.1 Rotary pushbutton ................... 1.1.2 Rotary switch ....................1.2 Display ........................1.3 Retrieving data – Information level ............... 1.4 Setting the system time ..................1.5 Adjust usage schedule settings ................
  • Page 4 Installation and operating manual KT-Elektronik 5.13 External heat exchanger ..................5.14 Auxiliary heating with secondary heat generator ..........5.15 Raise return flow of external heating system ............. 5.15.1 Main principle ....................5.15.2 Implementation .................... 6 Domestic water circuit functions ..................
  • Page 5 KT-Elektronik SOL3-3 11.3.1 Connecting the sensors ................11.3.2 Connecting the pumps ................. 11.3.3 Legend for connection diagram ..............11.3.4 Wiring diagram ..................... 11.3.5 Terminal assignment for Outputs ..............11.3.6 Terminal assignment for inputs ..............12 Appendix ........................12.1 Function block lists .....................

  • Page 6: Operation

    Installation and operating manual KT-Elektronik 1 Operation The controller is factory-provided with standard temperature settings and timing programs and therefore ready for use. The current date and time have to be set at initial operation of the controller (Chapter 1.4).

  • Page 7: Rotary Switch

    KT-Elektronik SOL3-3 1.1.2 Rotary switch The rotary switch is used to select the operating mode on the left hand and the basic settings of the controller on the right hand. Rotary switch – operating mode Control on, display informations about...

  • Page 8: Display

    Installation and operating manual KT-Elektronik 1.2 Display During operation, the display shows the current time as well as information about the status of the controller. The usage periods are represented by black squares below the row of numbers. Symbols mark the operational status of the controller.
  • Page 9 KT-Elektronik SOL3-3 The following applies to the icon of the collector pump(s): Description Icon Icon off Pump off Condition to turn on the pump is met but the Icon flashes briefly pump is still off because of the minimum idle time.

  • Page 10: Retrieving Data - Information Level

    Installation and operating manual KT-Elektronik 1.3 Retrieving data – Information level In the standard rotary switch position „Information level“ one can retrieve informations about time, date, vacation-times and holidays as well as the temperature set-points for the connected sensors and their current temperature.

  • Page 11: Setting The System Time

    KT-Elektronik SOL3-3 1.4 Setting the system time System time and date have to be set during first start-up and after each loss of power with a duration of more than 24 hours. This is indicated by a blinking time display.

  • Page 12: Adjust Usage Schedule Settings

    Installation and operating manual KT-Elektronik 1.5 Adjust usage schedule settings There are three separate usage schedules for • Auxiliary heating • Domestic water circulation The following applies to each time program: For each day of the week, three time ranges can be programmed. If only one time range is needed, the start and end time of the second range have to be set to the same value.
  • Page 13 KT-Elektronik SOL3-3 Procedure: Turn rotary switch to position “Usage schedules” Select circuit for which the time ranges shall be Auxiliary heating set. (only available circuits of the selected system Domestic water variant are offered) circulation Confirm selected circuit. Display: 1–7 Select time range/day: 1–7 = daily,...

  • Page 14: Setting The Party Mode (Heating Circuit/Auxiliary Heating)

    Installation and operating manual KT-Elektronik 1.6 Setting the party mode (heating circuit/auxiliary heating) The party mode overrides the nominal operation of the controller by starting a new or prolonging a programmed daytime mode time range for the duration of the time set for the party mode.

  • Page 15: Access Advanced Information Level

    KT-Elektronik SOL3-3 1.7 Access advanced information level After entering the access code 1999 the following informations are accessible through the menu items as described in chapter 1.3: •Measured values for not needed sensor inputs of current system layout •Volume flow rate •Performance...

  • Page 16: Setting Holidays

    Installation and operating manual KT-Elektronik 1.7.1 Setting holidays On public holidays the time ranges entered for Sunday apply. The number of programmable holidays is limited to 20. Setting Level / Range Holidays – Advanced information level / 01.01 to 31.12...
  • Page 17 KT-Elektronik SOL3-3 Procedure: In the advanced information level select the menu item "vacations". Display: Confirm selection "vacations". Display: START, – –.– – Eventually select item – – – –. Enter edit mode for vacation time. flashes Change beginning of vacation.

  • Page 18: Operation Level Stucture

    Installation and operating manual KT-Elektronik 1.8 Operation level stucture PA3/CO3: Solar circuit PA4/CO4: Auxiliary heating/domestic water heating PA5/CO5: System wide PA6/CO6: Communication Anl: system variant ID Fig. 2: Level structure EB_37383_SOL3-3_EN002...

  • Page 19: Commissioning

    KT-Elektronik SOL3-3 2 Commissioning The configuration procedures and parametrization described in this chapter can only be performed by entering a valid controller access code. The access code provided by the factory for first time use can be found in the appendix.

  • Page 20: Activate And Deactivate Functions

    Installation and operating manual KT-Elektronik 2.2 Activate and deactivate functions Each function can be activated within its related function block. The sequence of numbers shown at the head of the display (0 to 24) represent the function block numbers. When accessing the configuration level, a black square is displayed right hand below active function block numbers.
  • Page 21 KT-Elektronik SOL3-3 Deactivate function block. Display: F__ - 0 Confirm setting. As long as the function block is not closed, other function block parameters can be set. Procedure: Edit and confirm settings. Eventually, the next function block parameter is displayed.

  • Page 22: Edit Settings

    Installation and operating manual KT-Elektronik 2.3 Edit settings Depending on the current system variant ID and active functions, not all parameters listed in the parameter list in the Appendix will be accessible (Chapter 12.2). The functions are grouped by topic:...

  • Page 23: Sensor Calibration

    KT-Elektronik SOL3-3 2.4 Sensor calibration The controller is designed for connection of Pt1000-sensors. The sensor values of resistance are listed on page 80. If the temperature values displayed by the controller do not match the real temperatures, the measured values of the connected sensors can be adjusted. The temperature value displayed has to be replaced by the value measured directly at the measuring point (reference value).

  • Page 24: Reset To Factory Default Settings

    Installation and operating manual KT-Elektronik 2.5 Reset to factory default settings All parameters set by means of the rotary switch as well as the parameters set in level PA3 to PA5 can be reset to factory default settings. Procedure: Switch to configuration and settings level.

  • Page 25: Manual Operating Mode

    KT-Elektronik SOL3-3 3 Manual operating mode The manual operating mode allows the configuration of all outputs (chapter 11). Manual operating mode is set with the turn switch for the requested circuit: Procedure: Move rotary switch to position “Manual operating mode”.

  • Page 26: System Variants

    Installation and operating manual KT-Elektronik 4 System variants 26 hydraulic system variants are available. They differ in the first instance in: • Number of collector arrays, • Number of storages, • Switching between several collectors or storages by means of switching valves or several pumps, •...
  • Page 27 KT-Elektronik SOL3-3 2  I.0.0 System variant Two collectors (switching valve), one storage tank 3  I.0.0 System variant Two collectors (two pumps), one storage tank EB_37383_SOL3-3_EN002...
  • Page 28 Installation and operating manual KT-Elektronik I o I.0.0 System variant One collector, one storage, external heat exchanger 2 o I.0.0 System variant Two collectors (switching valve), one storage tank, external heat exchanger EB_37383_SOL3-3_EN002...
  • Page 29 KT-Elektronik SOL3-3 3 o I.0.0 System variant Two collectors (two pumps), one storage tank, external heat exchanger I  2.0.0 System variant One collector, two storage tanks (switching valve) EB_37383_SOL3-3_EN002...
  • Page 30 Installation and operating manual KT-Elektronik 2  2.0.0 System variant Two collectors (switching valve), two storage tanks (switching valve) 3  2.0.0 System variant Two collectors (two pumps), two storage tanks (switching valve) EB_37383_SOL3-3_EN002...
  • Page 31 KT-Elektronik SOL3-3 I o 2.0.0 System variant One collector, two storage tanks (switching valve), external heat exchanger I  3.0.0 System variant One collector, two storage tanks (two pumps) EB_37383_SOL3-3_EN002...
  • Page 32 Installation and operating manual KT-Elektronik 2  3.0.0 System variant Two collectors (switching valve), two storage tanks (two pumps) I o 3.0.0 System variant One collector, two storage tanks (two pumps), external heat exchanger EB_37383_SOL3-3_EN002...

  • Page 33: Extending The Basic System Variant Representations

    KT-Elektronik SOL3-3 4.1 Extending the basic system variant representations Each system image shown can be enlarged to include other functions. These additional functions can be combined with each other. The functions heating circuit, auxiliary heating and circulation are identified by the last two digits of the system variant ID: xxx.0.0...
  • Page 34 Installation and operating manual KT-Elektronik I - I.2.0 System variant (with circulation pump) One collector, one storage tank I - I.3.0 System variant (with auxiliary heating and circulation pump) One collector, one storage tank EB_37383_SOL3-3_EN002...

  • Page 35: Solar Circuit Functions

    KT-Elektronik SOL3-3 5 Solar circuit functions 5.1 Basic Control function The controller monitors the collector temperature (sensor CF) as well as the storage temperature (sensor SF) and turns the collector pump (CP) on once enough solar energy is available to heat up the storage.
  • Page 36 Installation and operating manual KT-Elektronik A) The collector temperature exceeds the storage temperature by more than the turn-on threshold (8 K). The collector pump is turned on. B) The collector temperature dropped below the turn-off threshold (SF + 4 K). The collector pump is turned off.

  • Page 37: Storage

    Max E PA3 (turn-on condition) The solar thermal controller SOL3-3 is used to transfer the usable solar energy into the storage tanks in systems with two storage tanks according to the priority presetting and the programmed parameters. The scope of application of the saved energy is irrelevant for this process.

  • Page 38: Swimming Pool

    Installation and operating manual KT-Elektronik Storage tank priority Depending on the usage, it could make sense to reach a higher temperature in one of both storage tanks or to reach a uniform allocation of the collected energy. The parameter Type of storage tank priority is used to determine the solar controller mode of operation.

  • Page 39: Collector Return Flow Sensor, Collector Flow Sensor

    KT-Elektronik SOL3-3 5.4 Collector return flow sensor, Collector flow sensor In several systems, the sensors for collector temperature and for storage tank temperature are not really appropriate to decide if the collector pump should be already turned off or not. It is possible that fluid with a higher temperature than measured by the storage tank sensor flows from the storage tank to the collector, e.g.

  • Page 40: Measurement Of Solar Power And Solar Energy

    Installation and operating manual KT-Elektronik 5.5 Measurement of solar power and solar energy To document the solar gain of the solar system, a heat meter has been implemented, which determines the heat quantity provided by the solar system by means of the flow and return flow temperature and a flow volume sensor (quantity impulse generator) respectively a flow volume sensor replacement value.
  • Page 41 KT-Elektronik SOL3-3 • 1 watt hour (Wh) = 3600 watt seconds (Ws) • 1 watt hour (Wh) = 3600 joules (J) • 1 kilowatt hour (kWh) = 1000 watt hours (Wh) Function Description Energy measurement CO3 -> F05 – 1 – Heat meter active Heat capacity 25°C...

  • Page 42: Rotation Speed Control

    Installation and operating manual KT-Elektronik 5.6 Rotation speed control It might make sense to run the pump with a lower flow rate at low solar radiation. By doing so, the following can be achieved: –a higher temperature is reached at the collector. This impairs the efficiency of the collector, but allows to heat up a small amount of water in the storage.

  • Page 43: Collector Overheating Protection

    KT-Elektronik SOL3-3 programmed minimum rotation speed a signal for 0% (corresponding to 0 V output) is sent. The calculation is based on a PID algorithm, whose parameters can be customized. Function Description Rotation speed mode CO3 -> F04 Mode of rotation speed control / 1...2 Rotation speed set-point Set-point for rotation speed control / 1...100 °C...

  • Page 44: Collector Minimum Temperature

    Installation and operating manual KT-Elektronik 5.8 Collector minimum temperature A minimum collector temperature can be set, underneath which the pump is not turned on at all. This can be reasonable in cases where it is known that the solar gain ratio lays below the pump power ratio.

  • Page 45: Collector Antifreeze

    KT-Elektronik SOL3-3 5.11 Collector Antifreeze Solar systems with no antifreeze medium can be run in regions where frost just appears sporadically. In case that the temperature really should drop below the dew point, the controller is able to turn on the pump in order to prevent a freezing of the collector.

  • Page 46: External Heat Exchanger

    Installation and operating manual KT-Elektronik Setting Value range Description Array minimum 60 s 0...1800 s Minimum running time for array before running time switching 5.13 External heat exchanger When operating installations with system separation of collector and storage tank, an external heat exchanger may be installed.

  • Page 47: Auxiliary Heating With Secondary Heat Generator

    KT-Elektronik SOL3-3 5.14 Auxiliary heating with secondary heat generator An additional heat generator is required in several systems where a solar fraction of 100% can't be expected. The secondary heat generator may be an oil or gas boiler, an electric cartridge heater or a district heating network.

  • Page 48: Main Principle

    Installation and operating manual KT-Elektronik 5.15.1 Main principle A boiler or an other heat source is a primary energy source for heating circle and domestic hot water preparation. This primary energy source works self- sufficiently, therefore the compact solar controller SOL3-7 has no influence on their function.

  • Page 49: Domestic Water Circuit Functions

    KT-Elektronik SOL3-3 6 Domestic water circuit functions 6.1 Domestic water heating in storage tank The domestic water circuit allows setting the desired temperature the water should be heated up to by means of auxiliary heating. Setting Parameter level / Value range Set-point domestic water 45 °C...

  • Page 50: System Wide Functions - All System Variants

    Installation and operating manual KT-Elektronik 7 System wide functions - all system variants 7.1 Automatic summer/winter switching Switching is done automatically on the last Sunday in March at 2:00 am and on the last Sunday in October at 3:00 am.

  • Page 51: Locking Manual Operating Mode

    KT-Elektronik SOL3-3 7.3 Locking manual operating mode This function can be used to lock the manual operating mode in order to protect the heating system. When activated, the system is run in automatic mode when the rotary switch is positioned at...

  • Page 52: Temperature Difference Controller

    Installation and operating manual KT-Elektronik 7.6 Temperature difference controller To applicate a raise return flow temperature of a seperate heating circuit, to realize tank- to-tank transfer or to charge or discharge of heating energy there is designed one additional temperture diffrence controller inside.

  • Page 53: Malfunction

    KT-Elektronik SOL3-3 8 Malfunction A system malfunction is indicated by a flashing icon in the display. An error message is immediately displayed. The error level is opened by pressing the rotary pushbutton. A larger number of error messages might eventually be retrieved by turning the rotary pushbutton.

  • Page 54: Temperature Monitoring

    Installation and operating manual KT-Elektronik 8.3 Temperature monitoring If the temperature in one of the control circuits deviates more than 50 K from normal for a period of 30 minutes, the error message "Err 6" is generated (temperature monitoring alarm).

  • Page 55: Sms Delivery In Case Of A System Failure

    KT-Elektronik SOL3-3 8.5 SMS delivery in case of a system failure If a dial up modem is connected to the KOM232M (Mat-No. 11988) communication module (chapter 8.1), the controller is able to send error messages to a cell phone. An SMS is sent as soon as a failure is captured in the error status register.

  • Page 56: Communication

    Installation and operating manual KT-Elektronik 9 Communication The heat pump controller SOL3 can be connected to a building control system via an optional communication module. A suitable software allows to set up a complete building control system for process visualization and communication.

  • Page 57: Communication Module Kom232Pc

    KT-Elektronik SOL3-3 9.1 Communication module KOM232PC The connector for the optional communication module (Mat-No. 11988) is located on the left side (front panel view) inside the controller housing (RJ45 connector). The operation of the controller in conjunction with the communication module KOM232PC requires the use of appropriate communication tools (software).
  • Page 58 Installation and operating manual KT-Elektronik As long as valid Modbus queries are captured, the controller resets the time monitoring; but after a lapse of 30 minutes all collective level bits are reinitialized to "autonomous". ATTENTION! When installing, the relevant standards and regulations related to lightning protection and over-voltage/voltage surge protection have to be attended to.

  • Page 59: Communication Module Kom232M

    KT-Elektronik SOL3-3 9.3 Communication module KOM232M The connector for the optional communication module KOM232M (Mat-No. 11989) is located on the left side (front panel view) inside the controller housing (RJ45 connector). The communication module KOM232M allows the connection of a dial up modem to the controller.

  • Page 60: Data Modem Datamod11

    Installation and operating manual KT-Elektronik Wiring diagram for communication module KOM232M 9.4 Data Modem DataMod11 The connector for the optional data modem DataMod11 (Mat-No. 11991) is located on the left side (front panel view) inside the controller housing (RJ45 connector). Settings and notes from chapter 9.3 remain valid.

  • Page 61: Modbus-Mbus-Gateway

    KT-Elektronik SOL3-3 9.5 ModBus-MBus-Gateway The connector for the optional ModBus-MBus-Gateway (Mat-No. 11997) is located on the left side (front panel view) inside the controller housing (RJ45 connector). The operation of the controller in conjunction with the ModBus-MBus-Gateway requires a permanent bus connection (data cable).

  • Page 62: Memory Module

    Installation and operating manual KT-Elektronik A dialling pause (approx 3 to 5 minutes) should be kept within two BCS/SMS provider calls in order not to permanently stress the telecommunication network. The modem dialling pause is programmed as period between two dial attempts.

  • Page 63: 55Viewer For Visualization And Remote Maintenance

    KT-Elektronik SOL3-3 9.8 55Viewer for visualization and remote maintenance. The software 55Viewer (Mat-No. 37160) is available to visualize and remote maintain the system. The software allows to display a graphical representation of the complete system installation with all sensor data and all switching states of the pump and valve outlets.

  • Page 64: Data Logging

    Installation and operating manual KT-Elektronik 9.9 Data Logging The data logging module DataMem (Mat-No. 37699) allows saving the following controller data in two minute intervals: Sensor readings Control signals [%] Switching states of the pump outlets Error status register and archive Access to controller settings...

  • Page 65: Mounting

    KT-Elektronik SOL3-3 10 Mounting The device consists of a controller housing containing the electronics assembly and a mounting panel with the terminal strips. It is suited for control panel, wall and DIN rail mounting (Figure 13). Control panel mounting 1.Loose both screws (1).
  • Page 66 Installation and operating manual KT-Elektronik Figure 12 - Mounting EB_37383_SOL3-3_EN002...

  • Page 67: Electrical Connection

    KT-Elektronik SOL3-3 11 Electrical connection ATTENTION! VDE and utility specifications and regulations have to be attended to when wiring and connecting the controller. Therefore, this task has to be performed by qualified personnel only! 11.1 Notes for wire installation 230 V-supply lines and signal lines must be routed in separate cables! To increase...

  • Page 68: Connecting The Sensors

    Installation and operating manual KT-Elektronik 11.3.1 Connecting the sensors Wires with a minimum diameter of 2 by 0.5 mm² may be connected to the terminal strips on the mounting panel. Connecting the actuators 3-point-/2-point duty outputs: moisture proof cables with a minimum diameter of 1.5 mm²...

  • Page 69: Wiring Diagram

    KT-Elektronik SOL3-3 11.3.4 Wiring diagram Note: The diagram shown on the back of the controller housing applies to most of the possible system variants. Certain system variant configuration require a different usage of single relay outputs. The following table shows the assignment of functions to terminals for all system variants.

  • Page 70: Terminal Assignment For Outputs

    Installation and operating manual KT-Elektronik 11.3.5 Terminal assignment for Outputs System variant T. 21 T. 23 T. 24 T. 26 T. 27 T. 29 T. 30 I - I.0.0 I - I. I.0 I - I.2.0 I - I.3.0 I - 2.0.0 I - 2.

  • Page 71: Appendix

    KT-Elektronik SOL3-3 12 Appendix 12.1 Function block lists CO3: Solar circuit Function Function block parameter description/value range (factory default setting) Forced pump CO3 F01 = 1 - Regular forced pump operation active operation see section 5.10 Collector CO3 F02 = 1 - Antifreeze active antifreeze see section 5.11...
  • Page 72 Installation and operating manual KT-Elektronik CO4: Domestic water circuit Function Function block parameter description/value range (factory default setting) Thermal CO4 -> F14 - 1 only with CO4 -> F01 - 1 disinfection Function block parameters: Day of week / 1, 2, …, 7, 1–7 (3)

  • Page 73: Modem Configuration

    KT-Elektronik SOL3-3 Function Function block parameter description/value range (factory default setting) 09 Antifreeze program II CO5 -> F09 - 0: Antifreeze program I (reduced anti- freezing) Function block parameter: Anti-freezing threshold / –15 to 3 °C (3 °C) CO5 -> F09 - 1: Antifreeze program, Function block parameter: Anti-freezing threshold / –15 to 3 °C (3 °C)

  • Page 74: Parameter List

    Installation and operating manual KT-Elektronik 12.2 Parameter list PA3: Solar circuit parameter level Symbol/Icon Parameter name Value range (factory default) Minimum running time for collector pump 0 to 1800 s (60s) Minimum idle time for collector pump 0 to 1800 s (1800s)
  • Page 75 KT-Elektronik SOL3-3 Symbol/Icon Parameter name Value range (factory default) Type of storage tank priority 1 to 5 (3) Charging time for low priority storage tank only for priority type 3 0 to 120 min (150 min) Minimum storage temperature for storage...
  • Page 76 Installation and operating manual KT-Elektronik Symbol/Icon Parameter name Value range (factory default) Minimum collector temperature (turn-off condition) -20 to 50°C (30°C) Minimum collector temperature (turn-on condition) –20 to 50 °C (35 °C) Minimum running time for array before switching 0 to 1800 s (60s)
  • Page 77 KT-Elektronik SOL3-3 PA4: Storage temperature, auxiliary heating Symbol/Icon Parameter name Value range (factory default) Set-point storage tank temperature, day- time OM 5 to 90 °C (45 °C) Set-point storage tank temperature, night- time OM 5 to 90 °C (10 °C)
  • Page 78 Installation and operating manual KT-Elektronik PA5: system wide functions (all system variants) Symbol/Icon Parameter name Value range Holidays 01.01 to 31.12 (chapter 1.7.1) Vacation times 01.01 to 31.12 (chapter 1.7.2) PA6: Modbus parameter Symbol/Icon Parameter name Value range Modbus client address 1 to 247 (255) (with CO6 ->...
  • Page 79 KT-Elektronik SOL3-3 Symbol/Icon Parameter name Value range Modem time out (T) 1 to 255 min (5 min) Number of BCS dial attempts (C) 0 to 255 (15) Phone number of the BCS (TELnr) max 22 digits; 1, 2, 3, …, 9, 0;...

  • Page 80: Resistance Values

    Installation and operating manual KT-Elektronik 12.3 Resistance values Resistance values with Pt 1000-measuring element Outdoor temperature sensor type 5227-2 for flow, return flow and storage temperature Typ2 5277-2 (immersion sleeve required) and 5267-2 (contact sensor). Room temperature sensor type 5257-1, type 5257-5 (room control unit).

  • Page 81: Technical Specifications

    KT-Elektronik SOL3-3 12.4 Technical specifications Inputs 9 Inputs for temperature sensor Pt 1000 or BE 1 binary input for flow volume signal 1 analogue input 0 to 10 V (alternatively analogue output) Outputs 3 isolated/potential-free relay outputs with varistor (snubber),...

  • Page 82: Accessories

    KT-Elektronik 12.5 Accessories Part no. Name Description 37383 SOL3-3 Solar Thermal Controller SOL3-3 11988 KOM232PC Adapter to connect the SOL3 to the RS232 plug (PC) Adapter to connect the modem to the SOL3 11989 KOM232M (analogue / GSM / ISDN)

  • Page 83: Function Block Settings In Configuration Levels

    KT-Elektronik SOL3-3 12.6 Function block settings in configuration levels EB_37383_SOL3-3_EN002...

  • Page 84: Abbreviations

    Installation and operating manual KT-Elektronik 12.7 Abbreviations Outdoor sensor Sys. System Outdoor temperature Binary output Binary input Configuration level Installation and operating manual Function block Heating circuit Building master control system / station Terminal Cold water Parameter level Room sensor Control circuit RüF...

  • Page 85: Access Codes

    KT-Elektronik SOL3-3 12.8 Access codes I732 General parameter setting and configuration (factory setting) I999 Locking / unlocking the extended information level I995 Changing the access code for parameter setting and configuration I99 I Load default factory settings 0025 Changing error display FSR...
  • Page 86 Installation and operating manual KT-Elektronik EB_37383_SOL3-3_EN002...
  • Page 87 KT-Elektronik SOL3-3 EB_37383_SOL3-3_EN002...
  • Page 88 KT-Elektronik GmbH Berlinickestrasse 11 12165 Berlin Telephone: (030) 79 08 05-0 Telefax: (030) 79 08 05-20 e-mail: info@kt-elektronik.de EB_37383_SOL3-3_EN002 Internet: http://www.kt-elektronik.de...
