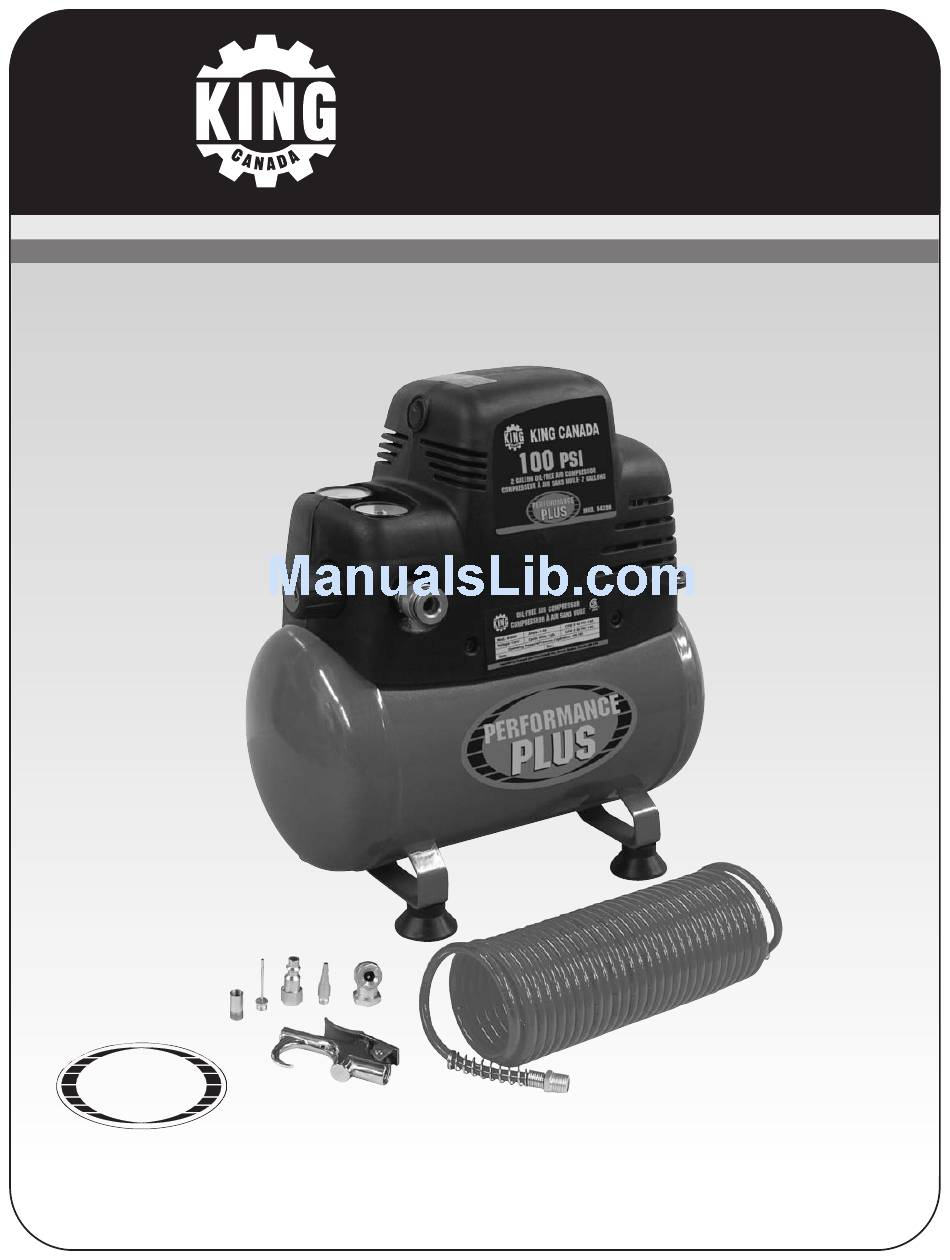

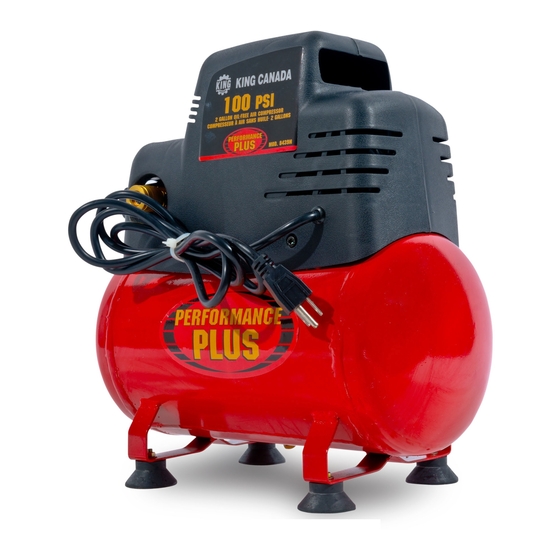

- Page 1 KING CANADA OIL-FREE AIR COMPRESSOR KIT performance performance plus plus MODEL: 8439N INSTRUCTION MANUAL COPYRIGHT © 2010 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of It is normal for electrical contacts within the motor and pressure combustible materials, gasoline or solvent vapors. If spraying switch to spark. - Page 4 SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................8439N Voltage ......................................120V Amperage ......................................3.7A Pump RPM ....................................2,850 Phase ........................................1 Hertz........................................60Hz Maximum operating pressure ..............................100 PSI CFM @ 40 PSI ....................................0.82 CFM @ 90 PSI ....................................0.60 Tank size ....................................2 Gallon WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE COMPRESSOR DISCONNECTED FROM THE POWER SOURCE.
-
Page 5: Operation Controls
OPERATION CONTROLS AIR COMPRESSOR PUMP To compress air, the piston moves up and down in the cylinder. On the downstroke, air is drawn in through the intake valves. The exhaust valves remain closed. On the upstroke of the piston, air is compressed. The intake valves close and compressed air is forced out through the exhaust valves. - Page 6 SET-UP, OPERATION & STORING SETTING UP YOUR AIR COMPRESSOR Operate the air compressor in a dry, clean, cool, well ventilated area. Clean or blow off dust or dirt that collects on the air compressor. A clean air compressor runs cooler and provides longer service. The ventilation openings on your air compressor are necessary to maintain proper operating temperature.
-
Page 7: Maintenance And Troubleshooting
MAINTENANCE & TROUBLESHOOTING MAINTENANCE Before doing any maintenance or adjustments to your air compressor, the following safety precautions should be taken: - Disconnect electrical power. - Release air tank pressure. Daily or before each use: 1. Drain condensation from tank. 2.
