Panasonic SA-AKX34PH Service Manual

Cd stereo system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Please refer to the original service manual for:
 CD Mechanism Unit (BRS11C), Order No. PSG1201019AE
 Speaker system SB-AKX34PN-K, Order No. PSG1202004CE

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.2. Before Use (For PH only)-------------------------------- 3
1.3. Before Repair and Adjustment ------------------------- 3
1.4. Protection Circuitry ---------------------------------------- 4
1.5. Caution For Fuse Replacement------------------------ 4
1.6. Safety Parts Information --------------------------------- 5
2 Warning -------------------------------------------------------------- 6
2.2. Precaution of Laser Diode------------------------------- 7
Model No.
Product Color: (K)...Black Type
PAGE
3 Service Navigation --------------------------------------------- 11
3.1. Service Information -------------------------------------- 11
4 Specifications ---------------------------------------------------- 12
5 General/Introduction------------------------------------------- 13
5.1. Media Information---------------------------------------- 13
6.2. Main Unit Key Button Operation---------------------- 15
7 Installation Instructions -------------------------------------- 16
7.1. Speaker and A/C Connection ------------------------- 16
8 Service Mode ----------------------------------------------------- 17
8.1. Cold-Start -------------------------------------------------- 17
8.2. Doctor Mode Table--------------------------------------- 18
© Panasonic Corporation 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
CD Stereo System
SA-AKX34PH
SA-AKX34PN
PSG1202003CE
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-AKX34PH and is the answer not in the manual?

Questions and answers

Suzzanne Russell
May 1, 2025

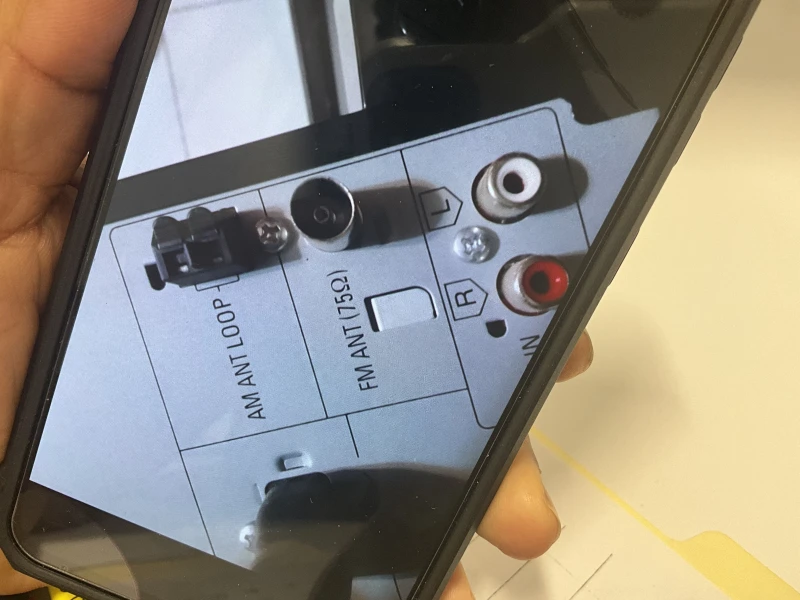

How do I find a replacement fm antenna for the connection at the back for my model SA-AKX34 Panasonic Radio system?

User image 68138ddbd48d2
0
1 comments:
Mr. Anderson
May 16, 2025

You can find a replacement FM antenna for the Panasonic SA-AKX34 radio system by looking for the "FM INDOOR ANTENNA" listed in the packaging contents for the SC-AKX34PH/PN-K models. Search for compatible FM indoor antennas specified for these model numbers when purchasing a replacement.

This answer is automatically generated

0
Elmer
June 24, 2025

Cómo buscar emisora FM de forma manual

0

Related Manuals for Panasonic SA-AKX34PH

Summary of Contents for Panasonic SA-AKX34PH

  • Page 1: Table Of Contents

    2.3. Service caution based on Legal restrictions -------- 8 8.1. Cold-Start -------------------------------------------------- 17 2.4. Handling Precautions for Traverse Unit-------------- 9 8.2. Doctor Mode Table--------------------------------------- 18 © Panasonic Corporation 2012. All rights reserved. Unauthorized copying and distribution is a violation of law.
  • Page 2 8.3. Reliability Test Mode (CD Mechanism Unit 16.4. Main(D-Amp) Circuit ------------------------------------ 85 (BRS11C)) ------------------------------------------------- 21 16.5. Panel Circuit ---------------------------------------------- 87 8.4. Self-Diagnostic Mode ----------------------------------- 22 16.6. Remote Sensor, USB, Music Port and 8.5. Self-Diagnostic Error Code Table -------------------- 22 Memory LED Circuit------------------------------------- 89 8.6.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Protection Circuitry

    1.4. Protection Circuitry The protection circuitry may have operated if either of the following conditions are noticed: • No sound is heard when the power is turned on. • Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.

  • Page 5: Safety Parts Information

    1.6. Safety Parts Information Safety Parts List: There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.

  • Page 6: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 7: Precaution Of Laser Diode

    2.2. Precaution of Laser Diode Caution: This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens. Wavelength: 790 nm (CD) Maximum output radiation power from pickup: 100 W/VDE Laser radiation from the pickup unit is safety level, but be sure the followings: 1.

  • Page 8: Service Caution Based On Legal Restrictions

    2.3. Service caution based on Legal restrictions 2.3.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb).

  • Page 9: Handling Precautions For Traverse Unit

    2.4. Handling Precautions for Traverse Unit The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit. Cautions to Be Taken in Handling the Optical Pickup Unit 2.4.1.

  • Page 10: Grounding For Electrostatic Breakdown Prevention

    Grounding for electrostatic breakdown prevention 2.4.2. Some devices such as the DVD player use the optical pickup (laser diode) and the optical pickup will be damaged by static electric- ity in the working environment. Proceed servicing works under the working environment where grounding works is completed. 2.4.2.1.

  • Page 11: Service Navigation

    3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service manual.

  • Page 12: Specifications

    AM 15 stations analyzer. Frequency modulation (FM) Frequency range 87.50 to 108.00 MHz  System: SC-AKX34PH-K (50 kHz step) Main Unit: SA-AKX34PH-K 75  (unbalanced) Antenna terminals Front Speakers: SB-AKX34PN-K  System: SC-AKX34PN-K Amplitude modulation (AM) Main Unit: SA-AKX34PN-K Frequency range...

  • Page 13: General/Introduction

    5 General/Introduction 5.1. Media Information...

  • Page 14: Location Of Controls And Components

    6 Location of Controls and Components 6.1. Remote Control Key Button Operation...

  • Page 15: Main Unit Key Button Operation

    6.2. Main Unit Key Button Operation...

  • Page 16: Installation Instructions

    7 Installation Instructions 7.1. Speaker and A/C Connection...

  • Page 17: Service Mode

    8 Service Mode 8.1. Cold-Start Here is the procedure to carry out cold-start or initialize to shipping mode. 1. Unplug AC power cord 2. Press & hold [POWER] button 3. Plug AC power cord while [POWER] button being pressed FL Display will show “_ _ _ _ _ _ _ _” 4.

  • Page 18: Doctor Mode Table

    8.2. Doctor Mode Table 8.2.1. Doctor Mode Table 1 Item Key Operation FL Display Mode Name Description Front Key Doctor Mode To enter into Doctor Mode In CD Mode: 1. Press [ ] button on main unit follow by [4] and [7] on remote control.
  • Page 19 8.2.2. Doctor Mode Table 2 Item Key Operation FL Display Mode Name Description Front Key Volume Setting To check the volume setting of a main In Doctor Mode : Check unit. 1. Press [7], [8], [9] button on remote control. Press [7]: VOL50 Vo lume Press [8]: VOL35...
  • Page 20 8.2.3. Doctor Mode Table 3 Item Key Operation FL Display Mode Name Description Front Key i. Function: To display result of In Doctor Mode: Self- Adjustment self-adjustment for CD . 1. Press [10] [1] [4] button on remote control . (AJST) This is used for servicing Result Display...

  • Page 21: Reliability Test Mode (Cd Mechanism Unit (Brs11C))

    8.3. Reliability Test Mode (CD Mechanism Unit (BRS11C)) Below is the process flow chart of the aging test for the CD Mechanism Unit (BRS11C). OPEN First Track Operation Access OPEN wait First Track for 1 s Play 5 s CLOSE Count up Last Track Operation...

  • Page 22: Self-Diagnostic Mode

    8.4. Self-Diagnostic Mode Item Key Operation FL Display Mode Name Description Front Key Self Diagnostic To enter into self diagnostic checking Step 1: Select CD mode Mode (Ensure no disc is inserted). Step 2: Press & hold [ ] follow by ] on main unit for 2 seconds.

  • Page 23: Sales Demonstration Lock Function

    8.5.2. CD Mechanism Error Code Table (CD Mechanism Unit (BRS1C)) Error Code Diagnostic Contents Description of error Automatic FL Display Remarks CD H15 CD Open Abnormal During operation Press [ ] on main unit for POS_SW_R On fail to be next error.

  • Page 24: Troubleshooting Guide

    9 Troubleshooting Guide 9.1. Part Location 9.1.1. SMPS P.C.B. Fig. 1 SMPS P.C.B.
  • Page 25 9.1.2. Main P.C.B. (Front side) Fig. 2 Main P.C.B.
  • Page 26 9.1.3. Main P.C.B. (Back Side) Fig. 3 Main P.C.B.

  • Page 27: Troubleshooting Guide For F61 And/Or F76

    9.2. Troubleshooting Guide for F61 and/or F76 This section illustrates the checking procedures when upon detecting the error of “F61” and/or “F76” after power up of the unit. It is for purpose of troubleshooting and checking in SMPS & Main P.C.B. Symptom Checking Items Possible Fault(s)

  • Page 28: D-Amp Ic Operation & Control

    9.3. D-Amp IC Operation & Control...
  • Page 29 1170 ~ 1250 1260 ~ 1450 1460 ~ 1540 1550 ~ 1710 Table 4: F_HOP Control during 10 kHz Step Note: During activating, the 3 control pins namely MUTE_F, MUTE_A and MODE_DA must be used to cover the “Pop” sound cause by F-HOP switching.

  • Page 30: Service Fixture & Tools

    10 Service Fixture & Tools Prepare service tools before process service position. Ref. No Service Tools Remarks SFT1 Main P.C.B. (CN2007) - SMPS P.C.B. (CN5802) REX1527(15P Cable Wire)

  • Page 31: Disassembly And Assembly Instructions

    11 Disassembly and Assembly Instructions • Illustration is based on SA-AKX34PH-K. Caution Note: • This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo- nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service manual) •...

  • Page 32: Disassembly Flow Chart

    11.1. Disassembly Flow Chart 11.3 . Top Cabinet 11.21. CD Mechanism Unit 11.4 . Front panel Unit 11.11. Main P. C.B. (BRS11C ) 11.12. Voltage Regulator 11.22. CD Interface P.C.B. 11.5 . Panel P. C.B. IC (IC2010) 11.23. CD Servo P. C.B. 11.13.

  • Page 33: Main Components And P.c.b. Locations

    11.2. Main Components and P.C.B. Locations...

  • Page 34: Disassembly Of Top Cabinet

    11.3. Disassembly of Top Cabinet Step 4 Slightly lift up both side of the Top Cabinet in an outward direction as shown. Step 1 Remove 2 screws on each side. Step 5 Remove the Top Cabinet. Step 2 Remove 5 screws. Step 3 Slightly pull both side of the Top Cabinet outwards as arrow shown.

  • Page 35: Disassembly Of Front Panel Unit

    11.4. Disassembly of Front Panel Step 4 Push inwards slightly at the Bottom Chassis as arrow shown and release tab at left side of Front Panel Unit. Unit • Refer to “Disassembly of Top Cabinet”. Step 1 Detach 27P FFC at the connector (CN2003) on the Main P.C.B.

  • Page 36: Disassembly Of Panel P.c.b

    Step 6 Push inwards slightly at the Bottom Chassis and release 11.5. Disassembly of Panel P.C.B. tab at right side of Front Panel Unit. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Front Panel Unit”. Step 1 Remove the Volume Knob. Step 2 Remove the Skip Knob.
  • Page 37 Step 5 Release catches by following the sequences (1-11). Step 7 Desolder 4P Cable Wire at the connector (ZJ6002) on Panel P.C.B.. Step 6 Lift up to remove the Panel P.C.B.. Caution: During assembling, ensure that Panel P.C.B. is seated properly through the guides & fully catched.

  • Page 38: Disassembly Of Memory Led P.c.b

    11.6. Disassembly of Memory LED 11.7. Disassembly of Remote Sensor P.C.B. P.C.B. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Front Panel Unit”. • Refer to “Disassembly of Front Panel Unit”. •...

  • Page 39: Disassembly Of Usb P.c.b

    11.8. Disassembly of USB P.C.B. 11.9. Disassembly of Music Port • Refer to “Disassembly of Top Cabinet”. P.C.B. • Refer to “Disassembly of Front Panel Unit”. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Panel P.C.B.”. •...

  • Page 40: Disassembly Of Cd Lid

    11.10. Disassembly of CD Lid 11.11. Disassembly of Main P.C.B. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Front Panel Unit”. • Refer to “Disassembly of Front Panel Unit”. Step 1 Remove the spring as arrow shown in order of Step 1 Detach 15P Cable Wire at the connector (CN5802) on sequence (1) to (3).
  • Page 41 Step 3 Remove 2 screws. Step 5 Detach 2P Wire at the connector (CN2005) on the Main Step 4 Slightly lift up the Main P.C.B. from Bottom Chassis slot P.C.B.. according to arrow shown. Step 6 Detach 30P FFC at the connector (CN2009) on Main P.C.B..

  • Page 42: Replacement Of Voltage Regulator Ic (Ic2010)

    11.12. Replacement of Voltage Regu- 11.12.2. Assembly of Voltage Regulator IC (IC2010) lator IC (IC2010) Step 1 Fix the Voltage Regulator IC(IC2010) on Main P.C.B.. • Refer to “Disassembly of Main P.C.B.”. Caution: Ensure pins of the Voltage Regulator IC (IC2010) are properly seated on Main P.C.B..

  • Page 43: Replacement Of Voltage Regulator Ic (Ic2011)

    11.13. Replacement of Voltage Regu- 11.13.2. Assembly of Voltage Regulator IC (IC2011) lator IC (IC2011) Step 1 Fix the Voltage Regulator IC(IC2011) on the Main • Refer to “Disassembly of Main P.C.B.”. P.C.B.. Caution: Ensure pins of the Voltage Regulator IC (IC2011) are properly seated on the Main P.C.B..

  • Page 44: Replacement Of Audio Digital Amp Ic (Ic5800)

    11.14. Replacement of Audio Digital Step 3 Remove the Heatsink Clip. Step 4 Remove the Audio Digital Amp IC (IC5800). Amp IC (IC5800) • Refer to “Disassembly of Main P.C.B.”. 11.14.1. Disassembly of Audio Digital Amp IC (IC5800) Step 1 Desolder pins of the Audio Digital Amp IC (IC5800) on the solder side of the Main P.C.B..

  • Page 45: Disassembly Of Smps P.c.b

    Step 4 Solder pins of the Audio Digital Amp IC (IC5800) on the Step 2 Remove 3 screws. solder side of the Main P.C.B.. Step 3 Detach 15P Cable Wire at the connector (CN5802) on SMPS P.C.B.. Step 4 Flip the SMPS P.C.B. and position it according to dia- gram shown.

  • Page 46: Replacement Of Switching Regulator Ic (Ic5701)

    11.16. Replacement of Switching Reg- 11.16.2. Assembly of Switching Regulator IC (IC5701) ulator IC (IC5701) Step 1 Apply grease to the Heatsink A. • Refer to “Disassembly of SMPS P.C.B.”. Step 2 Fix the Switching Regulator IC (IC5701) to the SMPS 11.16.1.

  • Page 47: Replacement Of Rectifier Diode (D5702)

    11.17. Replacement of Rectifier Diode Step 3 Remove 1 screw at Switching Regulator IC (IC5701). Step 4 Remove the Heatsink A with Rectifier Diode (D5702). (D5702) Step 5 Remove 1 screw. • Refer to “Disassembly of SMPS P.C.B.”. Step 6 Remove the Rectifier Diode (D5702) from the Heatsink 11.17.1.

  • Page 48: Replacement Of Rectifier Diode (D5801)

    Step 5 Solder pins of the Rectifier Diode (D5702) on the solder 11.18. Replacement of Rectifier Diode side of SMPS P.C.B.. (D5801) Step 6 Solder pins of the Heatsink A on the solder side of SMPS P.C.B.. • Refer to “Disassembly of SMPS P.C.B.”. Caution: Ensure pins of the Rectifier Diode (D5702) are 11.18.1.
  • Page 49 Step 3 Remove 1 screw at Rectifier Diode (D5801). Step 4 Solder pins of the Rectifier Diode (D5801) on the solder Step 4 Remove the Rectifier Diode (D5801) from the SMPS side of SMPS P.C.B.. P.C.B.. Step 5 Solder pins of the Heatsink B.. Caution: Avoid touching the Heatsink B due to its high temperature after prolonged use.

  • Page 50: Replacement Of Rectifier Diode (D5802)

    11.19. Replacement of Rectifier Diode Step 3 Remove 1 screw at Rectifier Diode (D5802). Step 4 Remove the Rectifier Diode (D5802) from SMPS P.C.B.. (D5802) Caution: Avoid touching the Heatsink B due to its high temperature after prolong use. Touching it may lead to •...

  • Page 51: Replacement Of Regulator Diode (D5803)

    Step 4 Solder pins of the Rectifier Diode (D5802) on the solder 11.20. Replacement of Regulator side of the SMPS P.C.B.. Diode (D5803) Step 5 Solder pins of the Heatsink B.. • Refer to “Disassembly of SMPS P.C.B.”. 11.20.1. Disassembly of Rectifier Diode (D5803) Step 1 Desolder pins of the Rectifier Diode (D5803) on the sol- der side of the SMPS P.C.B.
  • Page 52 Step 3 Remove 1 screw at Rectifier Diode (D5803). Step 4 Solder pins of the Rectifier Diode (D5803) on the solder Step 4 Remove the Rectifier Diode (D5803) from SMPS P.C.B.. side of the SMPS P.C.B. Caution: Avoid touching the Heatsink B due to its high Step 5 Solder pins of the Heatsink B..

  • Page 53: Disassembly Of Cd Mechanism Unit (Brs11C)

    11.21. Disassembly of CD Mecha- Step 3 Remove 3 screws. nism Unit (BRS11C) • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Front Panel Unit”. Step 1 Detach 15P Cable Wire at the connector (CN5802) on the SMPS P.C.B.. Step 4 Detach the Voltage Selector P.C.B.
  • Page 54 Step 5 Lift up and remove the SMPS Inner Chassis Unit. Step 6 Remove 2 screws. Step 7 Slightly lift up the CD Mechanism Unit (BRS11C) as shown. Caution: Do not exert too much force as it may damage the wiring within.

  • Page 55: Disassembly Of Cd Interface P.c.b

    11.22. Disassembly of CD Interface 11.23. Disassembly Servo P.C.B. P.C.B. • Refer “Disassembly Mechanism Unit • Refer “Disassembly Mechanism Unit (BRS11C)”. (BRS11C)”. Step 1 Remove 3 screws. Step 1 Remove 2 screws. Step 2 Desolder pins of the motor (M7301). Step 2 Detach 30P FFC at the connector (FP8101).

  • Page 56: Disassembly Of Rear Panel

    11.24. Disassembly of Rear Panel Step 3 Lift up the SMPS Inner Chassis Unit to release the catch between the SMPS Inner Chassis Unit & the Rear Panel. • Refer to “Disassembly of Top Cabinet”. Step 1 Remove 8 screws. Step 4 Release 2 tabs.

  • Page 57: Disassembly Of Voltage Selector P.c.b

    11.25. Disassembly of Voltage Selec- Step 3 Place the Voltage Selector P.C.B. on Insulated Material. Step 4 Desolder Black Wire (TL5) and Red Wire (TL6). tor P.C.B. Step 5 Remove the Voltage Selector P.C.B.. • Refer to “Disassembly of Top Cabinet”. Step 1 Remove 1 screw.

  • Page 58: Service Position

    12 Service Position Note: For description of the disassembly procedures, see 12.2. Checking and Repairing of the Section 11. Panel P.C.B. 12.1. Checking and Repairing of Step 1 Remove Top Cabinet. Main P.C.B. Step 2 Remove Front Panel Unit. Step 3 Attach 5P Cable Wire to the connector (CN2700) on Step 1 Remove Top Cabinet.

  • Page 59: Checking And Repairing Of Smps P.c.b

    12.3. Checking and Repairing of Step 8 Extend the Cable Wire with extension Cable Wire (REX1572 15P Cable Wire) from CN2007 on Main P.C.B. to SMPS P.C.B. CN5802 on SMPS P.C.B.. Step 1 Remove Top Cabinet. Step 9 SMPS P.C.B. can be checked and repaired as diagram Step 2 Remove Front Panel Unit.

  • Page 60: Checking And Repairing Of Cd Servo P.c.b. (Side A)

    12.4. Checking and Repairing of CD Servo P.C.B. (Side A) Step 1 Remove Top Cabinet. Step 2 Remove Front Panel Unit. Step 3 Remove SMPS Inner Chassis Unit. Step 4 Remove CD Mechanism Unit (BRS11C). Step 5 Remove Main P.C.B.. Step 6 Remove Rear Panel.

  • Page 61: Checking And Repairing Of Cd Servo P.c.b. (Side B)

    12.5. Checking and Repairing of CD Servo P.C.B. (Side B) • Refer to “Checking and repairing of CD Servo P.C.B. (Side A)”. Step 1 Remove 2 screws. Step 2 Flip the Servo P.C.B. as illustration show.
  • Page 62 Step 3 Place the CD Servo P.C.B. on the insulated material. Step 4 CD Servo P.C.B. Side B can be checked and repaired as diagram shown.

  • Page 63: Simplified Block Diagram

    13 Simplified Block Diagram 13.1. Power Block Diagram...

  • Page 64: Block Diagram

    CD OPEN SW CN7001 CLOSE SW CLOSE SW CN7002 FP8251 CLOSE SW CD CLOSE SW FP8101 CN2009 CD CLOSE SW CLOSE SW CD INTERFACE P.C.B. NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN SERVO & SYSTEM CONTROL (1/2) BLOCK DIAGRAM...
  • Page 65 S6008 S6014 S6003 S6006 S6005 S6000 S6004 LATIN S6001 ALBUM/TRACK MEMORY RADIO/EXT-IN PLAY/PAUSE PRESET EQ STOP CN2003 CN6000 KEY1 KEY1 KEY 1 99 NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN SERVO & SYSTEM CONTROL (2/2) BLOCK DIAGRAM...

  • Page 66: Ic Terminal Chart

    DQ2 / DQ13 5 / 50 DQ3 / DQ12 7 / 48 DQ4 / DQ11 8 / 47 DQ5 / DQ10 10 / 45 DQ6 / DQ9 11 / 44 13 / 42 DQ7 / DQ8 SA-AKX34PH/PN IC TERMINAL CHART...

  • Page 67: Audio

    RECOUTA 6 BASS SHIFT SWITCH BASS SHIFT RECOUTB 34 MONOUTA MONOUTB LCH IN LCH IN RCH IN RCH IN Q2038,Q2039 AUTO BASS AUTO BASS AUTO BASS CIRCUIT NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN AUDIO BLOCK DIAGRAM...

  • Page 68: Power Supply

    ECO CTL ECO CTL ECO CTL FROM/TO CN5802 TEMP DET CN2007 TEMP DET TEMP DET SERVO & SYSTEM CONTROL TEMP DET TH5861 PRIMARY SECONDARY FOR PN NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN POWER SUPPLY (1/2) BLOCK DIAGRAM...
  • Page 69 CN2003 CN6000 ZJ6003* ZJ6500* 3.3V IC2008 C0DBZYY00311 HIGH USB P.C.B. SIDE SWITCH PW +5V VBUS VBUS CN2700 ZJ6300* VBUS VBUS 1 VIN VOUT 5 VBUS 4 OC FROM/TO SERVO & SYSTEM CONTROL 3 EN SA-AKX34PH/PN POWER SUPPLY (2/2) BLOCK DIAGRAM...

  • Page 70: Wiring Connection Diagram

    TO FAN UNIT TRACK TO SPEAKERS AUX IN FM ANT AM ANT REMOTE SENSOR P.C.B. (SOLDER SIDE) CN6006 CN6200 IR6200 SENSOR MEMORY LED P.C.B. (SOLDER SIDE) ZJ6800* NOTE: " * " REF IS FOR INDICATION ONLY. SA-AKX34PH/PN WIRING CONNECTION DIAGRAM...

  • Page 71: Schematic Diagram

    16 Schematic Diagram • For PH only 16.1. Schematic Diagram Notes • This schematic diagram may be modified at any time with the development of new technology. Notes: S5701: Voltage ADJ switch (For PH only). S6000: Radio/EXT-IN switch. S6001: Stop ( ) switch.

  • Page 73: Cd Servo Circuit

    DAT0_SD CLK_SD R8502 DAT3_SD R8503 C8512 VCCQ [129] NC 130 131 132 133 136137 140 141 144145 148 149 152 153 156157 159 160 162 163 164 165 PW_3R3V_DIG LB8501 J0JHC0000045 TO CD SERVO CIRCUIT (3/4) SA-AKX34PH/PN CD SERVO CIRCUIT...
  • Page 74 USB_IN MD/LPD BLKCK R8038 CD_BLKCK Q8201 R8037 K8201 CD_MLD B1ADCF000001 MCLK R8036 CD_MCLK DVD-LD LASER DRIVE AMUTE AMUTE GND-LD R8212 C8259 C8202 PW_3R3V_CD DGND D8250 C8260 B0BC5R600003 0.01 C8201 LB8202 J0JHC0000045 TO CD SERVO CIRCUIT (4/4) SA-AKX34PH/PN CD SERVO CIRCUIT...
  • Page 75 PW_3R3V_DAC MDATA LB8201 STAT J0JHC0000045 CKA100 PW_3R3V_DIG R8210 CKA99 CKA98 R8211 R8010 2.7K 100K C8013 C8018 R8011 R8002 6.3V100 0.33 100K NRST SERVO_GND DAGND C8068 3300P R8005 R8006 LCH_OUT C8026 C8025 RCH_OUT X8101 H0J338300002 C8015 C8016 SA-AKX34PH/PN CD SERVO CIRCUIT...
  • Page 76 5.6K 1800P R8255 3.3K TRVP CL8021 CL8022 R8258 R8260 R8261 K8001 K8006 R8259 4.7K R8264 CL8016 CL8011 1.2K PW_3R3V_CD R8263 C8256 C8261 1000P PGND C8262 C8252 C8251 6.3V100 0.01 16V47 LB8252 J0JHC0000045 PW_+5V LB8251 J0JHC0000045 PW_M+9V SA-AKX34PH/PN CD SERVO CIRCUIT...

  • Page 77: Main(Micon) Circuit

    R2054 R2374 Q2042 R2377 B1ABCF000176 SYS3.3V SWITCH TO MAIN(MICON) CIRCUIT (2/8) R2246 BASS_SHIFT C2066 50V1 R2420 RCH_IN MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 TO MAIN(MICON) CIRCUIT (5/8) SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 78 MPORT_R MIC_GND TO MAIN(MICON) CIRCUIT (1/8) PW_+18V Q2027 DC 18V FL_GND B1ADCE000012 FL-GND DC DETECT R2345 3.3K TO MAIN(MICON) MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 CIRCUIT (6/8) DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 79 C2226 0.01 6.3V820 C2202 PW_-35V PW_+35V ZJ2000 OUTPUT_GND TO MAIN(MICON) MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 CIRCUIT (7/8) DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT NOTE: “ * ” REF IS FOR INDICATION ONLY...
  • Page 80 3.9K C2150 D2008 50V3.3 DA2J10100L R2178 R2173 R2177 R2174 R2018 3.3K X2001 QR2006 H2B800400007 B1GBCFJJ0051 SWITCH R2019 TO MAIN(MICON) MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 CIRCUIT (8/8) DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 81 R2006 R2002 USB_IN 8.2K CD_BLKCK AUX_R [RCH] LB2003 CD_BLKCK LB2004 CD_MLD C2000 CD_MLD 0.01 CD_MCLK LB2005 CD_MCLK AMUTE AMUTE USB_DGND DGND MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 82 TO MAIN(MICON) CIRCUIT (5/8) G2A380Y00002 R2414...AKX34 JK52 AM ANT AM ANT R2415...PN 4.7K AM ANT 4.7K 0.47 TU_SDA R2416...PH TU_SCLK TU_RST AGND MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 83 FAN_OUT C2196 Q2025 A+IN B-IN B1ABCF000231 6.3V100 B1ABCF000231 FAN DRIVE FAN DRIVE B+IN D2032 R2395 R2390 R2394 C2040 R2392 DA2J10100L 100K MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...
  • Page 84 PW_CD+3.3V CLIP SENSING DC DETECT 5600P PW_+5V Q2018 B1GBCFJJ0051 DC DETECT DC_DET_PWR UP_DGND C2173 R2247 6.3V470 R2250 PW_+9V R2251 R2248 VP_DET MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(MICON) CIRCUIT...

  • Page 85: Main(D-Amp) Circuit

    B1GDCFJJ0047 B1ABGC000005 SWITCH R5628 1.5K R5623 120K R5624 QR5601 B1GBCFJJ0051 FREQUENCY HOPPING MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(D-AMP) CIRCUIT NOTE: “ * ” REF IS FOR INDICATION ONLY...
  • Page 86 1000P LEFT_CH OUTP_GND AGND C5833 C5831 R5812 0.47 5.6K R5810 TO MAIN(D-AMP) CIRCUIT (1/2) R5630 C5703 50V220 C5704 50V220 R5631 R5632 MI: MAIN(MICON): SCHEMATIC DIAGRAM - 5 ~ 12 DA: MAIN(D-AMP): SCHEMATIC DIAGRAM - 13 ~ 14 SA-AKX34PH/PN MAIN(D-AMP) CIRCUIT...

  • Page 87: Panel Circuit

    CIRCUIT (CN6200) C6025 C6026 C6027 C6030 POWER SAVE CONTROL IN SCHEMATIC 100P 100P 100P 100P DIAGRAM - 17 R6038 C6023 6.8K 50V47 R6040 R6041 R6048 R6050 PW_+18V D6009 B0BC2R4A0006 C6029 FL_GND R6053 16V100 D6006 B0JAME000114 R6047 R6051 SA-AKX34PH/PN PANEL CIRCUIT...
  • Page 88 R6015 R6014 R6056 OPEN/CLOSE 1.2K 1.5K 2.2K 3.3K 4.7K 6.8K S6012 S6013 S6002 S6007 S6016 S6010 S6009 MEMORY POWER D.BASS MANUAL EQ REWIND FORWARD REC/PAUSE REC/PAUSE KEY2 KEY1 NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN PANEL CIRCUIT...

  • Page 89: Memory Led Circuit

    C6402 C6404 C6406 C6408 C6409 C6412 330P 330P 0.01 0.01 C6400 390P ZJ6400* TO SMPS CHASSIS_GND CHASSIS GND CHASSIS_GND NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN REMOTE SENSOR / USB / MUSIC PORT / MEMORY LED CIRCUIT...

  • Page 90: Cd Interface And Voltage Selector Circuit

    TRV- TRV+ M7301* TRAVERSE MOTOR VOLTAGE SELECTOR CIRCUIT (BLK) TL5* SMPS CIRCUIT S5701 IN SCHEMATIC VOLT ADJ DIAGRAM - 20 TL6* (RED) FOR PH NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN CD INTERFACE / VOLTAGE SELECTOR CIRCUIT...

  • Page 91: Smps Circuit

    D5723 SWITCH 3.3K B0ACCK000012 R5868 R5867 C5871 C5872 R5865 100K 0.01 6.3V2200 PC5701 C5727...PN C5737...PH R5726 D5725 B3PBA0000503 820P 3300P FEEDBACK B0BC6R100010 PW_SYS3.3V R5727 R5817 R5810 QR5811 QR5810 ECO_CTL B1GBCFJJ0051 B1GBCFLL0037 FOR PN SWITCH PCONT PCONT SWITCH SA-AKX34PH/PN SMPS CIRCUIT...
  • Page 92 C5899 200K 400V220...PH 10V220 IC5899 R5895 200V560...PN C0DAEYY00040 C5794 R5795 C5790 1000P 470K C5898 SHUNT REGULATOR 2200P D5793 B0HAMP000094 R5797 FOR PH R5891 C5708 C5795 C5796 F1BAF1020020 1000P NOTE: “ * ” REF IS FOR INDICATION ONLY SA-AKX34PH/PN SMPS CIRCUIT...

  • Page 93: Printed Circuit Board

    C8019 1615 R8043 C8018 C8259 R8044 FP9003 IC8301 X8101 R8045 C8025 C8026 R8212 D8250 (FOR DEBUG) C8260 C8001 Q8201 C8002 C8402 C8003 R8035 C8064 L8302 C8072 C8061 C8071 C8074 FP8101 K8205 C9006 3532A 3532A 3532A 3532A SA-AKX34PH/PN CD SERVO P.C.B.

  • Page 94: Main P.c.b. (Side A)

    C2248 R2372 R2152 R5621 C2246 C2072 C2070 R2364 R2359 R2361 C5825 R5806 C2245 Q2040 R2012 C5828 R5807 R5614 R2279 R2162 Q5600 R5611 Q5603 C2049 Q5602 R2399 R2002 R5612 Q5601 C5834 R5613 R5617 C5836 R2001 Q5604 (SIDE A) SA-AKX34PH/PN MAIN P.C.B.

  • Page 95: Main P.c.b. (Side B)

    C2016 JK51 (TO FAN UNIT) 3-RCH C2023 C2255 JK52 3-R- 1-L- 4-GND VA51 1-GND 3542A-1 3542A-1 4-R+ 2-L+ AUX IN FM ANT AM ANT TO SPEAKERS (SIDE B) NOTE: " * " REF IS FOR INDICATION ONLY. SA-AKX34PH/PN MAIN P.C.B.

  • Page 96: Panel, Remote Sensor, Usb And Music Port P.c.b

    (ALBUM/TRACK) (POWER) MUSIC PORT IC6000 VR6001 C6412 C6409 ZJ6400* (TO SMPS CHASSIS GND) ZJ6401* CN6006 FL6000 3543AA-1 3543AA-1 ALBUM/ TRACK NOTE: " * " REF IS FOR INDICATION ONLY. SA-AKX34PH/PN PANEL / REMOTE SENSOR / USB / MUSIC PORT P.C.B.

  • Page 97: Memory Led And Cd Interface P.c.b

    D6800 CD INTERFACE P.C.B. (REP4755A) M7302* (SPINDLE MOTOR) S7201 (RESET) CN7002 CN7001 M7301* TO LOADING P.C.B. (TRAVERSE (CD MECHANISM MOTOR) UNIT BRS11C) 3556A 3556A NOTE: " * " REF IS FOR INDICATION ONLY. SA-AKX34PH/PN MEMORY LED / CD INTERFACE P.C.B.

  • Page 98: Smps And Voltage Selector (Ph)

    R5894 R5800 (MAIN TRANSFORMER) W5603 W5521 D5804 D5896 W5522 W5523 CN5802 R5893 R5890 15 14 13 12 11 10 Q5898 C5812 W5512 R5701 3568CA-1 3568CA-1 NOTE: " * " REF IS FOR INDICATION ONLY. SA-AKX34PH/PN SMPS / VOLTAGE SELECTOR P.C.B.

  • Page 99: Smps P.c.b. (Pn)

    C5810 R5891 Q5862 C5831 C5832 PC5799 PC5702 QR5811 T5751 W5511 R5894 R5800 (MAIN TRANSFORMER) W5603 W5521 D5804 D5896 R5898 W5522 W5523 CN5802 R5893 R5890 15 14 13 12 11 10 Q5898 C5812 C5900 W5512 R5701 3568AA-1 3568AA-1 SA-AKX34PH/PN SMPS P.C.B.

  • Page 101: Appendix Information Of Schematic Diagram

    REF NO. IC8001 MODE CD PLAY IC8001 REF NO. MODE CD PLAY IC8051 REF NO. MODE CD PLAY IC8051 REF NO. MODE CD PLAY IC8051 REF NO. MODE CD PLAY IC8251 REF NO. MODE CD PLAY SA-AKX34PH/PN CD SERVO P.C.B.
  • Page 102 MODE CD PLAY IC8501 REF NO. MODE CD PLAY REF NO. IC8501 MODE CD PLAY REF NO. IC8501 MODE CD PLAY SA-AKX34PH/PN CD SERVO P.C.B. CD Servo P.C.B. (3/3) 18.1.3. Q8201 REF NO. MODE CD PLAY SA-AKX34PH/PN CD SERVO P.C.B.
  • Page 103 IC2003 REF NO. MODE POWER ON STANDBY IC2003 REF NO. MODE POWER ON STANDBY IC2003 REF NO. MODE POWER ON STANDBY IC2003 REF NO. MODE POWER ON STANDBY REF NO. IC2005 MODE CD PLAY 17.8 STANDBY 17.8 SA-AKX34PH/PN MAIN P.C.B.
  • Page 104 34.6 -34.0 -34.0 34.0 REF NO. IC5800 MODE CD PLAY STANDBY Q2001 Q2011 Q2023 Q2035 Q2037 REF NO. MODE CD PLAY 18.2 18.1 34.1 STANDBY 18.2 18.1 34.1 REF NO. Q2038 Q2039 Q2040 Q2041 Q2042 MODE CD PLAY STANDBY SA-AKX34PH/PN MAIN P.C.B.
  • Page 105 REF NO. MODE POWER ON STANDBY REF NO. Q2019 QR2004 MODE STANDBY SA-AKX34PH/PN MAIN P.C.B. 18.1.7. Panel P.C.B. IC6000 REF NO. MODE POWER ON -16.2 -16.2 -19.9 -21.9 -20.0 -21.9 -19.9 STANDBY -16.2 -16.2 -19.9 -21.9 -20.0 -21.9 -19.9 IC6000 REF NO.
  • Page 106 POWER ON 19.7 19.7 19.0 19.6 35.2 STANDBY 19.7 19.7 19.0 19.6 35.2 Q5862 Q5898 Q5899 QR5801 QR5802 REF NO. MODE POWER ON -30.0 -30.0 STANDBY -30.0 -30.0 QR5810 QR5811 QR5812 REF NO. MODE POWER ON STANDBY SA-AKX34PH/PN SMPS P.C.B.
  • Page 107 18.1.9. Waveform Table 0.1Vp-p(200usec/div) 0.48Vp-p(1usec/div) 2Vp-p(200usec/div) 0.48Vp-p(1usec/div) 1.1Vp-p(50usec/div) 4Vp-p(50nsec/div) 3Vp-p(10usec/div) 0.52Vp-p(1usec/div) 44Vp-p(1usec/div) 2Vp-p(1usec/div) 0.5Vp-p(2usec/div) 2.5Vp-p(200usec/div) 0.4Vp-p(5usec/div) 2Vp-p(200usec/div) 0.4Vp-p(1usec/div)

  • Page 108: Illustration Of Ics, Transistor And Diode

    Illustration of ICs, Transistor and Diode 18.2. C0ABBB000067 (8P) C0FBAK000026(16P) C0HBB0000057 (44P) C0DBEYY00123 (8P) C1BA00000497 (23P) C1AB00003566 (20P) C3ABPG000163 (54P) C3FBXY000039 C3FBMY000303 (8P) (169P) No.1 No.1 No.1 No.1 No.1 C1AB00003256 (52P) C0AABB000125 (8P) C0GBY0000117 C3EBEY000037 (8P) MIP2F20MSSCF (8P) C0DBZYY00311 RFKWMAKX34M0 (100P) MN6627992AB (144P)

  • Page 109: Terminal Function Of Ics

    Terminal Function of ICs 18.3. IC2003 (RFKWMAKX34M0): IC 18.3.1. Terminal Name Function MICRO-PROCESSOR No Connection CLOSE_SW CD Close Switch Detection CD_OPEN_SW CD Open Switch Detection Terminal Name Function CD_RESET_SW CD Reset Detection LOAD_CCW Loading Motor Turning CLIP ATTN Clipping attenuation Counter-Clockwise (Tray ASP_DATA...

  • Page 111: Exploded View And Replacement Parts List

    (MEMORY LED P.C.B.) VR6000 *ZJ6002 *(WASTE P.C.B.) IR6200 CN6200 (REMOTE SENSOR P.C.B.) (MUSIC PORT P.C.B.) JK6401 *ZJ6401 *ZJ6400 18-1 18-3 18-2 18-3 18-5 18-4 SA-AKX34PH/PN-K CABINET DRAWINGS NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY.
  • Page 112 *TL5 (BRS11C) FP8201 FP8101 FP8251 (CD SERVO P.C.B.) FP9003 CN7002 (CD INTERFACE P.C.B.) CN7001 S7201 SA-AKX34PH/PN-K NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY. CABINET DRAWINGS " ^ " PART IS FOR PH ONLY.
  • Page 113 19.1.2. Packaging ACCESSORIES BAG REMOTE CONTROL A1-1 R/C BATTERY COVER AC CORD (FOR PH ONLY) AC CORD (FOR PN ONLY) SA-AKX34PH/PN OI BOOK SB-AKX34PN FM INDOOR ANTENNA AM LOOP ANTENNA AC PLUG ADAPTOR (FOR PH ONLY) F R O N T...
  • Page 115 19.1.3. Mechanical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks RHDX30005-J SCREW Description RFKGAKX34PHK FRONT PANEL ASS'Y CABINET 18-1 RMGX0033A-K CD LID CUSHION CHASSIS 18-2 RGK2307B-K1 CD LID 18-3 RKAX0042-K...
  • Page 116 Safety Ref. Part No. Part Name & Qty Remarks Description REX1521 CABLE WIRE (PANEL-MEMORY LED) REE1671 SERVO-CD INTER- FACE) RMNV0079-1 FL HOLDER RGL0764-Q LIGHT PIECE TRAVERSE DECK RAE1034Z-V TRAVERSE ASS'Y XTN2+6GFJ SCREW PACKING MATERI- RPG9749 PACKING CASE RPG9750 PACKING CASE RPN2350 POLYFOAM RPFX0198...

  • Page 117: Electrical Replacement Part List

    19.2. Electrical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description IC2012 C0ABBB000067 Safety Ref. Part No. Part Name & Qty Remarks IC2014 C0DBEYY00123 Description IC5701 C5HACYY00004 IC5701 C5HACYY00005 PRINTED CIRCUIT IC5799 MIP2F20MSSCF BOARDS IC5800 C1BA00000497 IC5801 C0DAZYY00039 PCB1...
  • Page 118 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description Q5601 B1ABCF000176 TRANSISTOR D5896 B0EAMM000057 DIODE Q5602 B1ABCF000176 TRANSISTOR D6001 B3AAA0001128 DIODE Q5603 B1ABCF000176 TRANSISTOR D6002 B3AAA0001128 DIODE Q5604 B1ABCF000176 TRANSISTOR D6003 B3AAA0001128...
  • Page 119 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description L2004 G1C100KA0101 INDUCTOR REMOTE SENSOR L5600 J0JKB0000020 INDUCTOR L5601 J0JKB0000020 INDUCTOR IR6200 B3RAB0000084 REMOTE SENSOR L5704 J0JBC0000019 INDUCTOR L5706 G0B612H00002 LINE FILTER LCD DISPLAY L5707...
  • Page 120 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description D0GFR00JA017 1/4W R2003 D0GB392JA008 3.9K 1/10W D0GFR00JA017 1/4W R2004 D0GB392JA008 3.9K 1/10W D0GFR00JA017 1/4W R2005 D0GB103JA008 1/10W D0GDR00JA017 1/8W R2006 D0GB103JA008 1/10W D0GFR00JA017...
  • Page 121 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R2127 D0GBR00JA008 1/10W R2345 D0GB332JA008 3.3K 1/10W R2128 D0GBR00JA008 1/10W R2346 D0GB332JA008 3.3K 1/10W R2130 D0GB102JA008 1/10W R2347 D0GB332JA008 3.3K 1/10W R2134 D0GBR00JA008...
  • Page 122 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R5625 D0GB184JA008 180K 1/10W R5865 ERJ3RBD391V 1/16W R5626 ERJ3RBD273V 1/16W R5866 D0GD220JA017 1/8W R5627 ERJ3RBD333V 1/16W R5867 D0GB104JA008 100K 1/10W R5628 D0HB152ZA002 1.5K...
  • Page 123 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R8020 D0GA473JA023 1/16W F1H1A105A025 R8021 D0GA330JA023 1/16W F1G1C104A077 0.1uF R8022 D0GB100JA008 1/10W F1G1C104A077 0.1uF R8025 ERJ2GE0R00X 1/16W F1H0J1050012 6.3V R8026 ERJ2GE0R00X 1/16W C2000...
  • Page 124 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description C2115 F1J1A106A043 10uF C5712 F2B2G2210025 220uF 400V C2116 F1J1A106A043 10uF C5713 F0C2J1030007 0.01uF 630V C2117 F1J1A106A043 10uF C5720 F1H1H104A013 0.1uF C2121 F1H1H470A004 47pF...
  • Page 125 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description C5897 F1H1H103A219 0.01uF C8036 F1G1A1040006 0.1uF C5898 F1H1H104A013 0.1uF C8037 F1G1A1040006 0.1uF C5899 F2A1A221B161 220uF C8038 F1G1A1040006 0.1uF C5900 F1J1A106A043 10uF C8039 F1G1A1040006...
  • Page 126 Safety Ref. Part No. Part Name & Qty Remarks Description C8513 F1H0J4750005 4.7uF 6.3V C8514 F1H0J4750005 4.7uF 6.3V C9006 F1G1A1040006 0.1uF SERVICE FIXTURE & TOOLS SFT1 REX1527 CABLE WIRE (MAIN-SMPS) MMH1202...

This manual is also suitable for:

Sa-akx34pn

Table of Contents
