900
SITdefault

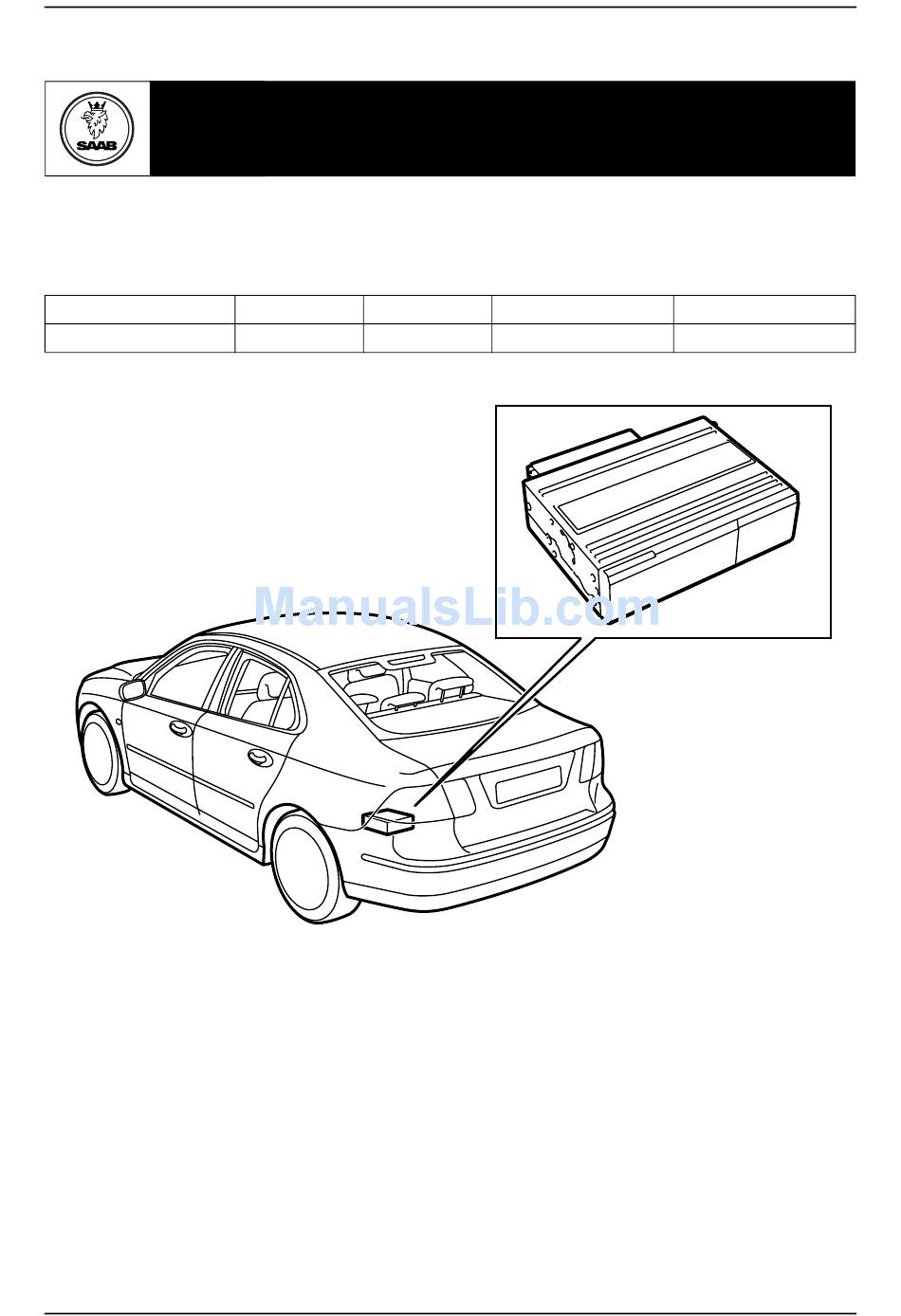

Saab 9-3 M03-
CD changer, luggage compartment
Accessories Part No.
12 787 147
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:36-23
SCdefault
Installation instructions
Date
Instruction Part No.
Nov 02
12 788 445
Saab 9-3 M03-
Replaces
F930A101
Advertisement
Related Manuals for Saab 12 787 147
Summary of Contents for Saab 12 787 147
- Page 1 SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 M03- CD changer, luggage compartment Accessories Part No. Group Date Instruction Part No. Replaces 12 787 147 9:36-23 Nov 02 12 788 445 F930A101 Saab 9-3 M03-...
- Page 2 – Nut – Clip nut – Side trim Fitting For cars with no bracket near the REC, see page 4 For cars with a bracket near the REC containing an amplifier and/or a DVD player, see page 14 Saab 9-3 M03-...
-
Page 3: Bus Communication
· The cable should not lie against any sharp edg- es as this may cause increased signal reduction. Saab 9-3 M03-... - Page 4 3 Raise the loading floor. 4 In the luggage compartment, remove the panel in the left-hand side trim and lower the panel on the right-hand side. 5 Remove the clip for the left-hand side trim and move the trim aside. Saab 9-3 M03-...
- Page 5 9 Remove the two rear retaining bolts from the seat. 10 Tip the seat forwards. 11 Pull the seat backwards so the retaining catches are detached from their position. Lower the entire seat towards the rear. 12 Remove the amplifier. Saab 9-3 M03-...
- Page 6 · The cable should not lie against any sharp edg- es as this may cause increased signal reduction. 14 Unplug the fibre-optic cable connector (the small connector) from the amplifier connector. Saab 9-3 M03-...
- Page 7 19 Fit the small connector to the large connector. 20 Fit the cover onto the cable duct, move the car- pet back into place and run the connector and cables through the hole in the carpet. 21 Connect and fit the amplifier. Saab 9-3 M03-...
- Page 8 · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edg- es as this may cause increased signal reduction. 25 Remove the tape from the loose fibre-optic cable. Saab 9-3 M03-...
- Page 9 Fit the rear retaining bolts. Tightening torque 30 Nm (22 lbf ft) 30 Slide the seat back and return the backrest to its previous position. 31 Fit the A-pillar trim. 32 Fit the scuff plate. Saab 9-3 M03-...
- Page 10 For cars without a fibre-optic cable with green markings: plug the fibre-optic cable previously marked with tape into position 2 and plug the oth- er, unmarked connector into position 1. Fit the locking clip. 38 Fit the small connector to the large connector. Saab 9-3 M03-...
- Page 11 40 Check the CD changer fitting position setting; both sides of the CD changer should be set to position H. 41 Fit the bracket clip nut in the square hole near the REC and place the bracket in the luggage compartment. Saab 9-3 M03-...
- Page 12 43 Attach the wiring harness to the CD changer and fit the cable tie clip in the bracket hole. 44 Secure the CD changer wiring harness together with the unused connector in an appropriate location using the cable tie. Saab 9-3 M03-...
- Page 13 49 Connect the negative battery cable. 50 Adjust the time and date. 51 Synchronise remote control code by inserting the key into the ignition. Important Repeat this procedure with all keys. Otherwise, the remote controls will not function. Saab 9-3 M03-...
- Page 14 2 Open the hatchback. 3 Raise the loading floor. 4 Remove the panel in the left-hand luggage com- partment side trim. 5 Remove the clip for the left-hand side trim and move the trim aside. Saab 9-3 M03-...
- Page 15 6 Remove the bracket near the REC and move it aside for better access. 7 Amplifier fitted to the bracket near the REC: Unplug the amplifier connector. DVD player only fitted to the bracket near the REC: Unplug the DVD player connector. Saab 9-3 M03-...
- Page 16 1 by opening the con- nector locking clip and carefully lifting the catch. DVD player connector: Unplug the fibre-optic cable connected to position 2 by opening the con- nector locking clip and carefully lifting the catch. Saab 9-3 M03-...
- Page 17 2 in the DVD player connector. Fit the locking clip. 16 Plug the small connector into the large amplifier/ DVD player connector. 17 Plug the small connector into the large CD changer connector. Saab 9-3 M03-...
- Page 18 18 12 788 445 F930A117 18 Remove the three red transport fuses from the CD changer. 19 Check the CD changer fitting position setting; both sides of the CD changer should be set to position H. Saab 9-3 M03-...
- Page 19 Plug in the amplifier connector. DVD player only fitted to the bracket near the REC: Plug in the DVD player connector. 23 Secure the CD changer wiring harness together with the unused connector in an appropriate location using the cable tie. Saab 9-3 M03-...
- Page 20 Repeat this procedure with all keys. Otherwise, the remote controls will not function. 30 Activate window lift pinch protection function by operating the side windows up and down twice. An audible confirmation will sound when activa- tion is complete. Saab 9-3 M03-...
