900
SITdefault

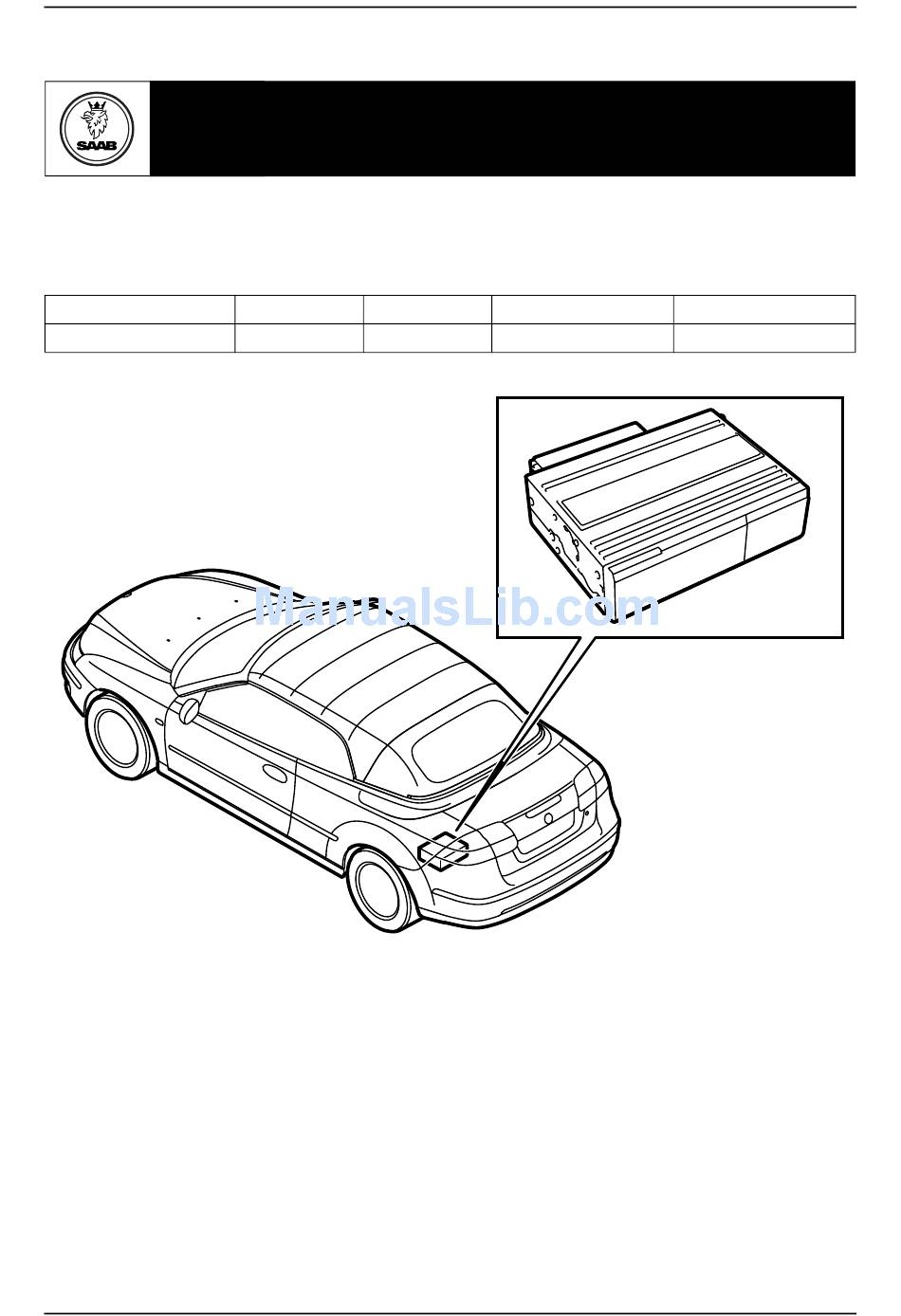

Saab 9-3 CV M04-
CD changer, luggage compartment
Accessories Part No.
12 832 501
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:36-24
SCdefault
Installation instructions
Date
Instruction Part No.
Apr 03
12 832 511
Saab 9-3 CV M04-
Replaces
F930A169
Advertisement
Related Manuals for Saab 12 832 501
Summary of Contents for Saab 12 832 501
- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 CV M04- CD changer, luggage compartment Accessories Part No. Group Date Instruction Part No. Replaces 12 832 501 9:36-24 Apr 03 12 832 511 F930A169...
- Page 2 For cars without console by the REC, see page 4. For cars where there is a console containing an amplifier and/or a DVD player by the REC, see page 19. Console for equipment in the luggage compartment (certain cars) Saab 9-3 CV M04-...
-
Page 3: Bus Communication
AMP1 is an amplifier behind the left-hand rear side trim AMP2 is an amplifier by the REC CDC is a CD changer by the REC DVD is a DVD player by the REC Saab 9-3 CV M04-... - Page 4 9 Pull the back rest cushion lower section forwards and lift the back rest cushion upwards. 10 Press out the seat belt guide from the back rest cushion and move the seat belt out from the guide and the back rest cushion. Saab 9-3 CV M04-...
- Page 5 14 Unhook the control module from the side trim, but do not remove the control module connector as this means a diagnostic trouble code being generated. 15 Remove the speaker connector and remove the side trim. Saab 9-3 CV M04-...
- Page 6 20 Remove the clips for the left-hand side trim and fold the trim aside. Unhook the strap on the rear side of the side trim and remove the connector from the luggage compartment lighting. Remove the side trim. Saab 9-3 CV M04-...
- Page 7 22 Remove the lower section of the A-pillar trim on the left-hand side. 23 Position the left-hand front seat in its most forward position and fold the backrest forwards. 24 Remove the connector from the amplifier. Saab 9-3 CV M04-...
- Page 8 · The cable should not lie against any sharp edg- es as this may cause increased signal reduction. 26 Remove the fibre optic cables' connector (the small connector) from the amplifier's connector. Saab 9-3 CV M04-...
- Page 9 · The cable should not lie against any sharp edg- es as this may cause increased signal reduction. 32 Fit the small connector to the large connector. 33 Connect the amplifier. Saab 9-3 CV M04-...
- Page 10 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edg- es as this may cause increased signal reduction. Saab 9-3 CV M04-...
- Page 11 12 832 511 11 F930A178 41 Fit the A-pillar trim. 42 Fit the scuff plate. Saab 9-3 CV M04-...
- Page 12 2 and the other unmarked connection must be fitted in position 1. Fit the lock. 48 Fit the small connector to the large connector. Saab 9-3 CV M04-...
- Page 13 50 Check the CD changer fitting position setting. Both sides of the CD changer must be set to position H. 51 Fit the bracket clip nut in the square hole near the REC and place the bracket in the luggage compartment. Saab 9-3 CV M04-...
- Page 14 53 Attach the wiring harness to the CD changer and fit the cable tie clip in the bracket hole. 54 Secure the CD changer wiring harness together with the unused connector in an appropriate location using the cable tie. Saab 9-3 CV M04-...
- Page 15 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
- Page 16 56 Fit the left-hand side trim, connect the luggage compartment lighting and hook the strap on. Fit the clips. 57 Fit the side scuff plate on the left-hand side. 58 Fit the scuff plate and fit the carpet on the luggage compartment floor. Saab 9-3 CV M04-...
- Page 17 64 Fit the speaker grille. 65 Close the soft top cover. Saab 9-3 CV M04-...
- Page 18 Repeat this procedure with all keys. Otherwise, the remote controls will not function. 74 Activate window lift pinch protection function by operating the side windows up and down twice. An audible confirmation will sound when activa- tion is complete. Saab 9-3 CV M04-...
- Page 19 4 Remove the clips for the left-hand side trim and fold the trim aside. Unhook the strap on the rear side of the side trim and remove the connector from the luggage compartment lighting. Remove the side trim. Saab 9-3 CV M04-...
- Page 20 5 Remove the bracket near the REC and move it aside for better access. 6 Amplifier fitted to the bracket near the REC: Unplug the amplifier connector. DVD player only fitted to the bracket near the REC: Unplug the DVD player connector. Saab 9-3 CV M04-...
- Page 21 1 by opening the connector locking clip and carefully lifting the catch. DVD player connector: Unplug the fibre optic cable connected to position 2 by opening the connector locking clip and carefully lifting the catch. Saab 9-3 CV M04-...
- Page 22 2 in the DVD player connector. Fit the locking clip. 15 Plug the small connector into the large amplifier/ DVD player connector. 16 Plug the small connector into the large CD changer connector. Saab 9-3 CV M04-...
- Page 23 12 832 511 23 F930A190 17 Remove the three red transport fuses from the CD changer. 18 Check the CD changer fitting position setting. Both sides of the CD changer must be set to position H. Saab 9-3 CV M04-...
- Page 24 DVD player only fitted to the bracket near the REC: Plug in the DVD player connector. 22 Secure the CD changer wiring harness together with the unused connector in an appropriate location using the cable tie. Saab 9-3 CV M04-...
- Page 25 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
- Page 26 Note The diagnostic tool will on some occasions need to retrieve a security code in TIS. Information on what to do will be displayed on the diagnostic tool display. 32 Check that the system is working. Saab 9-3 CV M04-...
