900
SITdefault
Saab 9-3 M03-
CD player/CD changer
Accessories Part No.
12 787 146
12 787 152
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:85-23
SCdefault
Installation instructions
Date
Instruction Part No.
Jan 03
12 788 458
Saab 9-3 M03-
Replaces
12 788 458 Aug 02
F930A055
Advertisement
Related Manuals for Saab 12 787 146
Summary of Contents for Saab 12 787 146

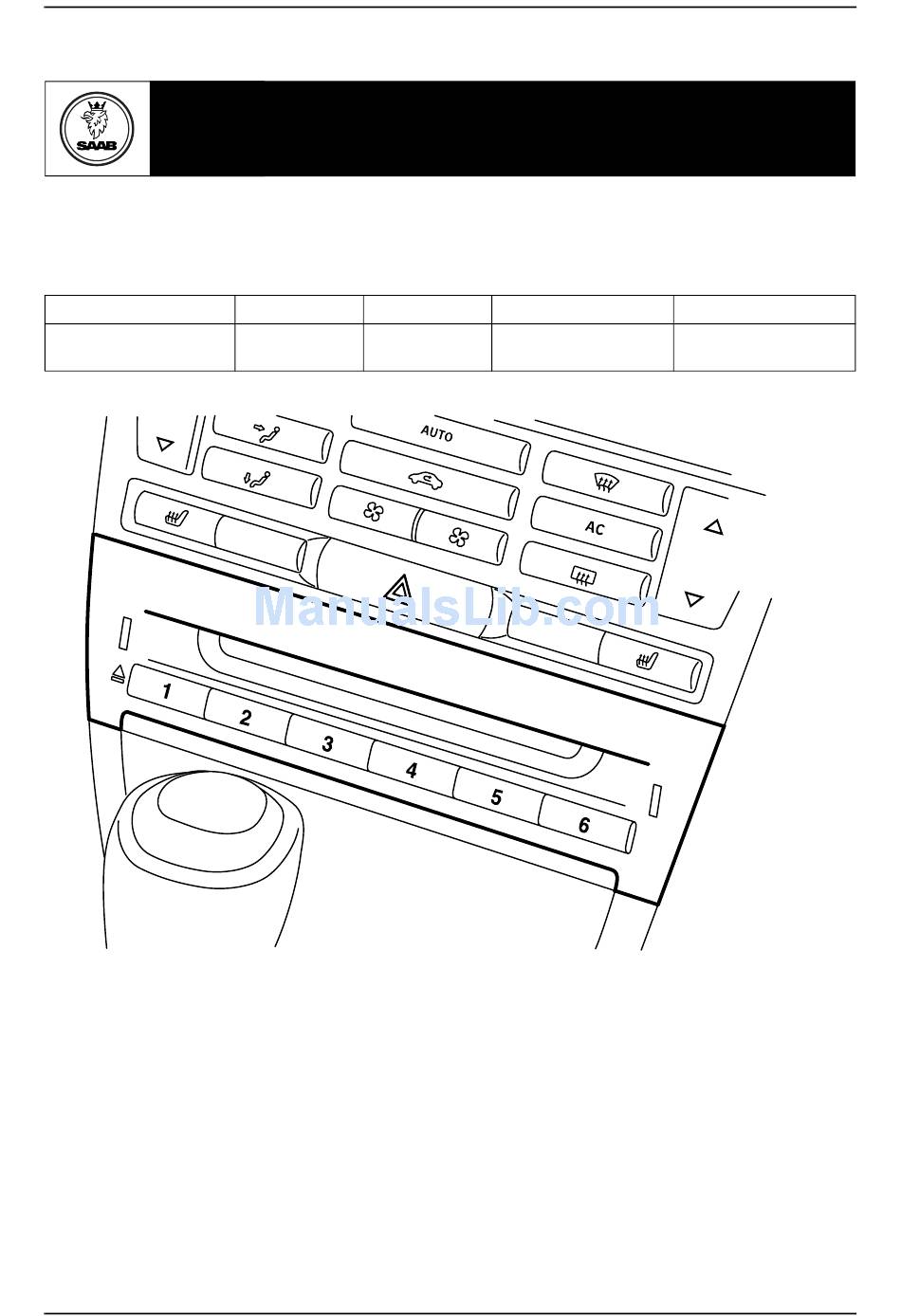

- Page 1 MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 M03- CD player/CD changer Accessories Part No. Group Date Instruction Part No. Replaces 12 787 146 12 787 152 9:85-23 Jan 03 12 788 458 12 788 458 Aug 02 F930A055 Saab 9-3 M03-...
- Page 2 2 12 788 458 F930A056 12 787 146 CD changer kit 1 CD changer 2 Fibre-optic cable 12 787 152 CD player kit 1 CD player 2 Fibre-optic cable To fit CD player/CD changer, see page 3 To replace CD player with CD changer, see page 10...
- Page 3 Use removal tool 82 93 474. 2 Remove the control panel connectors. 3 Remove the cover located below the ACC or MCC unit. 4 Remove the entertainment head unit by pushing in the two catches. 5 Remove the head unit connectors. Saab 9-3 M03-...
- Page 4 The visible red light is a class 1 laser. Do not look directly into the optical fibre or the control module connector at close range. A distance of less than 20 mm between your eyes and the light source may cause eye injury. Saab 9-3 M03-...
- Page 5 The cable should not lie against any sharp edges as this may cause increased signal reduction. 10 Remove the fibre optic cable connected to posi- tion 1 by opening the connector locking clip and carefully lifting the hook. Saab 9-3 M03-...
- Page 6 6 12 788 458 F930A060 16 Plug in the control panel connector and fit the control panel. 17 Fit the dashboard vent. Saab 9-3 M03-...
- Page 7 2 in the small connector in the entertainment head unit. Fit the locking clip. 23 Fit the small connector to the large connector. Important Take note of the small connector location since it is easy to fit the connector incorrectly. Saab 9-3 M03-...
- Page 8 CD player/CD changer. Insert and fit the CD player/CD changer in the entertainment head unit bracket. 26 Fit the connector for CD player/CD changer power supply in the connector for the accessory kit fibre optic cable. Saab 9-3 M03-...
- Page 9 29 Fit the entertainment head unit. 30 Connect and fit the climate system control panel. 31 Connect the diagnostic tool, select car and model year, select “All”, select “Add/Remove”, select the accessory and then “Add”. 32 Check CD player/CD changer function. Saab 9-3 M03-...
- Page 10 – Remove the CD player with removal tool 84 71 203. – Perform step 25 and steps 27-32 in this installation instruction. – Connect the diagnostic tool, select car and model year, select “All”, select “Add/Remove”, select the accessory and then “Add”. Saab 9-3 M03-...
