- Page 1 SLIDER PRO BOW MOUNT ELECTRIC MOTOR OWNERS MANUAL...
- Page 2 WATERSNAKE ELECTRIC MOTORS Congratulations and welcome to a world of silent motoring. Powerful yet silent, the Watersnake electric motors are built to suit all angling conditions. High quality materials, superior design and precision engineering make these motors longwearing and reliable.

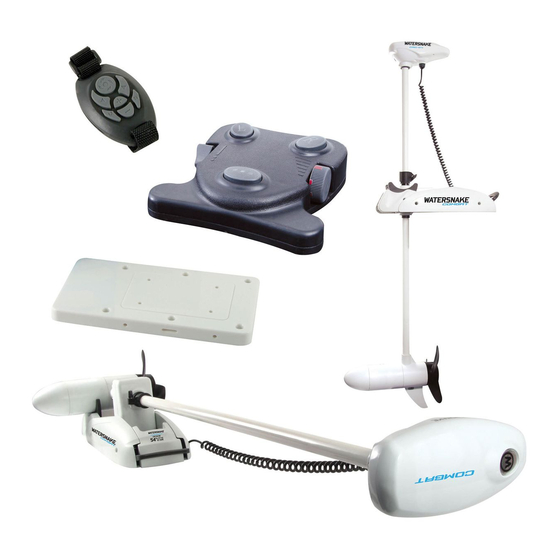

- Page 3 SLIDER PRO Head unit Remote control unit. Depth collar height adjustment Quick lock and release lever Mounting bracket Composite shaft Motor Assembly unit Foot control unit with 5 meter cable Weedless propeller www.watersnake.com.au...
- Page 4 STOWING When the Watersnake is not in use always stow it properly. Release the quick lock and release lever and raise the motor and pull towards the stern until it is secure on the locking cradles and locked in the horizontal position out of the water.
- Page 5 SLIDER PRO SYNCING THE REMOTE TO YOUR MOTOR (Before proceeding remove propeller for safety) 1) Remove top cover only of the motor head cover. (4 x phillips head screws) 2) Press and hold down the RC chip button on the remote control receiver board.
- Page 6 2: Align the propeller against the shear pin on the shaft (there is a groove on the back of the propeller which the shear pin needs to slot into) and then tighten the propeller nut securely. Shear Pin Propeller Propeller Shaft Propeller Watersnake...
- Page 7 Please Note: for best performance please keep battery terminals and connections clean. A Watersnake 50 Amp inline fuse kit is supplied and attached to the red power cable to protect the circuit boards of the motor.
- Page 8 MODEL SPECIFICATIONS CODE MOTOR DESCRIPTION THRUST VOLT AMPS WATTS SHAFT COLOUR BRACKET STEERING SPEEDS PROP 55242 Slider Pro SWRC54/54 54lb 13-54 156-640 1370 54" White Composite Foot Control/ Remote Fob Variable 3-Blade Model range and specifi cations are correct at time of printing.
- Page 9 SLIDER PRO MOTOR SELECTION GUIDE WATERSNAKE Transom Mount Suggested Transom Mount Measurement SHAFT LENGTH to Water Level Shaft Length GUIDE Up to 8” 24” Up to 10” 26” With your boat in the Up to 12” 30” water, measure the 10”...
- Page 10 • Check the motor and foot control plugs to ensure they are not loose. (Foot control bow mount motors only.) 4. MOTOR LOSES ONE OR MORE SPEEDS Possible cause(s)/Solution(s): • Check all battery and foot controller connections. (BOW MOUNT ONLY) • Weed or debris may be caught behind propeller. Watersnake...
- Page 11 SLIDER PRO MAINTENANCE Your Watersnake Electric Motor should provide many seasons of dependable service. However, like any tool, electric motors must be cared for. After each day of fi shing, the motor should be cleaned thoroughly. If you have been fi shing in saltwater, it is suggested that you wash the motor with warm fresh soapy water until all salt deposits are washed away.
- Page 12 Of course once you engage your Watersnake motor for use make sure that it is in the right place, not too low or too high.
- Page 13 SLIDER PRO SERVICING YOUR WATERSNAKE ELECTRIC MOTOR When it’s time for your Watersnake electric motor to be serviced, it is recommended you choose to use an Authorised Service Agent such as Anglers’ Central Service Centre to perform the service. Watersnake electric motors are precision instruments that rely on exacting alignment of numerous components;...
- Page 14 SLIDER PRO MOTOR Watersnake...
- Page 15 Watersnake Propeller Kits (Sold Separately) Watersnake Propeller kits contain a propeller, nut and shear pins. It is recommended you keep a spare propeller on your boat at all times. The Mini 2- Bladed Kit is suitable for the T-18 and T-24 motors. The 2-Bladed Propeller Kit is suitable for 28lb, 30lb and 34lb motors.
- Page 16 Having other devices hooked up to your motor battery can cause power surges. Watersnake Fuse Kits come supplied with a 50 amp fuse and are completely waterproof. These simple to install kits are an essential accessory for your motor.
- Page 17 NOTES: www.watersnake.com.au...
- Page 18 NOTES: Watersnake...
- Page 19 NOTES: www.watersnake.com.au...
- Page 20 Dandenong South, Victoria 3175 Australia ACN: 143 230 175 Watersnake and Jarvis Marine are registered ® ® trademarks of Watersnake Distribution Pty. Ltd. © 2013 Watersnake Distribution Pty. Ltd. All Rights Reserved. Specifi cations are subject to change without notice.
