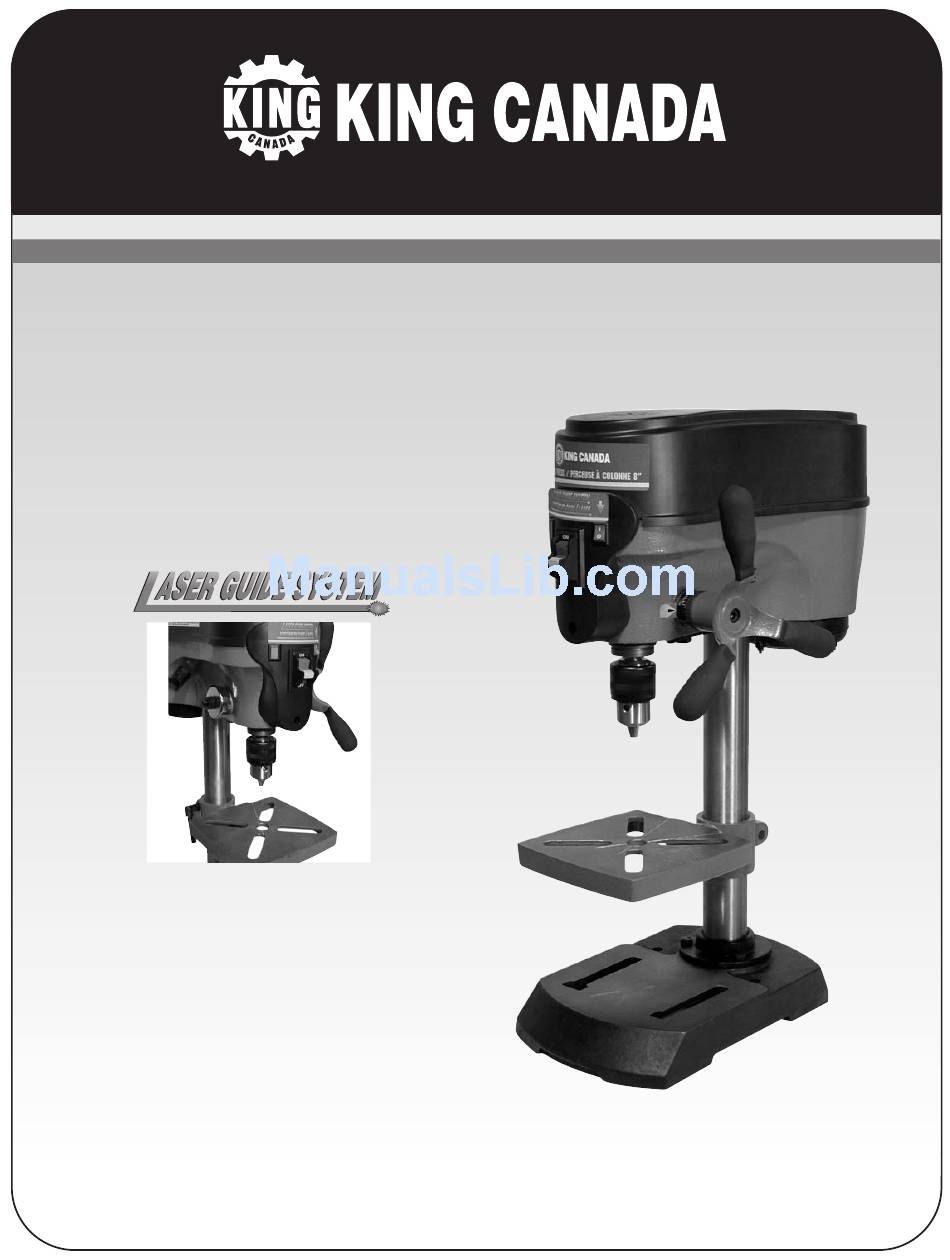

- Page 1 8” DRILL PRESS WITH DUAL LASER GUIDE SYSTEM Dual Laser Guide System MODEL: KC-1088L INSTRUCTION MANUAL COPYRIGHT © 2003 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Proof Of Purchase
Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, thet are NOT specific potential hazards. -
Page 4: Getting To Know Your Drill Press
GETTING TO KNOW YOUR DRILL PRESS KC-1088L SPECIFICATIONS VOLTAGE ......................................120V AMPS ........................................2A MOTOR R.P.M....................................1700 HZ ........................................60 PHASE ........................................1 CHUCK CAPACITY ..................................1/2” DISTANCE BETWEEN SPINDLE AXIS AND COLUMN ........................4” MAX. SPINDLE TRAVEL ..................................2” MAX. DISTANCE FROM CHUCK TO THE TABLE........................6-3/4” MAX. DISTANCE FROM CHUCK TO THE BASE ........................9-3/4”... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE DRILL PRESS DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR DRILL PRESS MUST BE CONNECTED TO A PROPERLY GROUNDED OUTLET... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Assemble the drill press in the following order; 1) Assemble the column and column support (A) Fig.4 to the base (B) using the 3 hex. bolts (C) supplied. Secure tightly. 2) Slide the table support (D) onto the column (A). 3) Install the table lock handle (E) into the table support (D) and tighten the table support into place. - Page 7 ADJUSTMENTS ADJUSTMENTS ADJUSTING DEPTH OF CUT To drill a hole to a certain predetermined depth, slightly loosen cap screw (A) Fig.8 which holds the spindle lowering handles to the drill press head. Now adjust the collar (B) with the depth scale to indicate the desired depth of cut, then retighten the cap screw (A).
- Page 8 OPERATION/LASER GUIDE OPERATION INSTALLING DRILL BIT Warning! Always make sure the drill press is unplugged from the power source before making any adjustments and/or changing drill bits. Insert the drill bit in the chuck far enough to obtain maximum gripping from the chuck jaws.
-
Page 9: Maintenance & Troubleshooting
It falls off when trying to tapered surface. and oil. install it. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
