Summary of Contents for Scott Gambler

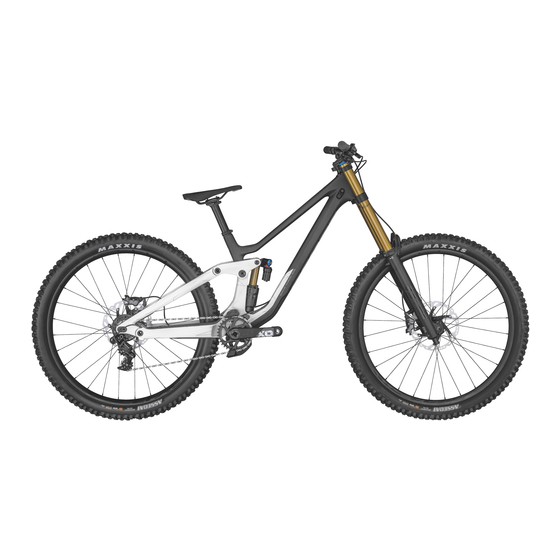

- Page 1 SCOTT 2014 BIKE OWNER’S MANUAL SCOTT SPORTS SA | 17 RTE DU CROCHET | 1762 GIVISIEZ | SWITZERLAND © 2013 SCOTT SPORTS SA, ALL RIGHTS RESERVED | SCOTT-SPORTS.COM DISTRIBUTION: SSG (EUROPE) DISTRIBUTION CENTER SA P.E.D ZONE C1, RUE DU KIELL 60 | 6790 AUBANGE | BELGIUM |...
-
Page 2: Table Of Contents
Basic Set-Up of Gambler Rear Suspension ........ -
Page 3: Geometry/Technical Data Gambler
GAMBLER CONCEPT GEOMETRY/ TECHNICAL DATA GAMBLER Gambler is the result of several years of research and development, also in close cooperation with the riders of SCOTT 11 DH Team, searching for one of the most versatile and durable DH bikes available on the market, but still easy in set-up and maintenance. -
Page 4: Headset
TECHNICAL DATA GAMBLER HEADSET Travel 210mm/8.2” All Gambler models are designed for a semi-integrated headset for 1.5” headtubes with an outer diameter of the headtube of 55mm. Suspension Ratio 2.36 Piston stroke 89mm/3.5” For details pls refer to the following drawing which is just used for reference. -
Page 5: Adjustable Bb Height
ADJUSTABLE BB HEIGHT BB STANDARDS On the Gambler you can adjust the BB height above ground for 10mm between its 2 On Gambler you will find 2 different BB options, depending on the model you bought: positions by a geo-chip. -
Page 6: Chainguard Standards
CHAINGUARD STANDARDS SET-UP GAMBLER The Gambler is prepared on all models for an ISCG05 chainguard system. The Set-Up of the rear shock can be easy done within a few minutes. Please take this time to avoid dangerous riding performance and to get the best out of your Gambler. -
Page 7: Basic Set-Up Of Rebound
SCOTT strongly recommends using only the originally specified shock with the “Rebound” describes the speed the shock comes back to its original length after Gambler bike, as we have chosen carefully both parts for a perfect matching absorbing an obstacle. -
Page 8: Adjustable Drop Out System
The Gambler offers the possibility to change the drop out hanger in case of damage, The cable routing on Gambler is quite easy to do, please just use cable zippers on the but you can also choose between 2 different rear-axle positions which result in 2 cable parts on the tubes. -
Page 9: Pivot Maintenance
In order to avoid damages on the frame caused by the fork stanchions hitting the downtube in case of a crash the Gambler shows rivets on the front end of the For the set up of the front fork please use the fork specific manual attached to the bike. -
Page 10: Warranty
Date of purchase ..............Costs for maintenance and service have to be born by the owner of the SCOTT bike.
