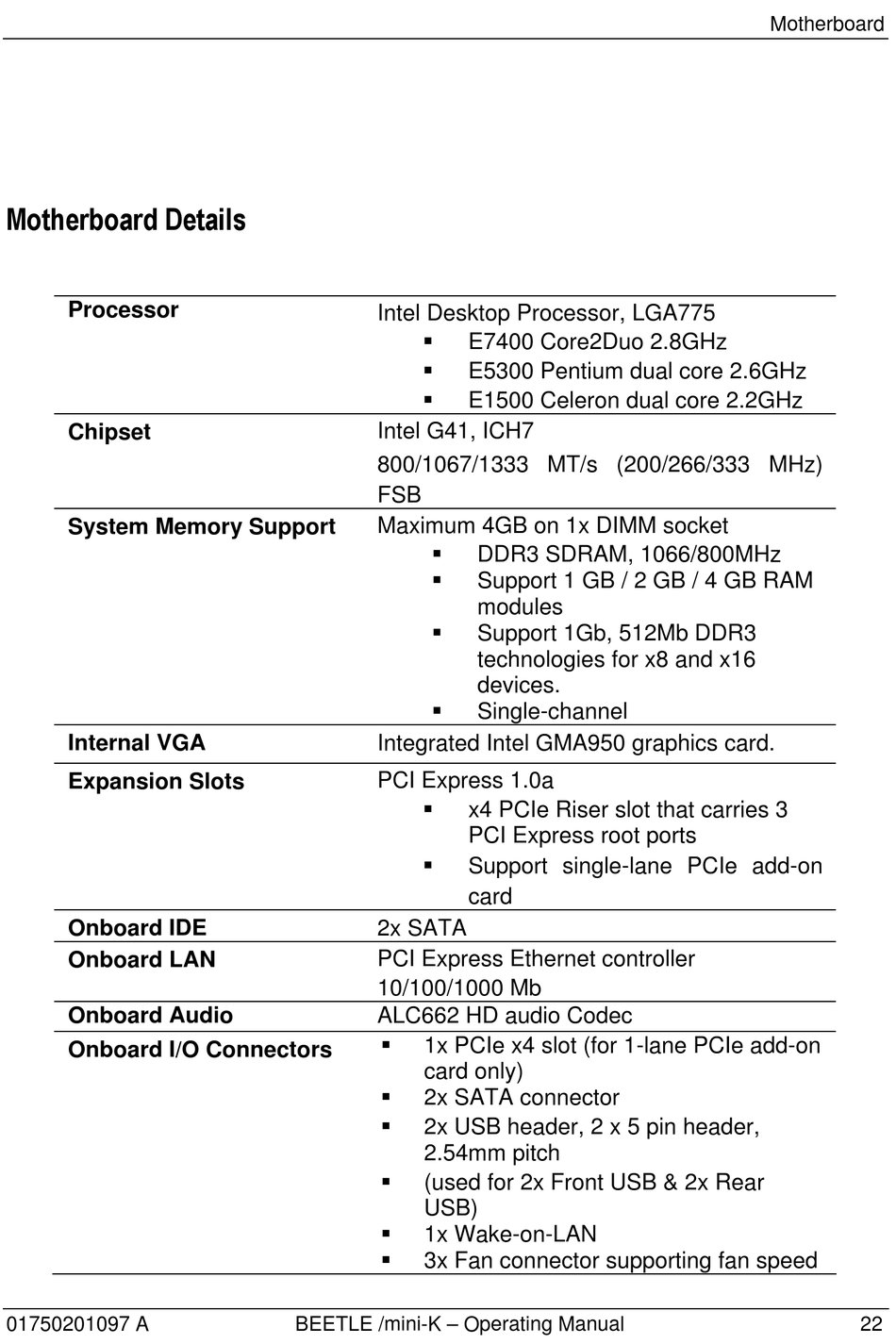

Motherboard Details

Processor
Chipset
System Memory Support
Internal VGA
Expansion Slots
Onboard IDE
Onboard LAN
Onboard Audio
Onboard I/O Connectors
01750201097 A
Intel Desktop Processor, LGA775



Intel G41, ICH7
800/1067/1333 MT/s (200/266/333 MHz)
FSB
Maximum 4GB on 1x DIMM socket




Integrated Intel GMA950 graphics card.
PCI Express 1.0a


2x SATA
PCI Express Ethernet controller
10/100/1000 Mb
ALC662 HD audio Codec

1x PCIe x4 slot (for 1-lane PCIe add-on
card only)

2x SATA connector

2x USB header, 2 x 5 pin header,
2.54mm pitch

(used for 2x Front USB & 2x Rear
USB)

1x Wake-on-LAN

3x Fan connector supporting fan speed
