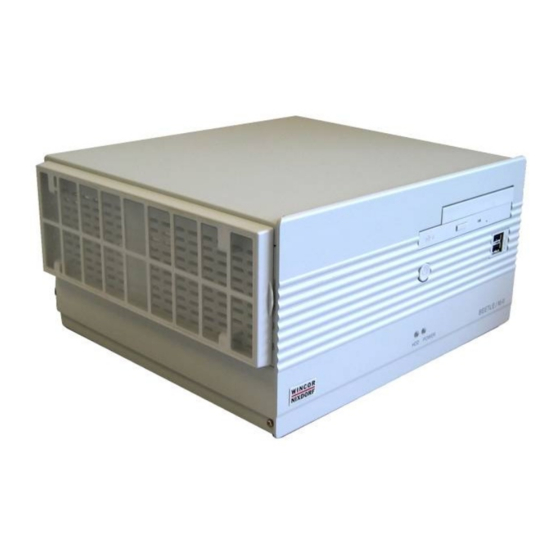

BEETLE /M-II lint filter
Introduction
The functionality of the BEETLE /M-II may be adversely
affected by lint collecting on fans and heat sinks, which
compromises the cooling process. The lint filter ensures that
the amount of lint entering the BEETLE /M-II will not affect its
operation.
Particularly high concentrations of lint are commonly found in
areas where textiles such as clothing, tablecloths, bedding,
and household items made of cloth are sold.
The lint filter is not suited for filtering fine particles such as
dust.
i

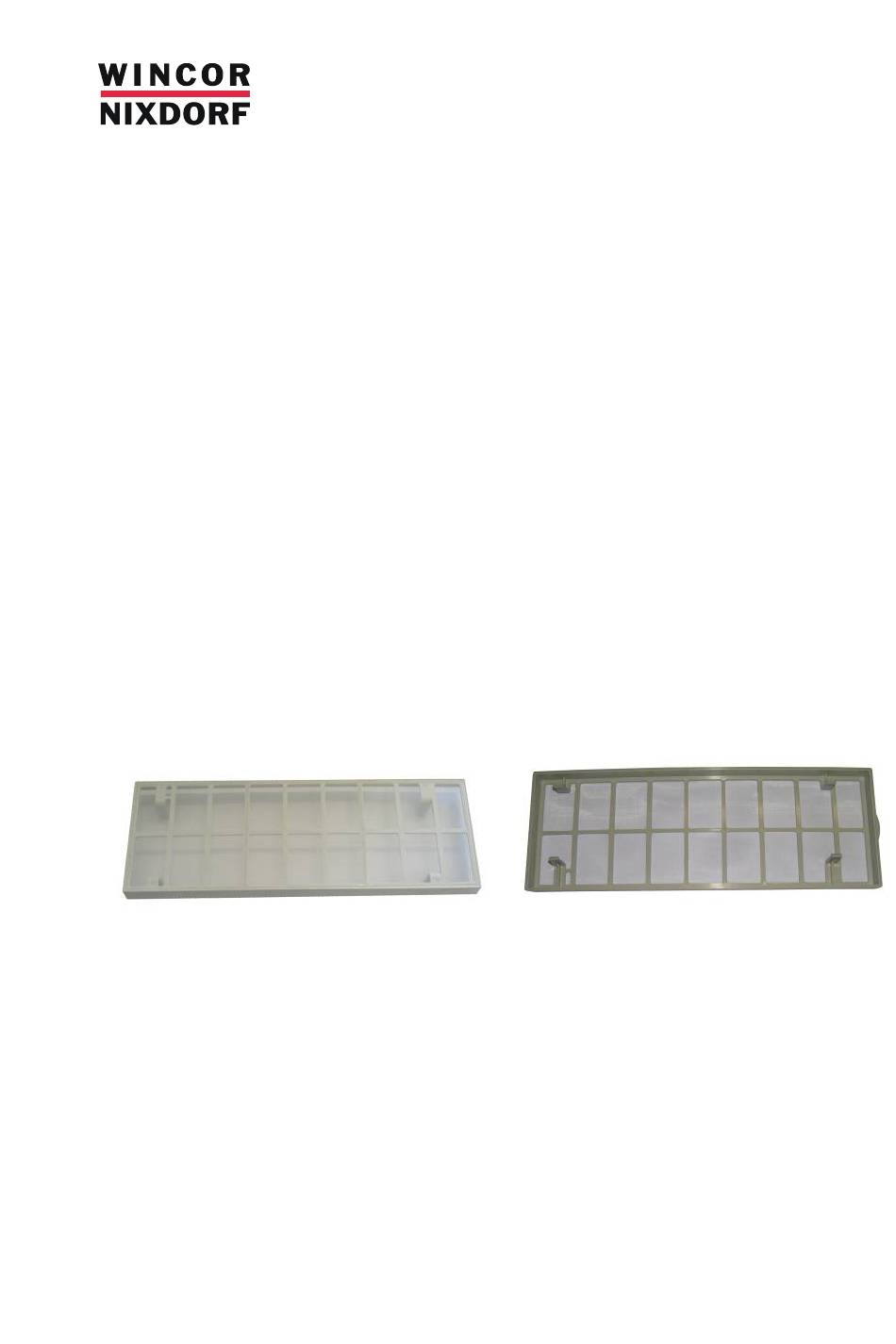

Lint filter, external view
Lint filter
nternal view with
the four mounting hooks.
© Wincor Nixdorf International GmbH, July 2007 / 01
1
Advertisement
Table of Contents
Related Manuals for Wincor Nixdorf BEETLE /M-II
Summary of Contents for Wincor Nixdorf BEETLE /M-II
- Page 1 The lint filter ensures that the amount of lint entering the BEETLE /M-II will not affect its operation. Particularly high concentrations of lint are commonly found in areas where textiles such as clothing, tablecloths, bedding, and household items made of cloth are sold.
- Page 2 Mounting the BEETLE /M-II lint filter Mounting the BEETLE /M-II lint filter is simple and can be performed by a store's sales staff, for instance. To mount the BEETLE /M-II lint filter, insert the mounting hooks into the ventilation slots on the left side of the unit.
- Page 3 second row from bottom, second slot from the right Press the lint filter to snap into place. Mind the position of the latch (showing to the front of the unit) © Wincor Nixdorf International GmbH, July 2007 / 01...
- Page 4 Removing the BEETLE /M-II lint filter Remove the BEETLE /M-II by pulling the latch. You can then easily remove the filter. Cleaning and maintenance of the BEETLE /M-II lint filter Clean the lint filter at least once a week and in case of high dust exposure accordingly more often.
- Page 5 The lint filter can be cleaned without dismantling by using the palm of your hand or, better yet, a damp microfibre cloth. During cleaning, the BEETLE /M-II must be switched off and the power supply cord must be unplugged. Do not allow any moisture to enter into the unit's case.
- Page 6 Wincor Nixdorf will not be liable or responsible for these damages! The lint filter is a wearing part. There is no warranty claim for inadequate operation or malfunctions of the filter due to wear and tear.
