Summary of Contents for MJX F46

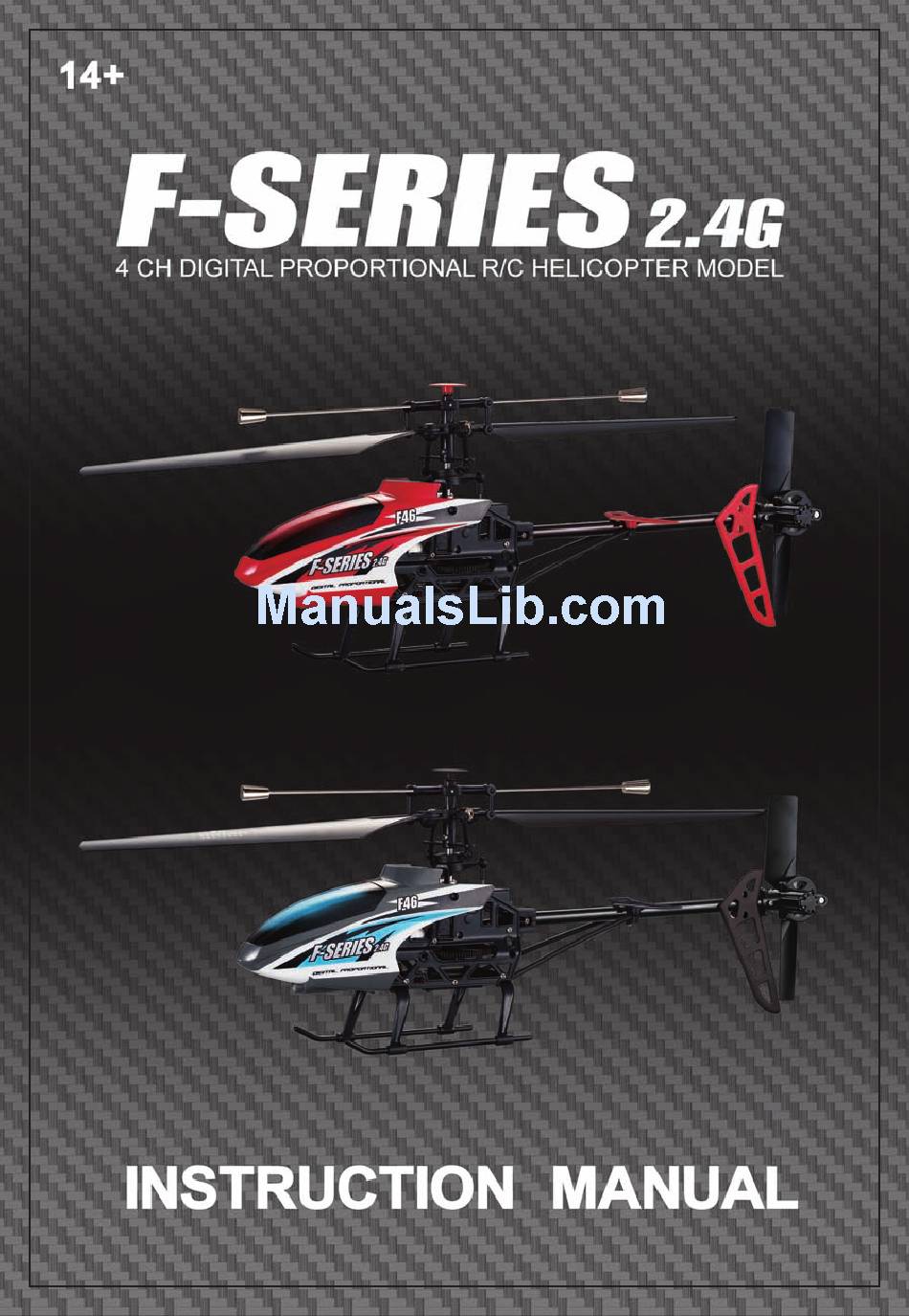

- Page 1 ITEM NO.F46/F646...
- Page 2 Full charged battery can support the helicopter flies about 9 mins. LCD remote control is included. F46 can be mounted with high-pixel camera . Safety Guidelines This product is not a toy. It is not applicable for children who are under 14 years old.
- Page 3 Product/spare parts included in this packaging Qty(pc) Qty(pc) Description Description Helicopter 7.4V 700mAh li-polymer battery Remote controller Manual Rotor blade Tail Rotor Charger The LCD Remote controller Main features of the remote controller 2.4G, LCD reomote control, scores of helicopters can be played at the same time. Control function: upward, downward, forward, backward, leftward, rightward, turning left and turning right, videography and photography.
- Page 4 Function switch Function description In stick Mod 3 and 4, it helps to tune the helicopter's left and right direction turning speed. 键 键 键 键 Trimmer C In stick Mod 1 and 2,it helps to tune the helicopter's sideward flight. In stick Mod 1 and 3, this button is null.
- Page 5 键 键 Activate the LCD remote controller Slide the power switch to "ON" position after throttle control stick selection 键 键 is done.To activate the remote controller, slowly push up the throttle control stick to the top and then push it down to the bottom. The remote controller 键...
- Page 6 The helicopter connector stabilizer bar rotor blade servo split charging device Tail motor searchlight power socket Charging plug camera battery connector all-in-one charging device How to charge the helicopter To meet the different demands from different customers worldwide, two different charging devices have been designed for charging. One is split charging device (1 piece charger +1 piece charge controller), the other one is all-in-one charging device (one charger only)The product is included with either of the two charging devices.
- Page 7 Preparation for flight Turn on the remote control. To activate the remote controller,slowly push up the throttle stick to the top and then push it down to the bottom. The remote controller is activated once you hear a beep sound.Then, the vindicator light flashes rapidly while the remote controller is sending out connectional signal.
- Page 8 (1) If the swashplate is slightly inclined, it is okay to regulate the trimmer button of the remote control to get the swashplate retain horizontal. (2) If the swashplate is greatly inclined, then, it should be better to regulate the length of the servo connecting bar to get the swashplate parallel to the ground.
- Page 9 Trimmer Functions 键 键 If the helicopter keeps moving forward/backward even there is no control signal given, users may adjust the elevator trim to keep the helicopter balanced. STICK MOD 1 or 3: 键 键 If the helicopter keeps moving backward, push up Trimmer A until it gains balance.
- Page 10 If the helicopter keeps moving righttward, turn left of Trimmer C until it gains balance. If the helicopter keeps spinning even there is no control signal given, EXIT/ LIGHT MENU/ users may adjust the rudder trim to keep the helicopter balanced. PUSH STICK MOD 1 or 2: If the helicopter keeps spinning...
- Page 11 Turn the sideward flight control stick to the right side,the helicopter will fly Rightward flight rightward. Video function and videography device If installed the C4002 videography device(should be ordered separately from MJX), the helicopter has the videography function. videography module TF memory card card reader...
