I n s t a l l a t i o n & S e r v i c i n g
High effi ciency condensing gas boiler
WARNING!
If you do not follow these instructions exactly, a fi re or explosion
may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other fl ammable vapors and
- WHAT TO DO IF YOU SMELL GAS
Toll-free: 1-800-621-9419 • Fax: 678-829-1666 • www.rinnai.us
Instructions
Q Premier
QP85N / QP130N
CAUTION!
Read this manual thoroughly before installing, servicing, putting
into operation or using this boiler and vent system.
WARNING!
Improper
maintenance can cause property damage, personal injury
(exposure of hazardous materials)* or loss of life. Refer to the
user's information manual provided with this boiler. Installation
and service must be performed by a licensed professional, service
agency or the gas supplier (who must read and follow the supplied
instructions before installing, servicing, or removing this boiler).
CAUTION!
The user manual is part of the documentation that is delivered
to the installation's operator. Go through the information in this
manual with the owner/operator and make sure that they are
familair with all necessary operating instructions.
NOTICE!
Installation and service must be performed by a licensed
professional, service technician or the gas supplier.
In the Commonwealth of Massachusetts this boiler must be
installed by a licensed Plumber or Gas Fitter.
liquids in the vicinity of this or any other appliance.
- Do NOT try to light any appliance.
- Do NOT touch any electrical switch.
- Do NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fi re department.
Address: 103 International Drive, Peachtree City, GA, 30269
These instructions to be retained by user.
installation,
adjustment,
alteration,
service
or

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q Premier QP85N and is the answer not in the manual?

Questions and answers

Related Manuals for Rinnai Q Premier QP85N

Summary of Contents for Rinnai Q Premier QP85N

  • Page 1 Follow the gas supplier’s instructions. - If you cannot reach your gas supplier, call the fi re department. Address: 103 International Drive, Peachtree City, GA, 30269 Toll-free: 1-800-621-9419 • Fax: 678-829-1666 • www.rinnai.us These instructions to be retained by user.
  • Page 2 California Proposition 65 lists chemical substances known to the state to cause cancer, birth defects, death, serious illness or other reproductive harm. This product may contain such substances, be their origin from fuel combustion (gas, oil) or components of the product itself. Rinnai combi boilers comply with the State of California Lead Law (AB1953).

  • Page 3: Table Of Contents

    Content Safety and general instructions ............4 Electrical connections ..............46 Designated use ..............4 Controls .................47 Hazard defi nitions ..............4 Boiler controls .................50 Symbol defi nitions ...............4 Explanation of the function buttons ........51 The following instructions must be followed ......5 10 Starting up: Filling and de-aerating the boiler and installation ..52 Follow these instructions for the space heating water ..6 10.1 Requirements of the water system ........52...

  • Page 4: Safety And General Instructions

    Safety and general instructions Please observe these instructions in the interest of your own safety. 1.1 Designated use The boiler is designed for heating water for a central heating system and, if applicable, generating domestic hot water. The boiler is delivered with a burner controller (MCBA) pre-installed.The boiler can be fi...

  • Page 5: The Following Instructions Must Be Followed

    1.4 The following instructions must be followed The boiler must only be used for its designated purpose, as described in the Installation Instructions. Each unit is fi tted with a data plate. Consult the details on this plate to verify whether the boiler is compliant with its intended location, e.g.: gas type, power source and venting classifi...

  • Page 6: Follow These Instructions For The Space Heating Water

    – Never use water that has been treated by a reverse osmosis, D.I., or distilled water to soften the water to fi ll the heating system. – Do not use inhibitors or other additives unless approved by Rinnai for that purpose. – When freeze protection of the heating system is desired, only use Rinnai-approved antifreezes.

  • Page 7: Tools, Materials And Additional Equipment

    In addition, a handtruck with a fastening belt is useful. For maintenance of the boiler you will need, apart from standard tools for space heating, gas and water fi ttings the following items: Rinnai toolkit Q and E-Series 1.7 Relevant Installation, Service and User manuals – Approved vent system –...
  • Page 8 For installations in the Commonwealth of Massachusetts, the following local NOTICE requirements apply in addition to all other applicable NFPA requirements: For direct- vent boilers, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent terminal and the intake is installed below four feet above grade the following requirements must comply: 1) If not present on each fl...

  • Page 9: Description Of The Boiler

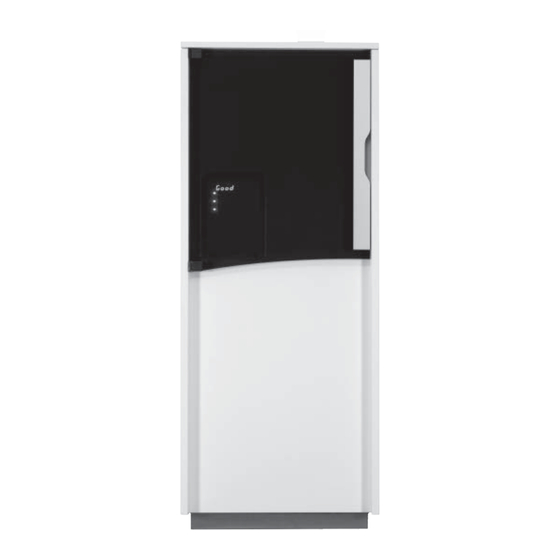

    Description of the boiler The Rinnai Q Premier boiler is a room sealed, condensing and modulating central Room sealed boiler heating boiler, with an integrated DHW cylinder. boiler retreives combustion air from outside then discharges fl ue The boiler is provided with a compact stainless steel heat exchanger with smooth gasses to the outside.

  • Page 10: Transportation

    4.2 Transportation CAUTION The boiler may be damaged when not secured properly. Only transport the boiler using appropriate transportation equipment, such as a handtruck with a fastening belt or special equipment for maneuvering steps. When shipping the boiler must be secured on the transportation equipment to prevent it from falling off.

  • Page 11: Installation

    Installation 5.1 Requirements for the installation room The room where the boiler will be placed must always be free from freezing DANGER conditions. Do not store or use gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance. Never use or store any chlorinated detergents or halogenated hydrocarbons (e.g.

  • Page 12: Fitting The Boiler

    5.2 Fitting the boiler Remove the packaging materials. Leave the boiler on its pallet during unpacking. When unpacking, the casing can be removed from the boiler. This part can be kept seperate during NOTICE installation. It must be reinstalled on the boiler and fi xed with the screws behind the door before the boiler is started up.

  • Page 13: Dimensions

    5.3 Dimensions dimensions Q Premier figure 4...
  • Page 14 Dimensions Boiler type QP85N QP130N inch / mm Height 61.8" / 1570 Height including vent connection 64.5" / 1640 Width 23.6" / 600 Depth 25.2" / 640 Center boiler / vent 3,7" / 95 Back / vent 18.5" / 470 Center to center / vent and air supply 4.7"...
  • Page 15 Dimensions Connection for combustion air supply and vent system 8U442600 boiler connections figure 5 Boiler type QP85N QP130N 80/125mm Vent system / Combustion air supply Gas pipe 3/4"M-NPT 3/4"M-NPT Supply pipe 3/4"M-NPT Return pipe 3/4"M-NPT Cold water pipe 3/4"M-NPT Hot water pipe 3/4"M-NPT DHW circulation return pipe 1"...

  • Page 16: Clearences From The Boiler

    5.3.1 Clearences from the boiler ceiling Min. 10" / 15.7" 24" 250mm 2" 2" service clearances to the boiler figure 6 Minimum required clearances Minimum required clearances Recommended to combustibles to non-combustibles service clearances All types All types All types inch / mm inch / mm inch / mm...

  • Page 17: Technical Specifi Cations

    5.4 Technical specifi cations Q Premier Boiler type QP85N QP130N Input Hs CH BTU/hr 85,000 130,000 Output non-condensing CH BTU/hr 77,000 117,000 22.5 34.2 Output EN677 efficiency CH BTU/hr 84,000 127,600 24.7 37.3 Output AFUE CH BTU/hr 82,000 117,000 24.1 36.5 Efficiency at 98.6/86°F (36/30°C) part 98.8...

  • Page 18: Connecting The Boiler

    The connections on the back of the boiler are engineered to work with only the Rinnai pre-bend pipe kits. Nuts and gaskets are supplied with the boiler;...

  • Page 19: Central Heating System

    6.1.1 Pre-bend Kit and Installation Rinnai provides 3 Pre-bend Plumbing Kit options; top, right side, and left side. One of these options must be selected at the time of purchase. The pre-bend kit must be fi tted directly in the back of the boiler on the heating water supply pipe, heating water return pipe, domestic cold water pipe, domestic hot water pipe, domestic recirculation water pipe, and the gas pipe.
  • Page 20 Service valve Service valve Boiler basic piping fi gure 8 shut off valve system circulator check valve balancing valve boiler drain valve dirt trap air separator automatic fi ll valve back fl ow preventer 10. expansion tank (in case the content of the built-in expansion tank is not suffi cient) bypass for system cleaning 12.
  • Page 21 Rinnai Boiler Applications Manual. Internal boiler drain connection fi gure 10 Thoroughly fl ush all pipes and radiators. We recommend the use of a Rinnai approved system cleaner. Please refer to the list of approved Rinnai system NOTICE cleaners in this chapter.
  • Page 22 Boiler system fl ushing (Not Boiler heat exchanger) When replacing an existing boiler the heating system should be fl ushed with the old boiler in place before the new boiler is added to the system. If the old boiler has already been removed a bypass must be piped in when the new boiler is installed in order to facilitate the fl...
  • Page 23 21. Test the water hardness of the water that will be used for fi lling the system 22. Use the proper water treatment to ensure the pH and water hardness are within the Rinnai boiler water quality guidelines 23. The boiler and system may now be fi lled The following is a list of approved system cleaners, inhibitors, and antifreeze.
  • Page 24 120V, 2 Amp. If a pump with a larger current draw is required an isolation relay must be used. See the Rinnai Boiler applications manual for further information. The extra external pump must be selected according to the installation resistance and required fl...

  • Page 25: Safety Valve And Temperature And Pressure Gauge

    The Rinnai Q Premier boiler has a factory installed pressure switch type Low Water Cut Off (LWCO). Check your local codes to see if a Low Water Cut Off is required (LWCO) and if this device conforms to local code. See the Rinnai Boiler Applications Manual for further information.

  • Page 26: Boiler Expansion Tank

    For the boiler to function correctly, it is necessary to connect the additional expansion tank to the installation according to fi gure 7. See the Rinnai Boiler Applications Manual for further information regarding placement of the expansion tank in the system.

  • Page 27: Gas Connection

    If these instructions are not followed exactly, a fi re or explosion may result causing property damage, personal injury or death. Rinnai boilers are built to run on Natural Gas or Propane Gas. The gas type the WARNING boiler is suitable for is indicated on the packaging and on the boiler by a blue label with Natural Gas or a green label with Propane Gas and on the identifi...

  • Page 28: Gas Connection With Propane Gas

    6.4.2 Gas connection with propane gas The Rinnai Q Premier boiler is sold as a NG product. Conversion kits from NOTICE natural gas to propane can be purchased for the Q Premier boiler separately. The gas supply connection must comply with local regulations or, if such NOTICE regulations do not exist, with the National Fuel Gas Code, ANSI Z 223.1.

  • Page 29: Hot Water Supply

    6.5.2 Domestic water treatment Accessory Rinnai offers a domestic water treatment device that can help reduce scale build up. This device can be installed on the incoming cold water line for any combi boiler. For additional information contact Rinnai.

  • Page 30: Dhw Expansion Tank

    Refer to fi gure 14 for proper piping layout. A Rinnai valve kit can be used on domestic water connections for all Q Premier boilers to allow for cleaning of the domestic plate heat exchanger and domestic hot water tank.

  • Page 31: Pressure Relief Valve For Combi Boilers

    For Canada, use CSA or ULC certifi ed PVC or CPVC pipe, fi ttings and cement. Periodic cleaning of the condensate disposal system must be carried out. NOTICE See the Rinnai Boiler Applications Manual for further information and a piping diagram for the condensate.

  • Page 32: Vent System And Air Supply System

    If it becomes necessary to access an enclosed vent system for service or repairs, Rinnai is not responsible for any costs or diffi culties in accessing NOTICE the vent system. The limited warranty does not cover obtaining access to an...

  • Page 33: Examples Vent And Air Supply Systems (Concentric)

    6.7.2a Examples vent and air supply systems (concentric) Examples wall terminals Wall thickness for vent termination installation: Minimum: 100mm / 4” Maximum: 508mm / 20” Short termination with wall Termination with wall terminal on terminal higher level figure 16A figure 16B Examples roof terminals Short termination with roof Termination with roof terminal...

  • Page 34: Examples Vent And Air Supply Systems (Parallel)

    6.7.2 b Examples vent and air supply systems (parallel) Wall thickness for vent termination installation: Examples sealed combustions Minimum: 100mm / 4” Maximum: 508mm / 20” Horizontal with parallel termination figure 18B Horizontal with concentric termination figure 18A 10" MINIMUM INSIDE EDGE TO INSIDE EDGE 12"...

  • Page 35: Installation Of The Vent System

    See chapter 6.7.3.2 for installation. The maximum permissible pipe length is set out in table 9, chapter 6.7.7. Rinnai strongly recommends the use of the room air fi lter when a Room Air NOTICE System (indoor combustion air) is used.

  • Page 36: Boiler Conversion From Concentric To Parallel

    6.7.3.1 Boiler conversion from concentric to parallel A. 1. Push the 2 clips slightly outwards B. 2. Pull the concentric adaptor out of the boiler 3. Press the cover in the connection at the back from inside out C. 4. Push the 3" adapter into the connection at the back of the boiler (= air intake) 5.

  • Page 37: Recommended Vent/Air Intake Terminal Position

    6.7.4 Recommended vent/air intake terminal position Terminals should be positioned as to avoid products of combustion entering openings into buildings or other vents. Maintain 12” of clearance above highest anticipated snow level or grade or, whichever is greater. Please refer to your local codes for the snow level in your area.
  • Page 38 The terminal must be located in a place not likely to cause a nuisance. NOTICE Use the Instructions of the Rinnai venting system for installation and service. Cellular or Foam core PVC, CPVC and Radel is not permitted for use with the NOTICE boiler.

  • Page 39: Direct Vent Closet And Alcove Installation

    Failure to follow this warning could result in fi re, personal injury, or death. Rinnai strongly suggests the use of concentric venting for all closet and alcove installations. For non direct vent room air applications see sections 6.7.6 and 6.7.9.

  • Page 40: Dimensioning Of The Exhaust And Air Intake Duct

    Failure to provide a properly installed vent and air system may cause severe personal injury or death. Use only the material listed in Rinnai's vent documentation for vent pipe, and WARNING fi ttings. Failure to comply could result in severe personal injury, death or substantial property damage.

  • Page 41: Combustion Air And Vent Piping Lengths

    6.7.7 Combustion air and vent piping lengths. In the table below you will fi nd the maximum equivalent pipe length of the vent/air system based on 3" diameter. These lengths are for single pipe (room air), twin pipe, and concentric venting systems. Boiler type 3”...

  • Page 42: Calculation Of Compensation Factor

    Engineering group. This is to ensure the product is installed and the overall system is designed properly and that the units are commisioned properly. Not involving of Rinnai's Engineering group would result in no support of the product and no warranty.

  • Page 43: Room Air System (Indoor Combustion Air)

    6.7.9 Room Air System (indoor combustion air) When using indoor air, Rinnai strongly recommends the use of an indoor air fi lter, P/N 808000025. This boiler requires adequate combustion air for ventilation and dilution of fl ue WARNING gases. Failure to provide adequate combustion air can result in unit failure, fi re, explosion, serious bodily injury or death.
  • Page 44 Confi ned Space: (Small Room, Closet, Alcove, Utility Room, Etc.) A confi ned space is defi ned in the NFPA #54 as "a space whose volume is less than 50 cubic feet per 1000 Btu/hr (4.8 m3 per kW per hour) of the aggregate input rating of all appliances installed in that space."...
  • Page 45 Using Indoor Air For Combustion When using air from other room(s) in the building, the total volume of the room(s) must be of adequate volume (Greater than 50 cubic feet per 1000 Btu/hr). Each combustion air opening must have at least one square inch of free area for each 1000 Btuh, but not less than 100 square inches each.

  • Page 46: Electrical Connections

    Electrical connections The electrical connections to the boiler must be electrically grounded in accordance with all applicable local codes and the latest revision of the National Electrical Code, ANSI/NFPA-70. Installations should also conform with CSA C22.1 Canadian Electrical Code Part 1 if installed in Canada. Devices such as, outdoor sensor, room thermostat or temperature control and temperature sensor or thermostat are all connected to the internal connection terminal.

  • Page 47: Controls

    Controls The Rinnai room thermostat and controls must be connected to their allocated connections. All other types or makes of room thermostats or controls which NOTICE are used must have a Volt free contact. When using an on/off thermostat or control, it may be necessary to calibrate the anticipating resistance to prevent too high temperature fl...

  • Page 50: Boiler Controls

    Boiler controls The boiler is provided with a fully automatic microprocessor control, called CMS Control Management System. This control simplifi es operation by undertaking all major control functions. Initially when power to the unit is switched on it will remain on standby.

  • Page 51: Explanation Of The Function Buttons

    9.1 Explanation of the function buttons Boiler control panel fi gure 29 Only licensed professionals who are trained for servicing these boilers are NOTICE permitted to make alterations in the controller to calibrate the boiler to the installation. 1. Display. See previous page for further information. 2.

  • Page 52: Starting Up: Filling And De-Aerating The Boiler And Installation

    fl ushed to remove sediment. Flush until clean water runs free of sediment. Rinnai suggests using an approved system cleaner to fl ush the system, but not the boiler. Always use Rinnai approved antifreezes. See the list at the end of this chapter.

  • Page 53: Filling The Heating System

    The system should be tested at least once a year and as recommended by the producer of the glycol solution. The allowed maximum concentration is 50%. Use only Rinnai approved inhibitors. See below for an approved list of inhibitors. NOTICE...

  • Page 54: Hot Water Supply

    13 If A XX appears on the display, wait for 17 minutes; 14 Check the water pressure and if necessary top it up to 16 to 18 PSI 15 Close the fi lling loop; 16 Press the ‘STEP’-button; 17 Be sure that the fi lling loop is closed. 18 After the automatic de-aeration program (A XX) is fi...

  • Page 55: For Your Safety Read Before Operating

    FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal injury or loss of life. A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the burner.

  • Page 56: Adjustments

    CAUTION commissioning of the boiler. Read through the Parameter chapter to adjust the boiler to its installation. Contact Rinnai in case of doubt. Only licensed professionals who are trained for servicing these boilers are NOTICE permitted to make alterations in the controller to calibrate the boiler to the installation.
  • Page 57 Parameter Mode DESCRIPTION PARA FACTORY RANGE 176°F maximum supply temperature CH 68 - 176°F type of CH installation: 00 - 04 No pre-selection made. Radiators, air heating, or convectors: T max. supply 176°F K factor heating curve 2.3; gradient 10°F/min; gear differential 10°F 01 DO NOT USE radiators with large surface areas or underfloor heating as additional heating: T max.

  • Page 58: Outdoor Reset

    NOTICE the adjustments which are stated in this table are unnecessary when in combination with the Rinnai RS100 thermostat and will be taken care of by the RS100 itself and do not have to be adjusted. For further information regarding to the RS100 thermostat refer to the Rinnai RS100 installation manual.

  • Page 59: Activating Factory Settings (Green Button Function)

    11.2 Activating factory settings (green button function) To activate the factory settings again please follow the next procedure (Note: all altered adjustments will be set back to the original factory settings that are accessible in the current service level the boiler is in either user or 123): Select, when necessary, the technical read out;...
  • Page 60 3. When the impeller spins freely and water exits though the vent port the pump is ready for operation. 4. Replace the vent screw Pump commissioning During the commissioning of the boiler the Rinnai Installation, Commissioning, and figure 31 Service card must be fi lled out.

  • Page 61: Testing For Gas Leaks

    13.1 Testing for gas leaks Prior to start-up of the boiler you must check the external tightness of the gas supply valve and confi rm this in the start-up report. Before leak testing the boiler, ensure all parts of the boiler such as electronics WARNING and wiring are properly covered and protected from the leak testing agent.

  • Page 62: Checking The O

    13.3 Checking the O The O percentage setting is required to be checked at commissioning, NOTICE maintenance and faults and adjusted if needed. The O percentage is required to be checked and adjusted after a conversion WARNING from NG to LP or from LP to NG. This process must be done with a calibrated combustion analyzer that has been set to the correct gas type.

  • Page 63: Measuring The Ionization Current

    Ending the O measuring procedure: Press the - button until is shown (keep button pressed). With this the procedure has ended. Replace the black cover on the gas valve and secure it with the screw. 13.4 Measuring the ionization current Switch off the system using the Central Heating button and the DHW button Disconnect plug...

  • Page 64: Installing The Casing

    fi rst. When doing this the circumstances of the boiler’s location must be taken into account. From this one can determine whether to deviate from this advice. Please contact Rinnai for further guidance on the frequency and service NOTICE requirements.

  • Page 65: Visual Inspection For General Signs Of Corrosion

    NOTICE The conditions (eg. supply air quality) in which the boiler is installed should be taken into account. This will show whether the frequency of replacement should be reduced or increased. If in doubt, contact RINNAI.

  • Page 66: Maintenance Activities

    14.3 Maintenance activities The fan unit and burner cassette (fi gure 38 to 40) (every 4 year maintenance) Remove the electrical connection plug from the gas valve (1) and fan motor (2); Loosen the nut (3) of the gas pipe under the gas valve; Replace the gasket with a new one;...
  • Page 67 WARNING the boiler can be damaged and may cause property damage, personal injury or loss of life. Use of non-Rinnai parts will result in the voiding of the limited warranty. WARNING Do not use substitute materials. Use only parts certifi ed with the appliance.

  • Page 68: Reset Service Interval Counter

    Visual inspection of the fl ame (2 and 4 year maintenance) The burner must fl ame evenly over the entire surface when operating correctly. The fl ame must burn with a clear, blue, stable fl ame. Check the fl ame through the inspection glass in the ignition probe (fi g. 44). The fl...

  • Page 69: Parts Of The Boiler

    T3 DHW tank sensor P1 water pressure sensor G gas pipe S supply connection heating R return connection heating D condensate pipe X DHW circulation return pipe C cold water pipe H hot water pipe Rinnai Q Premier figure 45...

  • Page 70: Blocks And Errors

    Blocks and Errors 16.1 Error indication (short reference) A detected error is indicated on the display by means of blocking or error messages. A distinction should be made between these two messages due to the fact that blocking can be of a temporary nature, however, error messages are fi xed lockings. The control will try its utmost to prevent locking and will temporarily switch off the unit by blocking it.

  • Page 71: Blocks

    The pump continues to operate at minimum capacity during the block. Incorrect parameter setting for Call Rinnai the minimum or maximum power A temperature difference has Check the supply and return sensor for the resistance value and replace...

  • Page 72: Errors

    16.3 Errors Code Description Solution Incorrect fl ame formation. boiler Check whether the ionization cable and/or the electrode are responsible for a has not been burning but an possible short-circuit. Remove the plugs from the ionization cable connected ionization fl ow (fl ame) has still to the control unit and to the electrode.
  • Page 73 Code Description Solution Control unit error Anticipation resistance wire not When a power stealing room stat device is placed the connection terminal present needs to be provided with the special anticipation resistance wire. Software error control unit. Replace the control unit. The controller will automatically load the program into the new control unit.
  • Page 74 Code Description Solution No signal from the fan The fan is not running. Check the wiring to the fan and the control unit and/ or the 24 volt power supply to the fan Wiring and voltage are OK and error is repeated. Replace the fan Negative pressure on vent Check vent system.
  • Page 75 Code Description Solution contact for return sensor T2 Check the data in Error mode. Boiler data during error: open 1 Error = 37 2 Operational status = 00 3 Flow temp. = xx* 4 Return temp. = -22 5 kW burner = 00** 6 % pomp = xx*...

  • Page 76: Other Errors

    16.4 Other Errors Complaint Description Solution Switch on DHW program on the Control Tower Central heating but no -Key of the DHW program is not domestic hot water switched on 2. T3 DHW sensor defective. Replace DHW sensor 3. When using RS100 - Check timer times for DHW program, if necessary reset - RS100 does not respond to DHW program...

  • Page 78: Spare Parts

    Spare parts...

  • Page 88: Parts List Vent System

    Roof Kit (w/cap) FSSCTRK35 Manufacturer Descriptions Parts # 1 Meter Sections of PP/PVC, 3”/5” 224080 Rinnai/ Ubbink 90 Degree, Male x Female, PP/PVC, 3”/5” 224078 Horizontal PP Termination, 21 inch 223175 Vertical PP Termination 184162 Condensing Raised Horizontal Termination Snorkel Kit 224047PP Condensing 45 Deg.
  • Page 89 Manufacturer Descriptions Parts # 3” PVC Concentric Vent Termination 1CT0303 York International Manufacturer Descriptions Parts # 3"/4" B-Vent Chimney Cover IABC0304 CentroTherm 3"/5" B-Vent Chimney Cover IABC0305 3"/6" B-Vent Chimney Cover IABC0306 3"/7" B-Vent Chimney Cover IABC0307 3'' Connector Ring IANS03 3"...

  • Page 90: Common Venting Guidelines

    Vent Manufacturer Contact Information for Installation Instructions and Parts Lists: Heat-Fab Rinnai/Ubbink Telephone: 800-772-0739 Telephone: 800-621-9419 Fax: 413-863-4803 Fax: 678-829-1666 cystsvc@heat-fab.com www.rinnai.us www.heatfab.com York International Telephone: 405-364-4040 IPEX Telephone: 800-463-9572 877-874-7378 905-403-0264 www.york.com/products/unitary/ Fax: 905-403-9195 www.ipexamerica.com CENTROTHERM Eco System Telephone:...

  • Page 91: Appendix A - Outoor Reset Sensor Data

    Appendix A - Outoor Reset Sensor Data R 25 °C 12 k R 100 ° C 25/85 c i f Temp [°C] [kOhm] 171.70 98.82 58.82 36.10 22.79 14.77 12.00 9.81 6.65 Temp [°C] 4.61 3.25 2.34 1.71 1.27 0.95 0.73 0.56...

  • Page 92: Appendix B - Resistance Table Ntc Sensors

    Appendix B - Resistance table NTC sensors Temp NTC 12K °F (12k /77°F) supply sensor T1 return sensor T2 DHW sensor T3 outside sensor T4 flue gas sensor T5 98,000 -0.4 90,000 82,000 74,000 10.4 66,000 58,000 17.6 53,500 21.2 49,000 24.8 45,000...
  • Page 94 P e a c h t r e e C i t y , 3 0 2 6 9 Toll Free: (800) 621-9419 • Tel: (678) 829-1700 • Fax: (678) 829-1666 • E-mail: info@rinnai.us • Internet: www.rinnai.us E. & O. E.
