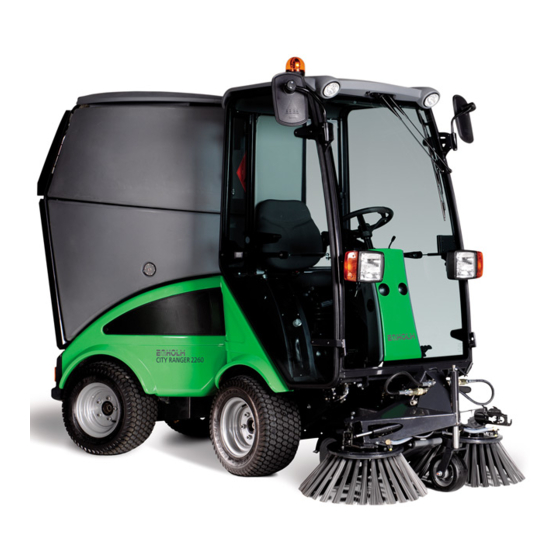

Nilfisk Egholm City Ranger 2200 Operator's Manual

Suction sweeper
Hide thumbs Also See for City Ranger 2200:
Table of Contents

Advertisement

Quick Links

O
´
peratOr
s manual
SUCTION SWEEPER
City Ranger 2200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Ranger 2200 and is the answer not in the manual?

Questions and answers

Related Manuals for Nilfisk Egholm City Ranger 2200

Summary of Contents for Nilfisk Egholm City Ranger 2200

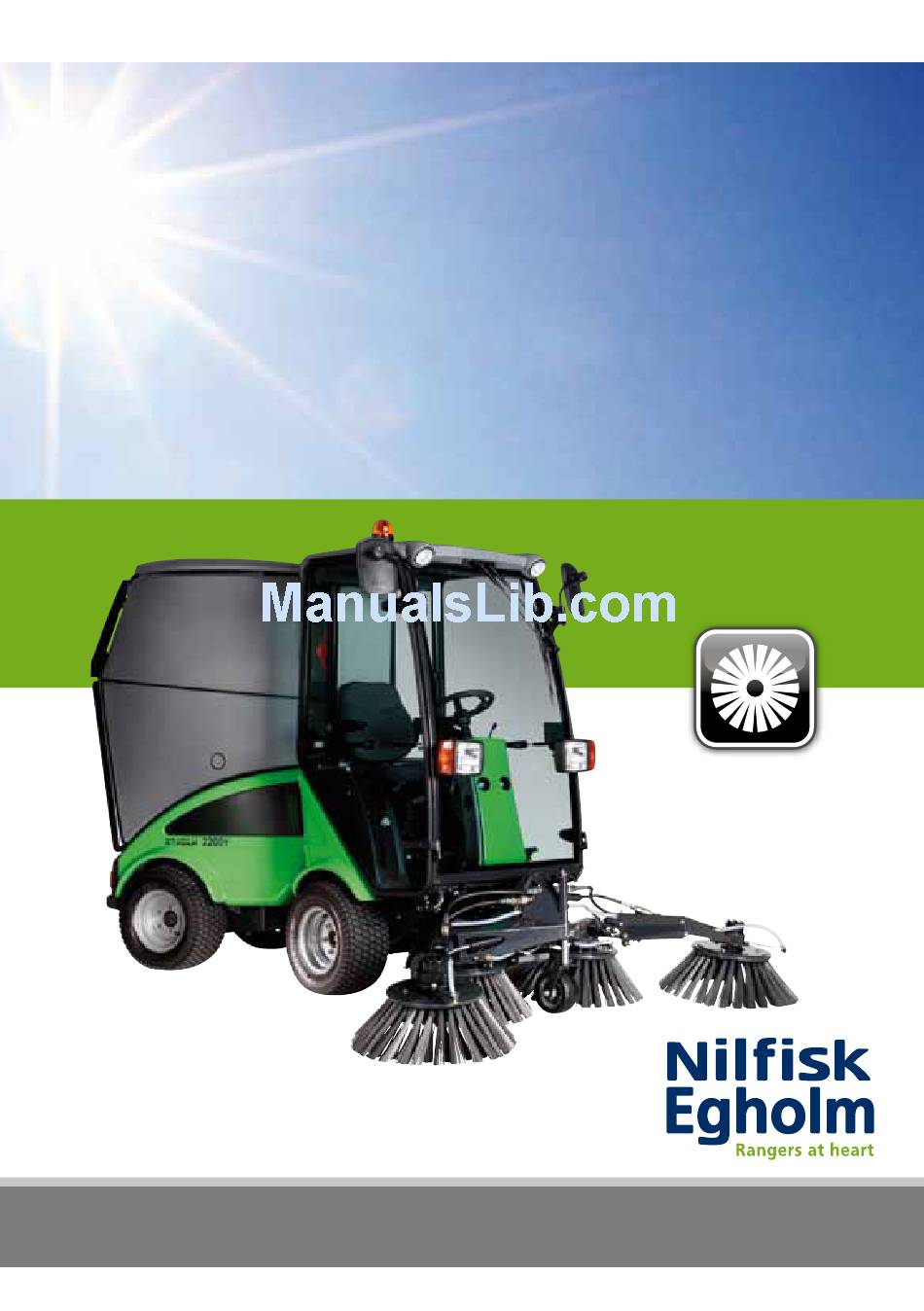

  • Page 1 ´ peratOr s manual SUCTION SWEEPER City Ranger 2200...
  • Page 2 Introduction Dear Customer Congratulations with your Nilfisk-Egholm product. The City Ranger 2200 is a Danish designed and manufactured product, which offers a very flexible way of maintaining outdoor areas. Optimal use of your Nilfisk-Egholm Suction Sweeper: To ensure optimal performance of your Nilfisk-Egholm Suction Sweeper, please read this manual carefully before using the machine.

  • Page 3: Table Of Contents

    5.1 Spare parts – City Ranger 2200 Suction Sweeper ....... .

  • Page 4: General Information

    Keep a good grip of the lever until the hopper is on the machine. (Picture 3) Risk of crushing Make sure no one gets their fingers trapped when the hopper is lowered after tipping. (Picture 4) Hopper is lowered Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 5: Ec Declaration Of Conformity

    · has been manufactured in conformity with the provisions of Machinery Directive 2000/14/EU and in accordance with · DS/EN 13019 Machines for road surface cleaning – Safety requirements Place: Lemvig Date: Signature: Knud Olsen, Senioringeniør Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 6: Technical Data

    (Dependant on type of surface and surface conditions) Water capacity One water-sprayer approx. 2½ hours Three water-sprayers approx. 1½ hours Hydraulic oil Texaco Rando HDZ 46 or equivalent PM10 certified Attention: Specifications may change without notice. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 7: Operator's Manual

    Sweeper. Fold it down in reverse order and hang it on the hopper. Attention! The hopper must never be emptied when the hopper frame is hanging on the Suction Sweeper. Two bolts on the hopper frame Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 8: Assembly / Disassembly

    6. Lock the attachment in place by turning the locking handle on the A-frame all the way to the right. (Picture 3) Tilt the attachment into the machine Removing the front brush Follow the fitting procedure in reverse order. Locking Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 9 4. Lift the side-brush under the panel for the hydraulic motor. (Picture 2) 5. Guide the side-brush to the front-brush fixture. (Picture 3) 6. Snap on the side-brush. (Picture 4) Side-brush (Continues on page 10) Front-brush fixture Snap on the side-brush Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 10 9. Tighten the bolts on the side-brushes regularly. Removing side-brushes Follow the assembly procedure in reverse order. Hydraulic hoses + water hoses on the A-frame are fitted Hydraulic hoses + water hoses on the side-brush are fitted Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 11 6. Press the lever down, push the locking latch free from Cleaning couplings the barb and lower the hopper slowly over the machine. (Picture 4) Fitting the hopper Locking lever Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 12 Keep a good grip of the hopper frame lever when the hopper is lowered. Removing the hopper The locking handle is turned Follow the fitting procedure in reverse order. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 13: Checks Before Start-Up

    1 ¼ hours of use. If only the water-sprayer in the hopper is used, then it will have enough water for four hours of use. Tank gauge Water-sprayer in the hopper Water-sprayer – front brush Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 14 Stop the turbine immediately if there is imbalance/ vibration in the filter or in the turbine. A low-level switch has been fitted which automatically stops the water pump if the water tank is empty. PTO (rear) Water-sprayer in the hopper Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 15 Transport lock – locked How to unlock the transport lock: Unhitch the handle and lift the A-frame to the uppermost position. The attachment can now be lowered again. (Picture 3) Transport lock – unlocked Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 16: Suction Sweeper Start-Up

    6. Engage the weight distribution using the red button on the joystick. (Picture 2) The front brushes will now adjust to ground conditions. To adjust the weight distribution: Read the operator’s manual for the basic City Ranger 2200 machine. Weight distribution Engaging the left side-brush 7.

  • Page 17: Using External Vacuum Hose

    5. Lift the locking clip and pull the vacuum hose out. (Picture 3) 6. Pull out the vacuum nozzle. (Picture 4) Change-over handle Locking clip is released by lifting Handle – vacuum nozzle Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 18 (Picture 1) 2. Fold the handle in. 3. Snap the handle into the lock. 4. Turn the change-over handle so the arrow points up. (Picture 2) Locked Vacuum nozzle Handle Change-over handle Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 19: Emptying The Hopper

    15 s after the turbine has been switched off (PTO rear). There is a risk of crushing while the hopper is being emptied. Make sure the hopper is completely lowered after emptying! Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 20: Emptying The Hopper For Water

    – the same solution as if protecting a sprinkler system against ice. 2. Turning the turbine and water supply to the front brushes on, the liquid runs through the whole system and protects it against ice. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 21: Adjustment

    3. Screw the parallel rod back. The forward edge of the brush lifts. 4. The optimal brushing position is with the forward 1/3 of the brushes in contact with the ground. Ground clearance Counter nut – parallel rod Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 22: Service And Maintenance

    If the rotary filter cannot be cleaned or is worn, it should be replaced. New filters can be ordered from an authorised Nilfisk-Egholm distributor. Replacing the turbine The turbine should be replaced at an authorised Nilfisk- Turbine Egholm distributor. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 23: Maintenance

    New cylinder brushes can be ordered from an authorised Egholm distributor. The vacuum nozzle pulls up Attention! Give careful attention to string or any other similar material stuck to the cylinder brush. Such material must be removed. Cylinder brush Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 24 3. Turning the water pump on. (See Section 2.4) 4. When the solution begins to flow out of the front brushes and the turbine sprayer, this liquid can be bled from the tank and subsequently re-used. Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 25 1. Dirt stuck in the rotary filter, rotary filter grill or turbine. 2. The filter or turbine is damaged. New filters, rotary filter grills and turbines can be ordered from an authorised Nilfisk-Egholm distributor. Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 26 3. The hopper’s own weight will hold it in position. Hopper fully-tipped (Picture 3) Attention! The hopper has a break valve fitted to ensure the hopper continues to lift to its full height if a hydraulic hose breaks. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 27: Troubleshooting

    5. No power to the pump. 6. Faulty sensor or relay. 7. Faulty pump. 8. Water hose is leaking or not fitted correctly. New pumps can be ordered from an authorised Nilfisk- Egholm distributor. Operator’s Manual City Ranger 2200 Suction Sweeper...
  • Page 28 2. Blocked rotary filter / faulty rotary filter. (See paragraph 3.1, cleaning / replacing the filter system) 3. Blocked change-over handle between suction at the front brushes / remote vacuum hose. 4. The hopper is full. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 29: Conditions

    · Machines with illegible serial numbers. · Damage caused by force majeure such as lightning, flood, fire, war, civil disturbance, etc. or other causes over which Nilfisk-Egholm A/S has no control. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 30: Complaints

    2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable environmental legislation. 3. After the parts mentioned have been removed, the machine is ready to be handed over to one of your local approved scrap merchants. Operator’s Manual City Ranger 2200 Suction Sweeper...

  • Page 31: Spare Parts

    Spare parts 5.1 Spare parts – City Ranger 2200 Suction Sweeper 09922730 Rotary fan grill 09720480 Centre brush 09722010 Flap for vacuum head 2200 09709600 Rotary filter 41201780 Spray holder tank 01100330 Support wheel 04703090 Vacuum hose 150 mm 01402100 Side-brush water sprayer...
  • Page 32 Nilfisk-Egholm A/S Transportvej 27 DK-7620 Lemvig T. +45 97 81 12 05 F. +45 97 81 12 10 www.nilfisk-egholm.com info@egholm.dk 70101001-01 UK...
