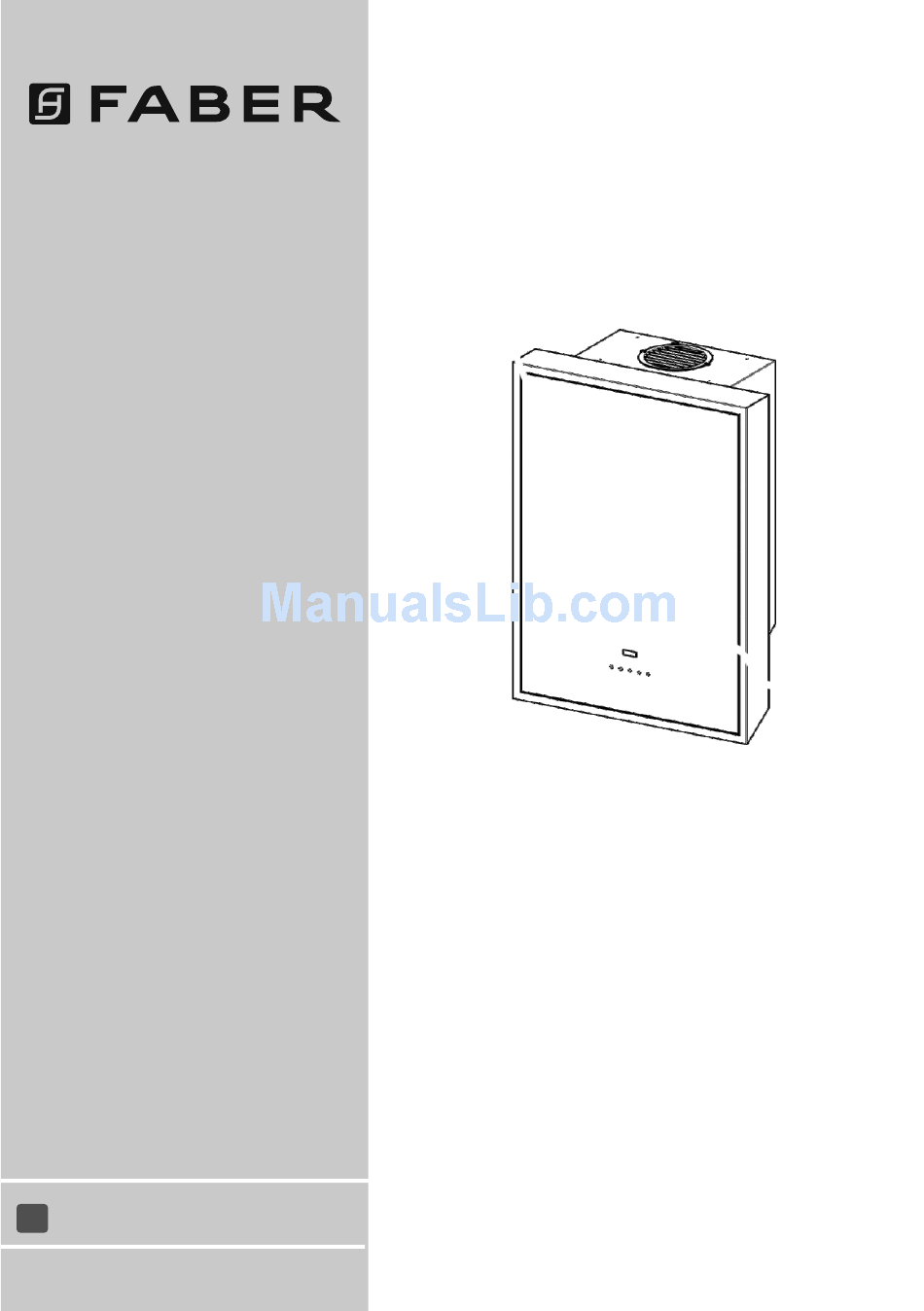

- Page 1 TITANO INSTRUCTIONS MANUAL...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 3 CHARACTERISTICS Components Ref. Q.ty Product components Hood Body complete with: Controls, Light, Suction Unit, Filters, Lower Duct PVC Pipe (fitted) Inclinable grid (fitted) Reduction flange ø 150-120 mm Metal cover Ref. Q.ty Assembly components Wall Plugs SB 12/10 Plugs Screws 4,2 x 44,4 Q.ty Documents Instruction Manual...
- Page 4 Dimensions...
-
Page 5: Installation
INSTALLATION Drilling the Wall If the hood is to be connected in the ducting version, with the pipe coming out of the back, re- member that the air venting duct must be created as indicated in the drawing. Rear air outlet area If the hood is fitted in the recirculation version, bear in mind that there must be a minimum dis- tance of at least 8-10 Cm left between the top of the hood and the surface above it (ceiling or... - Page 6 Mounting the hood body • Remove the metal grease filters by turning the handles pro- vided. • Adjust the two screws Vr, on brackets 11a, to a minimum. • Hook the hood canopy onto the two brackets 11a. • From inside the hood canopy, adjust the screws Vr to set the Hood Canopy level.
-
Page 7: Electrical Connection
AIR OUTLET IN A RECYCLING HOOD VERSION • In case the components requested for the recycling functioning have been removed earlier these have to be positioned again. • Put the plastic tube onto the flange 7. • Place the air outlet grid 8 on the air outlet. Make sure that the position of the grid is correct. - Page 8 Control panel Button Function Turns the Motor off. Turns the motor on at speed one Buttons T1+T2 are on. Turns the Motor on at speed two Buttons T1+T3 are on. Press and hold for 2 seconds to enable The respective buttons T1+ shutdown with minute...
-
Page 9: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
