Button Description - WebDT 366 Basic Operation Manual

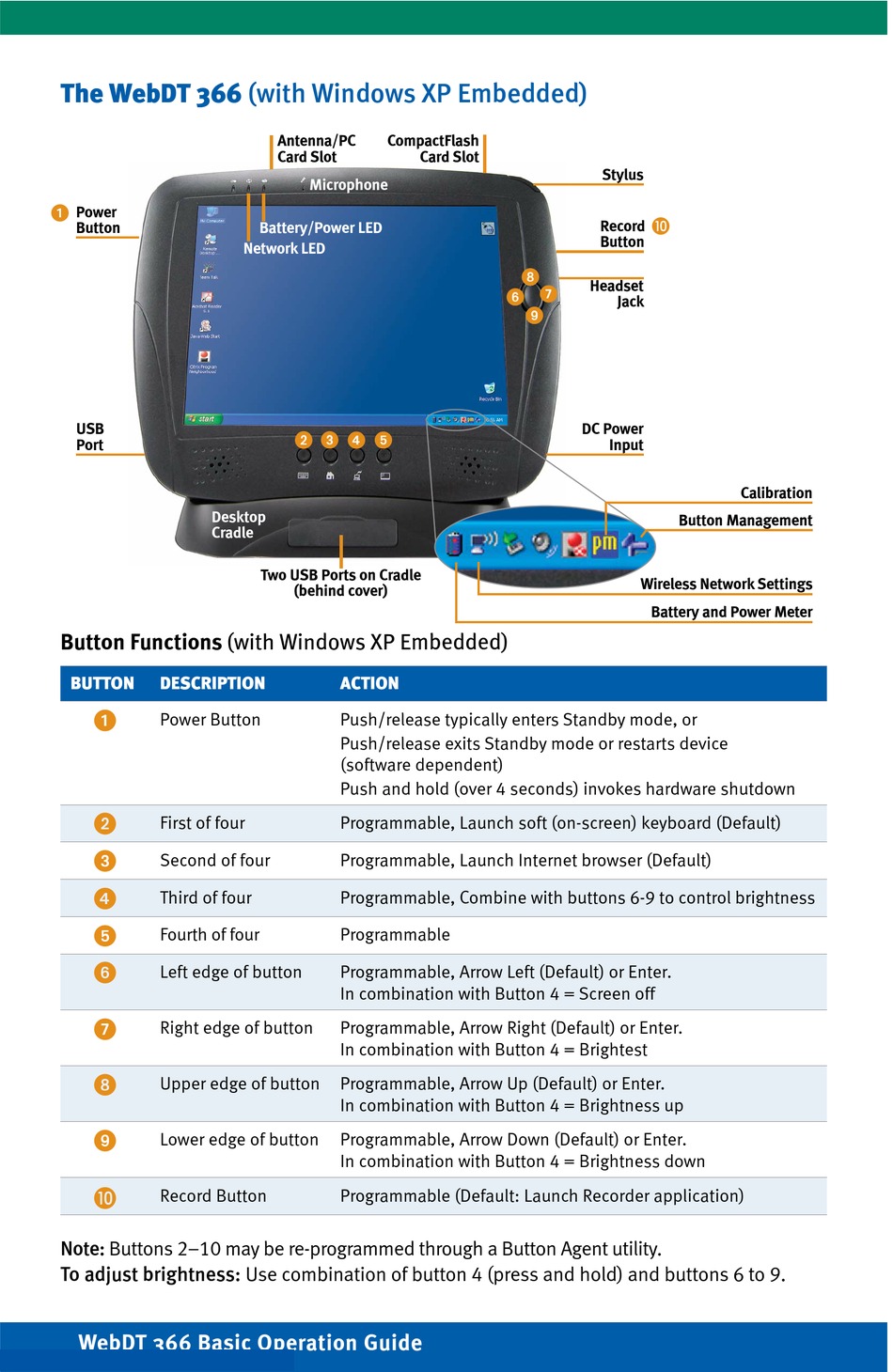

The WebDT 366 (withWindowsXPEmbedded)
1 Power
Button
USB
Port
Desktop
Cradle
Button Functions (with Windows XP Embedded)
BUTTON DESCRIPTION
1
Power Button
2
First of four
3
Second of four
4
Third of four
5 Fourth of four
6
Left edge of button
7
Right edge of button
8
Upper edge of button
9
Lower edge of button
Record Button

Note: Buttons 2–10 may be re-programmed through a Button Agent utility.
 T oadjustbrightness: Use combination of button 4 (press and hold) and buttons 6 to 9.
WebDT 366 Basic Operation Guide
Antenna/PC CompactFlash
Card Slot
Microphone
Battery/Power LED
Network LED
2 3 4 5
Two USB Ports on Cradle
(behind cover)
ACTION
Push/release typically enters Standby mode, or
Push/release exits Standby mode or restarts device
(software dependent)
Push and hold (over 4 seconds) invokes hardware shutdown
Programmable, Launch soft (on-screen) keyboard (Default)
Programmable, Launch Internet browser (Default)
Programmable, Combine with buttons 6-9 to control brightness
Programmable
Programmable, Arrow Left (Default) or Enter.
In combination with Button 4 = Screen off
Programmable, Arrow Right (Default) or Enter.
In combination with Button 4 = Brightest
Programmable, Arrow Up (Default) or Enter.
In combination with Button 4 = Brightness up
Programmable, Arrow Down (Default) or Enter.
In combination with Button 4 = Brightness down
Programmable (Default: Launch Recorder application)
Card Slot
8
6 7
9
DC Power
Stylus
Record 
Button
Headset
Jack
Input
Calibration
Button Management
Wireless Network Settings
Battery and Power Meter
