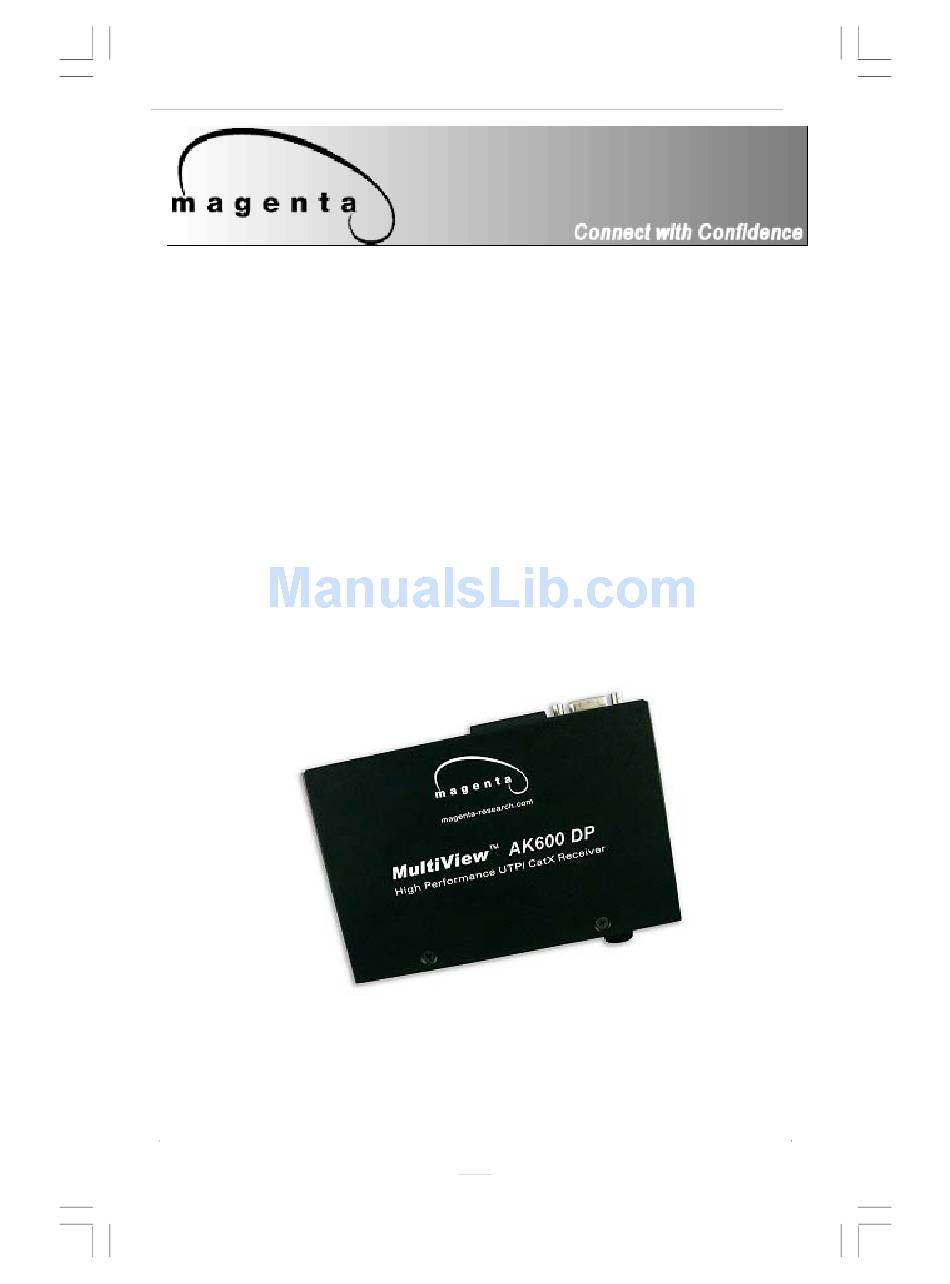

Page 1: Quick Reference
MultiView AK600 Receiver Quick Reference & Setup Guide Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com... - Page 2 New Milford, CT 06776 USA This document and the Magenta Research products to which it relates, and the copyright in each, is the property of Magenta Research. Neither the document nor the products may be reproduced by any means, in whole or in part, without the prior written permission of Magenta Research.
-
Page 3: Table Of Contents
Contents Contents Chapter Page Specifications....................2 Introduction ........…............3 2.1 Overview.....................3 2.2 Equipment You May Also Need............…..3 2.3 Compatible Cabling ................…...….3 3. Setup and Installation..........… ........….4 3.1 Data Mode Configuration................4 3.2 Cabling Considerations................4 3.3 Making the Connections........…..........4 3.3.1 Connections and Setup in General ........……..4 3.3.2 Connections on the Single-Port VGA/Audio……....………..…..5 3.3.3 Connections on the Single-Port RS232 version…..…………...………6 3.3.4 Connections on the Single-Port SA/SAP version……………...………7... -
Page 4: Specifications
MAGENTA MULTIVIEW™ SERIES 1. Specifications Cable Required: Category 5, 5e, 6 shielded or unshielded twisted pair Compliance: CE; FCC Class A, IC Class A Video Support: all supported VESA modes to WUXGA (1920x1200), RGBHV, RGB, Composite (NTSC, PAL, SECAM), S-Video, Component Video,... -
Page 5: Introduction
CAT5/5e and may require skew compensation beyond what the standard product offers. Please contact Magenta Research for assistance. CAT5/5e/6 cabling for the Magenta MultiView Series must be pinned to the TIA-EIA T568B wiring specification (see appendix A) We also highly recommend that all CAT5 cables be pre-terminated and tested. -
Page 6: Setup And Installation
TX signal only. See Appendix G on configuration and use of SAP Series. 3.2 Cabling Considerations • We recommend mounting and connecting all cabling to the Magenta MultiView Series components before applying power. • Makes sure that the CAT5 cable you intend to use has been tested to comply with the TIA/EIA 568B wiring specification (See Appendix A). -
Page 7: Connections On The Single-Port Vga/Audio
CHAPTER 3: SETUP & INSTALLATION 4. Connect the CAT5 cable to the transmitter. 5. Apply power on the transmitter. The LED should light and, if there’s a local monitor attached, a video image should appear on the monitor’s screen. At the receiver end: 1. -
Page 8: Connections On The Single-Port Rs232 Version
MAGENTA MULTIVIEW™ SERIES 3.3.3 CONNECTIONS ON THE SINGLE-PORT VGA/RS-232 The Single-Port MultiView™ CAT5 Video System with RS-232 supports video and full- modem serial (RS-232) signals over CAT5 cable. You can also use the transmitters and receivers to make video-only connections without serial communications. Figure 3-3 shows the Single-Port MultiView™... -
Page 9: Connections On The Single-Port Sa/Sap Version
The Magenta MultiView T4, T5 transmitters do not support SA/SAP versions. In order to utilize the full potential of the Magenta MultiView SA/SAP series, all transmitters and receivers must be SA/SAP versions. -
Page 10: Video Adjustment
MAGENTA MULTIVIEW™ SERIES 3.4 Video Adjustment 3.4.1 Cable Distance Compensation Settings In order to get the highest quality video signals from your MultiView CAT5 Video System, please follow the instructions and diagrams below: An Image Adjustment Utility is available for download from: http:// www.magenta-research.com/test... -
Page 11: Skew Compensation Settings
CHAPTER 3: Setup and Installation 3.4.2 Skew Compensation Settings The AK600 receiver is available with an optional skew compensation module to adjust for signal timing differences due to differing pair lengths within the CAT5 cable. Using the delay signals, skew may be compensated from 2 to 65 nanoseconds in 2 nanosecond increments on each individual color pair. -
Page 12: Troubleshooting
MAGENTA MULTIVIEW™ SERIES 4. Troubleshooting 4.1. Common Problems In most cases, nearly every issue with the MultiView CAT5 Video System can be resolved by checking the CAT5 termination and making sure that it’s pinned to the TIA/EIA 568B wiring specification. However, there may be other problems that cause the system to not perform as it’s designed. - Page 13 CHAPTER 4: Troubleshooting Problem: Serial communication doesn’t work correctly. Solution: • Are the serial devices connected properly? Are the serial parameters correct for source/destination devices? • Are the serial cables terminated correctly? If a null-modem cable is used, it must be placed at the receiver end. •...
-
Page 14: Appendix A. Cabling Pinouts
MAGENTA MULTIVIEW™ SERIES Appendix A. Cabling Pinouts Table A-1. HD15 video connector. RGBHV RGBS RGsB Composite SVHS (VGA) (Y/C) Red + Red + Red + Green+ Green+ Green+ Blue+ Blue+ Blue+ — — — Red- Red- Red- Green- Green- Green-... - Page 15 APPENDIX A: Cabling Pinouts Appendix A. Cabling Pinouts Table A-3. DB9 Male Serial connector Full Duplex 3 wire (SA/SAP) Simplex DB9 for RS232 Ground Ground Ground Table A-4. T568B CAT5 pinout...
-
Page 16: Appendix B. Ak600 Configuration Settings
MAGENTA MULTIVIEW™ SERIES Appendix B. AK600 Configuration Settings Note: AK600 receivers are typically pre-configured at time of order and will have factory configuration indicated on the bottom of the unit. The factory configuration may be changed or checked by using the following jumper location diagram as well as Table B-1 for jumper settings. - Page 17 APPENDIX B: AK600 Configuration Settings Table B-1: MultiView AK600 Configuration Jumper Settings Configuration Option (all options JP2 JP3 JP4 utilize 4th pair): RGBHV Computer Video (see note below on daisy chaining) With Left/Right Line Level Audio With SDPIF Digital Audio...
-
Page 18: Appendix C. Serial Daughterboards
MAGENTA MULTIVIEW™ SERIES Appendix C. Serial Daughterboard (SDB) Settings The single-port serial transmitters and single-port and dual daisy chainable serial receivers contain an internal serial daughterboard (SDB) that can be configured for various serial modes. Multi Port Cat5 transmitters do not utilize the SDB and are configured for Mode 1 only. - Page 19 APPENDIX C: Serial Settings Appendix C. Serial Daughterboard (SDB) Settings, cont Table C-2. Receiver SDB jumper settings Mode Type Baud (Max) Simplex 115k 1-2 See Notes 1-2 IN (one way) 3-4 See Notes 3-4 OUT (to 1500 ft) 5-6 IN 5-6 OUT 7-8 OUT 7-8 OUT...
-
Page 20: Appendix D. Setting Sync Modes
MAGENTA MULTIVIEW™ SERIES Appendix D. Setting Sync Mode The AK600 has the capability for fixed and agile sync. The default sync mode setting is for agile sync which replicates the source sync polarity signals. However some displays require a fixed sync polarity that is not possible to change at the video source. -
Page 21: Appendix E. Skew Module
Remove the 3 jumpers from J16 pins 1-2, 4-5, 7-8. Insert the Skew assembly onto the PCB using 11 pin headers J16 and J17. The correct orientation of the skew board is to place the side with the Magenta logo into header J17. -
Page 22: Appendix F. Mounting Options
MAGENTA MULTIVIEW™ SERIES Appendix F. Rackmounting Units The Rackmount Kits include brackets for mounting a single transmitter, single receiver, or a single dual daisychainable receiver. Figure F-1 shows the 1-Unit Rackmount Bracket , which can be used to mount a single unit on a wall. Figure F-2 shows the 4-Unit Rackmount Bracket, which holds four units in a 19"... -
Page 23: Appendix G. Pollable Serial Mode
APPENDIX F: Pollable Serial Mode Appendix G. Pollable Serial Mode The SAP pollable serial daisychainable receivers with video, audio and RS232 serial feature the ability to open a bi-directional session between a pollable transmitter and a single pollable receiver in a daisychain installation. Each pollable receiver must have a unique address set first. - Page 24 MAGENTA MULTIVIEW™ SERIES Appendix G. Pollable Serial Mode Address Chart...
- Page 25 APPENDIX F: Pollable Serial Mode Appendix G. Pollable Serial Mode Address Chart (cont.)
- Page 26 MAGENTA MULTIVIEW™ SERIES NOTES:...
- Page 27 NOTES:...
- Page 28 MAGENTA MULTIVIEW™ SERIES Magenta Research 128 Litchfield Road, New Milford, CT 06776 USA (860) 210-0546 FAX (860) 210-1758 www.magenta-research.com PN 5310214-01, Rev 02, May-2008...
