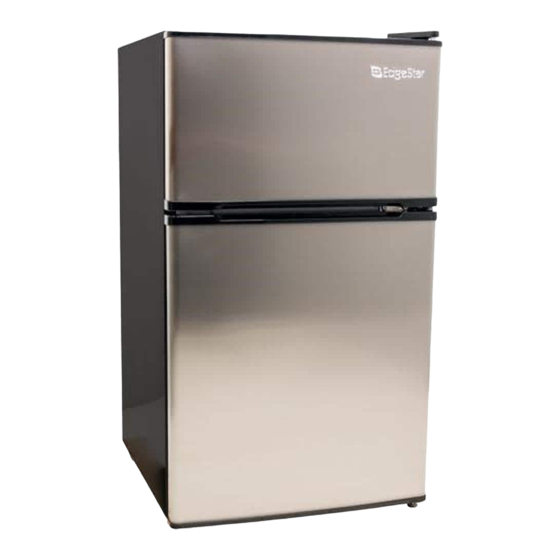

- Page 1 Refrigerator / Freezer CRF321SS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com ...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS ........................2 INSTALLATION ........................... 3 Clearance Requirements ....................3 Reversing the Door Swing ....................3 Door Space Requirements ....................4 Leveling the Unit ........................ 5 Cleaning Prior to Use ......................5 Before Using Your Unit ...................... 5 Interior Accessories ...................... -
Page 3: Safety Warnings
SAFETY WARNINGS 1) WARNING―Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING―Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 3) WARNING―Do not damage the refrigerant circuit. 4) WARNING―Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -
Page 4: Installation
INSTALLATION Clearance Requirements When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. -
Page 5: Door Space Requirements
3) Slide the door down, away from the hinge pin located on the top of the door. 4) Remove the top cover first. Then unscrew the two screws from top bracket and replace on the other side. 5) To install the bracket on the left side of the appliance, screw the two screws through the bracket and into the top of the appliance. -
Page 6: Leveling The Unit
Leveling the Unit To do this, adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly. Cleaning Prior to Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. -
Page 7: Product Overview
PRODUCT OVERVIEW emperatUre control Temperature Control bottle rack Bottle Rack Glass Glass Shelves Vegetable and f ruit crisper Fruit and Vegetable Crisper *All images in this instruction manual are for indication only; please refer to your individual unit for details. OPERATION Adjusting the Temperature When using the refrigerator-freezer for the first time or after defrosting,... -
Page 8: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit ◆ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. ◆... -
Page 9: Cleaning Tips
Cleaning Tips Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance. MAINTENANCE Changing the Internal Light Contact a professional electrician to remove and replace the cabinet’s lamp. -
Page 10: Trouble Shooting
Trouble shooting Before Calling for Help If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem could be something that can easily be solved or explained. Symptoms Possible causes Solutions... -
Page 11: Trouble Shooting Continued
Trouble Shooting Continued Though the unit uses an “auto-defrost” The environment is humid. system, under certain conditions, manual The ambient temperature is too defrosting may be required. If frost builds low. up, you can try running the cooler on a Frost is forming in the cooler. -
Page 12: Disposal
◆ Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. ◆ Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. -
Page 13: Specifications
Specifica ons Description of product Refrigerator / Freezer Model CRF321SS Voltage/Frequency AC 115V~60Hz Amperage 1.0A Input Power Color Black Cabinet; Stainless Steel Door Storage Capacity 3.1 Cu. Ft. Refrigerant R600a, 1.13 oz. Freezer Temperature Range 5 ~ -11.2 ºF Refrigerator Temperature Range 32 ~ 50 ºF... -
Page 14: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished. - Page 15 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2014 Living Direct, Inc. All rights reserved.
