RED SHIELD WS-103 Installation And Operating Instructions

Model WS-103
RED SHIELD PIR MOTION SENSOR
INSTALLATION AND OPERATING INSTRUCTIONS
For use with Red Shield Wire-free Home Protection System
Please keep these instructions in a safe place for future reference.

Kit contents:

1 x Red Shield Motion Sensor
1 x Ball-head joint mounting bracket
3 x Screws and wall plugs
1 x Instruction leaflet

1. Introduction

The Red Shield PIR Motion Sensor is designed to trigger the Red Shield Wire-free Home Protection System
Smart Panel when it senses movement in a given area.
Note: where pets are in the home it is advised that they are not allowed onto higher surfaces (above 1m in
height) where they may trigger the sensor.

2. Location

First determine the location of the Sensor, which should be placed:
• on a solid surface between 1.8m to 2.4mm (6ft to 8ft) from the floor.
• near key entry/exit points
• away from extreme temperature sources (radiators, ovens, stoves etc.) and large metal objects that could
interfere with the wireless performance
• away from direct sunlight.
• indoors only and not behind partitions
• where better RF performance can be achieved (if necessary)

3. Installation and Operation

3.1 Powering up the Motion Sensor

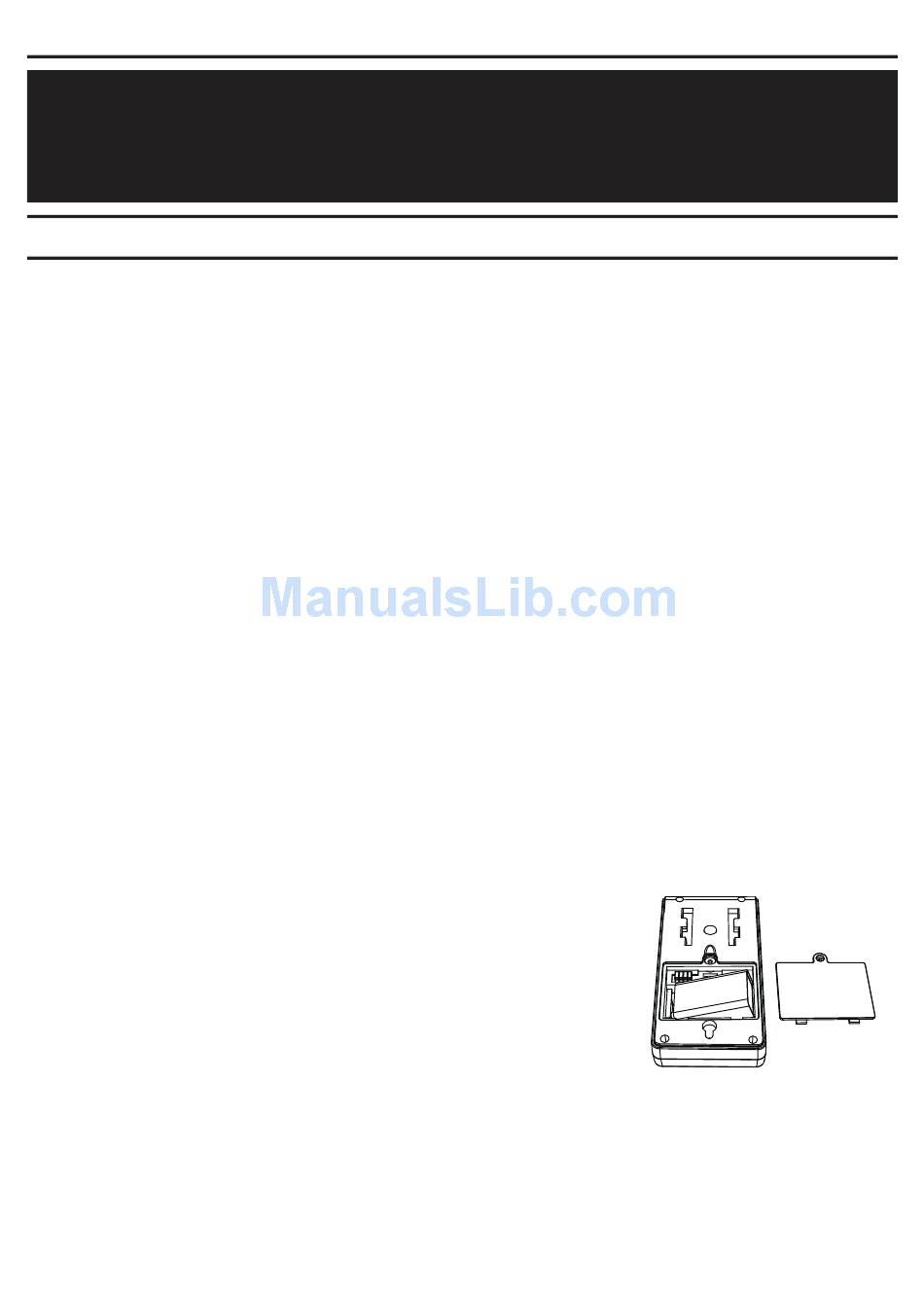

• Remove the battery cover, insert and connect a 9V battery as shown in
diagram below and replace the cover (Requires 1 x 9V battery)
• Low battery indication: If the batteries need to be replaced, the RED LED
will flash (not including entry / exit delay flashing).

3.2 Installing the Motion Sensor

• Hold the enclosed mounting template against the wall at the selected location and mark the points for
drilling.
• Drill the holes and insert wall plugs.
• Attach the bracket to the mounting surface with the screws provided.
• Attach the Motion Sensor to the mounting bracket.
. 1 .
