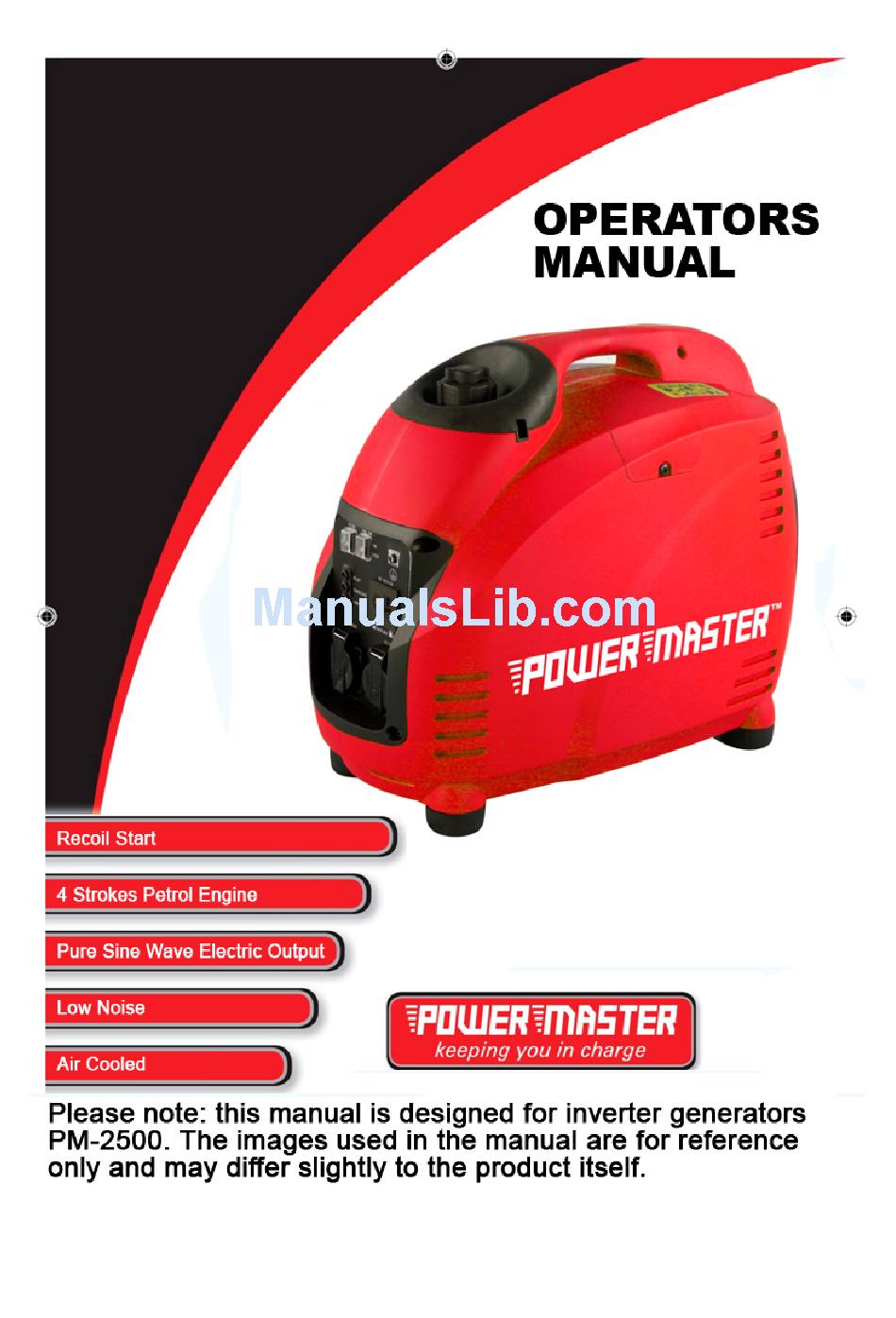

Power Master PM-2500 Operator's Manual
  1. Manuals
  2. Brands
  3. Power Master Manuals
  4. Inverter
  5. PM-2500
  6. Operator's manual

Power Master PM-2500 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Master PM-2500

Summary of Contents for Power Master PM-2500

  • Page 2: General Safety Precautions

    C O N T E N T S: 1.GENERAL SAFETY PRECAUTIONS………………………………………………3-4 2.ELECTRICAL SAFETY PRECAUTIONS……………………………………………4-5 3 . S A F E T Y I N F O R M A T I O N … … … … … … … … … … … … … … … … … … 6 - 7 4 .
  • Page 3 IMPORTANT: Thank you for purchasing a Power Master Gasoline Generating Set (hereinafter referred to as the “generator”). This manual will assist you in operating and maintaining your generator. This manual is the latest version. With the continuous improvement and upgrading of this product, the manufacturer reserves the right to modify this manual without notice.
  • Page 4 •CAUTION: This indicates a hazardous situation, which, if not avoided, could result in injury. GENERAL SAFETY PRECAUTIONS: Danger Warning Caution 1.1. A “LAYMAN” and or “CHILDREN” may not recognize the possible dangers of operating a generator. We recommend that only competent persons should operate the generator. 1.2.
  • Page 5 1.16. It is absolutely essential that you know and understand the safe and proper use of the power tool or appliance that you intend to connect to the generator. All operators must read, understand and follow the tool/ appliance operators maunal. The tool and appliance applications and limitations must be understood.
  • Page 6 When a long electric extension cord is used to connect an appliance or tool to the generator, a certain amount of voltage drop or loss occurs in the extension cord which reduces the effective voltage available for the appliance or tool. The chart below has been prepared to illustrate the approximate voltage loss when an extension cord of 300 feet (approx.100 meters) is used to connect an appliance or tool to the generator.
  • Page 7 ! WARNING ────────────────────────────────── PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE MACHINE. 3．SAFETY INFORMATION 1）EXHAUST FUMES ARE POISONOUS Never operate the generator in a closed area or it may lead to unconsciousness and possible death. Always operate the generator in a well ventilated area. 2）FUEL IS HIGHLY FLAMMABLE AND POISONOUS Always turn off the generator when refueling Never refuel while smoking or in the vicinity of an open flame.
  • Page 8 5）CONNECTION NOTES Do not connect the generator directly to the Utility Power Source. Do not connect the generator in parallel with any other generator. 4．CONTROL FUNCTION DESCRIPTION (1) Economy control switch (2) Engine switch (3) Fuel tank (4) Spark plug (5) Muffler (6) Carrying handle (7) Choke lever...
  • Page 9 (1) Economy control switch (2) Engine switch (3) Fuel tank (4) Spark plug (5) Muffler (6) Carrying handle (7) Choke lever (8) AC pilot light (9) Overload indicator light (10) Oil warning light (11) AC receptacle (12) DC receptacle (13) Ground (earth) terminal (14) Fuel filter (15) Fuel tank cap (16) Recoil starter...
  • Page 10 1）OIL WARNING SYSTEM When the oil level falls below the lower level the engine will stop automatically. Unless you refill with oil the engine will not start again. 2）ENGINE SWITCH The engine switch controls the ignition system. “ON”(run) ① When the ignition circuit is switched on the engine will start. “OFF”(stop) ②...
  • Page 11 5. PRE-OPERATION CHECK NOTE: ──────────────────────── Add at least 2 liters of fuel when using the generator for the first time. Pre-operation checks should be made each time the generator is used. ─────────────────────────── 1）CHECK ENGINE FUEL Make sure there is sufficient fuel in the tank. If fuel is low refuel with clean unleaded gasoline.
  • Page 12 3）GROUND (Earth) Make sure to ground (earth) the generator. 6. OPERATION NOTE: ──────────────────────── The generator has been shipped without engine oil. Fill with oil or it will not start. Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine ───────────────────────────...
  • Page 13 b. Turn the economy control switch to the “ON” position. c. Turn off the switch(es) of the electrical appliance(s) before connecting to the generator. d. Insert the pulg(s) of the electrical appliance(s) into the receptacle. CAUTION: ───────────────────── Ensure that the appliances are “OFF” prior to connecting to the generator.
  • Page 14 3. DC APPLICATION (option)   Aim for specific gravity and charging time 1.30 This usage is applicable to 12V battery charging only. 1.26 (a) Charging instruction for battery 1.22 Disconnect the terminals of the battery. 1.18 1.14 Loosen the battery fluid filler cap. 1.10 Fill distilled water to the upper level.
  • Page 15 7. PERIODIC MAINTENANCE 1) MAINTENANCE CHART Regular maintenance is most important for the best performance and safe operation. Every Pre-operation Initial Every Every Item Remarks check 1 months 6 months 12 months months (daily) or 20 Hr or100Hr or 300Hr or 50Hr Spark Check condition adjust gap...
  • Page 16 Fastener fasteners correct if necessary. Crankcase Check breather hose breather cracks or damage. Replace if necessary Generator Check the pilot light comes on 2）ENGINE OIL REPLACEMENT Place the generator on a flat and level surface and allow the generator to warm up for several minutes. Then stop the engine and turn the fuel cock knob to the “OFF”...
  • Page 17 3. Wash the element in solvent and dry. 4. Oil the element and squeeze out excess oil. The element should be wet but not dripping. 5. Insert the element into the air filter. 6. Install the cover CAUTION: ────────────────────── The generator should never run without the air filter element as this may cause damage to the generator.
  • Page 18 Remove the cover. Remove the muffler screen. Use a flathead screw driver to pry the spark arrester out from the muffler Remove the carbon deposits on the muffler screen and spark arrester using a wire brush. Install the muffler screen. Install the cover 8．TROUBLE SHOOTING 1）GENERATOR WILL NOT START...
  • Page 19 1）DRAIN THE FUEL Remove the fuel tank cap and drain the fuel from the fuel tank Remove the cover and drain the fuel from the carburetor by loosening the drain screw. 2）ENGINE Remove the spark plug and pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole and reinstall the spark plug.
  • Page 20 10. SPECIFICATION MODEL 1200i 1500i 1800i Type Inverter Generator 50Hz 100, 230V, 240V AC Voltage 60Hz 100, 120V, 240V Max. Output 1.2 kVA 1.5 kVA 1.8 kVA Rated Output 1.0 kVA 1.2 kVA 1.5 kVA Power Factor DC Output 12V / 4.0A Model XY147F Type...
  • Page 21 MODEL 2000i 2500i 3500i Type Inverter Generator 50Hz 100, 230V, 240V AC Voltage 60Hz 100, 120V, 240V Max. Output 2.0 kVA 2.5 kVA 3.5 kVA Rated Output 1.8 kVA 2.2 kVA 3.0 kVA Power Factor DC Output 12V / 8.3A Model XY152F-3 XY152F-3...
  • Page 22 11．WIRING DIAGRAM 1200i, 1500i, 1800i DC PROTECTOR DC winding DC SOCKET AC SOCKET Stepping motor Main Economic winding Invert cell switch PILOT Control OVERLOAD winding LOW OIL Oil sensor Engine switch Ignition winding Spring winding High Spark pressure plug wrap...
  • Page 23 2000i, 2500i, 3500i FUSE DC winding Stepping motor Main Economic winding Invert cell switch PILOT Control OVERLOAD winding LOW OIL Oil sensor Engine switch Ignition winding Spring winding High Spark pressure plug wrap...
