WD400U Set up instructions
Removal from crate
1. Remove cardboard carton
from metal frame.
2. Remove metal brackets from
front, rear and handlebars.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WD400U and is the answer not in the manual?

Questions and answers

Related Manuals for Baja motorsports WD400U

Summary of Contents for Baja motorsports WD400U

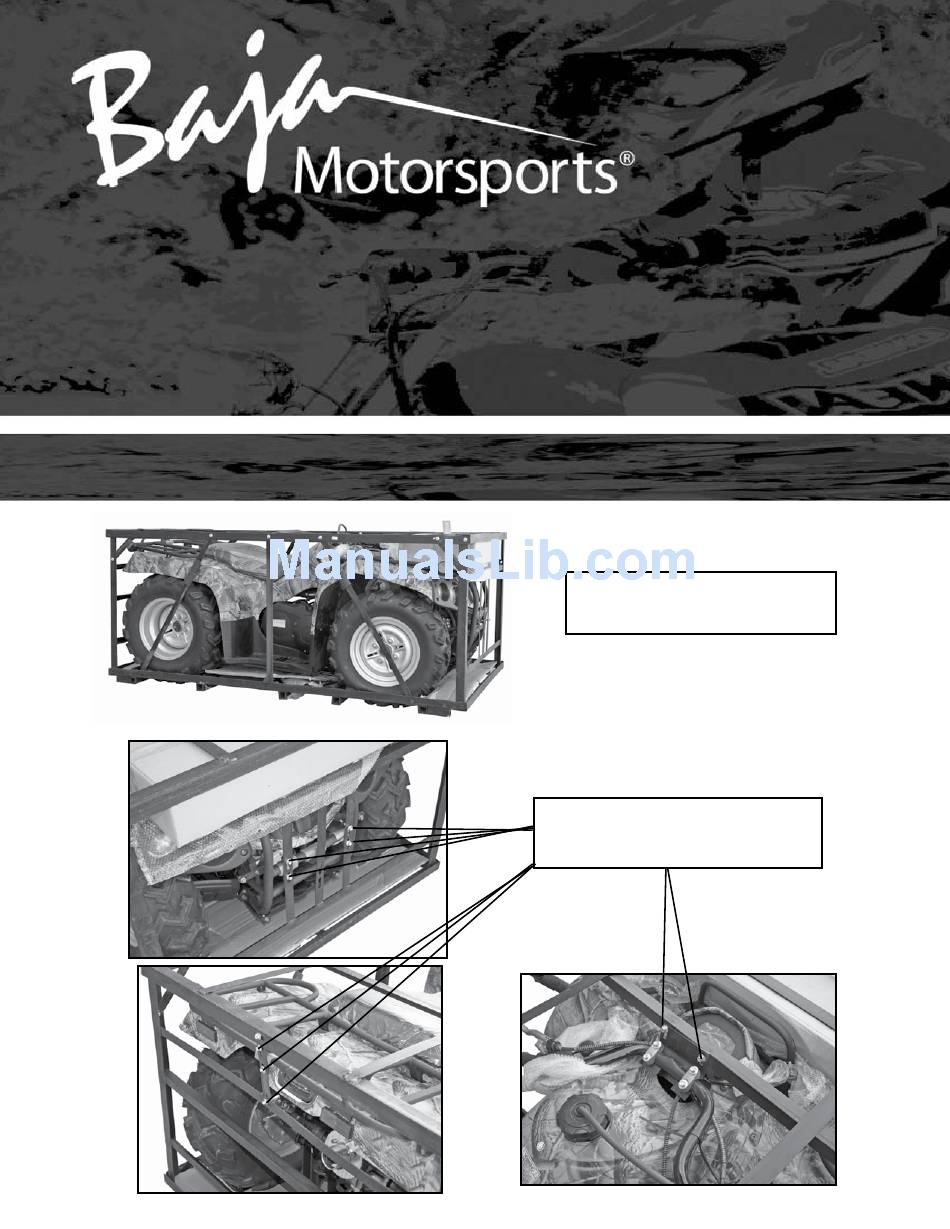

  • Page 1 WD400U Set up instructions Removal from crate 1. Remove cardboard carton from metal frame. 2. Remove metal brackets from front, rear and handlebars.
